替換面

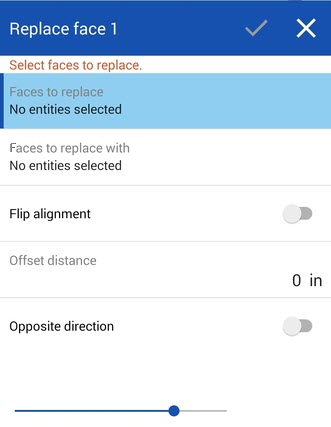

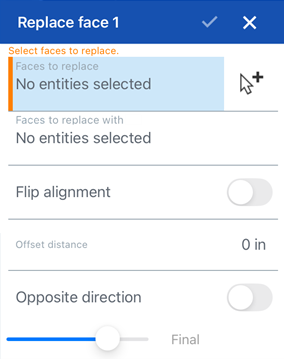

1. Click .

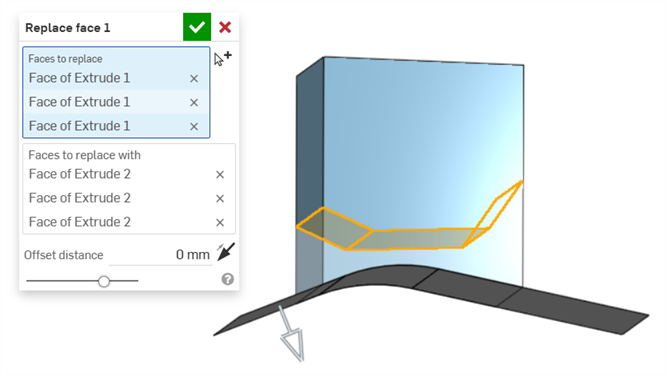

2. 在模型中選擇您要修剪或延伸的面。
3. Select the surface to use for the replacement.

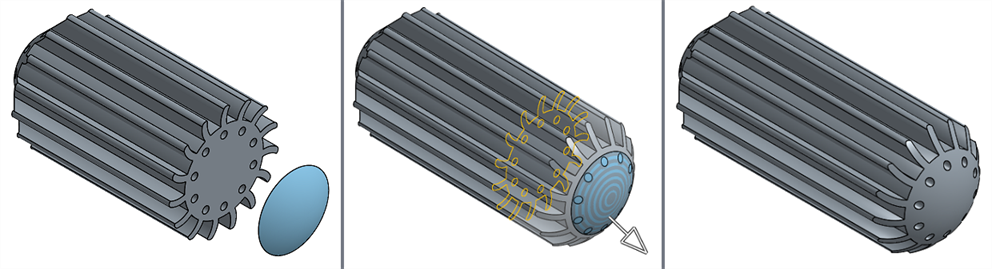

   Notice that a surface has been created in this example, to use to extend the face to. You have the ability to hide and unhide this part in the Parts list of the Feature list box:

4. Optionally provide an offset distance, or flip the alignment.
   • 偏移距離 - 指定分隔面的距離。
   • Flip alignment - Select to change the face being replaced by to an opposing face. The default replacement face is the one closest to the face being replaced:





5. Click .

The Create Selection arrow (next to the Faces field) is useful when selecting related faces for Replace face.

This lists the collection of surface feature tools. This is not an exhaustive list. Additional Feature tools may be used when modeling surfaces. See Surfacing for additional information.

• Thicken - Add depth to a surface. Create a new part or modify an existing one by giving thickness to a surface and converting it to a solid, adding or removing material from an existing part or surface, or intersecting parts in its path.
• Enclose - Create a part by selecting all boundaries surrounding an empty space to form a solid. Use any set of surfaces and solids (including planes and faces) that intersect each other or connect at a boundary to create a volume.
• Fillet - Round sharp interior and exterior edges and define as a standard constant radius, more stylized conic, or variable by selecting Edge fillet. Optionally apply a Full round fillet to create a seamless blend of one or more faces between two opposing sides.
• Face blend - Round sharp connected or disconnected interior and exterior faces to create a seamless blend between the faces or detach the blend to create new faces, defining a radius or constant width. Further define the blend cross section (rolling ball or swept profile), symmetry, control, trim, constraints, and limits.
• Delete face - Remove geometry from a part. Select whether to heal the surrounding faces (by extending until they intersect), cap the void, or leave the void open. This Direct Editing tool is especially convenient if you don't have the parametric history of the part, as is often the case with an imported part.
• Move face - Translate, rotate, or offset one or more selected faces. This Direct Editing tool is especially convenient if you don't have the parametric history of the part, as is often the case with an imported part.
• Replace face - Trim a face or extend a face to a new surface. This Direct Editing tool is especially convenient if you don't have the parametric history of the part, as is often the case with an imported part.
• 偏移曲面 - 偏移一個現有面、曲面或草圖區域來建立新的曲面。將偏移距離設定為 0 來就地產生一個副本。
• Boundary surface - Create or add a surface specified by its boundary profiles.
• Fill - Create a surface (or a part from surfaces) by defining boundaries and refine the surface with boundary conditions (instead of requiring the use of reference surfaces).
• 移動邊界 - 移動曲面的邊界線以延伸或修剪曲面。
• Ruled surface - Create a new or additional ruled surface from an existing edge or multiple edges of a sketch region.
• Mutual trim - Trim two adjacent surfaces by extending intersections to complete the trim.
