Sheet Metal Form

Onshape ships with some standard forms in the Onshape sheet metal forms library. If you prefer to use your own custom form, it must first be created before it can be accessed in the Form feature dialog. See Creating a form for more information.

Before adding a Form feature, ensure you have a sheet metal model created in a Part Studio.

1. From the Part Studio where the sheet metal model is located, click the Form icon () on the Feature toolbar.

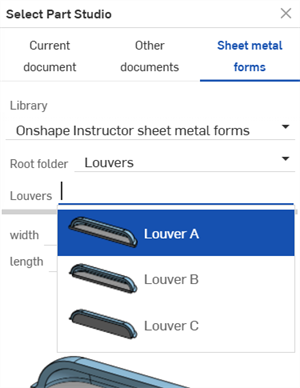

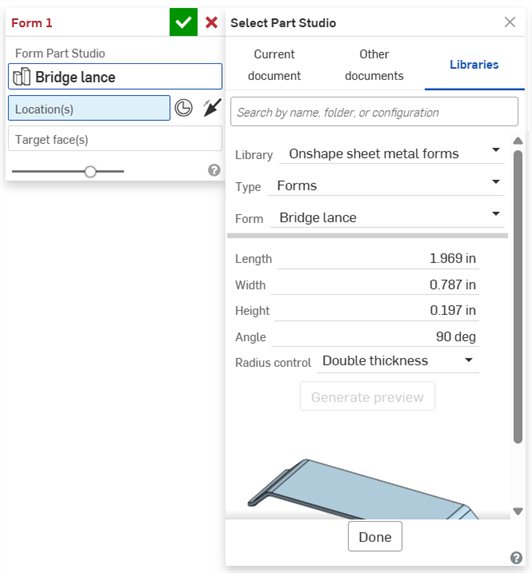

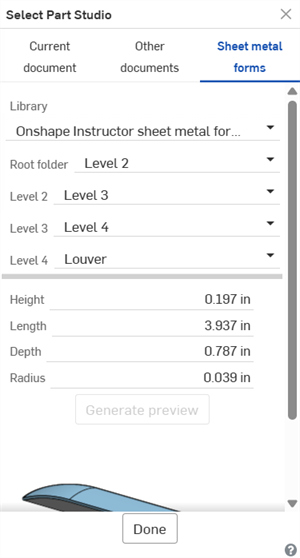

2. Click the Select Part Studio field to open the Select Part Studio dialog:



   1. Select from the Current document, Other documents, or Sheet metal forms (where the Onshape sheet metal forms library or user and enterprise/company form libraries can be selected).

   2. Select the Library, Type (the document in which the form is created), and Form (the Part Studio in which the form is created).

      If there is only 1 form in 1 Part Studio in the document, the Type field is not displayed.

   3. If additional configuration variables are available for your form, enter their values as required. For the Bridge lance example here, the Length, Width, Height, and Angle variables are available for the form.

   4. Click Done to add the form.

3. Select the form Location(s) by selecting sketch vertices, points, or explicit mate connectors. You can also click the Mate connector icon () and hover over the model to select implicit mate connectors.



4. Optionally, click the opposite direction arrow () to reverse the form in the opposite direction on the target face.
5. If not already selected, select the Target face(s) of the sheet metal on which to place the form.
6. Click the checkmark ( ) to accept the new Form feature.

The form is added to the Sheet metal model and flat pattern:

The Louver form design below shows the form's top, side, and isometric views with its corresponding Tag feature (top). This form is then used in a Form feature and applied to the sketch points on the face of a sheet metal model (bottom).

• The Tag feature uses the blue Add part to add to the sheet metal model and the gray Subtract part to remove from it.

• The placement of the mate connector drives the Subtract part through the sheet metal and simultaneously attaches the Add part to the sheet metal.

• The Form origin mate connector (Mate connector 1) from the form's Tag feature determines the form's origin. When this form is placed on the sketch vertices (Vertices of Sketch 2) on the sheet metal face (Face of sheet metal model 1), the form's mate connector aligns with the sheet metal's sketch vertices.

  • Alternatively, an explicit mate connector can be used to align the form to the sheet metal model. In the example below, a mate connector (Mate connector 2) is used for the Form feature's Location instead of the sketch vertices. The mate connector's secondary axis is rotated 180 degrees, and both the Mate connector and Form features are patterned to create the same model as above, but with the louvers rotated.



• Forms cannot touch or cut into the boundaries of side walls, rolled walls, rips, joints, or corners of the sheet metal.

• Corner breaks do not work on any form feature edges. It is recommended they be modeled during the creation of the custom form.

• When exporting the Sheet metal flat pattern as a DXF/DWG file, form feature outlines and centermarks can be included or excluded. See Exporting DXF/DWG of flat pattern.

• Inserting a Flat pattern into a drawing also inserts its form features, such as form outline and centermarks. See Flat pattern view.

シートメタルモデルがアクティブの場合 (作成または編集中) は、次のツールを使用できます。

• フランジ - 選択したエッジごとに壁を作成し、選択したエッジに曲げを用いて接続します。
• ヘム - 既存のシートメタルパーツ上に、選択したエッジまたは面ごとにヘムを作成します。
• タブ - シートメタルフランジにタブを追加します。
• ベンド - 追加の曲げ制御オプションを使用して、シートメタルモデルを基準線に沿って曲げます。
• Form - Create form features on existing sheet metal models. Forms can be selected from the current document, other documents, or a predefined library of sheet metal forms.
• ジョイントを作成する - 2 つの壁の交差を、曲げ (円筒状のジオメトリで結合された壁) またはリップ (2 つの壁の間の小さなギャップ) のジョイントフィーチャーに変換します。
• コーナー - コーナータイプとリリーフスケールを修正します。
• 曲げリリーフ - 曲げリリーフ (曲げの端がフリーエッジに接する部分に作られた小さなカット)、深度、およびリリーフ幅を修正します。
• ジョイントの修正 - 曲げをリップに変換するなど、既存のジョイントを変更します。現在は、展開図テーブルで利用できます。
• コーナー切断 - フィレットまたは面取りを適用して、既存のシートメタルパーツのコーナーを切断します。コーナーのエッジまたは頂点を選択し、コーナー切断のタイプと距離を指定します。このフィーチャーは、シートメタルモデルすべてのフランジとジョイントが完成してから使用することをお勧めします。
• シートメタルテーブルとフラットビュー - リップ/曲げテーブルを開閉し、シートメタルモデルのフラットパターンを表示します。このテーブルを使用して、リップを曲げに、または曲げをリップに変換します。
• シートメタルモデル仕上げ - シートメタルモデルを閉じ (非アクティブにする)、フィーチャーリストにフィーチャーを作成します。

シートメタルモデルがアクティブの場合 (作成または編集中) は、次のツールを使用できます。

• フランジ - 選択したエッジごとに壁を作成し、選択したエッジに曲げを用いて接続します。
• タブ - シートメタルフランジにタブを追加します。
• ジョイントを作成する - 2 つの壁の交差を、曲げ (円筒状のジオメトリで結合された壁) またはリップ (2 つの壁の間の小さなギャップ) のジョイントフィーチャーに変換します。
• コーナー - コーナータイプとリリーフスケールを修正します。
• 曲げリリーフ - 曲げリリーフ (曲げの端がフリーエッジに接する部分に作られた小さなカット)、深度、およびリリーフ幅を修正します。
• コーナー切断 - フィレットまたは面取りを適用して、既存のシートメタルパーツのコーナーを切断します。コーナーのエッジまたは頂点を選択し、コーナー切断のタイプと距離を指定します。このフィーチャーは、シートメタルモデルすべてのフランジとジョイントが完成してから使用することをお勧めします。
• シートメタルモデル仕上げ - シートメタルモデルを閉じ (非アクティブにする)、フィーチャーリストにフィーチャーを作成します。

1. Parts are created and stored in Part Studios. The Documents containing these Part Studios are then saved in Onshape folders. Depending on how you want to set up and organize your library, create a folder from the Documents page (Create > Folder). Enterprise/Company libraries must be created in the root folder.

2. If this is an enterprise/company library, from the Documents page:

   1. 階層内のルートフォルダにある [共有] アイコンをクリックすると、[共有設定] ダイアログが開きます。



   2. Select the Teams tab.

   3. Search for and add the All Enterprise/Company Users team.

   4. Check the Link document and Share checkboxes.

   5. [共有] ボタンをクリックします。



   6. [閉じる] ボタンをクリックします。

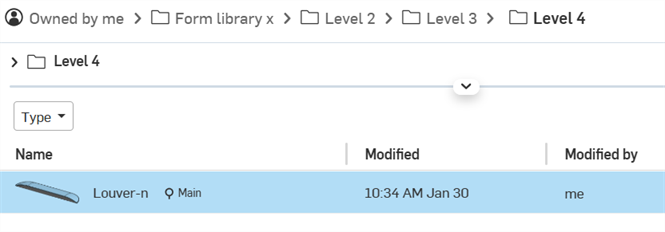

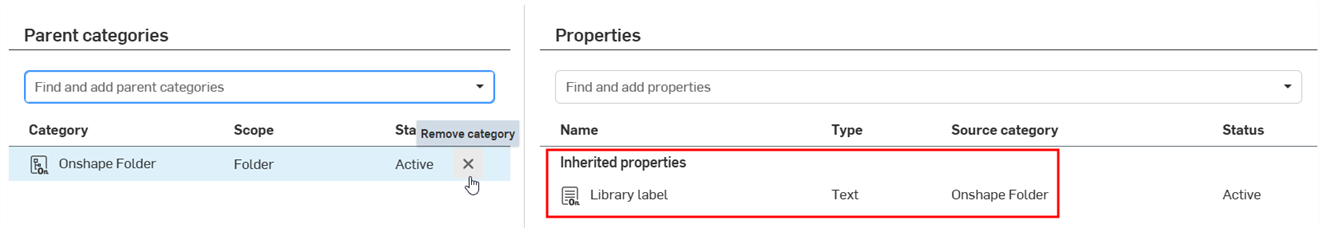

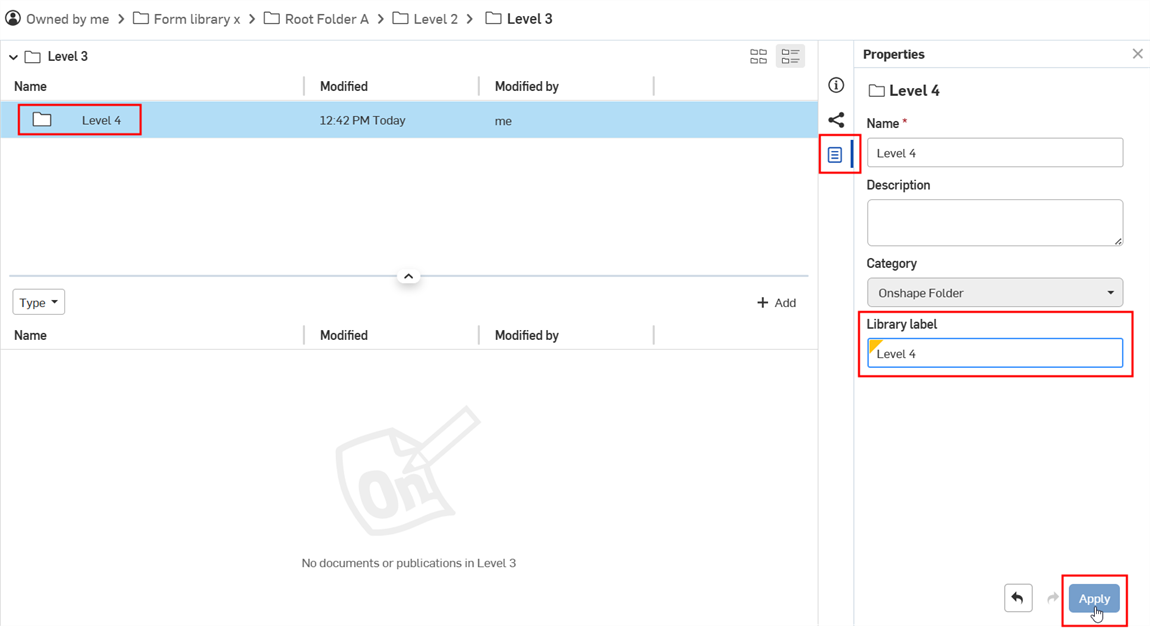

3. On the Documents page, right-click on the form folder and select Set library > My sheet metal forms. When the library is first set up, the folder icon changes to indicate this folder is a form library ():



Forms do not need to exist in a form library. You can create a form in the same document as your sheet metal model or any other document outside the form library.

A form part must have the following 2 conditions met:

• The Part Studio that contains the part must have a configuration variable named thickness, and its Type must be set to Length.

• The form part(s) must be tagged.

You can have only 1 valid form tag feature per Part Studio. Create 1 form per Part Studio.

A document version must also be created if you are externally referencing the form from another document.

Do the following to create a form document:

1. If you are creating the form in a user or enterprise/company form library folder, go to that folder and click Create > Document. Otherwise, open the document in which you want to create the form and Insert a new Part Studio tab.

2. In the Document's Part Studio tab, create one or more parts that define the form. These can be parts that are added to or removed from the sheet metal (or both).

3. Create a configuration variable with the following format:

   1. Name = thickness

   2. Type = Length



      The thickness FeatureScript ID is used to drive the form thickness from the Sheet metal model feature's Thickness value. See Editing configurations and tables for more information.

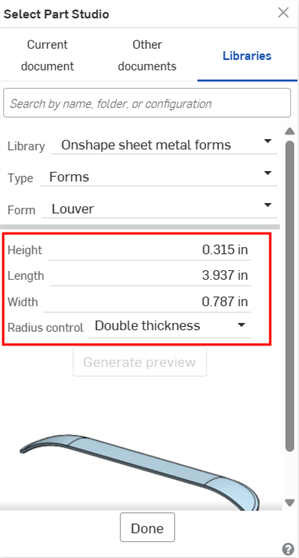

4. (Optional) Use additional configuration variables when creating the form. When the form is selected via the Form feature's Select Part Studio dialog, these variables are displayed as input options beneath the form:



5. Create a Tag Tag feature, and tag the part(s).

6. Click Create version on the Document panel. Enter a version name and optional description. Then click the Create button:



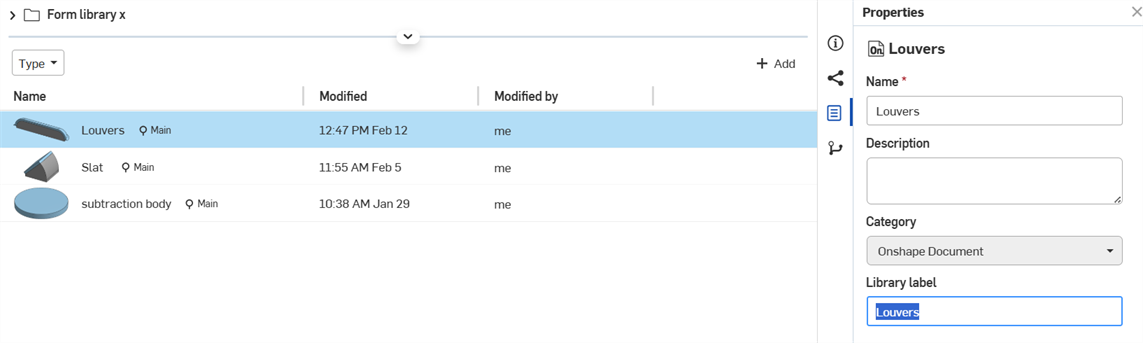

7. If the form document exists in a user or company/enterprise form library, update the form library.

See the steps section above for information on how to add this form to your sheet metal model,

From the Documents page right-click on the form library folder and select Sheet metal form library > Unset my library (shown below). This removes the folder's designation as the user or enterprise/company library but does not delete the folder or its content. The folder changes to a standard folder icon to indicate that it is a standard folder ().

If changes are made to a form document inside a form library folder, the folder must be updated to have the new changes propagate to any Form features that reference the form.

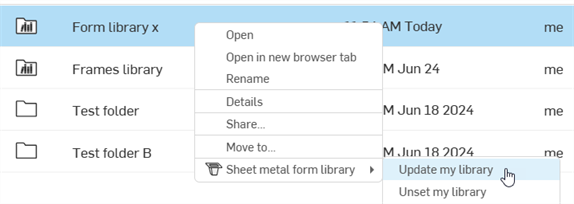

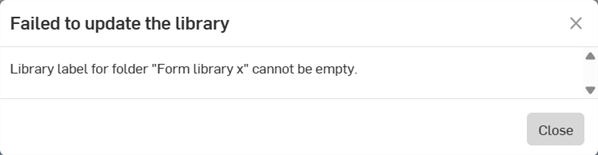

From the Documents page right-click on the form library folder and select Sheet metal form library > Update my library:

If a form is updated in the form library, any existing models that reference that form still use the previous form. To update the form

1. Open the Sheet metal model document that uses the form.

2. Double-click the Form feature on the Features list.

3. Click the Form Part Studio field (Louver C in the image below) to open the Select Part Studio dialog.

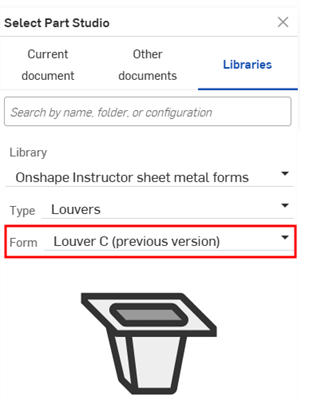

4. The Form label displays (previous version) and the generic form thumbnail is shown, both indicating the model is using an older version of the form. Click the Form dropdown to open the selection menu:



5. Select the updated form from the list and click Done:



• Forms do not need to exist in a form library. Any part from any Part Studio can be used as long as it is a valid form document and meets the form document requirements.

• Form library folders cannot be deleted. First, unset the folder, then delete it.

• Share permissions for form library folders cannot be edited. First, unset the folder. Then edit the folder’s share permissions.

• Create several Part Studios, each with their own form, and all located in 1 document. If multiple forms exist in a document, the Select Part Studio dialog displays a new Type field which displays the document's name, and the Form dropdown, where the Part Studio is selected:



  1 form in 1 Part Studio in a document (left); multiple forms in multiple Part Studios in a document (right)
