文件頁面是您登入至 Onshape 帳戶後顯示的第一個頁面。唯一例外的情況是 Enterprise 訂閱的使用者會在登入時進入「活動」的頁面。當在系統中的其他頁面時,您可以按一下 Onshape 標誌 (或您公司的標誌) 來回到文件頁面。
Onshape Enterprise admins can set the default startup page for users. See Startup page preferences.
This page lists all of the Onshape projects, folders, publications, and documents you have permission to, including view permission. All Onshape entities permissions are applied automatically upon creation of the document. See these topics for more details: Share Documents (for everyone) and Understanding and Administering Project Roles and Permission Schemes (for Enterprise users and administrators).
這個主題說明文件頁面的結構,以及您可於此處執行的工作,解釋其中的導覽操作。提供使用這個頁面來組織管理資料的簡單說明,然後使用標籤、資料夾、專案 (在某些情況中) 來找出資料,或是使用篩選器與搜尋功能來找出資料。

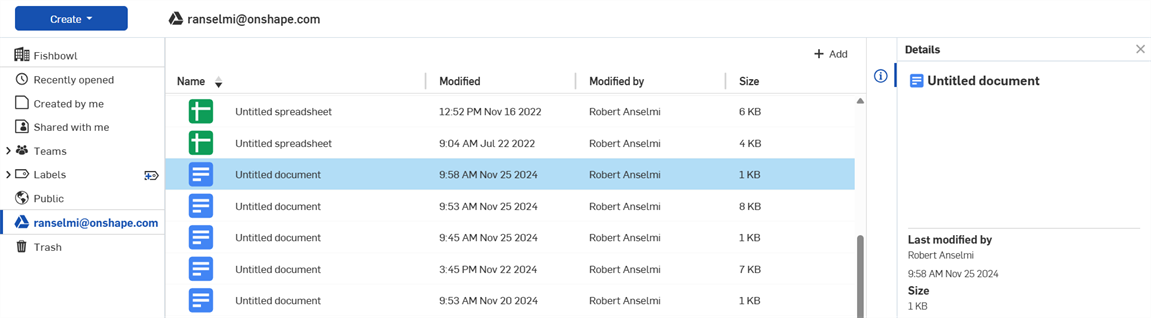

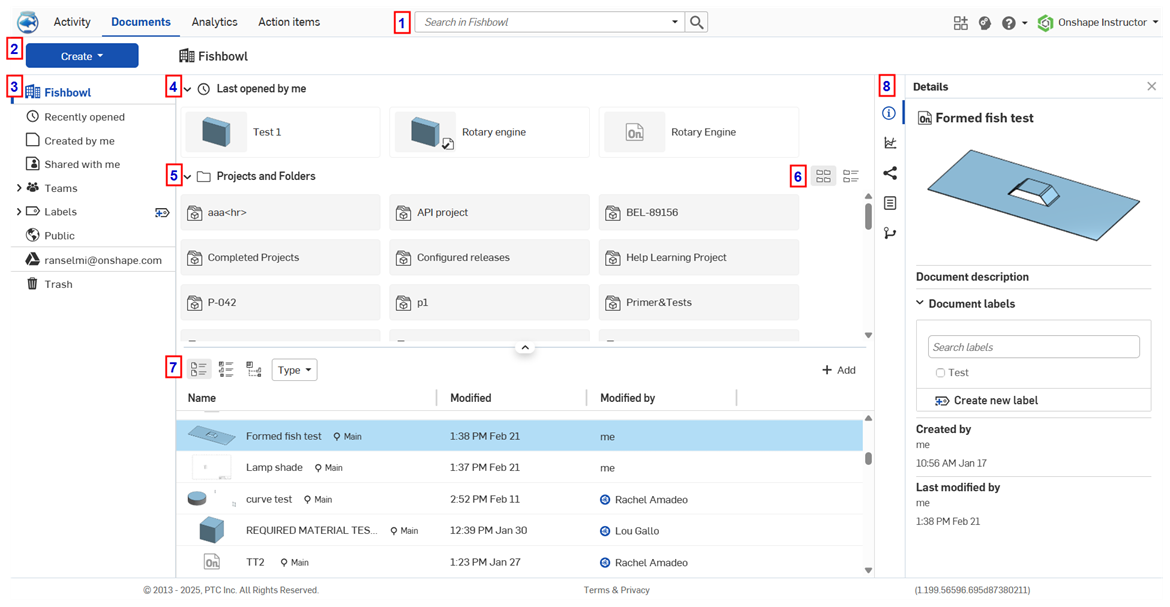

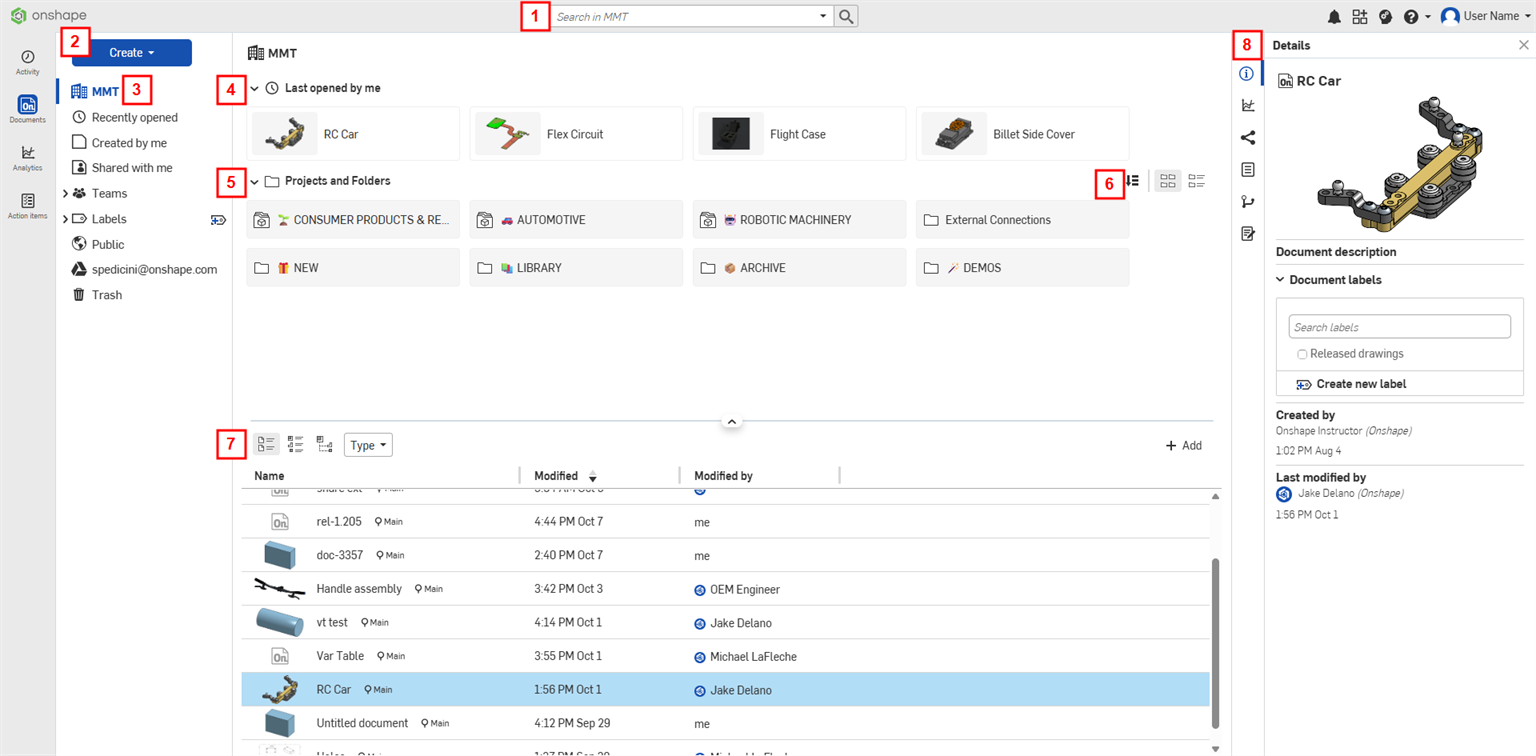

頁面配置的說明如下,並解釋如何在頁面上巡覽與使用特定的工具。對於各平台專用的下拉清單說明如何在每個平台的使用者介面上找出功能,在各平台上的功能可能略有不同。
這個部分會顯示基本的功能與頁面的結構。
您可自訂文件頁面以輕鬆地檢視可用的文件、資料夾與公佈。當您選擇一個篩選器與喜好的配置時,Onshape 會以所選的方式顯示文件頁面,直到您再次變更選擇為止。例如,如果您選擇「清單檢視」與您公司名稱的篩選器,在您下次存取「文件」頁面時,系統會保留這些設定。
文件縮圖是最後開啟 Part Studio 的縮圖,但您也可以在 Part Studio 內進行自訂。文件名稱會以粗體顯示,會在旁邊以淡灰色顯示最後開啟的工作區。下方的各項說明分別解釋上方文件頁面的內容:
- The Create button has multiple options:
Document () - Click to create and name a new Onshape document and optionally apply an existing label. You can also create a new document using cad.onshape.com/new.
Folder () - Click to create and name a new Onshape folder.
Publication () - Click to create and name a new Onshape publication.
Import files () - Click to import external files into Onshape.
Import from () - Click to import files from Google Drive, Dropbox, or Microsoft OneDrive into Onshape.
Project () - Click to open the Create new project dialog box, where you are able to specify the name, description, and permission scheme of your project, as well as who has access to it. This option is available for any user who has been granted the Global permission that enables this functionality.
Label () - Click the Create new label icon () to create and name a new Onshape label.
When creating a document or folder, you can add it into one of your existing folders by selecting a specific location in the Document location field of the New document or folder dialog. This places the document or folder into its designated folder. Alternatively, navigate to a folder first, then create a document or folder.
The Create button is available for all users; however, when an enterprise user has read-only access to the folder in which they are trying to create, this button is inactive.
-
For Enterprise and Professional subscriptions, there are two modes available to view your data: Document view () and List view (). See Document Grid view and List view for more information. For all other subscriptions, there are no view mode buttons, and Document view is the only view available.

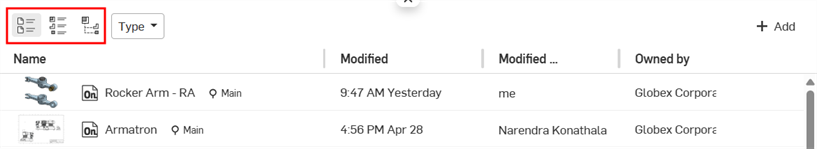

- Buttons for:

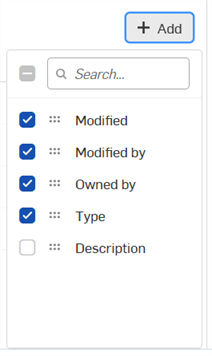

Document list view () - Displays the document list in list view (shown above).
Document grid view () - Displays the document list in thumbnail grid view.
- 左側面板 - 篩選器群組、「整合」與「垃圾桶」所在處:
- Filters group - Onshape supplies various filters to sort documents into groups. The selected filter also appears above the list of documents (to the right of the Create button). For information on filters, see Using Onshape Filters.

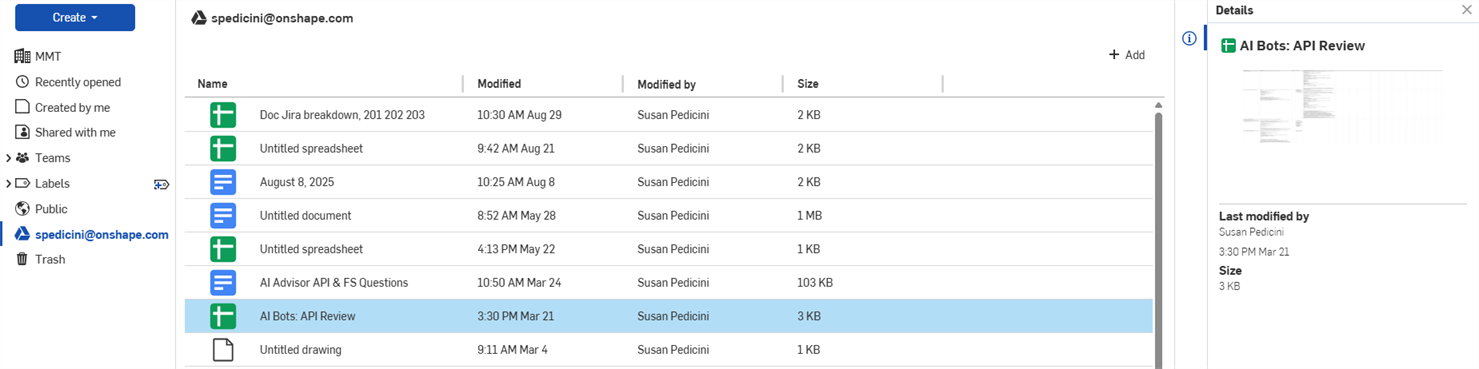

- Integrations - If you have previously integrated your Google Drive, Dropbox, and/or Micosoft OneDrive accounts into Onshape, the Integration appears above the Trash on your Documents page. To search through your Google Drive account, click the Google drive icon (). To search through your Dropbox account, click the Dropbox icon (). To search through your Microsoft OneDrive account, click the Microsoft
OneDrive logo (). The email following the icon is the specific account you have integrated. You can integrate more than one account.
Integrate your Dropbox or Google drive account through Integrations in your Account settings or Integrations in your Enterprise settings.
- Trash - The trash () lists all documents that you have sent to trash (deleted). You see only those documents you have sent to trash. Any documents you delete from the trash, and all those present in trash when you click Empty Trash, are deleted forever. You can, however, right-click on any item in trash and Restore it.

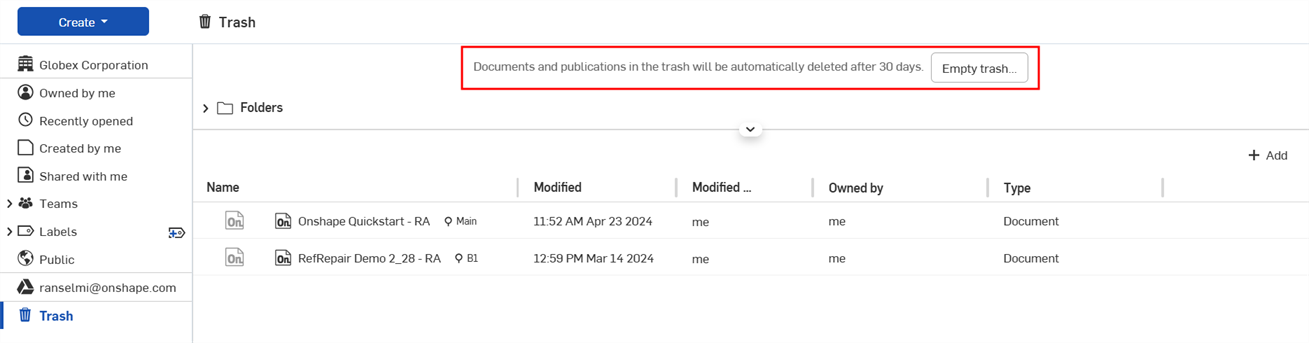

When Trash is selected, non-Enterprise subscriptions display a banner along the top of the screen to explain that items in the trash are automatically deleted after 30 days, along with an Empty trash button. Clicking this button forces deletion of items in trash:

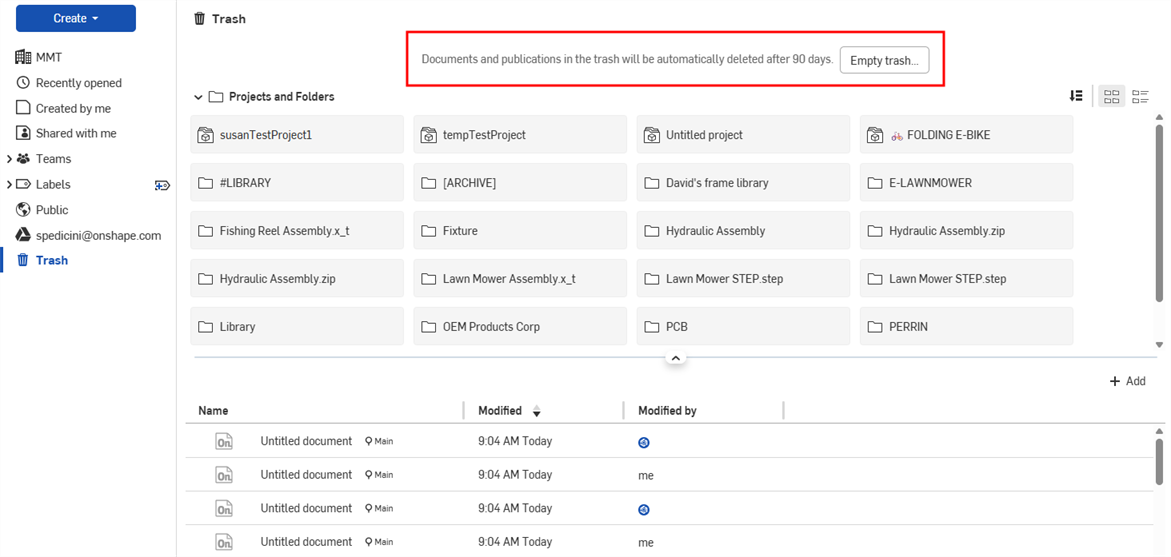

For Enterprise subscriptions, trash is automatically deleted after 90 days. Admins can click the Empty trash button to force deletion of items.

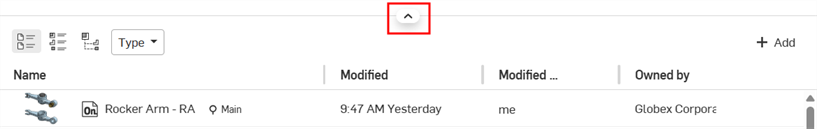

- 不論所選取的篩選器為何,文件清單的上方會顯示目前使用者 (本人上次開啟的) 最近開啟的文件。這個部分是可摺疊縮小的。
- The right side panel is where information for the selected document, folder, or publication is accessed:
- Details panel () - Displays more details about the document. It can be toggled off with the Details button. Click this icon to toggle the panel open and closed.
- Analytics panel () - Displays the Document Dashboard. This displays information about the selected document's modeling time, actions performed, tab types, modeling activity, and access locations.
Anyone with View access to a document can view its Document Dashboard analytics. To share a document so the user can view its analytics, ensure the user is set to Can view in the Share dialog:
Share details panel () - Displays the permissions on the document and the folder or project (if any) within which it resides.
Versions and history panel () - Displays the versions and history of the document. This panel allows you to perform all actions available through the Versions and history panel in a document, right from this panel. For more information on how to use the Versions and history graph, see Document Management. You can hover over any entry in the graph and see the description as entered into the properties for that Version. For more information on properties, see Version Manager .
在任何面板中 (「詳細資料」、「共享詳細資料」或「版本與歷程」) 按一下文件名稱,隨即會在新的瀏覽器分頁中開啟文件。
Hover over the Document name in any of the panels (Details, Share Details, or Versions and history). The Copy link icon ( ) becomes visible. Click it to copy the document link to your clipboard.

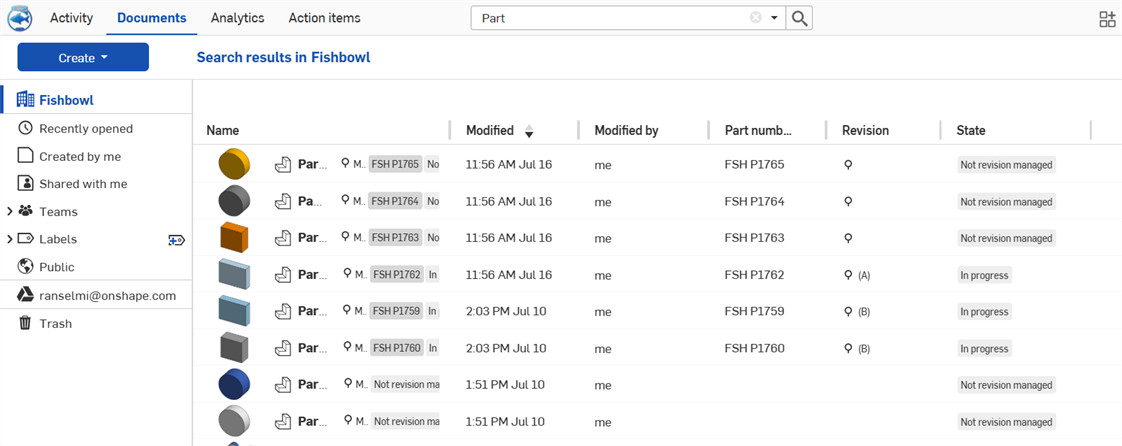

When searching on Parts, Part Studios, Drawings, or Assemblies, specifically, the Detail pane for a selected document will include a Properties icon ():
按一下這個圖示來檢視「屬性」資訊。按一下面板上方 [編輯] 連結來編輯屬性。

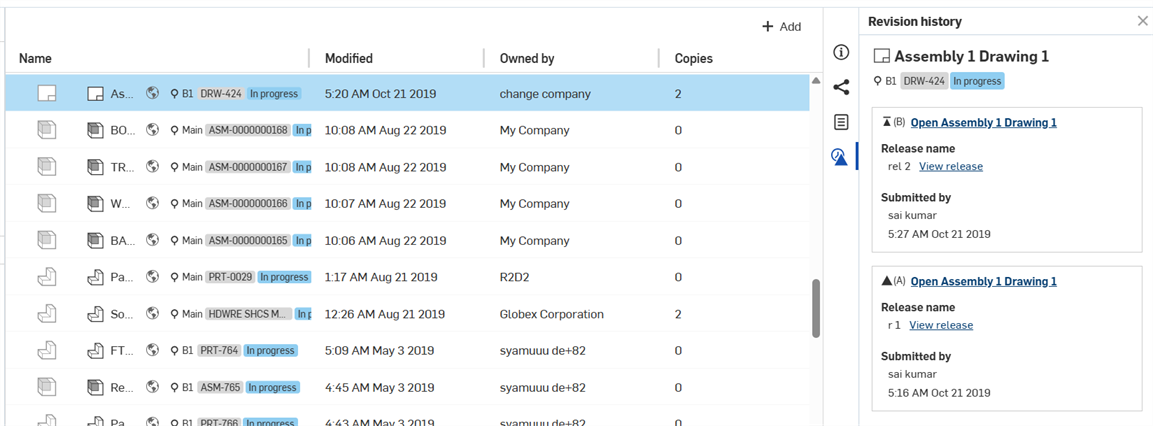

If the search criteria and results include any revision history information (such as State), the Detail panel for a selected document will include a Revision history icon ():
按一下這個圖示來查看「修訂歷程記錄」的資訊。會在「修訂歷程記錄」面板中以藍色強調顯示所選零件 (在搜尋結果中) 的修訂版。例如,上圖顯示於左側選取的 Part 1 在右側的「修訂歷程記錄」下被強調顯示:
同時可在「進階搜尋」對話方塊的「新增準則」選取方塊中存取新增至 Company 或 Enterprise 中的類別 (如下所示)。
- List of projects (for Enterprise accounts), folders, publications, and documents. For more information on folders, see Creating and Using Folders. For more information on projects, see Understanding and Administering Project Roles and Permission Schemes.
By default, all subscription plans use the Document grid view (outlined in the Documents page layout). However, Enterprise and Professional plans have 3 views available: Document grid view and Document list view (outlined below), and Structure view.
Document grid view ()
Document grid view is the default view. When selected, the last opened documents are displayed below, with any folders, publications, and documents. See Documents page layout for more information about this view.
Accessing Document grid view
如果您是在「清單檢視」模式中,您可以:
-
Click the Document grid view icon ().
-
按一下頁面左上角的公司標誌 (重新整理文件)。
Leaving and then returning to the Documents page does not retain the List view. You are returned to the Document grid view.
「清單檢視」()
為 Enterprise 與 Professional 計畫訂閱者提供的「清單檢視」可讓您在每個資料夾中查看最新發行與修訂的零件、組合件/次組合件與工程圖。根據您產品的結構在 Onshape 篩選資料。不論您公司中使用者如何建構其文件,系統會在相同的檢視中顯示資料。無需了解文件的命名慣例或使用者如何建構其文件,即可輕鬆自然地瀏覽資訊。
Accessing list view
-
按一下頁面左上角的公司標誌可將您帶回至「文件」頁面中。
-
按一下「清單檢視」圖示 ()。
Using list view filters
在選取清單檢視之後,會在「清單檢視」圖示的右側開啟預設的篩選器:
-
Types - Check to filter the list for any combination of part, Assembly/subassembly, and Drawing. By default all three are enabled.
-
Name - Enter a name to filter the list by this entry.
-
Description - Enter a description to filter the list by this entry.
-
Part number - Enter a part number to filter the list by this entry.
-
Revision - Enter a revision to filter the list by this entry.
按一下「重設篩選器」圖示 () 來將所有篩選器重設回其預設的狀態。
按一下「加入」圖示 () 並核取子功能表中的篩選器來將其加入至篩選器區域中。取消選取即可移除篩選器。無法取消選取預設的篩選器 (「名稱」、「說明」、「零件編號」與「修訂」)。
其他額外的篩選器:
-
Vendor
-
Project
-
Product line
-
標題 1
-
標題 2
-
Title 3
在設定篩選器之後,您可以將 URL 複製到上方的位址列中並將這個 URL 與其他使用者共享。當同屬 Company/Enterprise 的其他使用者點按 URL 連結時,會隨同 URL 複製篩選器,使用者會看到已套用了相同的篩選器。
清單檢視「資料夾與專案」
系統會將「資料夾與專案」以水平方格列在清單檢視的最上方。

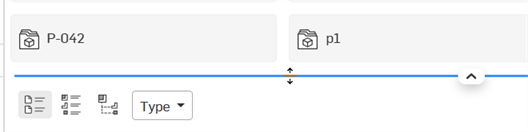

這個部分是可摺疊縮小的。按一下「資料夾與專案」標題左側的箭頭來摺疊/展開這個部分。按住「資料夾與專案」這部分的底部,然後向上或向下拖曳來調整高度。這樣會顯示您要查看「資料夾與專案」列的數量。
每個資料夾或專案圖示右側有一個小縮圖與名稱。僅適用於資料夾,會在資料夾名稱下方顯示上次更新資料夾內容的日期與時間:
按一下資料夾或專案來開啟其內容:
如果在點按的資料夾或專案中沒有額外的資料夾,則系統會摺疊「資料夾與專案」方格。按一下「資料夾與專案」上方的導覽路徑連結來跳回到「資料夾與專案」階層中先前的位置:
清單檢視「最新修訂版的零組件」
在「資料夾與專案」方格下方的是「最新修訂版的零組件」部分。系統會在這個表格中列出所選專案或資料夾的所有最新發行和修訂的零件、組合件與工程圖。
每個列中包含零件、組合件/次組合件或工程圖的縮圖,以及零組件的「名稱」、「說明」、「零件編號」與「修訂」。取決於選取的篩選器,可能會有其他的欄位出現;欄位會與列在頁面上方的篩選器相符。
「名稱」欄位中包含:
-
一個代表零組件是零件、組合件/次組合件或工程圖的圖示。
-
零組件的名稱。這是一個超連結。點按連結可在目前瀏覽器的分頁中開啟零組件。
-
一個修訂圖示表示是零件的最新修訂版 (修訂的名稱會在括弧中)。
-
強調顯示的零件編號。
若要在新瀏覽器分頁中開啟零組件,按右鍵並從環境選單中選擇 [在新瀏覽器分頁開啟]。
零組件表格標頭環境選單
在零組件表格中除了「名稱」欄之外的任何欄標題上按右鍵以存取環境選單:
-
左移 - 將目前的欄位向左移
-
右移 - 將目前的欄位向右移
調整零組件表格欄的寬度
-
將您的游標移動至欄的右邊線上暫留。欄的分割線會變為藍色,且游標顯示為雙邊箭頭:
-
按一下並向左拖曳來縮減欄位,或向右拖曳來放大欄位。
-
在達到所需的欄寬時,放開滑鼠。
注意:經調整欄右側的所有欄位會維持同樣的大小。
「清單檢視」零組件環境選單
在零組件列的空白處按右鍵來存取環境選單:
-
Open in new browser tab - Opens the selected component in a new browser tab.
-
加入至公佈中 - 將所選零組件加入至公佈中。
-
Create task - Opens the Create task dialog where you can create a new task regarding the currently selected component and assign that task to a user.
-
匯出 - 開啟所選零組件的「匯出」對話方塊。
-
Details - Opens the Details panel in the right-side component panel (see full explanation below).
「清單檢視」零組件飛出視窗
右側的飛出視窗是可存取所選零組件資訊的地方。按一下零組件列的空白處來選取零組件。零組件的「詳細資料」面板會移入至飛出視窗中。使用各個面板圖示來切換開啟或關閉飛出視窗。有四個可用的面板:
- Details panel () - Displays more details about the document:
- Document name - The document that contains the component.
- Owner - The company or enterprise that owns the component.
- Location - The folder or project where the component is located, with a link to open the location in a new browser tab.
- Created by - Name of the user that created the component, with a time and date the component was created.
- Last modified by - Name of the user who last modified the component, with a time and date the component was last modified.
- Properties panel () - Displays the editable and non-editable list of component properties. If a component property is non-editable, it is grayed out. You can edit all other properties directly from this panel.
-
Where used panel (excludes Drawings; ) - Displays the Assemblies/subassemblies and Drawings where a particular component is being used. See Where used for more information.
-

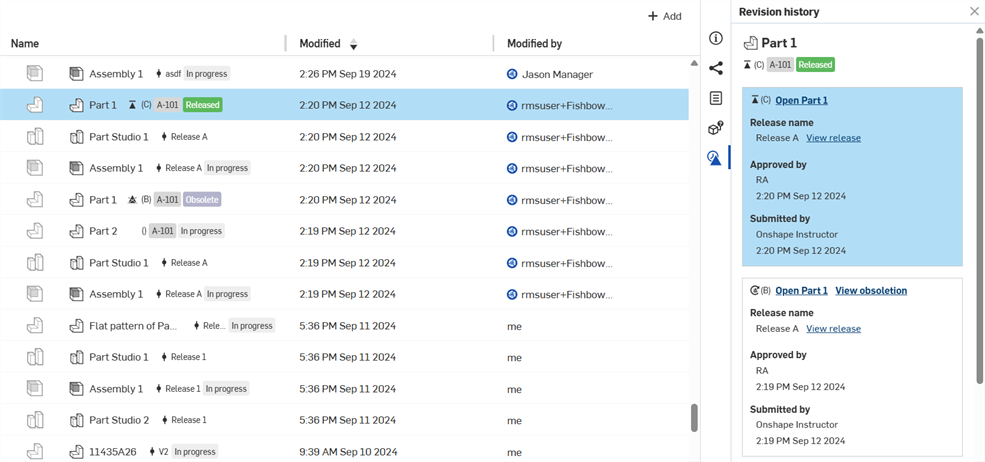

Revision history panel () - Displays all the revisions of the selected component. Each release is listed chronologically in the panel, with the latest release at the top. Each release contains the following details:
-
Revision name - The name of the revision (in parentheses), with a link to open the component in a new browser tab
-
Release name - The Release name, with a View release link to open the release dialog.
-
Submitted by - Name of the user who submitted the latest release, along with the time and date of release.
-
「清單檢視」圖示
下方是用於「清單檢視」顯示中的圖示:
圖示 | 說明 |
資料夾容器 | |
專案容器 | |
零件 | |
組合件或次組合件 | |
工程圖 | |
修訂 |
「清單檢視」提示
-
加入篩選器以縮小搜尋範圍來顯示較少的項目,深入專案或資料夾之中。
-
會在工程圖參考的對應項之下顯示工程圖。
-
目前不會在清單檢視中包括標準內容與非幾何的項目。
-
離開然後再回到「文件」頁面中並不會維持住「清單檢視」,您會回到「文件檢視」模式中。
-
在將清單檢視設定為顯示特定的專案/資料夾與零組件之後,複製瀏覽器的 URL 並將其傳送給其他使用者以共享清單的檢視,前提示這些使用者擁有正確的文件許可權限。
選取一個項目 (文件、資料夾或公佈) 時,系統會在清單中強調顯示該項目,且在「詳細資料」飛出視窗開啟時,會顯示該項目的「詳細資料」。在並排圖磚或表格列任意處按一下來選擇項目。當項目被選取時,項目名稱的背景會變為藍色。
另一個開啟項目的方式是,在表格或並排圖磚中按一下實際的項目名稱。如果游標的指向正確,項目名稱會出現有底線。
To access the context menu of an open folder, right-click on the folder.
您可以使用方向鍵來在文件、資料夾與公佈清單中向上或向下瀏覽。
您可以選擇多個文件、資料夾與公佈 (或 3 者之間的任意組合):
- 使用 Ctrl+按一下來於一次選擇多個項目。
- 使用 Shift+按一下 (或 Shift+方向鍵) 來選擇一個範圍。

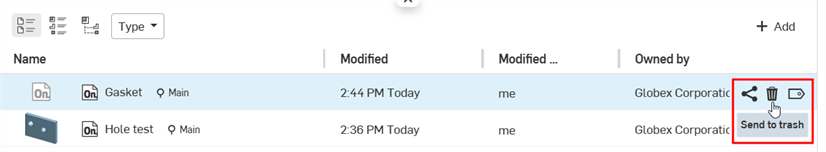

您可以使用文件、資料夾或公佈右側的下列指令:
-
Share - Share a private document, folder, or publication with other users, and assign permissions per user. Send an email link to any person. If they are an Onshape user, they can click the link and open the document in Onshape. If they are not yet a user, the document opens in View-only mode. For more information, see Share Documents.
-
Delete - When a document or folder is highlighted, you can use the Delete key to move the document to Trash, or click the Trash icon (shown in the image below):

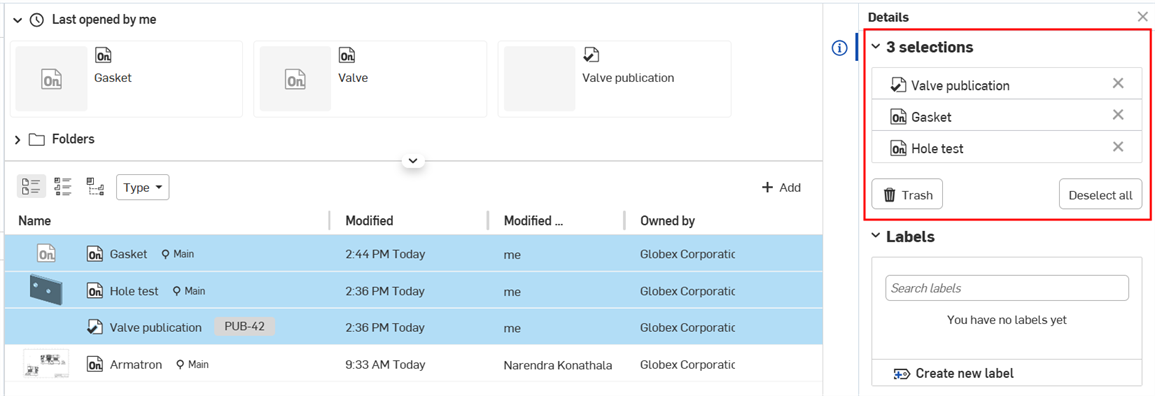

若要刪除多個文件/資料夾,請使用 Ctrl+按一下或 Shift+按一下 (如上方所述) 來選擇,然後按一下右側「詳細資料」面板中的「垃圾桶」圖示:
-
Labels - Select labels to apply to the selected document(s). Labels cannot be applied to folders.
選擇一或多個文件、資料夾或公佈 (或 3 者之間的任意組合),然後按右鍵存取其中有下列指令的環境選單。
可用的指令取決於篩選器的內容、容器的類型 (文件、資料夾、公佈) 以及所選容器類型的數量與組合。
- Open - Open the selected item.
- Open in new browser tab - Open the selected item in a new browser tab.
- Rename document/folder/publication - Provide a new name for the selected item.
- Copy workspace - Available only for documents; makes a copy of the document default workspace.
- In the Copy active workspace to new document dialog, you can adjust the copied document's name and navigate through your folder structure to choose a desired location in which to save the document.
- 在您複製工作區之後,會出現一個快顯訊息表示已成功建立副本並提供對經複製工作區的連結。這個連結會在新的分頁中開啟複製的工作區。
- In the Copy active workspace to new document dialog, you can adjust the copied document's name and navigate through your folder structure to choose a desired location in which to save the document.
- Details - Show the Details panel for the selected item.
- Versions and history - Available only for documents; view a list of all the versions of a particular document. For more information, see Document Management.
- Labels - Select labels to apply to the selected document(s). Labels cannot be applied to folders.
- Share - Share a private document, folder, or publication with other users, and assign permissions per user. Send an email link to any person. If they are an Onshape user, they can click the link, and open the document in Onshape. If they are not yet a user, the document opens in View-only mode. For more information, see Share Documents.

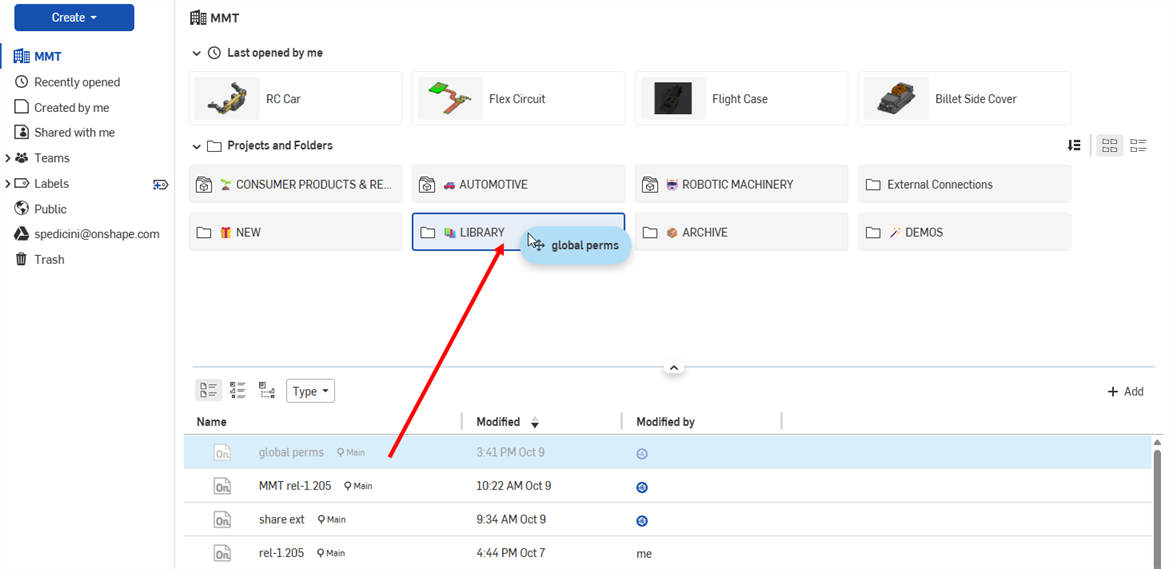

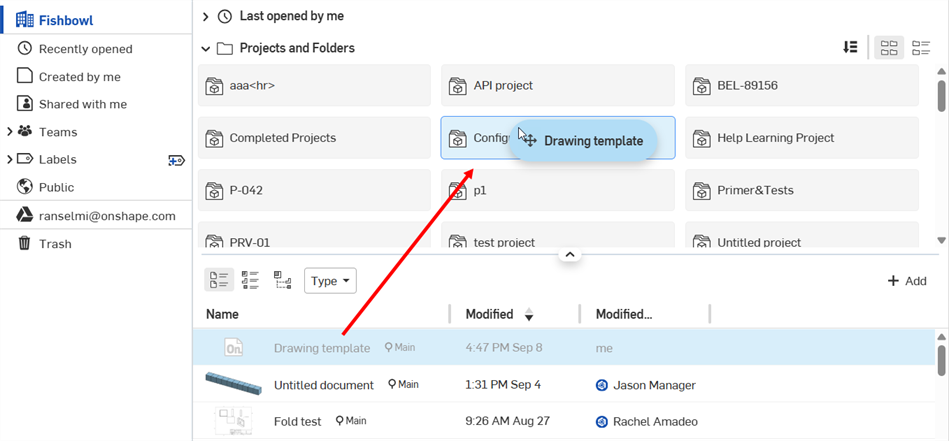

- Move to - Move the selected item to a folder. You can also use drag and drop for this action.
- Transfer ownership - Transfer the ownership of the item to an individual or a company.
- Unshare with me - Available only if the selected item was shared with you; removes you from the item's share permissions.
- Make public - Available only for private documents; makes the document publicly available to all Onshape users in view-only mode. This option is not available for Enterprise.
- Send to trash - Move the selected item to trash. You can also drag and drop items in the Trash filter to delete them.
- Remove from recently opened - Available for documents and publications; removes the item from your Recently opened filter.
在垃圾桶中的項目可以個別地被還原或刪除,或您可以使用 [清空垃圾桶] 按鈕來一次刪除垃圾桶中的所有項目。
可使用的動作會根據您的許可權限而變更。
To change the thumbnail that is displayed, open the document, right-click on the tab you wish to use as the thumbnail and click Select as document thumbnail. Keep the following in mind:
- 如果所選分頁已經刪除或移動到另一個文件中,縮圖影像會恢復為最近開啟的分頁。
- 需要對文件有「編輯」的權限才能選擇新的縮圖。
若要調整「詳細資料」飛出視窗與文件清單的大小,請將游標放在中間的分隔列上,接著按一下再向左或向右拖曳。請注意:
- 可將「詳細資料」飛出視窗調整為不小於 340px。
- 在重新調整「詳細資料」飛出視窗的大小之後,當再次開啟飛出視窗及您再度登入時,會將分隔列保持在新的位置上。
While in the company filter (shown below in bold blue text), the top of the window displays thumbnails of the last documents opened by you (regardless of ownership). As many thumbnails are shown as will fit in the window at the time.

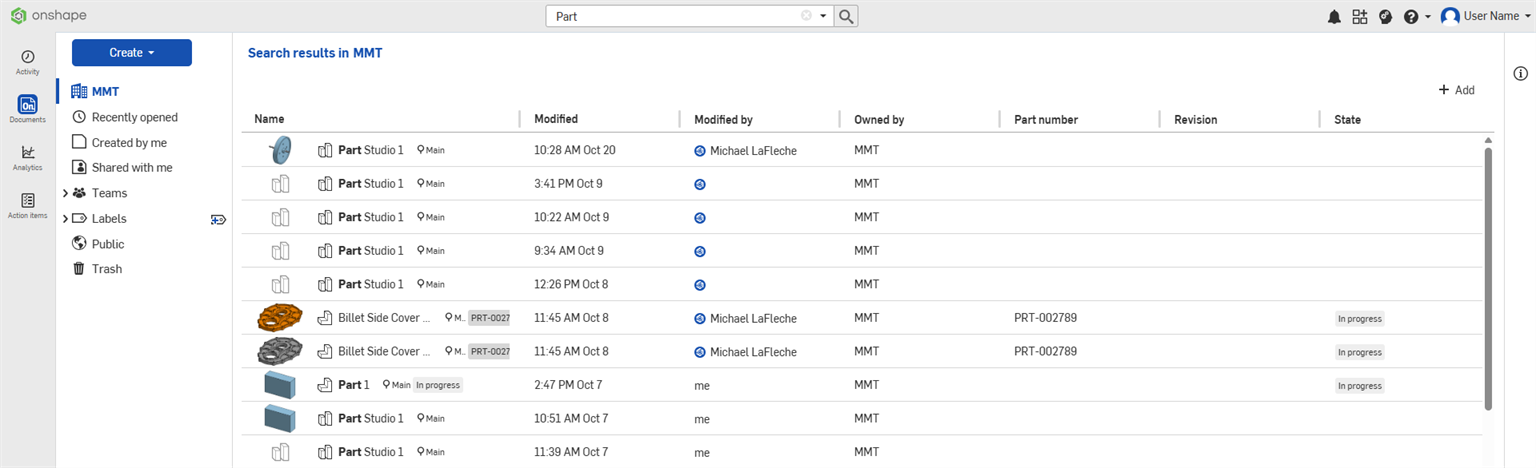

Use the search bar at the top of the Documents page to search for a document within the active folder, as stated in the search bar:
Use the down arrow in the Search bar to activate an advanced search menu to search for an Onshape tab type (Document, Part, Part Studio, Assembly, Drawing, or all types) within the active folder and refine the search using additional relevant search criteria.
For more information on what additional search criteria may be used, see the topic Advanced search.
當使用搜尋方塊尋找文件時,搜尋是在目前選取的篩選器內進行
標題列右上方出現一個鈴鐺圖示代表通知 (當有通知時才出現)。圖示旁的數字表示未讀取通知的數量。不論是否有讀取通知,系統會在 14 天後自動刪除通知。
通知可能包括:
- A comment on the document - Open to read and mark as read
- Status of an upload - Open to read (mark as read, or delete)
- Status of an export - Open to read (mark as read, or delete)
- Workspace status - If the workspace falls out of date with the most current Onshape release, it is noted here. An out of date workspace could be the result of:
- 從上次更新之前所建立的版本產生分支
- 還原至上次更新之前建立的版本
顯示關於更新的資訊。
iOS 平台上的「文件」頁面有與 Web 平台相同的功能。
By default, all subscription plans use the Document view (outlined below). However, Enterprise and Professional plans have two views available. See Document view and List view for more information.
這是登入之後顯示的第一個網頁 (下圖所示是在 iPhone 與 iPad 上的畫面):
「文件」頁面中有各種可選擇的篩選器。輕觸頁面左上角的側邊面板功能表按鈕 () 來開啟側邊面板功能表並於其中瀏覽查看您的 Onshape 文件。在選取了篩選器之後,於功能表外輕觸 (或是在以水平位置顯示的情況中再次輕觸功能表圖示) 來關閉面板。
按一下文件右端的「詳細資料」圖示來開啟「詳細資料」面板:
當在行動裝置存取文件頁面時,您可以選擇用文件方格檢視或文件清單檢視來顯示。按一下頁面右上角的功能表按鈕來設定您喜好的檢視方式,Onshape 會記住您的設定。
若要在 iPad 上存取「詳細資料」窗格,請輕觸頁面右側的「詳細資料」圖示 ()。在您在各文件間瀏覽時,「詳細資料」窗格會保持開啟。若要在 iPad 上關閉「詳細資料」窗格,請再按一下「詳細資料」圖示 ()。
若要關閉 iPhone 上的「詳細資料」窗格,請輕觸右上角的 X。
輕觸「共享詳細資料」圖示 () 來顯示文件與其所屬資料夾或專案 (如果有的話) 的許可權限。
Tap the versions and history icon () to display the versions and history of the document, and also opens the document. This panel allows you to perform all actions available through the Versions and history panel in a document. For more information on how to use the Versions and history graph, see Document Management.
輕觸窗格右上角的「編輯」圖示 (鉛筆圖示) 來重新命名文件。
輕觸「歷程記錄」圖示來開啟文件,並同時開啟該文件的「歷程記錄」窗格。
輕觸「複製」圖示來產生文件的一個副本;系統會提示您要命名副本,然後會自動開啟它。
輕觸「移動」圖示然後選擇要將文件移動至的資料夾。
輕觸「垃圾桶」圖示來將文件移至垃圾桶中。
By default, all subscription plans use the Document view (outlined in the Documents page layout). However, Enterprise and Professional plans have two views available: Document view and List view.
文件檢視 ()
Document view is the default view. When selected, the last opened documents are displayed below, with any folders, publications, and documents. See Documents page layout for more information about this view.
存取「文件檢視」
輕觸螢幕上方的「文件檢視」圖示 ()。
「清單檢視」()
為 Enterprise 與 Professional 計畫訂閱者提供的「清單檢視」可讓您在每個資料夾中查看最新發行與修訂的零件、組合件/次組合件與工程圖。根據您產品的結構在 Onshape 篩選資料。不論您公司中使用者如何建構其文件,系統會在相同的檢視中顯示資料。無需了解文件的命名慣例或使用者如何建構其文件,即可輕鬆自然地瀏覽資訊。
存取「清單檢視」
-
輕觸頁面左上角的側邊面板功能表按鈕圖示 () 來開啟側邊面板功能表,然後輕觸 Company/Enterprise 的標誌來移至「文件」頁面。
-
輕觸螢幕上方的「清單檢視」圖示 ()。
使用「清單檢視」篩選器
在選取清單檢視之後,會在「清單檢視」圖示的右側開啟預設的篩選器:
-
All filters ( ) - Opens the All filters dialog:
您可以在這個對話方塊中加入、移除或編輯目前顯示的篩選器。無法取消選取預設的篩選器 (「名稱」、「說明」、「零件編號」與「修訂」)。
按一下對話方塊底部清單中任何篩選器來加入下列的篩選器:
-
Vendor
-
Project
-
Product line
-
標題 1
-
標題 2
-
Title 3
選擇其他的篩選器來將其加入至螢幕上方的篩選器清單中。
沿著底部的其他篩選器區域水平拖曳以顯示無法容納在螢幕上的其他篩選器。
輕觸底部的 [全部重設] 來將所有篩選器重設回其預設的設定。
輕觸對話方塊右上角的 [取消] 來退出對話方塊。
-
-
Types - Check to filter the list for any combination of part, Assembly/subassembly, and Drawing. By default all three are enabled.
-
Name - Enter a name to filter the list by this entry.
-
Description - Enter a description to filter the list by this entry.
-
Part number - Enter a part number to filter the list by this entry.
-
Revision - Enter a revision to filter the list by this entry.
輕觸篩選器區域中的任何個別篩選器以開啟該篩選器並輸入一個搜尋字詞。在您進行搜尋時,會在「所選篩選器」下方的螢幕提供可用的選項。輕觸篩選器來將其加入至篩選器清單中,使用所選篩選器來縮小零組件的搜尋:
輕觸左上方的「所有篩選器」來回到「所有篩選器」對話方塊中。
「清單檢視」資料夾
系統會將資料夾與專案以水平方格列在清單檢視的最上方。
這個部分是可摺疊縮小的。輕觸資料夾標題左側的箭頭來摺疊/展開這個部分。
每個資料夾或專案圖示右側有一個小縮圖與名稱。在資料夾或專案中除了上次更新內容的時間與日期外,也會在資料夾或專案名稱下方顯示上次更新內容的使用者:
輕觸資料夾或專案來開啟其內容:
如果在資料夾或專案中沒有額外的資料夾,則系統會摺疊資料夾方格。輕觸資料夾上方的導覽路徑連結來跳回到階層架構中先前的位置:
清單檢視「最新修訂版的零組件」
在資料夾方格下方的是「最新修訂版的零組件」部分。系統會在這個表格中列出所選專案或資料夾的所有最新發行和修訂的零件、組合件/次組合件與工程圖。
每個列中包含零件、組合件/次組合件或工程圖的縮圖,以及零組件的「名稱」、「說明」、「零件編號」與「修訂」。
在零組件列的任意處輕觸來開啟零組件。
「名稱」欄位中包含:
-
一個代表零組件是零件、組合件/次組合件或工程圖的圖示。
-
零組件的名稱。
-
一個修訂圖示表示是零件的最新修訂版 (修訂的名稱會在括弧中)。
-
強調顯示的零件編號。
「清單檢視」零組件飛出視窗
右側的飛出視窗是可存取所選零組件資訊的地方。若要存取飛出視窗:
-
輕觸「詳細資料」面板圖示 () 來開啟飛出視窗。
-
在零組件列的任意處輕觸,會以飛出視窗顯示「詳細資料」:
若要關閉「詳細資料」飛出視窗,請再次輕觸「詳細資料」面板圖示 ()。
下方是在飛出視窗中提供的面板:
- Details panel () - Displays more details about the document:
- Open - Tap the Open folder opens the currently selected component.
- Type - An icon that indicates whether the component is a part, Assembly/subassembly, or Drawing.
- Document name - The document that contains the component.
- Owner - The company or enterprise that owns the component.
- Document description - Short explanation of the document. Tap the edit icon () to edit the description.
- Created by - Name of the user that created the component, with a time and date the component was created.
- Last modified by - Name of the user who last modified the component, with a time and date the component was last modified.
- Share panel () - Displays the permissions for the document in which the component resides:
- Edit - Tap the Edit icon to open the permissions dialog for the document in which the component resides.
- Document permissions - Displays the permissions for the document in which the component resides.
- Copy link to clipboard - Copy the link to the document in which the component resides to your clipboard.
-
Where used panel (excludes Drawings; ) - Displays the Assemblies/subassemblies and Drawings where a particular component is being used. See Where used for more information.
「清單檢視」圖示
下方是用於「清單檢視」顯示中的圖示:
圖示 | 說明 |
資料夾容器 | |
專案容器 | |
零件 | |
組合件或次組合件 | |
工程圖 | |
修訂 |
「清單檢視」提示
-
加入篩選器以縮小搜尋範圍來顯示較少的項目,深入專案或資料夾之中。
-
會在工程圖參考的對應項之下顯示工程圖。
-
目前不會在清單檢視中包括標準內容。
-
離開然後再回到「文件」頁面中並不會維持住「清單檢視」,您會回到「文件檢視」模式中。
建立新文件:
輕觸右下角的按鈕:
從功能表中選擇 [文件]。
Enter a title for the document, then tap Create.
如果您是 Company 帳戶的成員,可以在建立新文件時選擇文件擁有者。如果您是 Company 帳戶的成員,新文件預設的擁有者會是您所屬的 Company 帳戶。如果您不是 Company 帳戶的成員,則新文件的預設擁有者為您本人。
When creating a document or folder, you can add it to one of your existing folders by selecting a specific location in the Document location field of the New document or folder dialog. This places the document or folder into its designated location. Alternatively, navigate to the folder first, then create a document or folder from there.
將檔案匯入至 Onshape 中:
輕觸右下角新文件按鈕左邊的按鈕。
如果您是 Company 帳戶的成員,則在匯入新文件時可以選擇文件擁有者。如果您是 Company 帳戶的成員,則新文件的預設擁有者會是您所屬的 Company 帳戶。如果您不是 Company 帳戶的成員,則新文件的預設擁有者為您本人。
For more info, see Import.
將檔案從 Onshape 中匯出:
-
輕觸您要從其中匯出的分頁 (Part Studio、Assembly 等)。
-
從環境選單中選擇 [匯出]。
-
選擇一個匯出檔案格式:
-
Parasolid
-
ACIS
-
STEP
-
IGES
-
PVZ
-
JT
-
Collada
-
GLTF
-
OBJ
-
3MF
-
STL
-
-
指定匯出檔案的名稱。
-
選擇一個版本 (如果有的話)
-
指定匯出的機制:
-
下載
-
下載並在新分頁中存放檔案
-
在新分頁中存放檔案
-
-
輕觸 [匯出] 來匯出檔案,或輕觸 [取消] 來關閉對話方塊而不匯出。
For more info, see Exporting Files.
存取您的 Onshape 帳戶設定:
輕觸左上角的圖示來存取導覽匣。您可以從其中選擇帳戶設定,然後從下列的項目中選擇:
- Profile - View your name, username, nickname, edit your bio, and view the companies and teams you are a part of.
- Emails - View the email addresses you have associated with your Onshape account.
- Preferences - View and set the default units for Length, Angle, and Mass.
- Subscription - View your Onshape subscription type.
- Teams - View the teams you are a part of.
- Companies - View the companies you are a part of.
登出 Onshape:
Tap the icon in the upper left to access the navigation drawer. Here, tap Sign out.
提供意見反應,觀賞影片,與存取說明文件:
輕觸右上角的「說明」圖示:
從此處您可以輕觸來存取:
- Help - the Mobile Help.
- 檢閱手勢控制
- Contact Support - Ask a question or provide feedback to Onshape in the form of logging a bug or requesting an improvement.
- About - See what version of Onshape your device is running and view Terms and Privacy.
若要檢視文件資訊面板與存取像是文件擁有者、歷程與版本等的資訊:
輕觸「文件」頁面右側的文件資訊面板圖示:
接著輕觸文件來在面板中開啟文件的資訊。您可以從此處:
- Access the document versions - see Version Manager for more info.
- Access the document history - see Version Manager for more info.
- Copy, delete, and share the document - see Share for more info on sharing documents.
- Add or edit the document name and document description - tap the icon in the upper right of the document info panel to edit the document name:
Tap Add description to add or edit the document description.
If you are not the owner of a document you can not delete it. However, if you have a document shared with you, the option to remove yourself from the document is available. Tap Remove to remove yourself, or unsubscribe, from the shared document.
When copying a workspace, you can adjust the Document name and folder location in the Copy the active workspace to a new document dialog.
Android 平台上的「文件」頁面有與 Web 平台相同的功能。
By default, all subscription plans use the Document view (outlined below). However, Enterprise and Professional plans have two views available. See Document view and List view for more information.
這個頁面是登入之後顯示的第一個網頁:
「文件」頁面中有各種可選擇的篩選器。按一下頁面左上角的側邊面板功能表按鈕來開啟側邊面板功能表並於其中瀏覽查看您的 Onshape 文件。在選取了篩選器之後,於功能表外輕觸 (或是在以水平位置顯示的平板裝置中再次輕觸功能表圖示) 來關閉面板。
輕觸篩選器之一以開啟相對應的「文件」清單。例如,在下方圖片中選取了「本人所建立」的篩選器:
要建立新文件,請輕觸右下角的按鈕:
Tap Create document.
Enter a name for the document and tap Create.
如果您是 Company 帳戶的成員,在建立新文件時可以選擇文件擁有者。如果您是 Company 帳戶的成員,新文件預設的擁有者會是您所屬的 Company 帳戶。如果您不是 Company 帳戶的成員,則新文件的預設擁有者為您本人。
By default, all subscription plans use the Document view (outlined in the Documents page layout). However, Enterprise and Professional plans have two views available: Document view and List view.
文件檢視 ()
Document view is the default view. When selected, the last opened documents are displayed below, with any folders, publications, and documents. See Documents page layout for more information about this view.
存取「文件檢視」
如果您是在「清單檢視」模式中,您可以:
-
輕觸「文件檢視」圖示 ()。
-
輕觸頁面左上角的公司標誌 (重新整理文件)。
離開然後再回到「文件」頁面中並不會維持住「清單檢視」,您會回到「文件檢視」模式中。
「清單檢視」()
為 Enterprise 與 Professional 計畫訂閱者提供的「清單檢視」可讓您在每個資料夾中查看最新發行與修訂的零件、組合件/次組合件與工程圖。根據您產品的結構在 Onshape 篩選資料。不論您公司中使用者如何建構其文件,系統會在相同的檢視中顯示資料。無需了解文件的命名慣例或使用者如何建構其文件,即可輕鬆自然地瀏覽資訊。
存取「清單檢視」
-
輕觸頁面左上角的公司標誌可將您帶回至「文件」頁面中。
-
輕觸「清單檢視」圖示 ()。
使用「清單檢視」篩選器
在選取清單檢視之後,會在「清單檢視」圖示的右側開啟預設的篩選器:
輕觸一個篩選器來開啟「所有篩選器」對話方塊,可根據您的喜好在對話方塊中填入參數:
您可以選擇性地一次輕觸一個篩選器,然後分別輸入參數。
-
Types - Tap to filter the list for any combination of part, Assembly/subassembly, and Drawing. By default all three are enabled.
-
Name - Enter a name to filter the list by this entry.
-
Description - Enter a description to filter the list by this entry.
-
Part number - Enter a part number to filter the list by this entry.
-
Revision - Enter a revision to filter the list by this entry.
-
More filters - Add filters to your search by tapping on the label you'd like to add.
輕觸對話方塊底部的 [全部重設] 選項來將所有篩選器重設回其預設的狀態。
額外的篩選器選項:
-
Vendor
-
Project
-
Product line
-
標題 1
-
標題 2
-
Title 3
清單檢視「資料夾與專案」
系統會將「資料夾與專案」以水平方格列在清單檢視的最上方。
輕觸「資料夾與專案」標題左側的箭頭來摺疊/展開這個部分。
每個資料夾或專案圖示右側有一個小縮圖與名稱。僅適用於資料夾,會在資料夾名稱下方顯示上次更新資料夾內容的日期與時間:
輕觸資料夾或專案來開啟其內容。
如果所選的資料夾或專案中沒有額外的資料夾,則系統會摺疊「資料夾與專案」方格。
清單檢視「最新修訂版的零組件」
在「資料夾與專案」方格下方的是「最新修訂版的零組件」部分。系統會在這個表格中列出所選專案或資料夾的所有最新發行和修訂的零件、組合件與工程圖。
每個列中包含零件、組合件/次組合件或工程圖的縮圖,以及零組件的「名稱」、「說明」、「零件編號」與「修訂」。取決於選取的篩選器,可能會有其他的欄位出現;欄位會與列在頁面上方的篩選器相符。
「名稱」欄位中包含:
-
一個代表零組件是零件、組合件/次組合件或工程圖的圖示。
-
零組件的名稱。輕觸連結可在目前瀏覽器的分頁中開啟零組件。
-
一個修訂圖示表示是零件的最新修訂版 (修訂的名稱會在括弧中)。
-
強調顯示的零件編號。
「清單檢視」零組件飛出視窗
右側的飛出視窗是可存取所選零組件資訊的地方。若要存取飛出視窗:
-
輕觸「詳細資料」面板圖示 () 來開啟飛出視窗。
-
在零組件列的任意處輕觸,會以飛出視窗顯示「詳細資料」:
若要關閉「詳細資料」飛出視窗,請再次輕觸「詳細資料」面板圖示 (),或輕觸飛出視窗右上角的 x。
下方是在飛出視窗中提供的面板:
- Details panel () - Displays more details about the document:
- Open - Tap the Open folder opens the currently selected component.
- Type - An icon that indicates whether the component is a part, Assembly/subassembly, or Drawing.
- Document name - The document that contains the component.
- Owner - The company or enterprise that owns the component.
- Document description - Short explanation of the document. Tap the edit icon () to edit the description.
- Created by - Name of the user that created the component, with a time and date the component was created.
- Last modified by - Name of the user who last modified the component, with a time and date the component was last modified.
- Share panel () - Displays the permissions for the document in which the component resides:
- Edit - Tap the Edit icon to open the permissions dialog for the document in which the component resides.
- Document permissions - Displays the permissions for the document in which the component resides.
- Copy link to clipboard - Copy the link to the document in which the component resides to your clipboard.
-
Where used panel (excludes Drawings; ) - Displays the Assemblies/subassemblies and Drawings where a particular component is being used. See Where used for more information.
「清單檢視」圖示
下方是用於「清單檢視」顯示中的圖示:
圖示 | 說明 |
資料夾容器 | |
專案容器 | |
零件 | |
組合件或次組合件 | |
工程圖 | |
修訂 |
「清單檢視」提示
-
加入篩選器以縮小搜尋範圍來顯示較少的項目,深入專案或資料夾之中。
-
會在工程圖參考的對應項之下顯示工程圖。
-
目前不會在清單檢視中包括標準內容與非幾何的項目。
-
離開然後再回到「文件」頁面中並不會維持住「清單檢視」,您會回到「文件檢視」模式中。
將檔案匯入至 Onshape 中:
輕觸文件頁面右下角的加號按鈕,然後輕觸「匯入」按鈕。
如果您是 Company 帳戶的成員,在匯入新文件時可以選擇文件擁有者。如果您是 Company 帳戶的成員,新文件的預設擁有者會是您所屬的 Company 帳戶。如果您不是 Company 帳戶的成員,則新文件的預設擁有者為您本人。
For more info, see Import.
將檔案從 Onshape 中匯出:
-
輕觸您要從其中匯出的分頁 (Part Studio、Assembly 等)。
-
從環境選單中選擇 [匯出]。
-
選擇一個匯出檔案格式:
-
Parasolid
-
ACIS
-
STEP
-
IGES
-
PVZ
-
JT
-
Collada
-
GLTF
-
OBJ
-
3MF
-
STL
-
-
指定匯出檔案的名稱。
-
選擇一個版本 (如果有的話)
-
指定匯出的機制:
-
下載
-
下載並在新分頁中存放檔案
-
在新分頁中存放檔案
-
-
輕觸 [匯出] 來匯出檔案,或輕觸 [取消] 來關閉對話方塊而不匯出。
For more info, see Exporting Files.
共享通知
開啟共享通知 (當使用者與您共享文件時的推播通知):
Tap Settings at the bottom right. Select My Account and toggle Share Notifications on (box checked) or off (box empty).
評論通知
關閉評論通知 (當使用者對共享文件做出評論時的推播通知):
Tap Settings at the bottom right. Select My Account and toggle Comment Notifications on (box checked) or off (box empty).
登出
登出 Onshape:
Tap the icon in the upper left to access the navigation drawer. Here, tap Sign out.
提供意見反應,觀賞影片,與存取說明文件:
輕觸右上角的「說明」圖示:
從此處您可以輕觸來存取:
- Help - the Mobile Help.
- 檢閱手勢控制
- Contact Support - Ask a question or provide feedback to Onshape in the form of logging a bug or requesting an improvement.
- About - See what version of Onshape your device is running and view Terms and Privacy.
若要檢視文件資訊面板與存取像是文件擁有者、歷程與版本等的資訊:
輕觸「文件」頁面右側的資訊面板圖示:
接著輕觸文件來在面板中開啟文件的資訊:
從這裡您可以:
Access the document versions - see Version Manager for more information. |
|
Access the document history - see Version Manager for more information. |
|
Copy the document - make a copy of the document. |
|
Move the document - see Folders for more information on moving documents. |
|
Delete the document - Move the document to trash. |
|
Remove yourself from document - see Share for more information. |
|
Share the document - see Share for more information. |
|
Add or edit the document name and document description - tap the icon in the upper right of the document info panel to edit the document name, tap the icon to the right of Description to add or edit the document description. |
If you are not the owner of a document you can not delete it. However, if you have a document shared with you, the option to remove yourself from the document is available. Tap Remove to remove yourself, or unsubscribe, from the shared document.
For an additional Learning center resource, follow the learning pathway course here: Document Management (Onshape account required).
