Onshape には、さまざまなカテゴリの情報のダッシュボードが用意されています。

Each user has access to all of the dashboards available to the enterprise, as long as they have been granted access to the Access analytics Global permission by the Enterprise administrator.

To access Analytics, from the Documents page, click the Analytics icon () on the left side Document panel:

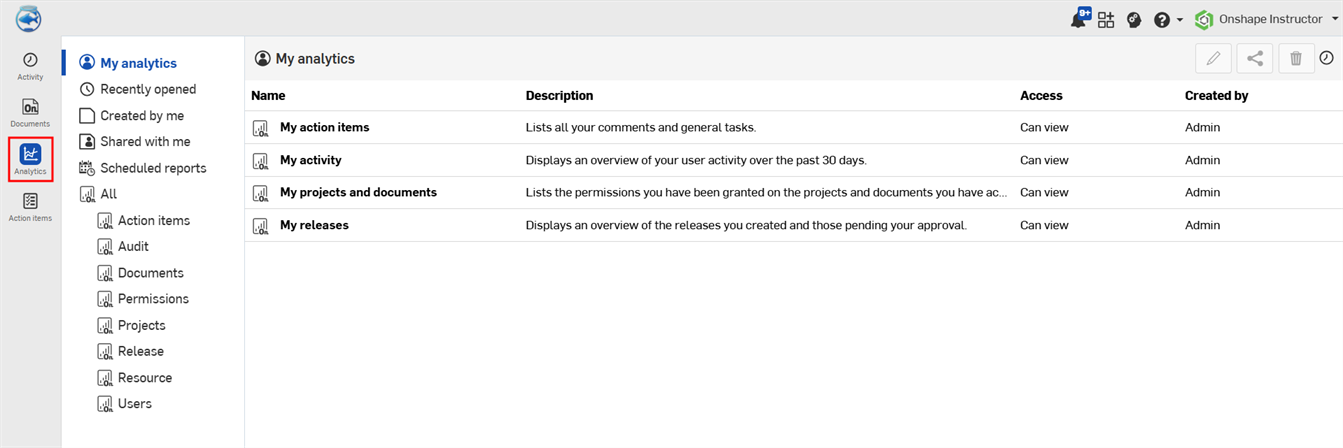

[マイアナリティクス] ページ

Select a dashboard from the major list, or through one of the filters on the left.

When viewing in a browser, be aware the back end of Analytics is run by Amazon Quick Sight.

If changes are made to any dashboard (filters are edited or customizations made), these changes can be saved to a new dashboard. see Save a dashboard for more information.

To export data for a dashboard visual, see Export visual data to a CSV or Excel file.

See Working with Analytics dashboards and Working with Analytics dashboard visuals for additional information.

The left side navigation panel filters are:

  • My analytics () - Displays dashboards that you have saved and dashboards that have been shared with you. Edit a dashboard by using the dashboard filter controls, and save this new dashboard to My analytics if you have the appropriate permissions.

  • Recently opened (最近開いたフィルターアイコン) - Lists dashboards most recently opened by you.

  • Created by me (自分が作成したアイテムフィルターアイコン) - Lists dashboards you have created yourself regardless of owner.

  • Shared with me (自分に共有されたアイテムフィルターアイコン) - Lists dashboards shared with you explicitly by another Onshape user.

  • Scheduled reports () - Lists all scheduled reports for saved dashboards.

  • All () - Groups dashboards by the following Analytics folders. Clicking the All filter displays a table of all dashboards by Name, Description, Access, and Created by columns.

The left-side navigation panel remains open when viewing dashboards. This makes it easier to switch between dashboards.
