Edit an existing curve or create a new curve by selecting sketch entities or curves to apply a simplified approximation, elevate the degree, reposition control curve vertices, and/or planarize into any 2D plane.

Edit curve allows you to edit the curve while maintaining its association with any downstream features that rely on it. This helps to correct any surfaces that are the result of bad curves further up the modeling chain. For example, if a loft results in a bad surface, editing the original curves that were used as the basis for the loft results in a better surface.

Use the Edit curve feature to:

  • Improve imported curve geometry to smooth, fair, rebuild, reparameterize, and reapproximate it.

  • Edit an existing curve's shape via its control points.

  • Position a curve's control point in reference to other geometry. For example, if you have several alternate sized configurations of a crossbar, and want the curve of a different part to update its alignment to the crossbar.

  • Elevate the degree of the curve to match a desired degree, improve connectivity, or get finer control over the shape of the curve.

  • Correct for an unwanted torsion/twist in the curve. The curve and its control points are shifted to a selected plane or mate connector to straighten (planarize) it.

Curves are commonly used to provide the basis for complex 3D geometry, whether serving as guide curves for complex lofts and boundary surfaces, or paths for sweeps. Occasionally, these curves may need to be adjusted to match the desired design intent. In these cases, Onshape’s Edit curve feature allows the curve to be modified while maintaining any associations to downstream features that depend on the curve. For example, a curve may have undesirable twisting that affects the shape of a loft feature. Editing the curve to smooth the twisting results in a smoother loft.

The Edit curve feature provides multiple options for rebuilding curves, reshaping curves, and working with curves from various native or imported sources.

The Edit curve feature also allows you to show or hide the read-only curve values for the degree, number of control points, and number of spans.

Check Approximate to reapproximate the curve. This rebuilds the curve to a new mathematical specification. Set the Target degree, Maximum number of control points, and Tolerance. Check Keep start derivative and Keep end derivative to preserve the curve’s tangency at both ends of the curve.

Check Elevate to provide a new target degree for the curve. This option elevates the curve to this new higher degree, thus increasing the number of control points, which can grant finer control of the curve's shape.

Check Planarize to project the curve’s control points from their current location onto a selected Reference plane. There are numerous options to determine the plane on which Onshape projects the control points. Best fit projects the control points onto a plane that most closely matches the route of the curve, using the average of all control point locations. Check Lock ends to lock the ends of the curve to their original locations. YZ, XZ, and XY planes project the control points onto the respective plane. Custom projects the control points onto a selected plane or the plane provided by a Mate connector. Select the Mate connector icon to activate the selection of implicit or explicit Mate Connectors.

Check Edit control points to modify the position and weight of individual control points on the selected curve. The initial Control point index is 0, corresponding to the first control point along the curve. Select additional control points by entering their index number or selecting the appropriate control point in the graphics area. Once a control point is selected, click Add point override to manually enter offset and weight values, or adjust the position using the triad manipulator in the graphics area. By default, these offsets are relative to the original control point position, but you can offset them from a specific point when you provide an optional Reference. The Weight determines the weight of the control point in relation to the curve. The greater the weight, the more the curve is drawn to the control point. The Weight multiplies the influence of the point on the curve by the value you enter.

The order of dialog operations is hierarchical from top to bottom (From Approximate to Elevate to Planarize and finally to Edit control points). If you wish to alter this order of operations, create multiple Edit curve features that sequentially alter the order to your requirements. For example, create one Edit curve feature that edits the curve control points and a second Edit curve feature to planarize the same curve.

You can use Approximate or Elevate to ensure the number of control points on each curve is identical, helping to align and smooth a loft's surface.

With at least one linear sketch entity or curve available in the graphics area:

  1. Click the Edit curve feature () in the toolbar.

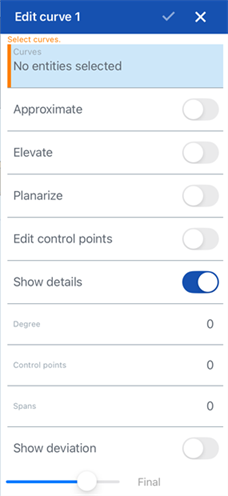

    Edit curve dialog

  2. Select one or more linear sketch entities and/or curves that do not self-intersect in the graphics area. The sketch entities or curves must follow a continuous path, and if multiple curves are selected, they must be reapproximated (check Approximate below), which results in a new curve.

  3. Check Approximate to open options to reapproximate the curve. The original curve is displayed in orange, and the new approximated curve is displayed in magenta.

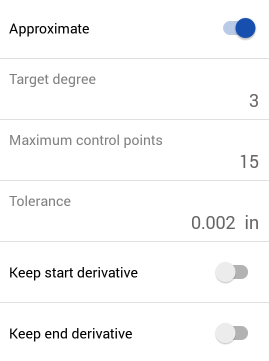

    Edit curve dialog: Approximate

    • Target degree - Enter the target curve degree for the selected curve.
    • Maximum control points - Enter the maximum number of control points allowed for the selected curve.
    • Tolerance - Tolerance of the selected curve, as a length measurement. Enter the tolerance value.
    • Keep start derivative - Check to keep tangency at the beginning of the selected curve.
    • Keep end derivative - Check to keep tangency at the ending of the selected curve.
  4. Check Elevate to open the Target degree option. Enter a higher target curve degree for the selected curve, if required. This is useful to match a desired degree, improve connectivity, or get finer control over the shape of the curve.

    Edit curve dialog: Elevate

  5. Check Planarize to open options to straighten the curve along a Reference plane. Planarizing projects the control curves from their current location to the selected Reference plane:

    Edit curve dialog: Planarize

    Reference plane options are:

    • Best fit - Projects the curve along the plane that most closely matches the route of the curve (using the average of all control point locations).

      • Lock ends - Check to ensure the endpoints of the curve are fixed in place and do not move. This is useful to preserve continuity with attached geometry.

    • YZ plane - Projects the curve along the YZ plane (normal to the X axis).

    • XZ plane - Projects the curve along the XZ plane (normal to the Y axis).

    • XY plane - Projects the curve along the XY plane (normal to the Z axis).

    • Custom - Projects the curve along a custom plane or the XY axes of an explicit or implicit mate connector (normal to its Z axis).

  6. Check Edit control points to open options to add a reference, and alter the position and weight of individual control points on the selected curve:

    Edit curve dialog: Edit control points

    Once Edit control points is checked, the triad manipulator is visible in the graphics area and its origin is placed on the first control point (Control point index 0). This Control point index field is the top level index/ID of a point on the curve. and starts at 0. You can select each control point numerically by entering the index number in this field. As you do so, the triad manipulator shifts to the corresponding control point in the graphics area.

    The triad manipulator adjusts:

    • Translation across 3 axes

    • Translation across 3 planes.

    Triad manipulator

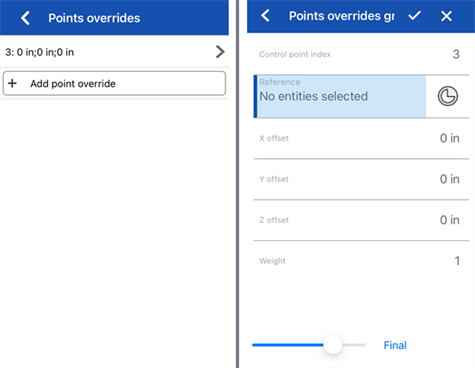

    Clicking the Add point override button or adjusting the triad manipulator adds an override option for the currently-selected point:

    Adding a point override

    Adjusting the Z-axis manipulator 10 mm opens up the options for the current control point (index 0 in the image above).

    You can add override settings individually for each control point on the curve. Click the Add point override button to add customized override settings to an additional point. Each point can only have one set of override settings applied.

    Expand/collapse each row/control point overrides by pressing the caret () to the left of the row. Each point's overrides lists the index number followed by the X/Y/Z offset values. Click the x to the right of each row to clear that point's overrides. Click CLEAR at the top right corner of the table to clear all override settings for all rows/control points overrides.

    Edit control points with overrides

    If required, edit each of the following control point override options:

    1. Control point index - This is the index of the control point that is being overriden. Select the index/ID of a point on the curve. Indexing starts at 0.

      Switching control point index numbers at this level applies all current point override settings to that control point. In this way, you can instantly transfer override settings from one control point to another.

      Edit the following override settings for each control point on the curve:

      1. Reference - The default reference is the unchanged control point position (triad manipulator's origin point). Select a vertex, sketch point, or an explicit or implicit mate connector to make the current point's X/Y/Z offset values relative to this point.

        To create an implicit mate connector when editing the control point, click the Select mate connector icon () and then click on a location in your model to create the mate connector. This is now used as the point reference.

      2. X/Y/Z offset - Displays the current position of the control point, as it is offset from its reference. If required, enter numeric offset values in each field.
      3. Weight - Determines the weight of the control point in relation to curve. Higher weight values "pull" the curve closer to the control point. Enter a weight value to multiply the influence of the point on the curve by that amount.
    2. Add point override - Adds a new point override into the table with the index being either the currently selected index, or the first unused index in the array after the current index, if the current index is already used.
  7. (Optional) By default, Show details is enabled and provides a read-only display of the Degree value, number of Control points, and number of Spans. Uncheck this option to hide these details.

    Edit curve: Show details

  8. (Optional) If the curve has been reapproximated, you can enable the Show deviation checkbox to view the maximum deviation between the original curve and the reapproximated curve.

    Edit curve: Show deviation

  9. Click the checkmark (Accept checkmark icon) to accept the edit curve feature.



  • The original curve before (left) and after using Approximate (right):

    Edit curve: Approximate example

  • Creating a new curve from 2 tangential sketch entities (left); after using Approximate, they are joined into a single curve (right). The original sketch entities remain and can still be used for other purposes.

    Edit curve: Approximate example

  • Using the Tolerance option to smooth out a curve:

    Example of using tolerance to smooth out a curve

  • Elevating to match a target degree:

    Elevate example

    Without any elevation (left) and elevated to a Target degree of 10 (right)

  • Planarizing to straighten out a curve along a plane:

    Edit curve: Planarize examples

    Top: Planarize unchecked (left), Best fit (right); Bottom from left to right: YZ plane, XZ plane, XY plane

  • Planarizing a helix into a spiral:

    Example of planarizing a helix into a spiral

    Helix feature (left), and after planarizing the helix into a spiral using the Edit curve > Planarize (right)

  • Planarize using the Custom option and selecting a mate connector as the basis for the plane:

    Planarize: Custom mate connector example

    Planarize unchecked (left) and checked (right). Custom is selected and a Mate connector used for the custom plane.

    The same curve as above when planarized using the custom mate connector plane, shown in context with the other planes:

    Edit curve: Planarize using a custom Mate connector

  • Editing the control points along a curve to fine tune its shape:

    Editing control points on a curve

    The original curve without any points edited (left) and with point 2 and 4 edited to create a smoother curve (right)

  • Editing a control point to referencing existing geometry (external to the curve). Using this method, if the reference geometry changes, the curve follows that geometry. For example, if you have several different sizes for the referenced geometry and set those up as configurations, the curve will always follow the geometry, no matter what configuration is selected.

    Edit curve: control point reference example

After importing CAD, you may have a bad curve. This problem could also worsen if you have done a lot of modeling work using the bad curve, without ever noticing the problem until later on in the design process.

Here is an example of imported CAD data (the import are curves used for a boat). Using the Curve/surface analysis tool, you can see issues with the following curve:

Imported CAD with a bad curve

As surfaces are created from this curve, the data from the poorly-constructed curve is passed on downstream in the design process. Editing the curve (first image below) results in a smoother curve (second image below). You can edit the curve directly after the import process, and all downstream features that rely on the curve are updated automatically:

Edit curve example

Approximating the curve to Target degree: 5; Maximum control points: 6, then editing the control points to create a smooth curve.

The following shows the difference in quality of the resultant boundary surface generated as a result of using features downstream which originated from the preceding curve:

DIfference in a boundary surface using the bad curve and after Edit curve

A boundary surface created from the curve showing a problematic surface (top) and a better quality surface after the curve is edited (bottom). Less control points in the curves results in a smoother surface.

  • There is a hierarchical order or operations (order of dependence) when applying Edit curve options to a curve. Approximate is applied first, then Elevate, then Planarize, and then finally Edit control points. If you wish to Edit control points of the curve and then Planarize as your next step, you can do so by creating two Edit curve features, one after the other. In the first Edit Curve feature edit the curve's control points. Then, in the second Edit curve feature, planarize the curve.

    Edit curve hierarchy example

    Editing the curve's control points in the first Edit curve feature (left) and planarizing it in the second Edit curve feature (right) to reverse the order of operations performed on the curve

  • When editing multiple curves as the basis for a loft (which ultimately creates a surface), ensure there is an equal amount of control points on each curve. This ensures that there is parallelism between the points on each of the curves, creating a well-defined loft.

    Example of curves used for a loft

At this time, mobile support for the Edit curve feature is limited to displaying and editing existing curves. Edit curves can not be created on the iOS or Android platform.
