结构视图

Accessing structure view

By default, all subscription plans use the Document grid view layout. However, Enterprise and Professional plans have 2 additional view options: Document list view, and structure view. Structure view is outlined below.

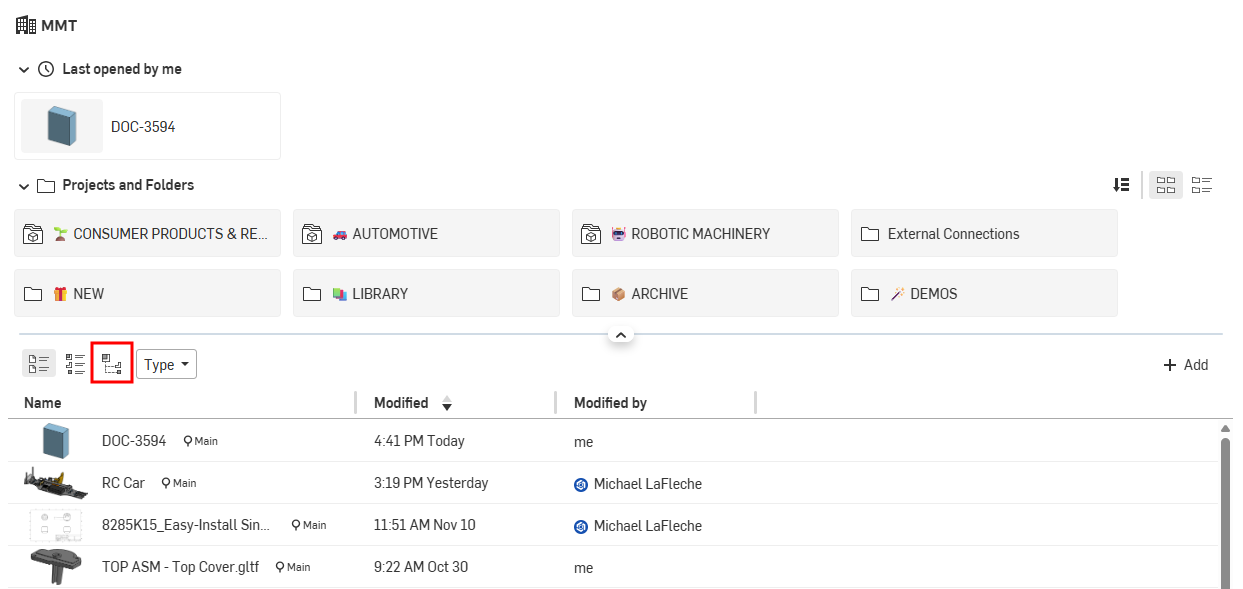

To access structure view:

1. Open the Documents page.

2. From the top level of the Enterprise/Company, click the Structure view icon ().

If you navigate away from the top level Enterprise/Company filter on the Documents page (for example, click on the Recently opened filter), returning to the top level does not retain the structure view. You are returned to the Document grid view.

Using Structure view

When you access structure view, Folders are listed at the top section of the page and As built structure view is listed below.

文件夹和项目

Folders and Projects are listed at the top of the Structure view in a horizontal grid.

此部分是可折叠的。单击“文件夹和项目”标题左侧的箭头可折叠/展开该部分。按住“文件夹和项目”部分的底部，向上或向下拖动以调整高度。这将显示您想要可见的“文件夹和项目”的行数。

每个文件夹或项目图标的右边都有一个小缩略图和名称。仅适用于文件夹，文件夹名称下方会显示上次更新文件夹内容的日期和时间：

单击文件夹或项目以打开其内容：

The opened E-LAWNMOWER project displayed in Structure view.

如果单击的文件夹或项目中没有其他文件夹，则“文件夹和项目”栅格将折叠。单击“文件夹和项目”上方的分层导航工具链接可跳回“文件夹和项目”层次结构中的先前位置：

Compact mode

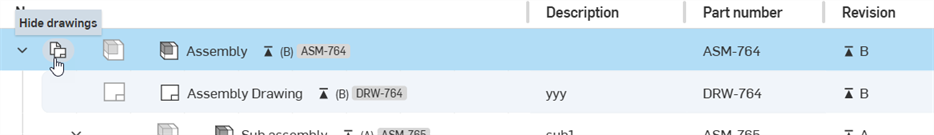

By default, the Compact toggle is on. This shows each component (part or assembly) in the structure view table in a single row. Switching the Compact toggle off provides additional information for each component in the table, with each component along 2 table rows:

As built structure view

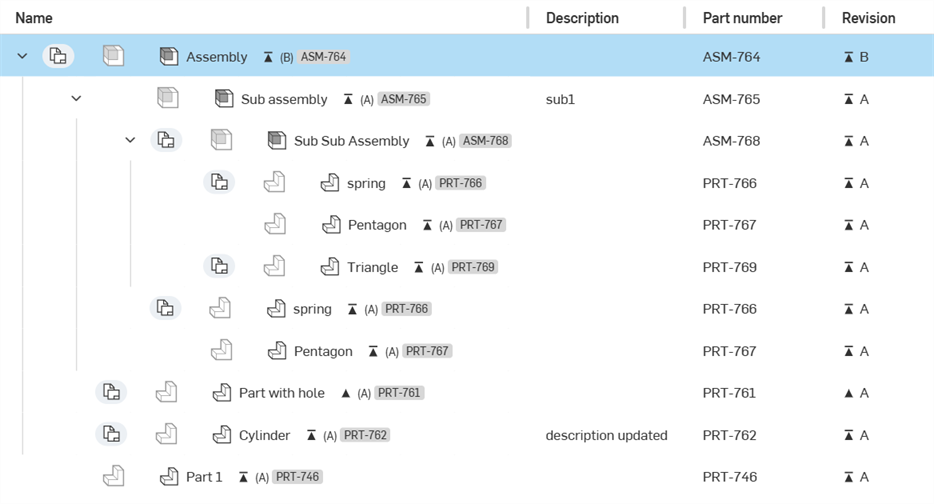

Below the Folders and Projects grid is the As built structure view section. All the latest released and revisioned parts and assemblies for the selected project or folder are listed in this table as a tree list. Previous releases are not displayed.

Only components in the current folder are viewable. Components in folders above or below the current folder are not displayed.

If a released component is not used in an assembly, it is displayed at the top of the tree list.

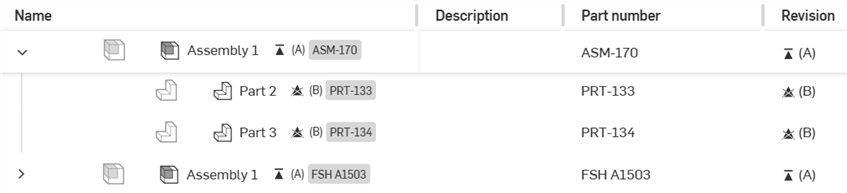

If a component has a newer revision available, its revision icon is highlighted in blue:

Each row contains a thumbnail of the part or assembly, as well as the Name, Description, Part number, and Revision of the component. There may be additional columns depending on which columns are added or removed.

In a long structured list, as you scroll vertically, the top level rows remain fixed until the next heading row in the list supersedes it.

The following default columns are found in this table:

• 名称

  • An icon to indicate if the component is a part or assembly.

  • The name of the component. This is a hyperlink. Click the link to open the component in a new browser tab.

  • 一个修订图标表示这是零件的最新修订版本（括号内为修订名称）。

  • 亮显的零件编号。

  If Compact view is disabled, the revision is listed on the second line under the name, along with the part number.

  The Name column cannot be hidden.

• Description - Lists the description of the component, if one exists.

• Part number - The component's associated part number.

• Revision - Latest revision of the current component.

Add columns

Click the Add columns button to open the Add columns dialog. The following columns can be added to the Structure view table:

• 供应商

• 项目

• 产品线

• 标题 1

• 标题 2

• 标题 3

In this dialog you can do the following:

• Check the box to the left of any column to add it into the Structure table, or uncheck it to remove a column.

• Use the Sort icon () to move a column up (left) or down (right) in the table order.

• Use the Search bar to locate a column to add into the list.

• Use the Search bar to locate a column to add into the table.

As built structure view header context menu

Right-click on any column heading in the As built structure view table to access the context menu:

• Pin column - Available for all columns except Name, this pins the column in place to the left (right of the Name column) or the right (left of the right edge of the screen). Default is No pin.

• Autosize this column - Autosizes the current column to best fit column content.

• Autosize all columns - Autosizes all columns to best fit column content.

• Reset columns - Resets all columns to their default (to fit the screen).

Formatting the As built structure view

To adjust the width of a column:

1. Hover your mouse cursor over the right edge of the column. The column divider cursor displays a double-sided arrow:



2. 单击并向左拖动以缩小列的范围，或向右拖动以扩大列的范围。

3. 达到所需的列的宽度后，松开鼠标。

请注意：经调整列右侧的所有列其大小保持不变。

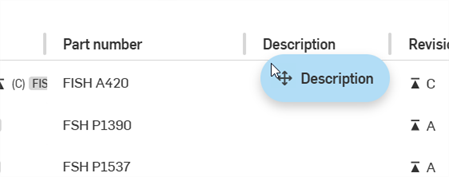

To reorder columns:

1. Drag the header of the column and drop it in a new location (to the right or left of another column).



As built structure view component context menu

右击零部件行上的空白处以访问环境菜单：

• 在新浏览器选项卡中打开 - 在新浏览器选项卡中打开此零部件。

• Add to publication - Only available for components that are not already part of a publication. Opens the Create/add to publication dialog, where the component can be added to a new or existing publication. See Publications for more information.

• 创建任务 - 打开“创建任务”对话框，您可以在其中创建有关当前选定零部件的新任务并将该任务分配给用户。

• 导出 - 打开所选零部件的“导出”对话框。

• 详细信息 - 在右侧零部件面板中打开“详细信息”面板（请参见下方的完整说明）。

• Collapse all row groups - Collapses all row groups in the As built structure view table.

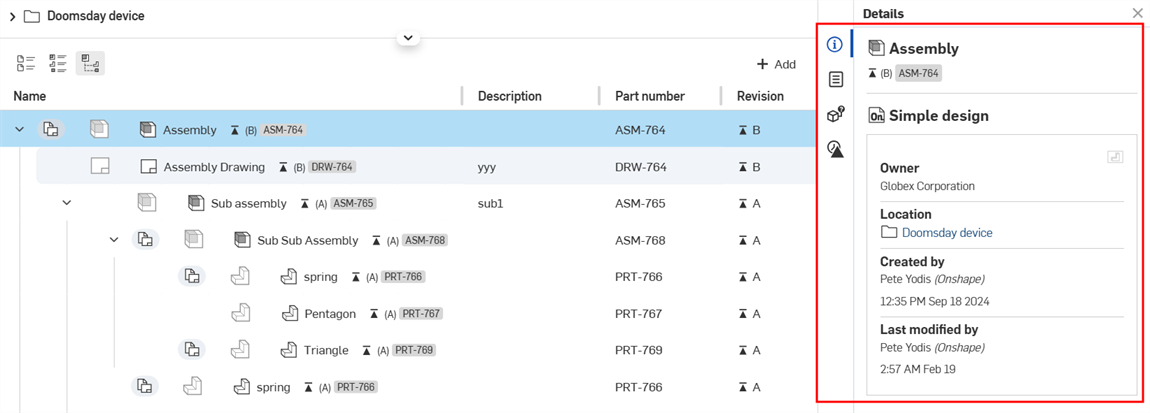

As built structure view component panel

右侧的面板是访问所选零部件信息的地方。通过单击零部件行上的空白处来选择零部件。零部件的“详细信息”面板会填充面板。使用每个面板图标作为开关来打开或关闭面板。有四种可用的面板：

• Details panel () - Displays more details about the component:
  • Name - Assembly, subassembly, or part name. The revision and part number are listed below the name.
  • 文档名称 - 包含零部件的文档。
  • 所有者 - 拥有该零部件的公司或企业。
  • 位置 - 零部件所在的文件夹或项目，带有在新浏览器选项卡中打开该位置的链接。
  • 创建者 - 创建零部件的用户的名称，以及零部件的创建时间和日期。
  • 上次修改者 - 上次修改零部件的用户名，以及上次修改零部件的时间和日期。
• 特性面板 () - 显示可编辑和不可编辑的零部件特性列表。如果零部件特性不可编辑，则该特性将显示为灰色。您可以直接从此面板编辑所有其他特性。

• “使用处”面板（不包括工程图；) - 显示使用特定零部件的装配体/子装配体和工程图。请参见使用处以了解更多信息。

• 修订历史记录面板 () - 显示所选零部件的所有版本。每个发布都按时间顺序在面板中列出，最新发布位于顶部。每个发布都包含以下详细信息：

  • 修订名称 - 修订的名称（括号中），带有的链接可在新浏览器选项卡中打开该零部件

  • 发布名称 - 发布名称，带有的“查看发布”链接可打开发布对话框。

  • 提交者 - 提交最新发布的用户名以及发布时间和日期。

Accessing structure view

By default, all subscription plans use the Document layout. However, Enterprise and Professional plans have two additional view options: List view and Structure view. Structure view is outlined below.

To access structure view:

1. Open the Documents page.

2. From the top level of the Enterprise/Company, tap Structure:

If you navigate away from the top level Enterprise/Company filter on the Documents page (for example, tap on the Recently opened filter), returning to the top level does not retain the structure view. You are returned to the Document grid view.

Using Structure view

When you access structure view, Folders and Projects are listed at the top section of the page and As built structure view is listed below.

文件夹和项目

Folders and Projects are listed at the top of the Structure view in a horizontal grid.

This section is collapsible. Tap the arrow to the left of the Folders and Projects heading to collapse/expand the section.

每个文件夹或项目图标的右边都有一个小缩略图和名称。仅适用于文件夹，文件夹名称下方会显示上次更新文件夹内容的日期和时间：

单击文件夹或项目以打开其内容：

The opened E-LAWNMOWER project displayed in Structure view.

If there are no additional folders inside the folder or project, the Folders and Projects grid collapses. Tap the breadcrumb link above the Folders and Projects to jump back to a previous location in the Folders and Projects hierarchy:

As built structure view

Below the Folders and Projects grid is the As built structure view section. All the latest released and revisioned parts and assemblies for the selected project or folder are listed in this table as a tree list. Previous releases are not displayed.

Only components in the current folder are viewable. Components in folders above or below the current folder are not displayed.

If a released component is not used in an assembly, it is displayed at the top of the tree list.

If a component has a newer revision available, its revision icon is highlighted in blue:

Each row contains a thumbnail of the part or assembly, as well as the Name, Description, Part number, and Revision of the component. There may be additional columns depending on which columns are added or removed.

Tap anywhere on a component line to open the component in a new browser tab.

The following default columns are found in this table:

• 名称

  • An icon to indicate if the component is a part or assembly.

  • 零部件的名称。

  • 一个修订图标表示这是零件的最新修订版本（括号内为修订名称）。

  • 亮显的零件编号。

  The Name column cannot be hidden.

• Description - Lists the description of the component, if one exists.

• Part number - The component's associated part number.

• Revision - Latest revision of the current component.

Add columns

Tap the Add columns button (shown below in red) to open the Add columns dialog. The following columns can be added to the Structure view table:

• 供应商

• 项目

• 产品线

• 标题 1

• 标题 2

• 标题 3

Tap anywhere on the row to add it to or remove it from the Structure table.

As built structure view component context menu

Tap and hold anywhere on a component row to open the context menu for the component:

• Open - Opens the selected component.

• Add to publication - Only available for components that are not already part of a publication. Opens the Create/add to publication dialog, where the component can be added to a new or existing publication. See Publications for more information.

• 详细信息 - 在右侧零部件面板中打开“详细信息”面板（请参见下方的完整说明）。

As built structure view component panel

The right side panel is where information for the selected component is accessed. First, tap the Details () panel icon to open the panel. Then tap the component row. The Details for the component populates the panel. Use each panel icon as a toggle to open or close the panel. There are three available panels:

• Details panel () - Displays more details about the component:
  • Name - Assembly, subassembly, or part name. The revision and part number are listed below the name.
  • 文档名称 - 包含零部件的文档。
  • 所有者 - 拥有该零部件的公司或企业。
  • 创建者 - 创建零部件的用户的名称，以及零部件的创建时间和日期。
  • 上次修改者 - 上次修改零部件的用户名，以及上次修改零部件的时间和日期。

• Share details panel () - Displays the permissions on the document and the folder or project (if any) within which it resides. Tap the Edit icon to open the Share dialog and adjust share settings for the component. See Share documents for more information.

• “使用处”面板（不包括工程图；) - 显示使用特定零部件的装配体/子装配体和工程图。请参见使用处以了解更多信息。

Accessing structure view

By default, all subscription plans use the Document layout. However, Enterprise and Professional plans have two additional view options: List view and Structure view. Structure view is outlined below.

To access structure view:

1. Open the Documents page.

2. From the top level of the Enterprise/Company, tap Structure:

If you navigate away from the top level Enterprise/Company filter on the Documents page (for example, tap on the Recently opened filter), returning to the top level does not retain the structure view. You are returned to the Document grid view.

Using Structure view

When you access structure view, Folders and Projects are listed at the top section of the page and As built structure view is listed below.

文件夹和项目

Folders and Projects are listed at the top of the Structure view in a horizontal grid.

This section is collapsible. Tap the arrow to the left of the Folders and Projects heading to collapse/expand the section.

每个文件夹或项目图标的右边都有一个小缩略图和名称。仅适用于文件夹，文件夹名称下方会显示上次更新文件夹内容的日期和时间：

Tap a folder or project to open its contents. If there are no additional folders inside the folder or project, the Folders and Projects grid collapses. Tap the breadcrumb link above the Folders and Projects to jump back to a previous location in the Folders and Projects hierarchy:

As built structure view

Below the Folders and Projects grid is the As built structure view section. All the latest released and revisioned parts and assemblies for the selected project or folder are listed in this table as a tree list. Previous releases are not displayed.

Only components in the current folder are viewable. Components in folders above or below the current folder are not displayed.

If a released component is not used in an assembly, it is displayed at the top of the tree list.

If a component has a newer revision available, its revision icon is highlighted in blue:

Each row contains a thumbnail of the part or assembly, as well as the Name, Description, Part number, and Revision of the component. There may be additional columns depending on which columns are added or removed.

Tap anywhere on a component line to open the component in a new browser tab.

The following default columns are found in this table:

• 名称

  • An icon to indicate if the component is a part or assembly.

  • 零部件的名称。

  • 一个修订图标表示这是零件的最新修订版本（括号内为修订名称）。

  • 亮显的零件编号。

  The Name column cannot be hidden.

• Description - Lists the description of the component, if one exists.

• Part number - The component's associated part number.

• Revision - Latest revision of the current component.

Add columns

Tap the Add columns button (shown below in red) to open the Add columns dialog. The following columns can be added to the Structure view table:

• 供应商

• 项目

• 产品线

• 标题 1

• 标题 2

• 标题 3

Tap anywhere on the row to add it to or remove it from the Structure table.

As built structure view component context menu

Tap and hold anywhere on a component row to open the context menu for the component. From the context menu you can:

• Open - Opens the selected component.

• Add to publication - Only available for components that are not already part of a publication. Opens the Create/add to publication dialog, where the component can be added to a new or existing publication. See Publications for more information.

• 详细信息 - 在右侧零部件面板中打开“详细信息”面板（请参见下方的完整说明）。

As built structure view component panel

The right side panel is where information for the selected component is accessed. First, tap the Details () panel icon to open the panel. Then, tap the component row. The Details for the component populates the panel. Use each panel icon as a toggle to open or close the panel. There are three available panels:

• Details panel () - Displays more details about the component:
  • Name - Assembly, subassembly, or part name. The revision and part number are listed below the name.
  • 文档名称 - 包含零部件的文档。
  • 所有者 - 拥有该零部件的公司或企业。
  • 创建者 - 创建零部件的用户的名称，以及零部件的创建时间和日期。
  • 上次修改者 - 上次修改零部件的用户名，以及上次修改零部件的时间和日期。

• Share details panel () - Displays the permissions on the document and the folder or project (if any) within which it resides. Tap the Edit icon to open the Share dialog and adjust share settings for the component. See Share documents for more information.

• “使用处”面板（不包括工程图；) - 显示使用特定零部件的装配体/子装配体和工程图。请参见使用处以了解更多信息。
