To aid in the process of assembling instances, Onshape provides some convenient tools in the context menu:
- 隱藏
- 隔離顯示
- 設為透明
Use these commands to access the instancess and mates required for your tasks, instead of painstakingly finding and moving parts and subassemblies out of the way to access the relevant entities.
隱藏零件
Hide all parts, selected parts, or unselected parts to aid in visualizing or evaluating the movement of an assembly.
To hide parts:
-
Select parts in the graphics area or in the Assembly list.
-
Use a box select to select multiple parts.
-
Select a folder in the Assembly list to select all parts in that folder.
-
-
Right-click to access the context menu and choose an option:
-
Hide - Hides the selected part or parts
-
Hide other instances - Hides all unselected instances.
-
Hide all instances - Hides all selected and unselected instances.
-
This command is a toggle: Hide/Show.
You can also use the y shortcut key to hide a part under the cursor; the part will show a highlight on hover. To show the part again, right-click and select Show all or Show all parts.
隱藏的範例
The selected parts in the assembly:
The model after Hide:
The model after Hide other instances
Isolate
Shortcut: Shift+i
Isolate keeps all selected Part Studio or Assembly entities opaque, while making other entities transparent. Options include visualizing the transparent internal geometry so it can be selected, measured, analyzed, and edited, and expanding the isolated selection based on connectivity or physical proximity.
Isolate is used:
-
To enhance entity visibility in large Part Studios and Assemblies.
-
To visualize and perform tasks on geometry (for example, points, edges, faces, mate connectors) that are occluded by other geometry.
-
As an alternative to the Hide/Show commands, where finding and hiding/showing entities to access relevant model geometry proves difficult or tedious.
The Isolate command is the reverse of the Make transparent command.
Steps
Isolate is available as a context menu command from the Parts list (in a Part Studio), Instances list (in an Assembly), or from the Part Studio or Assembly graphics area when right-clicking over a model selection.
From a Part Studio or Assembly:
-
Select the entities you wish to isolate from the Parts or Instances list, or the graphics area. These can be parts/instances, points, edges, faces, mate connectors, folders, or groups.
-
Right-click over the list or model selection and select Isolate from the context menu. The Isolate dialog opens:
-
Set the Transparency slider (under the Transparency controls):
-
Set to the far left, only the outer edges of the transparent geometry is displayed. Internal geometry of the selection is not displayed (shown above).
-
Set to the far right, the transparent geometry is completely transparent.
-
Set anywhere between the two sides, the internal geometry of the transparent geometry is displayed (shown below). Moving the slider to the right increases transparency, making the transparent geometry less opaque. Moving the slider left decreases transparency, making the transparent geometry more opaque.
-
-
With Select transparent geometry checked, you can select, measure, analyze, and edit transparent geometry such as parts/instances, points, edges, faces, and mate connectors in the graphics area (shown below). When unchecked, only non-transparent geometry can be selected, measured, analyzed, and edited.
With Select transparent geometry checked, transparent parts/instances, folders, mate connectors, and groups can also be selected from the Parts or Instances list.
-
Use the Component controls to select either:
-
Expand: distance - Use the slider to isolate each successive part or instance based on its physical proximity to the selected part(s) or instance(s). Moving the slider right makes more parts/instances non-transparent (opaque).
-
Expand: connectivity (Assembly only) - Use the slider to isolate each successive instance based on its mate connectivity. Moving the slider right makes more instances non-transparent (opaque).
-
-
Click the x icon in the dialog to close it and return all the parts to their visible state. After exiting, any selections made while in the Isolate dialog are retained.
Example

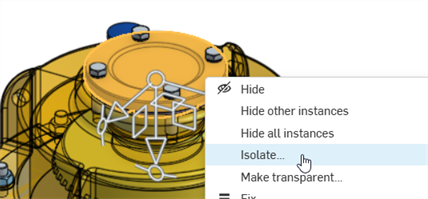

In the example below, the top cover instance of a gear and valve assembly is selected, and Isolate is selected from the context menu:

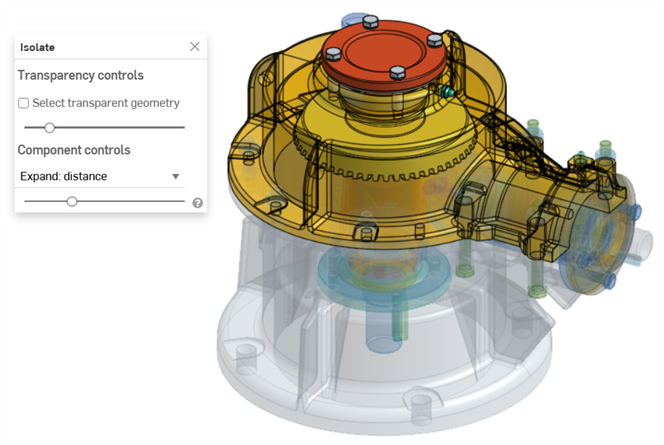

The Expand: distance slider is used to isolate instances successively based on their proximity to the selected cover instance:

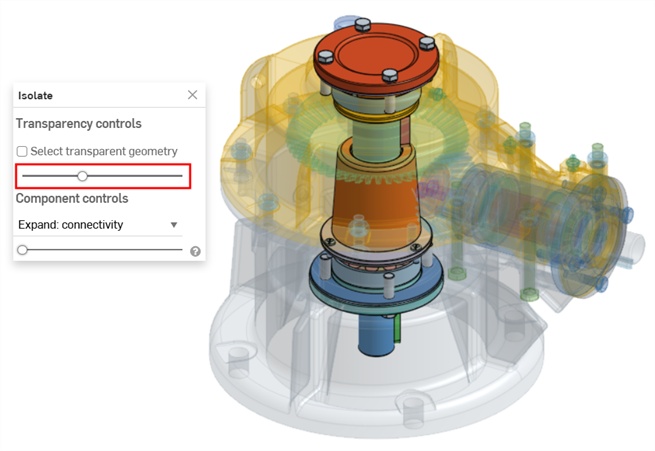

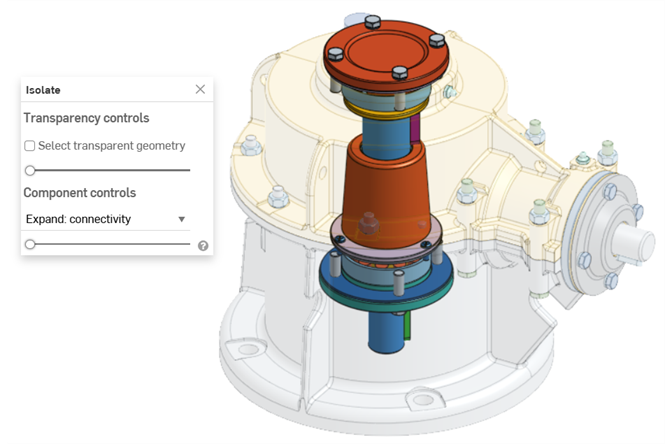

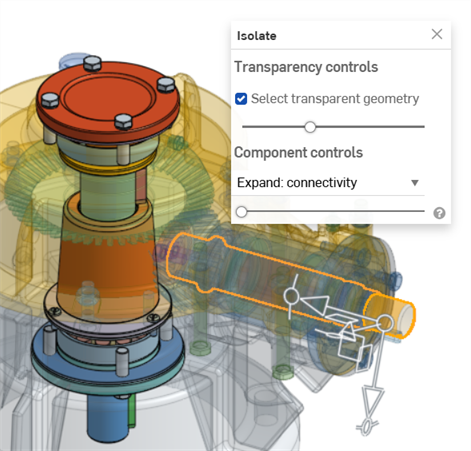

The Expand: connectivity slider is used to isolate instances based on successive mate connections from the cover instance:
Notes
-
Use the shortcut key Shift+i to isolate parts or instances under the cursor. This command is cumulative; you can use it on part after part or instance after instance to isolate them all until you exit the Isolate dialog. You can also multi-select parts or instances and then select the Shift+i command.
-
The Select other (`) key (grave accent key, to the left of the “1” key) can also be used to select additional entities cumulatively.
-
To isolate an entire folder or group of parts or instances, right-click on the folder or group in the Parts or Instances list and select Isolate.
-
Isolate is also available when modeling in context. and using Section view.
-
The Select transparent geometry and Transparency slider settings are remembered if you exit the dialog and re-enter. These settings are not remembered between sessions (if you refresh the browser or exit the document tab).
-
If Select transparent geometry is checked, moving the Transparency slider fully left or right automatically disables it (unchecked). Subsequently, moving the slider will automatically enable it again (checked).
-
As an alternative to exiting the Isolate dialog via its x icon, either:
-
Right-click on the model in the graphics area or right-click on the Parts/Instances list and select Exit isolate from the context menu
-
Click the Esc (escape) key
-
-
On iOS platforms, only Expand: distance is available. Select the part, then use a two-finger tap to open the Context menu. Then select Isolate.
Make transparent
Shortcut: Shift+t
Make selected Part Studio or Assembly entities transparent. Other entities remain opaque. Options include visualizing the transparent internal geometry so it can be selected, measured, analyzed, and edited, and expanding the transparent selection based on connectivity or physical proximity.
Make transparent is used:
-
To enhance entity visibility in large Part Studios and Assemblies.
-
To visualize and perform tasks on geometry (for example, points, edges, faces, mate connectors) that are occluded by other geometry.
-
As an alternative to the Hide/Show commands, where finding and hiding/showing entities to access relevant model geometry proves difficult or tedious.
The Make transparent command is the reverse of the Isolate command.
Video example
Video transcript
Make transparent makes a part or folder of parts transparent, enhancing components visibility in large part studios and assemblies.
To make an individual part transparent, right-click and select Make transparent, or hover the cursor over the part and press Shift+t. This command is cumulative. Hover the cursor over additional parts and press Shift+t to make them transparent.
Pressing X on the dialog removes the transparency of the part.
To make multiple parts transparent at once, select them and then press Shift+t. Whether in a Part Studio or assembly, Expand by connectivity or by distance.
Use the slider to make each successive part transparent.
Check Hide transparent parts to completely hide the part or parts being made transparent.
Steps
Make transparent is available as a context menu command from the Parts list (in a Part Studio), Instances list (in an Assembly), or from the Part Studio or Assembly graphics area when right-clicking over a model selection.
From a Part Studio or Assembly:
-
Select the entities you wish to make transparent from the Parts or Instances list, or the graphics area. These can be parts/instances, points, edges, faces, mate connectors, folders, or groups.
-
Right-click over the list or model selection and select Make transparent from the context menu. The Make transparent dialog opens:
-
Set the Transparency slider (under the Transparency controls):
-
Set to the far left, only the outer edges of the transparent geometry is displayed. Internal geometry of the selection is not displayed (shown above).
-
Set to the far right, the transparent geometry is completely transparent.
-
Set anywhere between the two sides, the internal geometry of the transparent geometry is displayed (shown below). Moving the slider to the right increases transparency, making the transparent geometry less opaque. Moving the slider left decreases transparency, making the transparent geometry more opaque.
-
-

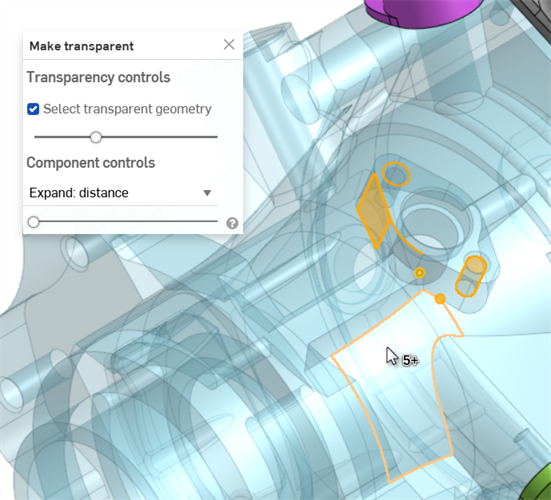

With Select transparent geometry checked, you can select, measure, analyze, and edit transparent geometry such as parts/instances, points, edges, faces, and mate connectors in the graphics area (shown below). When unchecked, only non-transparent geometry can be selected, measured, analyzed, and edited.
With Select transparent geometry checked, transparent parts/instances, folders, mate connectors, and groups can also be selected from the Parts or Instances list.
-
Use the Component controls to select either:
-
Expand: distance - Use the slider to make each successive part or instance transparent based on its physical proximity to the selected part(s) or instance(s). Moving the slider right makes more parts/instances transparent.
-
Expand: connectivity (Assembly tab only) - Use the slider to make each successive instance transparent based on its mate connectivity. Moving the slider right makes more instances transparent.
-
-
Click the x icon in the dialog to remove the transparency of all parts or instances. After exiting, any selections made while in the Make transparent dialog are retained.
Example

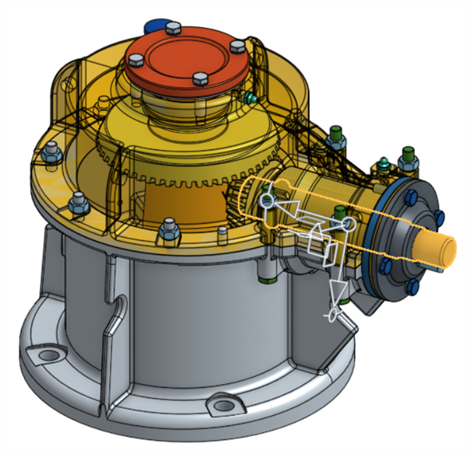

In the example below, the shaft instance of a gear and valve assembly is selected, and Make transparent is selected from the context menu:

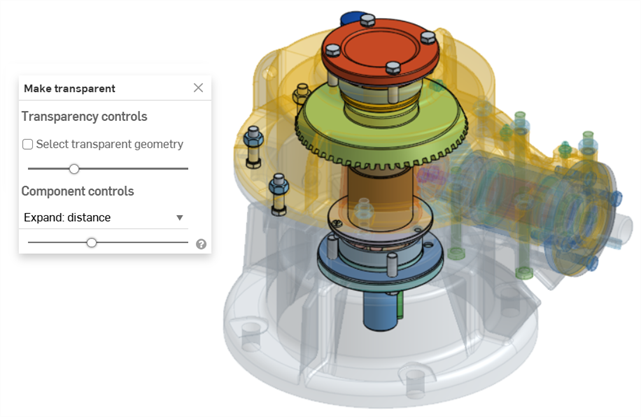

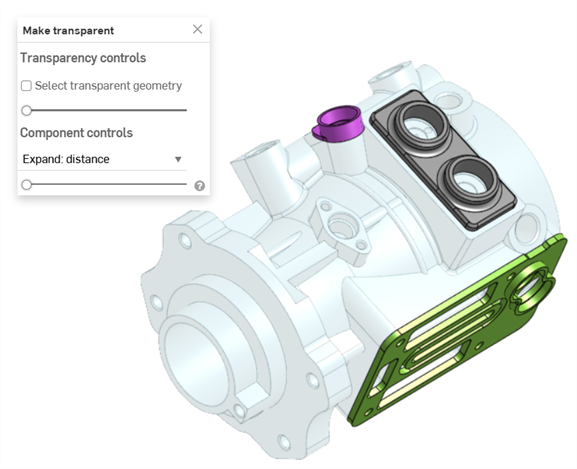

The Expand: distance slider is used to make instances transparent based on their proximity to the selected shaft instance:

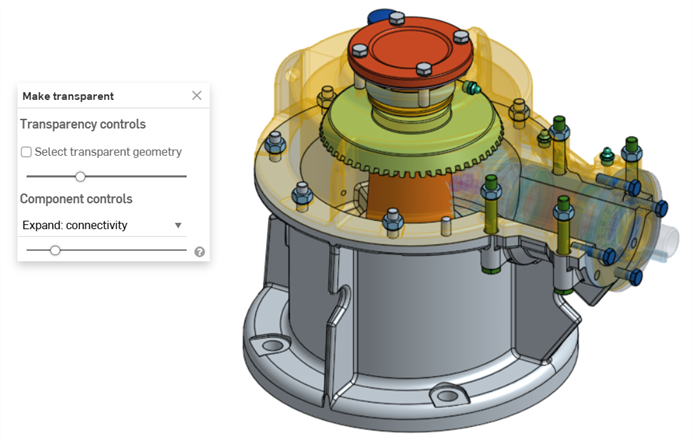

The Expand: connectivity slider is used to make instances transparent based on successive mate connections from the shaft instance:
Notes
-
Use the shortcut key Shift+t to make a part or instance under the cursor transparent. This command is cumulative; you can use it on part after part or instance after instance to keep them all transparent until you exit the Make transparent dialog. You can also multi-select parts or instances and then select the Shift+t command.
-
The Select other (`) key (grave accent key, to the left of the “1” key) can also be used to select additional entities cumulatively.
-
To make an entire folder of parts or instances transparent, right-click on the folder in the Parts or Instances list and select Make transparent.
- Make transparent is also available when modeling in context and using Section view.
- The Select transparent geometry and Transparency slider settings are remembered if you exit the dialog and re-enter. These settings are not remembered between sessions (if you refresh the browser or exit the document tab).
-
If Select transparent geometry is checked, moving the Transparency slider fully left or right automatically disables it (unchecked). Subsequently, moving the slider automatically enables it again (checked).
-
As an alternative to exiting the Make transparent dialog via its x icon, either:
-
Right-click on the model in the graphics area or right-click on the Parts/Instances list and select Exit make transparent from the context menu
-
Click the Esc (escape) key
-
