통합문서 패널은 (Onshape 로고와 함께 세로로 정렬된) 모든 Onshape 통합문서에서 사용할 수 있습니다.

다음은 사용 가능한 기능의 맵입니다.

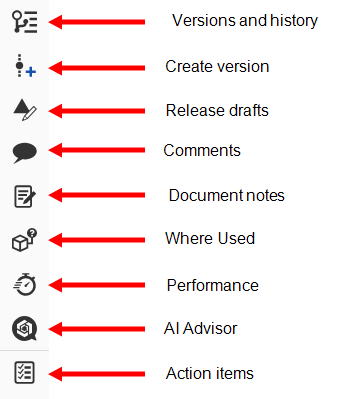

라벨을 포함한 통합문서 패널 툴바

통합문서 패널 툴바의 탭 관리자

  • Versions and history ( 버전 및 히스토리 아이콘) - Click to open the Version Manager in the Document panel, where you can branch, merge, create new workspaces, and view changes and releases.
  • Create version ( 버전 생성 아이콘) - Click to open the Create new version dialog.
  • Release drafts ( 릴리즈 구배 아이콘) - Click to open the Release drafts panel, displaying draft release candidates saved in that document.
  • Comments ( 설명 아이콘) - Click to open Comments for the active document in the Document panel.
  • Document notes ( ) - Click to open the Document notes panel, where you can add text, Markdown, and hyperlinks into a Document notes panel.
  • Where used ( ) - Click to open Where used in the Document panel , displaying where parts or assemblies are used.
  • Performance ( ) - Click to open Performance in the Document panel, where you can view the Tab performance, Tab graphics, Document performance, and System details.
  • Action items ( 작업 항목 아이콘) - Click to open the )Action items in the Document panel, where you can view and filter through your Action items.
  • Tab manager ( ) - Click to open the Tab manager, where you can organize and find tabs more easily. See Working with the Tab manager for more information.
