Only available for.

This Onshape Render Studio application allows the creation of photorealistic scenes from imported Part Studios or Assemblies. Use scenes to test model appearances and materials, lighting and camera setups, and environments. Export scenes as .jpg- or .png-formatted images to market rendered designs.

Once imported via the Document tab menu, a Render Studio tab is created where parts, Part Studios, and Assemblies are inserted into a Render Studio scene. Create as many Render Studio tabs as needed. Each tab contains a single scene. Scenes can be updated since they are linked to their part, Part Studio, or Assembly. Updates in the model or assembly can be updated in the scene.

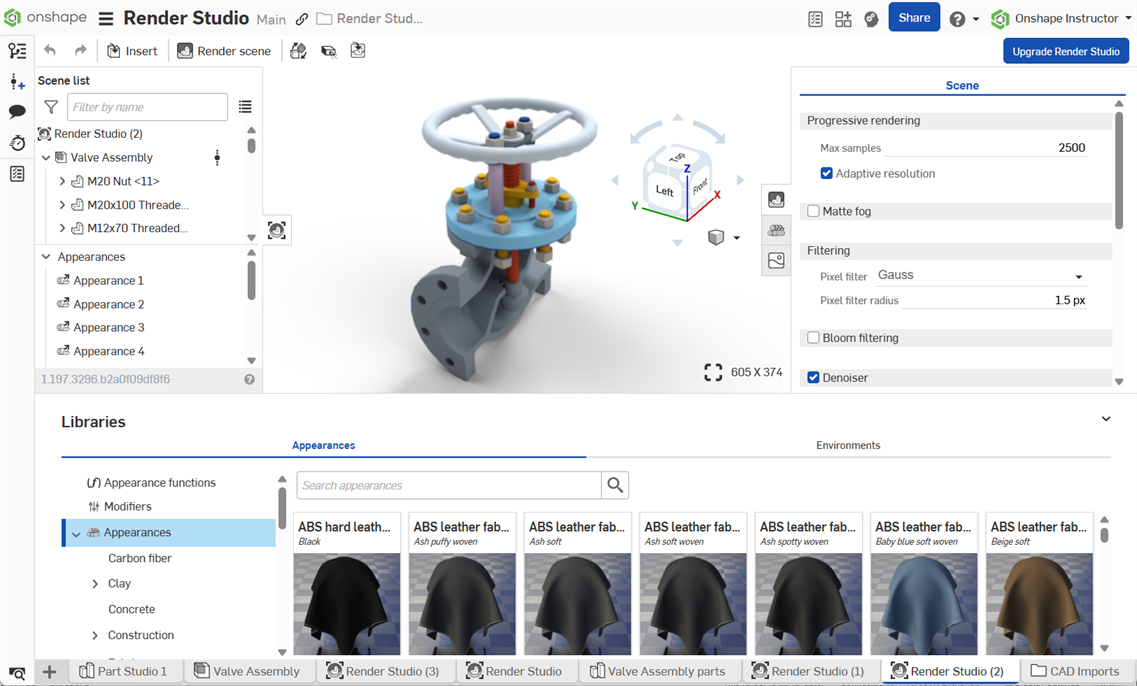

Render Studio main window

Keyboard shortcuts

Shortcut Action
esc Cancel
space Clear selection
delete Delete selection
ctrl+u, cmd+u Contact support
ctrl+z, cmd+z Undo change
ctrl+y, ctrl+cmd+z Redo change
ctrl+shift+← Pan left
ctrl+shift+→ Pan right
ctrl+shift+↑ Pan up
ctrl+shift+↓ Pan down
shift+← Precision rotate left
shift+→ Precision rotate right
shift+↑ Precision rotate up
shift+↓ Precision rotate down
Rotate left
Rotate right
Rotate up
Rotate down
alt+t Open tab manager
y Hide selected parts
shift+y Show selected parts
shift+1 Front view
shift+5 Top view
shift+3 Left view
shift+4 Right view
shift+5 Top view
shift+6 Bottom view
shift+7 Isometric view
shift+n Rename selection
shift+v Named view
shift+x Section view
shift+z Zoom in
z Zoom out
f Zoom to fit
w Zoom to window
` Select other

Render Studio context menu

Right-click on a Render Studio tab to access the context menu:

Render Studio tab context menu

  • Delete - Delete the Render Studio (or any tab), even if it is active. The last remaining tab cannot be deleted.
  • Open in new browser tab - Opens the current Render Studio tab in a new browser tab. A notice opens explaining that only one user can open the Render Studio tab at a time. Click Open to proceed:

    Notice that only one user may open this tab at a time

  • Rename - Access the dialog to rename this Render Studio.
  • Properties - Access the dialog to provide information about the Render Studio. In the Properties dialog, provide metadata for the entire Render Studio. Grayed out (inactive) properties are defined and populated through the Company’s properties in Account management. See Company/Enterprise settings > Properties/Custom properties for more information.
  • Duplicate - Duplicates the Render Studio tab in the current document.
  • Copy to clipboard - Copies the Render Studio tab to the clipboard. It can then be pasted into a new or other document.
  • Update linked document - Opens the Reference manager dialog where you can select a newer version of the document to which the Render Studio is linked.
  • Change URL - Change the URL of the current tab.
  • Move to document - Move the current tab to a new document or another document. See Moving tabs to other documents.
  • Create task - Opens the Create task dialog where you can assign a task to someone in your Company/Enterprise. See Action items for more information.
