Structure View

Accessing structure view

By default, all subscription plans use the Document grid view layout. However, Enterprise and Professional plans have 2 additional view options: Document list view, and structure view. Structure view is outlined below.

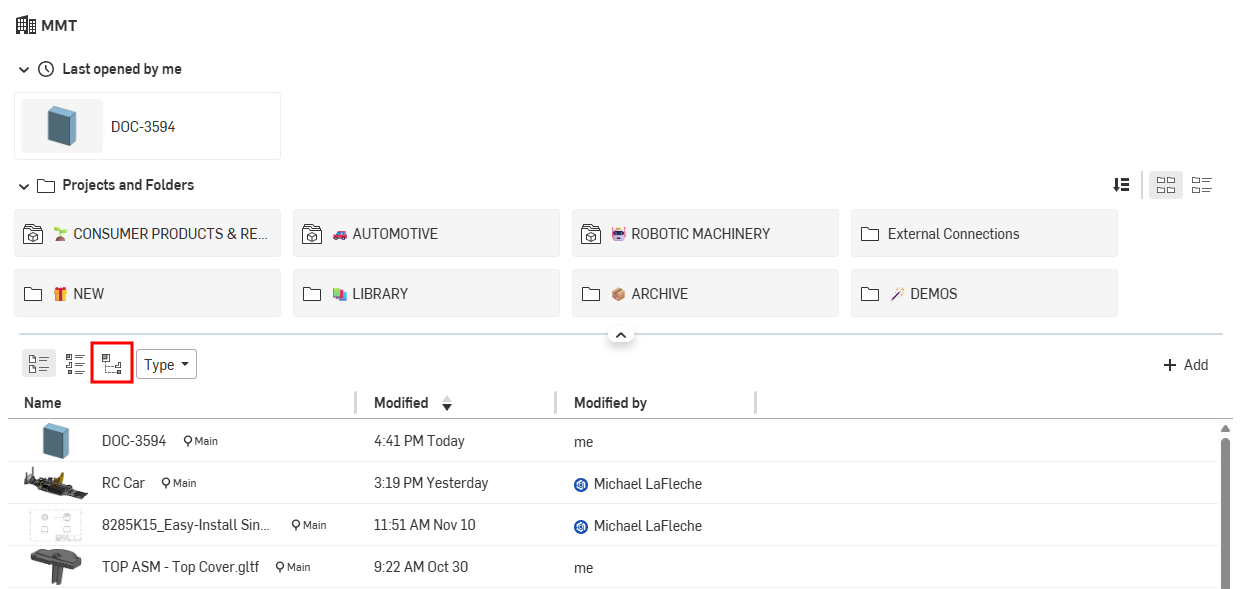

To access structure view:

1. Open the Documents page.

2. From the top level of the Enterprise/Company, click the Structure view icon ().

If you navigate away from the top level Enterprise/Company filter on the Documents page (for example, click on the Recently opened filter), returning to the top level does not retain the structure view. You are returned to the Document grid view.

Using Structure view

When you access structure view, Folders are listed at the top section of the page and As built structure view is listed below.

Folders and Projects

Folders and Projects are listed at the top of the Structure view in a horizontal grid.

This section is collapsible. Click the arrow to the left of the Folders and Projects heading to collapse/expand the section. Hold the bottom of the Folders and Projects section and drag up or down to adjust the height. This displays the amount of rows of Folders and Projects that you want visible.

To the right of each folder or project icon is a small thumbnail image and name. For folders only, the date and time when the folder content was last updated is indicated below the folder name:

Click a folder or project to open its contents:

The opened E-LAWNMOWER project displayed in Structure view.

If there are no additional folders inside the folder or project clicked, the Folders and Projects grid collapses. Click the breadcrumb link above the Folders and Projects to jump back to a previous location in the Folders and Projects hierarchy:

Compact mode

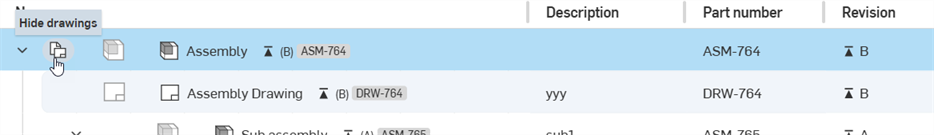

By default, the Compact toggle is on. This shows each component (part or assembly) in the structure view table in a single row. Switching the Compact toggle off provides additional information for each component in the table, with each component along 2 table rows:

As built structure view

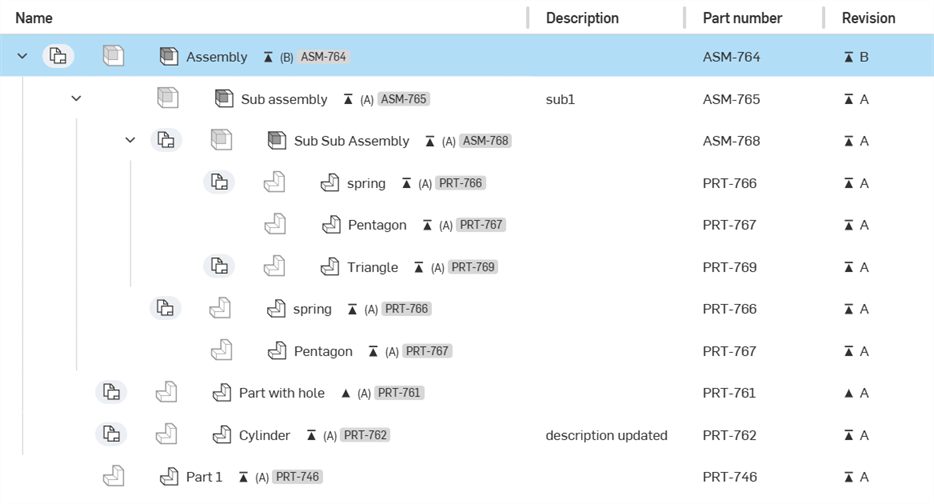

Below the Folders and Projects grid is the As built structure view section. All the latest released and revisioned parts and assemblies for the selected project or folder are listed in this table as a tree list. Previous releases are not displayed.

Only components in the current folder are viewable. Components in folders above or below the current folder are not displayed.

If a released component is not used in an assembly, it is displayed at the top of the tree list.

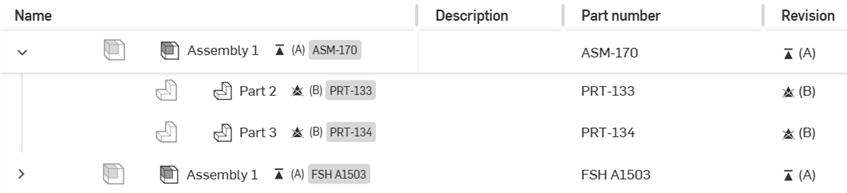

If a component has a newer revision available, its revision icon is highlighted in blue:

Each row contains a thumbnail of the part or assembly, as well as the Name, Description, Part number, and Revision of the component. There may be additional columns depending on which columns are added or removed.

In a long structured list, as you scroll vertically, the top level rows remain fixed until the next heading row in the list supersedes it.

The following default columns are found in this table:

• Name

  • An icon to indicate if the component is a part or assembly.

  • The name of the component. This is a hyperlink. Click the link to open the component in a new browser tab.

  • A revision icon indicating the part's latest revision (and revision name in parentheses).

  • The highlighted part number.

  If Compact view is disabled, the revision is listed on the second line under the name, along with the part number.

  The Name column cannot be hidden.

• Description - Lists the description of the component, if one exists.

• Part number - The component's associated part number.

• Revision - Latest revision of the current component.

Add columns

Click the Add columns button to open the Add columns dialog. The following columns can be added to the Structure view table:

• Vendor

• Project

• Product line

• Title 1

• Title 2

• Title 3

In this dialog you can do the following:

• Check the box to the left of any column to add it into the Structure table, or uncheck it to remove a column.

• Use the Sort icon () to move a column up (left) or down (right) in the table order.

• Use the Search bar to locate a column to add into the list.

• Use the Search bar to locate a column to add into the table.

As built structure view header context menu

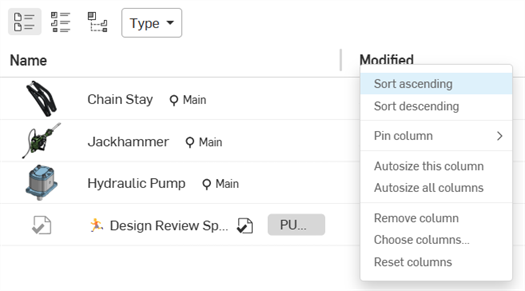

Right-click on any column heading in the As built structure view table to access the context menu:

• Pin column - Available for all columns except Name, this pins the column in place to the left (right of the Name column) or the right (left of the right edge of the screen). Default is No pin.

• Autosize this column - Autosizes the current column to best fit column content.

• Autosize all columns - Autosizes all columns to best fit column content.

• Reset columns - Resets all columns to their default (to fit the screen).

Formatting the As built structure view

To adjust the width of a column:

1. Hover your mouse cursor over the right edge of the column. The column divider cursor displays a double-sided arrow:



2. Click and drag to the left to narrow the column, or drag to the right to expand the column.

3. When the desired column width is achieved, let go of the mouse.

Note: All columns to the right of the one being resized remain the same size.

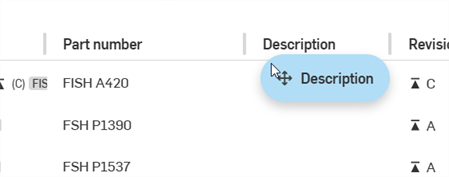

To reorder columns:

1. Drag the header of the column and drop it in a new location (to the right or left of another column).



As built structure view component context menu

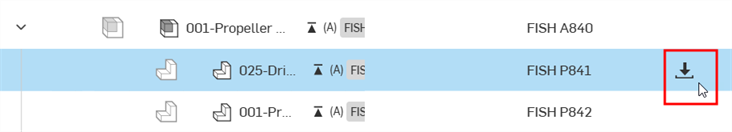

Right-click on the empty space along the component row to access the context menu:

• Open in new browser tab - Opens the selected component in a new browser tab.

• Add to publication - Only available for components that are not already part of a publication. Opens the Create/add to publication dialog, where the component can be added to a new or existing publication. See Publications for more information.

• Create task - Opens the Create task dialog where you can create a new task regarding the currently selected component and assign that task to a user.

• Export - Opens the Export dialog for the selected component.

• Details - Opens the Details panel in the right-side component panel (see full explanation below).

• Collapse all row groups - Collapses all row groups in the As built structure view table.

As built structure view component panel

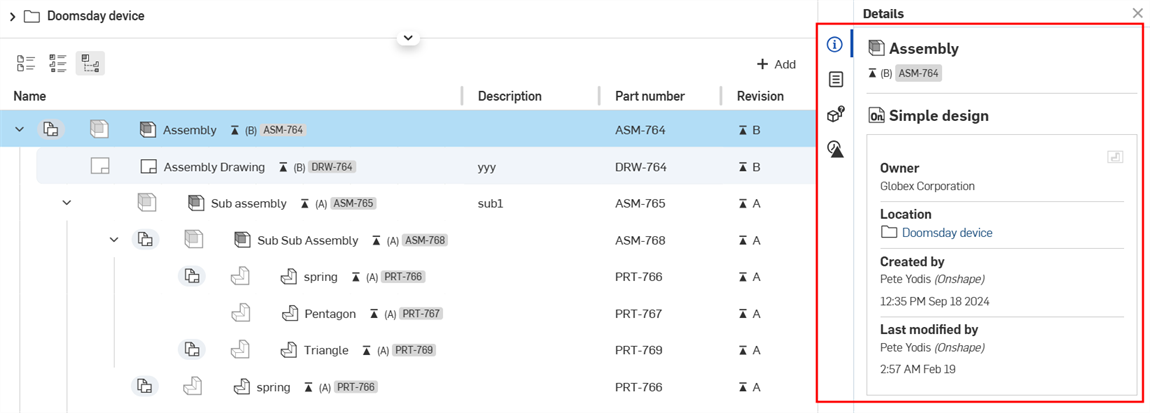

The right side panel is where information for the selected component is accessed. Select the component by clicking on the empty space along the component row. The Details panel for the component populates the panel. Use each panel icon as a toggle to open or close the panel. There are four available panels:

• Details panel () - Displays more details about the component:
  • Name - Assembly, subassembly, or part name. The revision and part number are listed below the name.
  • Document name - The document that contains the component.
  • Owner - The company or enterprise that owns the component.
  • Location - The folder or project where the component is located, with a link to open the location in a new browser tab.
  • Created by - Name of the user that created the component, with a time and date the component was created.
  • Last modified by - Name of the user who last modified the component, with a time and date the component was last modified.
• Properties panel () - Displays the editable and non-editable list of component properties. If a component property is non-editable, it is grayed out. You can edit all other properties directly from this panel.

• Where used panel (excludes Drawings; ) - Displays the Assemblies/subassemblies and Drawings where a particular component is being used. See Where used for more information.

• Revision history panel () - Displays all the revisions of the selected component. Each release is listed chronologically in the panel, with the latest release at the top. Each release contains the following details:

  • Revision name - The name of the revision (in parentheses), with a link to open the component in a new browser tab

  • Release name - The Release name, with a View release link to open the release dialog.

  • Submitted by - Name of the user who submitted the latest release, along with the time and date of release.

Accessing structure view

By default, all subscription plans use the Document layout. However, Enterprise and Professional plans have two additional view options: List view and Structure view. Structure view is outlined below.

To access structure view:

1. Open the Documents page.

2. From the top level of the Enterprise/Company, tap Structure:

If you navigate away from the top level Enterprise/Company filter on the Documents page (for example, tap on the Recently opened filter), returning to the top level does not retain the structure view. You are returned to the Document grid view.

Using Structure view

When you access structure view, Folders and Projects are listed at the top section of the page and As built structure view is listed below.

Folders and Projects

Folders and Projects are listed at the top of the Structure view in a horizontal grid.

This section is collapsible. Tap the arrow to the left of the Folders and Projects heading to collapse/expand the section.

To the right of each folder or project icon is a small thumbnail image and name. For folders only, the date and time when the folder content was last updated is indicated below the folder name:

Click a folder or project to open its contents:

The opened E-LAWNMOWER project displayed in Structure view.

If there are no additional folders inside the folder or project, the Folders and Projects grid collapses. Tap the breadcrumb link above the Folders and Projects to jump back to a previous location in the Folders and Projects hierarchy:

As built structure view

Below the Folders and Projects grid is the As built structure view section. All the latest released and revisioned parts and assemblies for the selected project or folder are listed in this table as a tree list. Previous releases are not displayed.

Only components in the current folder are viewable. Components in folders above or below the current folder are not displayed.

If a released component is not used in an assembly, it is displayed at the top of the tree list.

If a component has a newer revision available, its revision icon is highlighted in blue:

Each row contains a thumbnail of the part or assembly, as well as the Name, Description, Part number, and Revision of the component. There may be additional columns depending on which columns are added or removed.

Tap anywhere on a component line to open the component in a new browser tab.

The following default columns are found in this table:

• Name

  • An icon to indicate if the component is a part or assembly.

  • The name of the component.

  • A revision icon indicating the part's latest revision (and revision name in parentheses).

  • The highlighted part number.

  The Name column cannot be hidden.

• Description - Lists the description of the component, if one exists.

• Part number - The component's associated part number.

• Revision - Latest revision of the current component.

Add columns

Tap the Add columns button (shown below in red) to open the Add columns dialog. The following columns can be added to the Structure view table:

• Vendor

• Project

• Product line

• Title 1

• Title 2

• Title 3

Tap anywhere on the row to add it to or remove it from the Structure table.

As built structure view component context menu

Tap and hold anywhere on a component row to open the context menu for the component:

• Open - Opens the selected component.

• Add to publication - Only available for components that are not already part of a publication. Opens the Create/add to publication dialog, where the component can be added to a new or existing publication. See Publications for more information.

• Details - Opens the Details panel in the right-side component panel (see full explanation below).

As built structure view component panel

The right side panel is where information for the selected component is accessed. First, tap the Details () panel icon to open the panel. Then tap the component row. The Details for the component populates the panel. Use each panel icon as a toggle to open or close the panel. There are three available panels:

• Details panel () - Displays more details about the component:
  • Name - Assembly, subassembly, or part name. The revision and part number are listed below the name.
  • Document name - The document that contains the component.
  • Owner - The company or enterprise that owns the component.
  • Created by - Name of the user that created the component, with a time and date the component was created.
  • Last modified by - Name of the user who last modified the component, with a time and date the component was last modified.

• Share details panel () - Displays the permissions on the document and the folder or project (if any) within which it resides. Tap the Edit icon to open the Share dialog and adjust share settings for the component. See Share documents for more information.

• Where used panel (excludes Drawings; ) - Displays the Assemblies/subassemblies and Drawings where a particular component is being used. See Where used for more information.

Accessing structure view

By default, all subscription plans use the Document layout. However, Enterprise and Professional plans have two additional view options: List view and Structure view. Structure view is outlined below.

To access structure view:

1. Open the Documents page.

2. From the top level of the Enterprise/Company, tap Structure:

If you navigate away from the top level Enterprise/Company filter on the Documents page (for example, tap on the Recently opened filter), returning to the top level does not retain the structure view. You are returned to the Document grid view.

Using Structure view

When you access structure view, Folders and Projects are listed at the top section of the page and As built structure view is listed below.

Folders and Projects

Folders and Projects are listed at the top of the Structure view in a horizontal grid.

This section is collapsible. Tap the arrow to the left of the Folders and Projects heading to collapse/expand the section.

To the right of each folder or project icon is a small thumbnail image and name. For folders only, the date and time when the folder content was last updated is indicated below the folder name:

Tap a folder or project to open its contents. If there are no additional folders inside the folder or project, the Folders and Projects grid collapses. Tap the breadcrumb link above the Folders and Projects to jump back to a previous location in the Folders and Projects hierarchy:

As built structure view

Below the Folders and Projects grid is the As built structure view section. All the latest released and revisioned parts and assemblies for the selected project or folder are listed in this table as a tree list. Previous releases are not displayed.

Only components in the current folder are viewable. Components in folders above or below the current folder are not displayed.

If a released component is not used in an assembly, it is displayed at the top of the tree list.

If a component has a newer revision available, its revision icon is highlighted in blue:

Each row contains a thumbnail of the part or assembly, as well as the Name, Description, Part number, and Revision of the component. There may be additional columns depending on which columns are added or removed.

Tap anywhere on a component line to open the component in a new browser tab.

The following default columns are found in this table:

• Name

  • An icon to indicate if the component is a part or assembly.

  • The name of the component.

  • A revision icon indicating the part's latest revision (and revision name in parentheses).

  • The highlighted part number.

  The Name column cannot be hidden.

• Description - Lists the description of the component, if one exists.

• Part number - The component's associated part number.

• Revision - Latest revision of the current component.

Add columns

Tap the Add columns button (shown below in red) to open the Add columns dialog. The following columns can be added to the Structure view table:

• Vendor

• Project

• Product line

• Title 1

• Title 2

• Title 3

Tap anywhere on the row to add it to or remove it from the Structure table.

As built structure view component context menu

Tap and hold anywhere on a component row to open the context menu for the component. From the context menu you can:

• Open - Opens the selected component.

• Add to publication - Only available for components that are not already part of a publication. Opens the Create/add to publication dialog, where the component can be added to a new or existing publication. See Publications for more information.

• Details - Opens the Details panel in the right-side component panel (see full explanation below).

As built structure view component panel

The right side panel is where information for the selected component is accessed. First, tap the Details () panel icon to open the panel. Then, tap the component row. The Details for the component populates the panel. Use each panel icon as a toggle to open or close the panel. There are three available panels:

• Details panel () - Displays more details about the component:
  • Name - Assembly, subassembly, or part name. The revision and part number are listed below the name.
  • Document name - The document that contains the component.
  • Owner - The company or enterprise that owns the component.
  • Created by - Name of the user that created the component, with a time and date the component was created.
  • Last modified by - Name of the user who last modified the component, with a time and date the component was last modified.

• Share details panel () - Displays the permissions on the document and the folder or project (if any) within which it resides. Tap the Edit icon to open the Share dialog and adjust share settings for the component. See Share documents for more information.

• Where used panel (excludes Drawings; ) - Displays the Assemblies/subassemblies and Drawings where a particular component is being used. See Where used for more information.
