匯出工程圖
您可以將 Onshape 工程圖匯出為下列的檔案類型:
- DWG
- DXF
- DWT
- SVG
- PNG
- JPEG
-
CSV (針對工程圖檢查項目清單)
To set up Export rules for drawings, including exporting the inspection symbol count of a drawing, see how to set the preference in your account under Managing Your Onshape Plan and how to use export rules in this topic, below.

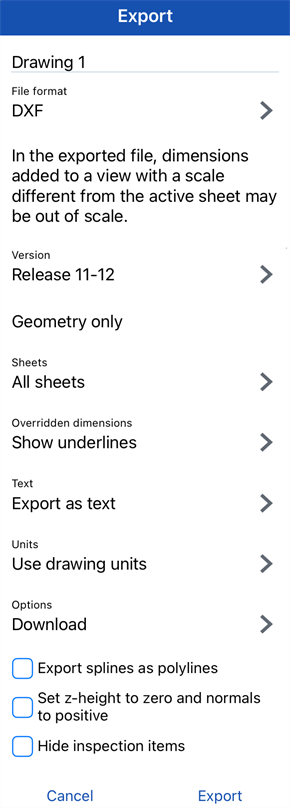

- Right-click the Drawing tab.
- Select Export.
- 指定匯出檔案的名稱。
- 選擇所需的匯出格式。
- Select the version and sheets, as appropriate.
- If selecting Custom sheets, enter a range or the sheet number(s).
- Choose how to treat overridden dimensions:
- Show underlines
- Hide underlines
- Indicate how to export text and text-based annotations:
- If exporting to a PDF, select one of:
- Normal - Export text normally
- Selectable - Export as selectable text
- For DWG, DXF, and DWT formats, select one of:
- Export as text - Export the text as shown in the drawing.
- Explode into polylines (notes) - Explode the drawing notes into polylines.
- Explode all into polylines - Explode all drawing annotations, notes, table cell text, and dimensions into polylines.
- If exporting to a PDF, select one of:
- 如果要匯出為 PDF,請選擇要以彩色、黑白或灰階匯出。
- 選擇對匯出檔案所要執行的操作:
- 下載
- Download and store file in a new tab
- 附有檔案下載連結的電子郵件
- 在新分頁中存放檔案
- Store in an integrated app (Google Drive, for example), if available.
- If multiple drawings are exported at once (see Exporting multiple drawings below), check Apply export rules to contents to have export rules applied to all the files within the zip folder. When unchecked, export rules are applied only to the zip folder, and not to individual files inside the zip folder.
When this option is available, a View export rules link is provided, which opens the Account > Preferences > Export rules in a new browser tab.
- Indicate whether to export splines as polylines, available for all formats except PDF.
- For DWG, DWT, and DXF exports, you can check the box to Set z-height to zero and normals to positive. This sets the z-height/direction of any hole normals to be positive (+1) for drawings with view geometry.
- 選擇在匯出中要顯示或隱藏檢查項目。
- Click Export.
Exporting multiple drawings
To export multiple drawings at once, open the Tab manager and Ctrl+click to select multiple drawings. Right-click to open the context menu, and select the Export drawings option. Then, follow the steps above, starting at Step 3.
提示
- When you initiate the export, a blue message bubble appears at the top of the window:
匯出完成時您會收到通知:
- 工程圖的匯出是簡易的輸出,以讓大部分的 DWG 讀取程式可以讀取。
- 要將註解匯出為聚合線,您也可以使用註解環境選單中的爆炸指令。
- 若要匯出「文件」頁面 (僅適用於「清單檢視」) 中的單一零組件,請在清單中的圖元上按右鍵,然後從環境選單中選擇 [匯出] 選項。
- 無法為匯入工程圖中的內嵌圖片提供圖片屬性。
- 要匯出工程圖的註解中若包含有刪除線的文字,請於對話方塊中選擇 Version 2013。
- The maximum custom sheet size for an exported drawing is 1800 in wide x 1800 in high. See Sheets for more information.
- To export the Inspection symbol count to an ordered .csv file of all the inspection symbol labels, see Exporting Inspection items.
- To export the Drawing definition list to an ordered .csv file of all the drawing annotations, see Exporting the Drawing definition list.
