可用于：Part Studio、装配体

Adjusts transparency/opacity of all parts and their edges in the graphics area.

See Hidden edges visible and removed for additional visualization options.

See Isolate and Make transparent to adjust visibility on a per-part/instance basis.

Select Camera and render options, then select from the following options:

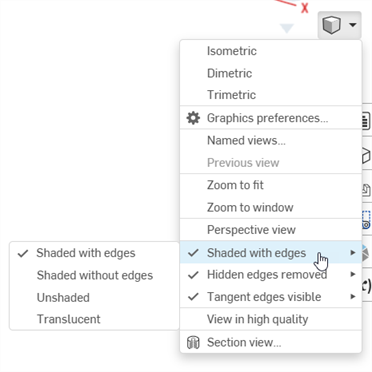

Camera and render options: shaded options

  • Shaded with edges (default) :

    Shaded with edges

  • Shaded without edges:

    不带边着色

  • Unshaded:

    Unshaded

  • Translucent. With this option selected, Hidden edges visible and Hidden edges removed are not available.

    半透明
