엔터프라이즈 설정 - 통합
다음 용도로만 사용 가능
Available to Enterprise administrators only; grant or remove access to Cloud storage integrations and integration users, and set up Collaboration integrations, such as Slack.
이 페이지에서는 Company/엔터프라이즈 전체 통합을 설정할 수 있습니다. 사용자 계정 통합 설정에 대한 자세한 내용은 내 계정 - 통합을 참조하십시오.
Onshape에서 통합 설정으로 이동하려면 Onshape 창의 오른쪽 상단 코너에 있는 계정 사용자 아이콘
을 클릭합니다. 이렇게 하면 드롭다운 메뉴가 열립니다. Company/클래스룸/엔터프라이즈 설정을 클릭합니다.

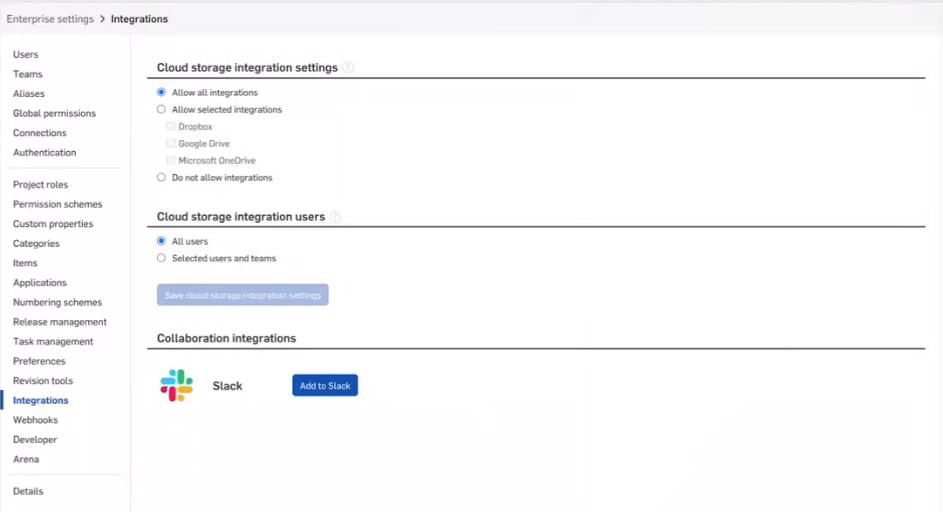

페이지 왼쪽의 목록에서 통합을 클릭합니다.
클라우드 스토리지 통합 설정
해당 라디오 버튼을 선택합니다.
- 모든 통합 허용 - 드롭박스, 구글 드라이브, 마이크로소프트 원드라이브와의 스토리지 통합을 허용합니다.
- 선택한 통합 허용 - 사용 가능한 서비스 목록에서 원하는 통합을 선택합니다.
- 통합 허용 안함 - 사용 가능한 서비스와 통합하지 마십시오.
클라우드 스토리지 통합 사용자
해당 라디오 버튼을 선택합니다.
- 모든 사용자 - 모든 사용자가 위에 지정된 서비스와 통합할 수 있도록 허용합니다.
- 선택된 사용자 및 팀 - 지정된 사용자 및/또는 팀만 위에 지정된 서비스와 통합할 수 있습니다.
Collaboration integrations
Slack integration
Integration between Onshape and Slack allows users to share Comments, Tasks, and Releases between the two apps, as well as view the top 20 most recent documents and top 10 most recent task lists directly from Slack.
Setting up Slack integration (Administrators)
-

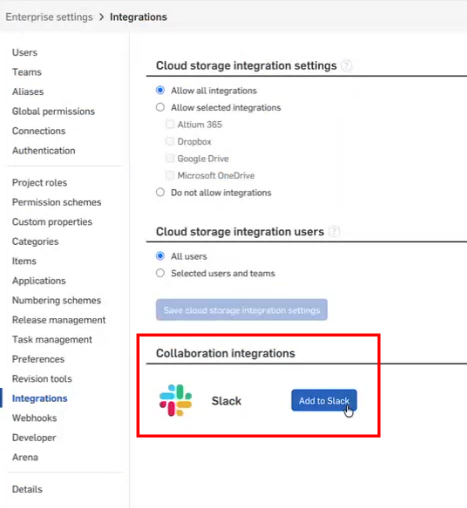

Navigate to the Enterprise settings > Integrations page and click the Add to Slack button:
-

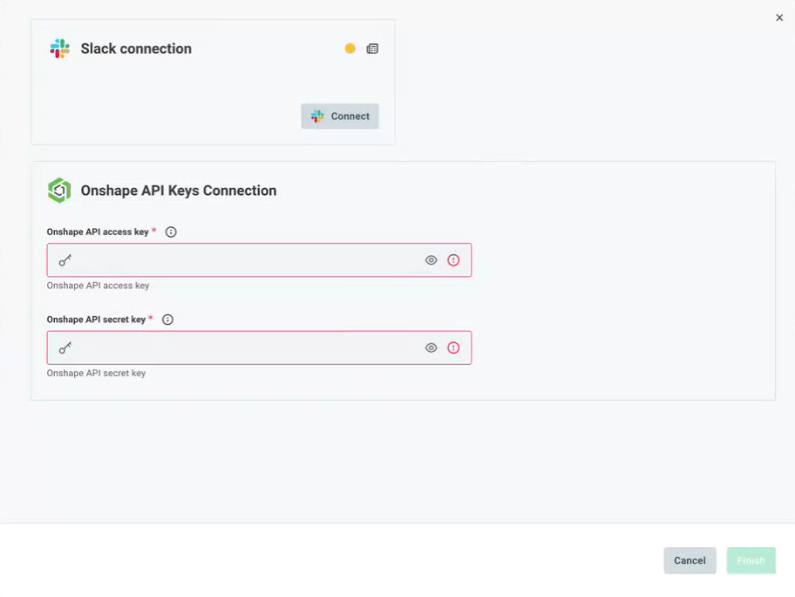

Enter the Onshape API access key and Onshape API secret key. Then click the Connect button under the Slack connection tile at the top:
-

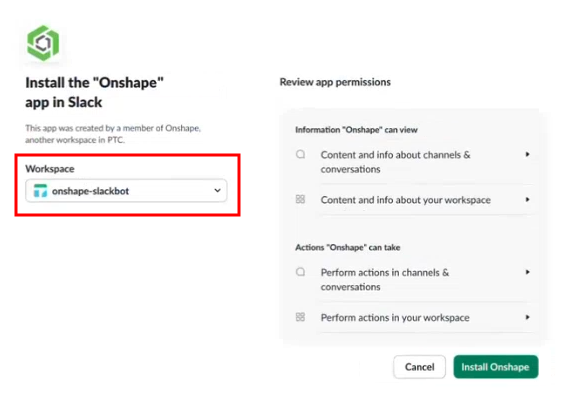

Next, install the Onshape app in Slack. If you have multiple instances of Slack, click the Workspace dropdown and select the Slack Workspace you would like connected to Onshape.
-
Review the app permissions. When done, click the Install Onshape button.
-

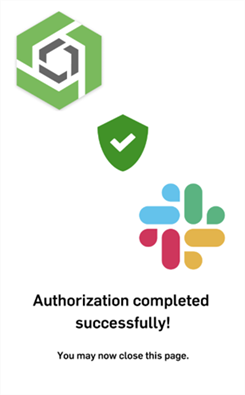

If authorization was successful, the following image is displayed briefly on-screen:
-

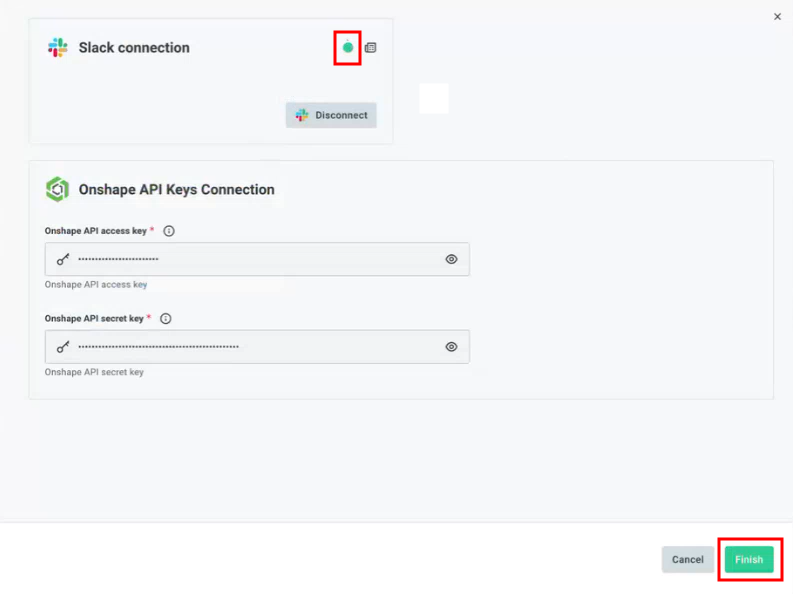

The image closes and the Slack connection screen is displayed with a green icon indicating a successful connection. Click the Finish button to complete the connection:
-

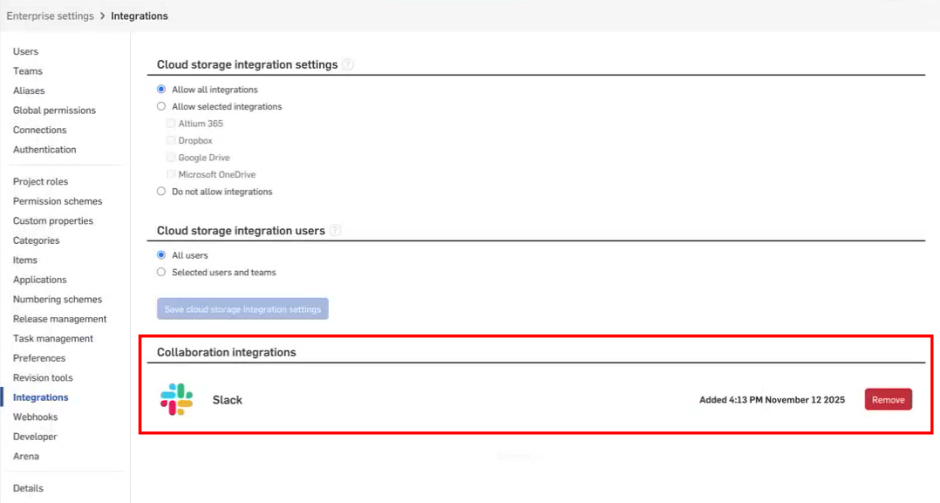

On the Enterprise settings > Integrations page, the Slack integration shows the date when the connection was created, along with a button should you want to remove the connection.
Using Slack integration (all users)
User OAuth Connection
When you first connect to Slack, each user must explicitly connect their account to Onshape:
-

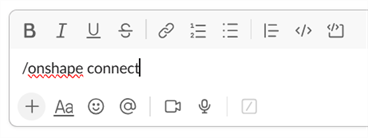

In the Slack Onshape Workspace, enter
/onshape connect:
-

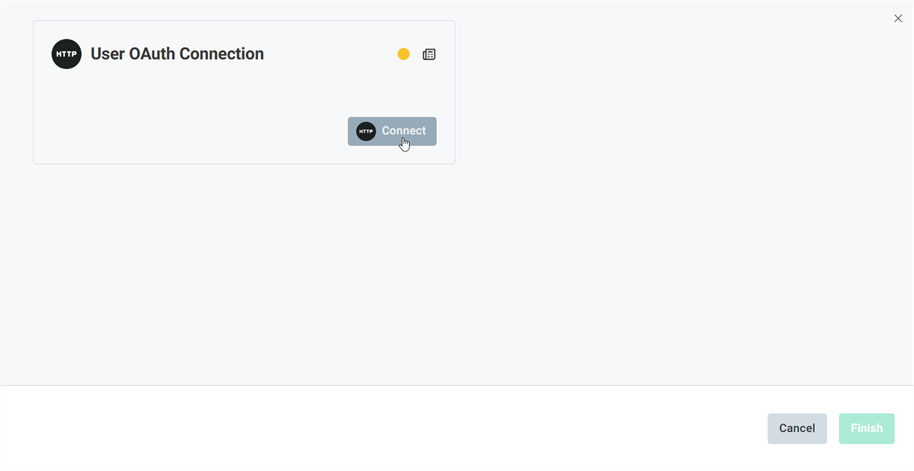

The User OAuth Connection screen opens. Click the Connect button:
-

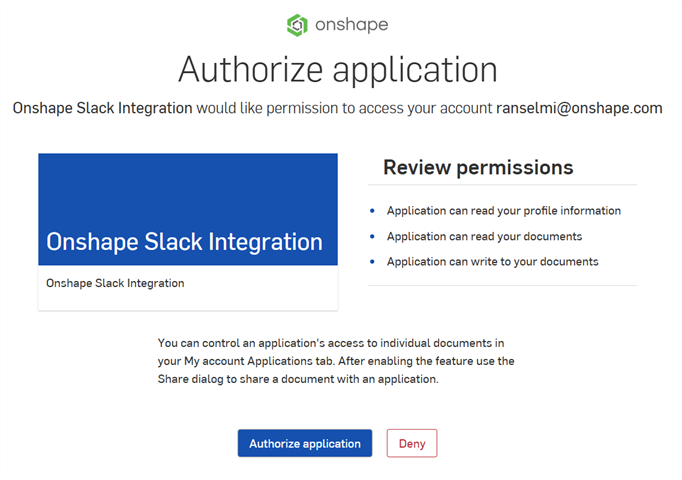

The Authorize application screen opens. Click the button:
-

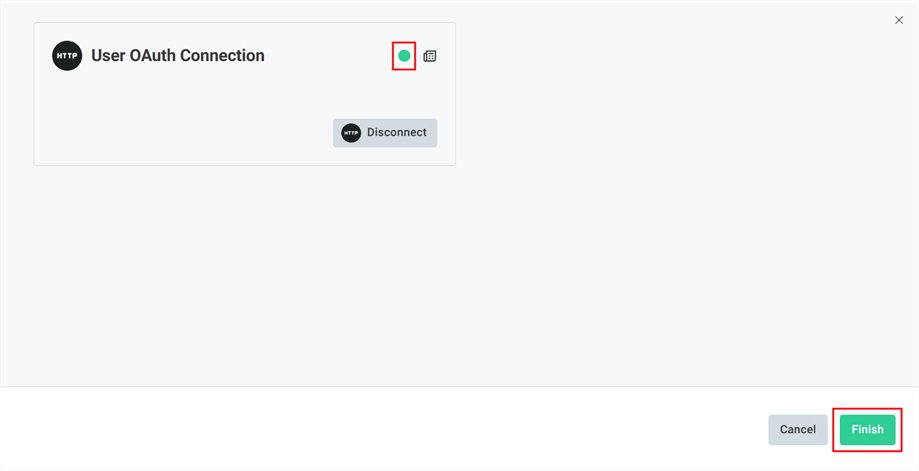

The User OAuth Connection screen opens. Click the Finish button:
-
You are now connected to Onshape in the Slack Workspace. To disconnect, enter
/onshape disconnect.
Slack user commands

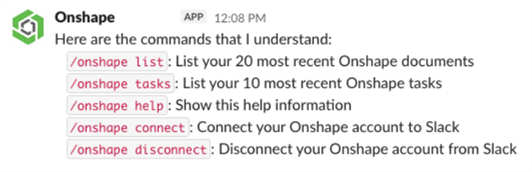

Once connected, you can use the following commands in Slack:
-

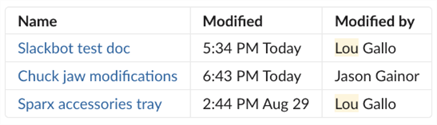

/onshape list- Lists your 20 most recent Onshape documents.
-

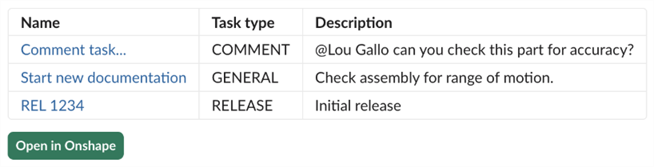

/onshape tasks- Lists your 10 most recent Onshape tasks (Action items).
-
/onshape help- Shows this help information. -
/onshape connect- Connect your Onshape account to Slack. -
/onshape disconnect- Disconnect your Onshape account from Slack.
Slack notifications
Notifications are provided in Slack when the following is updated by a user in Onshape:
-

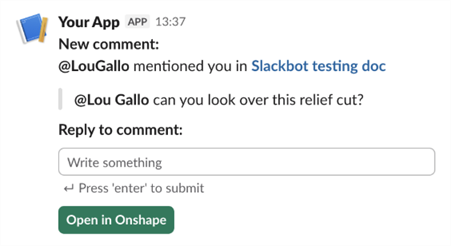

Comments - If a user is mentioned or assigned to a comment, this user receives a notification in Slack:

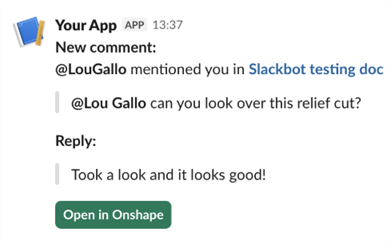

The user also receives a notification after their comment is replied to by another user:
-

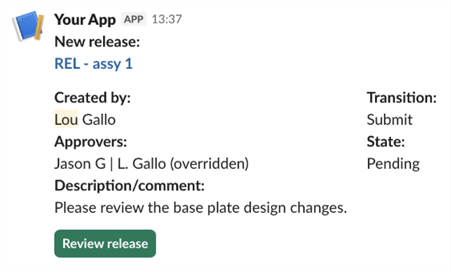

Releases - When an Observer or Approver is added to a Release, and when the release status is updated, those users receive a release notification in slack:
After the Administrator sets up Slack integration, users are notified on Slack if they are mentioned or assigned to a comment, or added to a Release as an Observer or Approver, even if that user has not yet set up their OAuth connection (or even after they have disconnected from the OAuth connection).
To reply to these comments directly from Slack, users must connect their Onshape account to Slack using the /onshape connect command.
