利用可能: Part Studio、アセンブリ

Adjusts the visibility of all part edges that are obscured by other parts in the graphics area.

See Shaded, unshaded, and translucent for additional visualization options.

See Isolate and Make transparent to adjust visibility on a per-part/instance basis.

Select Camera and render options, then select from the following options:

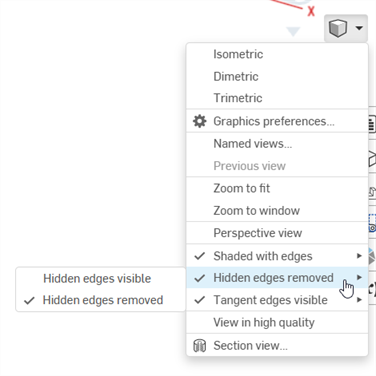

Camera and render options: Hidden edges

  • Hidden edges removed (Shaded with edges; default):

    Shaded with hidden edges removed

  • Hidden edges visible (Shaded with edges):

    Shaded with hidden edges visible

  • Hidden edges removed (Unshaded):

    Unshaded with hidden edges removed

  • Hidden edges visible (Unshaded):

    Unshaded with hidden edges visible
