Onshape 框架輪廓內容是由 Onshape 所建立的，這些文件保存在 Onshape 之中且由 Onshape 來維護。不會有內容遺失的風險或內容在一個版本到下一個版本無法作用的情形發生。我們將省時的操作整合至工作流程中，簡化插入框架輪廓的過程。

支援的標準內容包括：

  • Onshape frame profile library - ISO, ANSI, 8020, AS, AISC
  • 8020 - 10 Series, 15 Series, 20 Series, 25 Series, 30 Series, 40 Series, and 45 Series
  • AISC - C-shapes, HP-shapes, L-angle, M-shapes, MC-shapes, MT-shapes, pipe, rectangular, round, S-shapes, square, ST-shapes, W-shapes, and WT-shapes
  • ANSI - Rectangular bar, rectangular tube, round bar, and round tube
  • AS - Cold formed hollow sections and profiles, Hot rolled and structural steel
  • ISO - Rectangular bar, Rectangular tube, Round bar, and Round tube

Onshape 框架輪廓資源庫

8020 框架輪廓

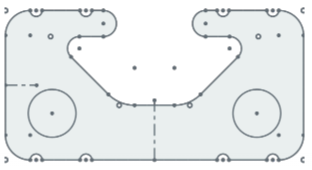

10 Series

1001, 1001-S, 1002, 1002-S, 1003, 1003-S, 1004, 1004-S, 1010, 1010-S, 1012, 1012-S, 1020, 1020-S, 1030, 1030-S, 1050, 2012, 2020, 2020-S, 2040, 與 2040-S

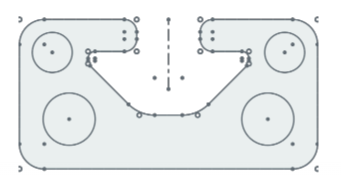

15 Series

1501, 1501-LS, 1502, 1502-LS, 1503, 1503-LS, 1504, 1504-LS, 1515, 1515-Lite, 1515-LS, 1515-S, 1515-UL, 1515-ULS, 1517, 1517-LS, 1530, 1530-Lite, 1530-LS, 1530-S, 1530-UL, 1530-ULS, 1534-Lite, 1545, 1545-LS, 1545-S, 1547, 1575, 3030, 3030-Lite, 3030-LS, 3030-S, 3034-Lite, 3060, 與 3075

20 Series

20-2020, 20-2040, 與 20-4040

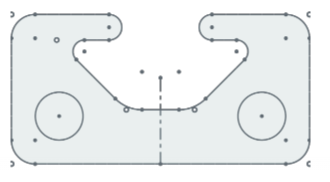

25 Series

25-2501, 25-2502, 25-2503, 25-2504, 25-2514, 25-2525, 25-2527, 25-2550, 25-2576, 25-5010, 25-5013, 與 25-5050

30 Series

30-3001, 30-3002, 30-3003, 30-3004, 30-3022, 30-3030, 30-3060, 和 30-6060

40 Series

40-4001, 40-4002, 40-4003, 40-4004, 40-4012, 40-4020, 40-4030-Lite, 40-4040, 40-4040-Lite, 40-4040-UL, 40-4045-Lite, 40-4080, 40-4080-Lite, 40-4080-UL, 40-4082-Lite, 40-4083-Lite, 40-4084-Lite, 40-4085-Lite40-4093, 40-4094, 40-4096, 40-8016, 40-8020 和 40-8080

45 Series

45-4545, 45-4545-Lite, 45-4590, 和 45-9090

AISC 框架輪廓

C-Shapes

組態包括：C15x50, C15x40, C15x33.9, C12x30, C12x25, C12x20.7, C10x30, C10x25, C10x20, C9x20, C9x15, C9x13.4, C8x18.75, C8x13.75, C8x11.5, C7x14.75, C7x12.25, C7x9.8, C6x13, C6x10.5, C6x8.2, C5x9, C5,6.7, C4x7.25, C4x6.25, C4x5.4, C4x4.5, C3x6, C3x5, C3x4.1, 和 C3x3.5

HP-Shapes

組態包括：HP18x204, HP18x181, HP18x157, HP18x135, HP16x183, HP16x162, HP16x141, HP16x121, JP16x101, HP16x88, HP14x117, JP14x102, HP14x89, HP14x73, HP12x84, HP12x63, JP12x53, HP10x57, HP10x42, 與 HP8x36

L-Angle

組態包括：L8x8x1.125, L8x8x1, L8x8x0.875, L8x8x0.75, L8x8x0.625, L8x8x0.5625, L8x8x0.5, L8x6x1, L8x6x0.875, L8x8x0.75, L8x6x0.625, L8x6x0.5625, L8x6x0.5, L8x6x0.4375, L8x4x1, L8x4x0.875, L8x4x0.75, L8x4x0.625, L8x4x0.5625, L8x4x0.5, L8x4x0.4375, L7x4x0.75, L7x4x0.625, L7x4x0.5, L7x4x0.4375, L7x4x0.375, L6x6x1, L6x6x0.875, L6x6x0.75, L6x6x0.625, L6x6x0.5625, L6x6x0.5, L6x6x0.4375, L6x6x0.375, L6x6x0.3125, L6x4x0.875, L6x64x0.75, L6x6x0.625, L6x4x0.5625, L6x4x0.5, L6x4x0.4375, L6x64x0.375, L6x4x0.3125, L6x3.5x0.5, L6x3.5x0.375, 6x3.5x0.3125, L5x5x0.875, L5x5x0.75, L5x5x0.625, L5x5x0.5, L5x5x0.4375, L5x5x0.375, L5x5x0.25, L5x3.5x0.75, Lx3.5x0.625, L5x3x0.5, L5.3x0.375, L5x3.5x0.3125, L5x3.5x0.25, L5x3x0.5, L5x3x0.4375, L5x3x0.375, L53x0.325, L5x3x0.25, L4x4x0.75, L4x4x0.625, L4x4x0.5, L4x4x0.4375, L4x4x0.375, L4x4x0.3125, L4x4x0.25, L4x3.5x0.5, L4x3.5x0.375, 4x3.5x0.3125, L4x3.5x0.25, L4x3x0.625, L4x3x0.5, L4x3x0.375, L4x3x0.3125, L4x4x0.25, L3.5x3.5x0.5, L3.5x3.5x0.4375, L3.5x3.5x0.375, L3.5x3.5x0.3125, L3.5x3.5x0.25, L3.5x3.0.5, L3.5x3x0.4375, L3.5x3x0.375, L3.5x3x0.3125, L3.5x3x0.25, L3.5x2.5x0.5, L3.5x2.5x0.375, L3.5x2.5x0.3125, L3.5x2.5x0.25, L3x3x0.5, L3x3x0.4375, L3x3x0.375, L3x3x0.3125, L3x3x0.25, L3x3x0.1875, L3x2.5x0.5, L3x2.5x0.4375, L3x2.5x0.375, L3x2.5x0.3125, L3x2.5x0.25, L3x2.5x0.1875, L3x2x0.5, L3x2x0.375, L3x2x0.3125, L3x2x0.25, L3x2x0.1875, L2.5x2.5x0.5, L2.5x2.5x0.375, L2.5x2.5x0.3125, L2.5x2.5x0.25, L2.5x2.5x0.1875, L2.5x2x0.375, L2.5x2x0.3125, L2.5x2x0.25, L2.5x2x0.1875, L2.5x1.5x0.25, L2.5x1.5x0.1875, L2x2x0.375, L2x2x0.3125, L2x2x0.25, L2x2x0.25, L2x2x0.1875, 和 L2x2x0.125

M-Shapes

組態包括：M12.5x12.4, M12.5x11.6, M12x11.8, M12x10.8, M12x10, M10x9, M10x8, M10x7.5, M8x6.5, M8x6.2, M6x4.4, M6x3.7, M5x18.9, M4x6, M4x4.08, M4x3.45, M4x3.2, 與 M3x2.9

MC-Shapes

組態包括：MX18x58, MC18x51.9, MC18x45.8, MC18x42.7, MC13x50, M13x40, MC13x35, MC13x31.8, MC12x50, MC12x45, MC12x40, MC12x35, MC12x31, MC12x14.3, MC12x10.6, MC10x41.1, MC10x33.6, MC10x28.5, MC10x25, MC10x22, MC10x8.4, MC10x6.5, MC9.25, MC9.23.9, MC8x22.8, MC8x21.4, MC8x20, MC8x18.7, MC8x8.5, MC7x22.7, MC7x19.1, MC6x18, MC6x15.3, MC6x16.3, MC6x15.1, MC6x12, MC6x7, MC6x6.5, MC4x13.8, 和 MC3x7.1

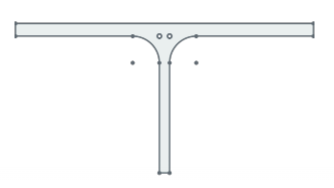

MT-Shapes

組態包括：MT6.25x6.2, MT6.25x5.8, MT6x5.9, MT6x5.4, MT6x5, MT5.x4.5, MT5x4, MT5x3.75, MT4x3.25, MT4x3.1, MT3x2.2, MT3x1.85, MT2.5x9.45, 與 MT2x3

Pipe

組態包括：12 Std, 10 Std, 8 Std, 6 Std, 5 Std, 4 Std, 3 1/2 Std, 3 Std, 2 1/2 Std, 2 Std, 1 1/2 Std, 1 1/4 Std, 1 Std, 3/4 Std, 1/2 Std, 12 x-Strong, 10 x-Strong, 8 x-Strong, 6 x-Strong, 5 x-Strong, 4 x-Strong, 3 1/2 x-Strong, 3 x-Strong, 2 1/2 x-Strong, 2 x-Strong 1 1/2 x-Strong, 1 1/4 x-Strong, 1 x-Strong, 1 x-Strong, 3/4 x-Strong, 1/2 x-Strong, 8 xx-Strong, 6 xx-Strong, 5 xx-Strong, 4 xx-Strong, 3 xx-Strong, 2 1/2 xx-Strong, 和 2 xx-Strong
矩形 組態包括：HSS20x12x0.625, HSS20x12x0.5, HSS20x12x0.375, HSS20x12x0.3125, HSS20x8x0.625, HSS20x8x0.5, HSS20x8x0.375, HSS20x4x0.5, HSS20x4.0x0.375, HSS20x4.0x0.3125, HSS20x4.0x0.25, HSS18x6x0.625, HSS18x6x0.5, HSS18x6x0.375, HSS18x6x0.3125, HSS18x6.0.25, HSS16x12x0.625, HSS16x12x0.5, HSS16x12x0.375, HSS16x12x0.3125, HSS16x8x0.625, HSS16x8x0.5, HSS16x8.0.375, HSS16x8x0.3125, HSS16x8x0.25, HSS16x4x0.625, HSS16x4x0.5, HSS16x4x0.5, HSS16xx4x0.375, HSS16x4x0.3125, HSS16x4x0.25, HSS16x4x0.1875, HSS14x10x0.625, HSS14x10x0.5, HSS14x10x0.375, HSS14x10x0.3125, HSS14x10x0.25, HSS14x6x0.625, HSS14x6x0.5, HSS14x6x0.5, HSS14x6x0.375, HSS14x6x0.3125, HSS14x6x0.25, HSS14x6x0.1875, HSS14x4x0.625, HSS14x4x0.5, HSS14x4x0.375, HSS14x4x0.3125, HSS14x4x0.25, HSS14x4x0.1875, HSS12x10x0.5, HSS12x10x0.375, HSS12x10x0.3125, HSS12x10x0.25, HSS12x8x0.625, HSS12x8x0.375, HSS12x8x0.3125, HSS12x8x0.25, HSS12x8x0.1875, HSS12x6x0.625, HSS12x6x0.5, HSS12x6x0.375, HSS12x6x0.3125, HSS12x6x0.23, HSS12x4x0.625, HSS12x4x0.5, HSS12x4x0.375, HSS12x4x0.3125, HSS12x4x0.25, HSS12x4x0.1875, HSS12x3.5x0.375, HSS12x3.5x0.3125, HSS12x3x0.3125, HSS12x3x0.1875, HSS12x2x0.3125, HSS12x2x0.25, HSS12x2x0.1875, HSS12x10x8x0.625, HSS10x8x0.5, HSS10x8x0.375, HSS10x8x0.3125, HSS10x8x0.25, HSS10x8x0.1875, HSS10x6x0.625, HSS10x6x0.5, HSS10x6x0.375, HSS10x6x0.3125, HSS10x6x0.25, HSS10x6x0.1875, HSS10x5x0.375, HSS10x5x0.3125, HSS10x5x0.25, HSS10x5x0.1875, HSS10x4x0.625, HSS10x4x0.5, HSS10x4x0.375, HSS10x4x0.3125, HSS10x4x0.25, HSS10x4x0.1875, HSS10x4x0.125, HSS10,3.5x0.5, HSS10x3.5x0.375, HSS10x3.5x0.3125, HSS10x3.5x0.25, HSS10x3.5x0.1875, HSS10x3.5x0.125, HSS10x3x0.375, HSS10x1x0.3125, HSS10x3x0.25, HSS10x3x0.1875, HSS10x2x0.375, HSS10x2x0.3125, HSS10x2x0.25, HSS10x2x0.1875, HSS10x2x0.125, HSS9x7x0.625, HSS9x7x0.5, HSS9x7x0.375, HSS9x7x0.3125, HSS9x7x0.25, HSS9x7x0.1875, HSS9x5x0.625, HSS9x5x0.5, HSS9x5x0.375, HSS9x5x0.3125, HSS9x5x0.25, HSS9x5x0.1875, HSS9x3x0.5, HSS9x3x0.375, HSS9x3x0.3125, HSS9x3x0.1875, HSS8x6x0.625, HSS8x6x0.5, HSS8x6x0.375, HSS8x6x0.3125, HSS8x6x0.25, HSS8x6x0.1875, HSS8x4x0.625, HSS8x4x0.5, HSS8x4x0.375, HSS8x4c0.3125, HSS8x4x0.25, HSS8x4x0.125, HSS8x3x0.5, HSS8x3x0.375, HSS8x3x0.3125, HSS8x3x0.25, HSS8x3x0.1875, HSS8x3x0.125, HSS8x2x0.375, HSS8x2x0.3125, HSS8x2x0.25, HSS8x2x0.1875, HSS8x2x0.125, HSS7x5x0.5, HSS7x5x0.375, HSS7x5x0.3125, HSS7x5x0.25, HSS7x5x0.1875, HSS7x5x0.125, HSS7x4x0.5, HSS7x4x0.375, HSS7x4x0.3125, HSS7x4x0.25, HSS7x4x0.1875, HSS7x40.125, HSS7x3x0.5, HSS7x3x0.3125, HSS7x3x0.375, HSS7x3x0.3125, HSS7x3x0.25, HSS7x3x0.1875, HSS7x3x0.125, HSS7x2x0.25, HSS7x2x0.1875, HSS7x2x0.125, HSS6x5x0.5, HSS6x5x0.375, HSS6x5x0.3125, HSS6x5x0..25, HSS6x5x0.1875, HSS6x5x0.125, HSS6x4x0.5, HSS6x4x0.375, HSS6x4x0.25, HSS6x4x0.1875, HSS6x3x0.5, HSS6x3x0.375, HSS6x3x0.3125, HSS6x3x25, HSS6x3x0.1875, HSS6x3x0.125, HSS6x2x0.3125, HSS6x2x0.25, HSS6x2x0.1875, HSS6x2x0.125, HSS5x4x0.5, HSS5x4x0.375, HSS5x4x0.375, HSS5x4x0.3175, HSS5x4x0.25, HSS5x4x0.1875, HSS5x4x0.125, HSS5x3x0.5, HSS5x3x0.375, HSS5x3x0.3125, HSS5x3x0.25, HSS5x3x0.1875, HSS5x3x0.125, HSS5x2.5x0.25, HSS5x2.5x0.1875, HSS5x2.5x0.1265, HSS5x2x0.375, HSS5x2x0.3125, HSS5x2x0.25, HSS5x2x0.1875, HSS5x2x0.125, HSS4x3x0.375, HSS4x3x0.3125, HSS4x3x0.25, HSS4x3x0.1875, HSS4x3x0.125, HSS4x2.5x0.3125, HSS4x2.5x0.3125, HSS4x2.5x0.25, HSS4x2.5x0.1875, HSS4x2.5x0.125, HSS4x2x0.375, HSS4x2x0.3125, HSS4x2x0.25, HSS4x2x0.1875, HSS4x2x0.125, HSS3.5x2.5x0.375, HSS3.5x2.5x0.3125, HSS3.5x2.5x0.25, HSS3.5x2.5x0.1875, HSS3.5x2.5x0.125, HSS3.5x2x0.25, HSS3.5x2x0.1875, HSS3.5x2x0.125, HSS3.5x1.5x0.25, HSS3.5x1.5x0.1875, HSS3.5x1.5x0.125, HSS3x2.5x0.3125, HSS3x2.5x0.25, HSS3x2.5x0.1875, HSS3x2.5x0.125, HSS3x2x0.3125, HSS3x2x0.25, HSS3x2x0.1875, HSS3x2x0.125, HSS3x1.5x0.25, HSS3x1.5x0.1875, HSS3x1.5x0.125, HSS3x1x0.1875, HSS2.5x2x0.25, HSS2.5x2x0.1875, HSS2.5x2x0.125, HSS2.5x1.5x0.25, HSS2.5x1.5x0.1875, HSS2.5x1.5x0.125, HSS2.5x1x0.1875, HSS2.5x1x0.125, HSS2.25x2x0.1875, HSS2.25x2x0.125, HSS2x1.5x0.1875, HSS2x1.5x0.125, HSS2x1x0.1875, 與 HSS2x1x0.125
圓形 組態包括：HSS20x0.500, HSS20x0.375, HSS18x0.500, HSS18x0.375, HSS16x0.375, HSS16x0.625, HSS16x0.500, HSS16x0.438, HSS16x0.375, HSS16x0.312, HSS16x0.250, HSS14x0.625, HS14x0.500, HSS14x0.375, HSS14x0.312, HSS14x0.250, HSS12.750x0.500, HSS12.750x0.375, HSS12.750x0.250, HSS10.750x0.500, HSS10.750x0.375, HSS10.750x0.250, HSS10.0.625, HSS10x0.500, HSS10x0.375, HSS10x0.12, HSS10x0.250, HSS10x0.188, HSS0.625x0.500, HSS9.625x0.375, HSS9.625x0.312, HSS9.625x0.250, HSS9.625x0.188, HSS8.625x0.625, HSS8.625x0.500, HSS8.625x0.0375, HSS8.625x0.322, HSS8.625x0.250, HSS8.625x0.188, HSS7.625x0.375, HSS7.625x0.328, HSS7.500x0.500, HSS7.500x0.375, SS7.500x0.250, HSS7.500x0.188, HSS7x0.500, HSS7x0.375, HSS7x0.312, HSS7x0.250, HSS7x0.188, HSS7x0.125, HSS6.875x0.500, HSS6.875x0.375, HSS6.875x0.312, HSS6.875x0.250, HSS6.875x0.188, HSS6.625x0.500, HSS6.625x0.432, HSS6.625x0.375, HSS6.625x0.312, HSS6.625x0.280, HSS6.625x0.250, HSS6.625x0.188, HSS6.625x0.125, HSS6x0.500, HSS6x0.375, HSS6x0.312, HSS6x0.280, HSS6x0.250, HSS6x0.188, HSS6x0.125, HSS5.563x0.500, HS5.563x0.375, HSS5.563x0.258, HSS5.563x0.188, HSS5.563x0.134, HSS5.500x0.500, HSS5.500x0.375, HSS5.500x0.258, HSS5x0.500, HSSS5x0.375, HSS5x0.312, HSS5x0.258, HSS5x0.250, HSS5x0.188, HSS5x0.125, HSS4.500x0.375, HSS4.500x0.337, HSS4.500x0.237, HSS4.500x0.188, HSS4.500x0.125, HSS4x0.313, HSS4x0.250, HSS4x0.237, HSS4x0.226, HSS4x0.200, HSS4x0.188, HSS4x0.125, HSS3.500x0.313, HSS3.500x0.300, HSS3.500x0.250, HSS3.500x0.216, HSS3.500x0.203, HSS3.500x0.188, HSS3.500x0.125, HSS3x0.250, HSS3x0.216, HSS3x0.203, HSS3x0.188, HSS3x0.152, HSS3x0.134, HSS3x0.125, HSS2.875x0.250, HSS2.875x0.203, HSS2.875x0.188, HSS2.875x0.125, HSS2.500x0.250, HSS2.500x0.188, HSS2.500x0.125, HSS2.375x0.250, HSS2.375x0.218, HSS2.375x0.188, HSS2.375x0.154, HSS2.375x0.125, HSS1.900x0.188, HSS1.900x0.145, HSS1.900x0.120, 和 HSS1.660x0.140
S-Shapes 組態包括：S24x121, S24x106, S24x100, S24x90, S24x80, S20x96, S20x86, S20x75, S20x66, S18x70, S18x54.7, S15x50, S15x42.9, S12x50,
Square 組態包括：HSS16x16x0.625, HSS16x16x0.5, HSS16x16x0.375, HSS16x16x0.3125, HSS14x14x0.625, HSS14x14x0.5, HSS14x14x0.5, HSS14x14x0.375, HSS14x14x0.3125, HSS10x10x0.625, HSS10x10x0.5, HSS10x10x0.375, HSS10x10x0.25, HSS10x10x0.1875, HSS9x9x0.625, HSS9x9x0.5, HSS9x9x0.375, HSS9x9x0.3125, HSS9x9x0.25, HSS9x9x0.1875, HSS9x9x0.125, HSS8x8x0.625, HSS8x8x0.5, HSS8x8x0.375, HSS8x8x0.3125, HSS8x8x0.25, HSS8x8x0.1875, HSS8x8x0.125, HSS7x7x0.625, HSS7x7x0.5, HSS7x7x0.375, HSS7x7x0.3125, HSS7x7x0.25, HSS7x7x0.1875, HSS7x7x0.125, HSS6x6x0.625, HSS6x6x0.5, HSS6x6x0.375, HSS6x6x0.3125, HSS6x6x0.25, HSS6x6x0.1875, HSS6x6x0.125, HSS5.5x5.5x0.375, HSS5.5x5.5x0.3125, HSS5.5x5.5x0.25, HSS5.5x5.5x0.1875, HSS5.5x5.5x0.125, HSS5x5x0.5, HSS5x5x0.375, HSS5x5x0.3125, HSS5x5x0.25, HSS5x5x0.1875, HSS5x5x0.125, HSS4.5x4.5x0.5, HSS4.5x4.5x0.375, HSS4.5x4.5x0.3125, HSS4.5x4.5x0.25, HSS4.5x4.5x0.1875, HSS4.5x4.5x0.125, HSS4x4x0.5, HSS4x4x0.375, HSS4x4x.3125, HSS4x4x0.25, HSS4x4x0.1875, HSS4x4x0.125, HSS3.5x3.5x0.375, HSS3.5x3.5x0.3125, HSS3.5x3.5x0.25, HSS3.5x3.5x0.1875, HSS3.5x3.5x0.125, HSS3x3x0.375, HSS3x3x0.3125, HSS3x3x0.25, HSS3x3x0.1875, HSS3x3x0.125, HSS2.5x2.5x0.3125, HSS2.5x2.5x0.25, HSS2.5x2.5x0.1875, HSS2.5x2.5x0.125, HSS2.5x2.5x0.25, HSS2.25x2.25x0.25, HSS2.25x2.25x0.1875, HSS2.25x2.25x0.125, HSS2x2x0.25, HSS2x2x0.125, 與 HSS2x2x0.125

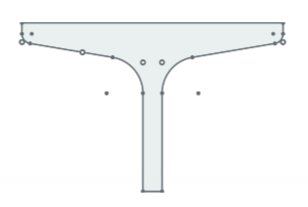

ST-Shapes 組態包括：ST12x60.5, ST12x53, ST12x50, ST12x50, ST12x45, ST12x40, ST10x48, ST10x43, ST10x37.5, ST10x33, ST9x35, ST9x27.35, ST7.5x25, ST7.5x21.45, ST7.5x25, ST7.5x20.4, ST6x17.5, ST6x15.9, ST5x17.5, ST5x12.7, ST4x11.5, ST4x9.2, ST3.8.6, ST3x6.25, ST2.5x5, ST2x4.75, ST2x3.85, ST1.5x3.75, 與 ST1.5x2.85
W-Shapes 組態包括：W44x335, W44x290, W44x262, W44x230, W40x593, W40x503, W40x431, W40x397, W40x372, W40x362, W40x324, W40x297, W40x277, W40x249, W40x215, W40x199, W40x392, W40x331, W40x327, W40x294, W40x278, W40x264, W40x235, W40x211, W40x183, W40x167, W40x149, W36x652, W36x529, W36x487, W36x441, W36x395, W36x330, W36x302, W36x282, W36x262, W36x247, W36x231, W36x256, W36x232, W36x210, W36x194, W36x182, W36x170, W36x160, W36x150, W36x135, W33x387, W33x354, W33x318, W33x291, W33x263, W33x241, W33x221, W33x201, W33x169, W33x152, W33x141, W33x130, W33x118, W30x391, W30x357, W30x326, W30x292, W30x261, W30x235, W30x211, W30x191, W30x173, W30x148, W30x132, W30x124, W30x116, W30x108, W30x99, W30x90, W27x539, W27x368, W27x336, W27x307, W27x281, W27x258, W27x235, W27x217, W27x194, W27x178, W27x161, W27x146, W27x129, W27x114, W27x102, W27x94, W27x84, W24x370, W24x335, W24x306, W24x279, W24x250, W24x229, W24x207, W24x192, W24x176, W24x162, W24x146, W24x131, W24x117, W24x104, W24x103, W24x94, W24x84, W24x76, W24x68, W24x62, W24x55, W21x201, W21x182, W21x166, W21x147, W21x132, W21x122, W21x111, W21x101, W21x93, W21x83, W21x73, W21x68, W21x62, W21x55, W21x48, W21x57, W21x44, W18.311, W18x283, W18x258, W18.234, W18x211, W18x192, W18x175, W18x158, W18x143, W18x130, W18x119, W18x106, W18x97, W18x89, W18x76, W18x71, W18x65, W18x50, W18x55, W18x50,W18x46, W18x40, W18x35, W16x100, W16x89, W16x77, W16x67, W16x57, W16x50, W16x45, W16x40, W16x36, W16x31, W16x26, W14x730, W14x665, W14x605, W14x550, W14x500, W14x455, W14x426, W14x398, W14x370, W14x342, W14x311, W14x283, W14x257, W14x233, W13x211, W14x193, W14x176, W14x159, W14x145, W14x132, W14x120, W14x109, W14x99, W14x90, W14x82, W14x74, W14x68, W14x61, W14x53, S14x48, W14x43, W14x38, W14x34, W14x30, W14x26, W14x22, W12x336, W12x305, W12x279, W12x252, W12x230, W12x210, W12x190, W12x170, W12x152, W12x136, W12x120, W12x106, W12x96, W12x87, W12x79, W12x72, W12x65, W12x58, W12x53, W12x50, W12x45, W12x40, W12x35, W12x30, W12x26, W12x22, W12x19, W12x16, W12x14, W10x112, W10x100, W10x88, W10x77, W10x68, W10x60, W10x54, W10x49, W10x45, W10x39, W10x33, W10x26, W10x22, W10x19, W10x17, W10x15, W10x12, W8x67, W8x58, W8x48, W8x40, W8x35, W8.31, W8x28, W8x24, W8x21, W8x18, W8x15, W8x13, W8x10, W6x25, W6x20, W6x15, W6x16, W6x12, W6x9, W6x8.5, W5x19, W5x16, 與 W4x13

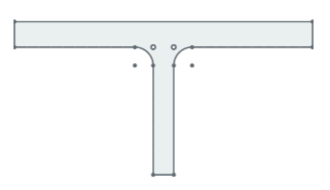

WT-Shapes

組態包括：WT22x167.5, WT22x145, WT22.131, WT22x115, WT20x296.5, WT20x251.5, WT20x215.5, WT20x198.5, WT20x186, WT20x181, WT20x162, WT20x162, WT20x138.5, WT20x124.5, WT20x107.5, WT20x99.5, WT20x196, WT20x65.5, WT20x163.5, W20x147, WT20x139, WT20x132, WT20x117.5, WT20x105.5, WT20x91.5, WT20x83.5, WT20x74.5, WT18x326, WT18x264.5, WT18x243.5, WT18x220.5, WT18x197.5, WT18x180.5, WT18x165, WT18x151, WT18x141, WT18x131, WT18x123.5, WT18x115.5, WT18x128, WT18x116, WT18x105, WT18x97, WT18x91, WT18x85, WT18x80, WT18x75, WT18x67.5, WT16.5x193.5, WT16.5x177, WT16.5x159, WT16.5x145.5, WT16.5x131.5, WT16.5x120.5, WT16.5x110.5, WT16.5x100.5, Wt16.5x84.5, WT16.5x76, WT16.5x70.5, WT16.5x65, WT16.5x59, WT15x195.5, WT15x178.5, WT15x163, WT15x146, WT15x130.5, WT15x117.5, WT15x105.5, WT15.95.5, WT15x86.5, WT15x74, WT15x66, WT15x62, WT15x58, WT15x54, WT15x49.5, WT15x45, WT13.5x269.5, WT13.5x184, WT13.5x168, WT13.5x153.5, WT13.5x140.5, WT13.5x129, WT13.5x117.5, WT13.5x108.5, Wt13.5x97, WT13.5x89, WT13.5x80.5, WT13.5x73, WT13.5x64.5, WT13.5x57, WT13.5x51, WT13.5x47, Wt13.5x42, WT12x185, Wt12x167.5, WT12x153, WT12x139.5, Wt12x125, WT12x114.5, WT12x103.5, WT12x96, WT12x88, WT12x81, WT12x73, WT12x65.5, WT12, 58.5, WT12x52, WT12x51.5, WT12x47, WT12x42, WT12x38, WT12x34, WT12x31, Wt12x27.5, WT10.5x100.5, WT10.5x91, WT10.5x83, WT10.5x73.5, WT10.5x66, WT10.5x61, WT10.5x55.5, WT10.5x50.5, WT10.5x46.5, WT10.5x41.5, WT10.5x34, WT10.5x31, WT10.5x27.5, WT10.5x24, WT10.5x28.5, WT10.5x25, WT10.5x22, WT9x155.5, WT9x141.5, WT9x129, WT9x117, WT9x105.5, WT9x96, WT9x87.5, WT9x79, WT9x71.5, WT9x65, WT9x59.5, WT9x53, WT9x48.5, WT9x43, WT9.38, WT9x35.5, WT9x32.5, WT9x30, WT9x27.5, WT9x25, WT9x23, WT9x20, WT9x17.5, WT8x50, TW8x44.5, WT8x38.5, WT8x33.5, WT828.5, WT8x25, WT8x22.5, WT8x20, WT8x18, WT8x15.5, WT8x13, WT7x365, WT7x332.5, WT7x302.5, WT7x275, WT7x250, WT7x227.5, WT7x213, WT7x199, WT7x185, WT7x171, WT7x155.5, WT7x141.5, WT7x128.5, WT7x116.5, WT7x105.5, WT7x96.5, WT7x88, WT7x79.5, WT7x72.5, WT7x66, WT7x60, WT7x54.5, WT7x49.5, WT7x45, WT7x41, WT7x34, WT7x30.5, WT7x26.5, WT7x24, WT7x21.5, WT7x19, WT7x17, WT7x15, WT7x13, WT7x11, Tw6x168, WT6x152.5, WT6x139.5 WT6x126, WT6x115, WT6x105, WT6x95, WT6x85, WT6x76, WT6x68, WT6x60, WT6x53, WT6x48, WT6x43.5, WT6x39.5, WT6x32.5, WT6x29, WT6x26.5, WT6x25, WT6x22.5, WT6x20, WT6x17.5, WT6x15, WT6x13, WT6x11, WT6x9.5, WT6x8, TW6x7, WT5x56, WT5x50, WT5x38.5, WT5x34, WT5x30, WT5x27, WT5x24.5, WT5x22.5, WT5x19.5, WT5x16.5, WT5x15, WT5x13, WT5x11, WT5x9.5, WT5x8.5, WT5x7.5, WT5x6, WT4x33.5, WT4x29, WT4x24, WT4x20, WT4x17.5, WT4x15.5, WT4x14, WT4x12, WT4x10.5, WT4x9, WT4x7.5, WT4x6.5, WT4x5, WT3x12.5, WT3x10, WT3x7.5, WT3x8, WT3x6, WT3x4.5, WT3x4.25, WT2.5x9.5, WT2.5x8, 與 WT2x6.5

ANSI 框架輪廓

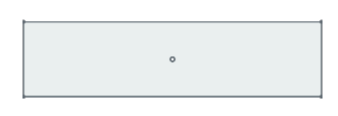

Rectangular bar

尺寸包括：0.25" x 0.0625", 0.5" x 0.0625", 0.625" x 0.0625", 0.75" x 0.0625", 0.875" x 0.0625", 1" x 0.0625", 1.25" x 0.0625", 1.5" x 0.0625", 1.75" x 0.0625", 2" x 0.0625", 2.25" x 0.0625", 2.5" x 0.0625", 2.75" x 0.0625", 3" x 0.0625", 0.375" x 0.09375", 0.5" x 0.09375", 0.75" x 0.09375", 1" x 0.09375", 2" x 0.09375", 3" x 0.09375", 0.125" x 0.125", 0.5" x 0.125", 1" x 0.125", 1.25" x 0.125", 1.5" x 0.125", 2" x 0.125", 2.5" x 0.125", 3" x 0.125", 4" x 0.125", 6" x 0.125", 0.5" x 0.1875", 0.75" x 0.1875", 1" x 0.1875", 1.25" x 0.1875", 1.5" x 0.1875", 2" x 0.1875", 2.5" x 0.1875, 3" x 0.1875", 4" x 0.1875", 0.25" x 0.25", 0.375" x 0.25", 0.5" x 0.25", 0.625" x 0.25", 0.75" x 0.25", 0.875" x 0.25", 1" x 0.25", 1.25" x 0.25", 1.5" x 0.25", 1.75" x 0.25", 2" x 0.25", 2.25" x 0.25", 2.5" x 0.25", 2.75" x 0.25", 3" x 0.25", 3.5" x 0.25", 4" x 0.25", 5" x 0.25", 6" x 0.25", 8" x 0.25", 10" x 0.25", 12" x 0.25", 0.3125" x 0.3125", 0.75" x 0.3125", 1" x 0.3125", 1.5" x 0.3125", 2" x 0.3125", 3" x 0.3125", 0.375" x 0.375", 0.5" x 0.375", 0.75" x 0.375", 1" x 0.375", 1.25" x 0.375", 1.5" x 0.375", 1.75" x 0.375", 2" x 0.375", 2.5" x 0.375", 3" 0.375", 3.5" x 0.375", 4" x 0.375", 5" x 0.375", 6" x 0.375", 8" x 0.375", 10" x 0.375", 12" x 0.375", 0.4375" x 0.4375", 0.5" x 0.5", 0.75" x 0.5", 1" x 0.5", 1" x 0.5", 1.25" x 0.5", 1.5" x 0.5", 1.75" x 0.5", 2" x 0.5", 2.5" x 0.5", 3" x 0.5", 3.5" x 0.5", 4" x 0.5", 5" x 0.5", 6" x 0.5", 8" x 0.5", 10" x 0.5", 12" x 0.5", 0.5625" x 0.5625", 0.625" x 0.625", 0.75" x 0.625", 1" x 0.625", 1.5" x 0.625", 2" x 0.625", 2.5" x 0.625", 3" x 0.625", 4" x 0.625", 5" x 0.625", 6" x 0.625", 8" x 0.625", 10" x 0.625", 12" x 0.625", 0.6875" x 0.6875, 0.75" x 0.75", 1" x 0.75", 1.25" x 0.75", 1.5" x 0.75", 1.75" x 0.75", 2" x 0.75", 2.5" x 0.75", 3" x 0.75", 3.5" x 0.75", 4" x 0.75", 5" x 0.75", 6" 0.75", 8" x 0.75", 10" x 0.75", 12" x 0.75", 0.8125" x 0.8125", 0.875" x 0.875", 1" x 0.875", 1.5" x 0.875", 2" x 0.875", 1" x 1", 1.25" x 1", 1.5" x 1", 1.75" x 1", 2" x 1", 2.5" x 1", 3" x 1", 3.5" x 1", 4" x 1", 5" x 1", 6" x 1", 8" x 1", 10" x 1", 12" x 1", 1.125" x 1.125", 1.25" x 1.25", 1.5" x 1.25", 1.75" x 1.25", 2" x 1.75", 2.25" x 1.25", 2.5" x 1.25", 3" x 1.25", 3.5" x 1.25", 4" x 1.25", 5" x 1.25", 6" x 1.25", 1.375" x 1.375", 1.5" x 1.5", 1.75" x 1.75", 2" x 1.5", 2.25" x 1.5", 2.5" x 1.5", 2.75" x 1.5", 3" x 1.5", 3.5" x 1.5", 4" x 1.5", 5" x 1.5", 6" x 1.5", 1.625" x 1.625", 1.75" x 1.75", 2" x 2", 2.5" x 2", 3" x 2", 3.5" x 2", 4" x 2", 5" x 2", 6" x 2", 2.25" x 2.25", 2.5" x 2.5", 3" x 2.5", 4" x 2.5", 5" x 2.5", 2.75" x 2.75", 3" x 3", 3.5" x 3", 4" x 3", 4.5" x 3", 5" x 3", 6" x 3", 3.25" x 3.25", 3.5" x 3.5", 4" x 4", 5" x 4", 6" x 4", 5" x 5", 和 6" x 6"

Rectangular tube

尺寸包括：0.375" x 0.375" x 0.035", 0.5" x 0.5" x 0.035", 0.5" x 1" x 0.035", 0.625" x 0.625" x 0.035", 0.75" x 0.75" x 0.035", 1" x 1" x 0.035", 0.5" x 0.5" x 0.049", 0.5" x 1" x 0.049", 0.625" x 0.625" x 0.049", 0.75" x 0.75" x 0.049", 1" x 1" x 0.049", 1" x 1.5" x 0.049", 0.25" x 0.25" x 0.0625", 0.375" x 0.375" x 0.0625", 0.5" x 0.5" x 0.0625", 0.5" x 1" x 0.0625", 0.75" x 0.75" x 0.0625", 1" x 1" x 0.0625", 1" x 1.5" x 0.0625", 1" x 2" x 0.0625", 1.25" x 1.25" x 0.0625", 1.5" x 1.5" . 0.0625", 1.75" x 1.75" x 0.0625", 2" x 2" x 0.0625", 0.5" 0.5" 0.065", 0.5" x 1" x 0.065", 0.5" 1.5" x 0.065", 0.75" x 0.75" x 0.065", 1" x 1" x 0.065", 1" x 1.75" x 0.065", 1" x 1.5" x 0.065", 1" x 2" x 0.065", 1" x 3" x 0.065", 1.25" x 1.25" x 0.065", 1.5" x 1.5" x 0.065", 2" x 2" x 0.065", 0.75" x 0.75" x 0.083", 0.75" x 1.5" x 0.083", 1" x 1" x 0.083", 1" x 3" x 0.083", 1" x 2" x 0.083", 1.25" x 1.25" x 0.083", 1.5" x 1.5" x 0.083", 2" x 2" x 0.083", 2" x 4" x 0.083", 2.5" x 2.5" x 0.083", 0.75" x 0.85" x 0.12", 1" x 1" x 0.12", 1" x 2" x 0.12", 1" x 1.5" x 0.12", 1.25" x 1.25" x 0.12", 1.5" x 1.5" x 0.12", 1.5" x 2.5" x 0.12", 2" x 2" x 0.12", 0.75" x 0.75" x 0.125", 0.75" x 1.5" x 0.125", 1" x 1" x 0.125", 1" x 1.5" x 0.125", 1" x 2" x 0.125", 1" x 3" x 0.125", 1" x 4" x 0.125", 1" x 6" x 0.125", 1.25" x 1.25" x 0.125", 1.25" x 2.5" x 0.125", 1.5" x 1.5" x 0.125", 1.5" x 2" x 0.125", 1.5" x 2.5" x 0.125", 1.5" x 3" x 0.125", 1.75" x 1.75" x 0.125", 1.75" x 3" x 0.125", 1.75" x 3.5" x 0.125", 1.75" x 4" x 0.125", 2" x 2" x 0.125", 2" x 3" x 0.125", 2" x 4" x 0.125", 2' x 5" x 0.125", 2" x 6" x 0.125", 2" x 8" x 0.125", 2.5" x 2.5" x 0.125", 3" x 3" x 0.125", 3' x 4" x 0.125", 3.5" x 3.5" x 0.125", 4" x 4" x 0.125", 5" x 5" x 0.125", 6" x 6" x 0.125", 1" x 1" x 0.1875", 1.5" x 3" x 0.1875", 2" x 2" x 0.1875", 2" x 4" x 0.1875", 2" x 6" x 0.1875", 3" x 3" x 0.1875", 3" x 4" x 0.1875", 3" x 6" x 0.1875", 4" x 4" x 0.1875", 4" x 6" x 0.1875", 4" x 5" x 0.1875", 4.5" x 4.5" x 0.1875", 5" x 5" x 0.1875", 6" x 6" x 0.1875", 8" x 8" x 0.1875", 1.25" x 1.25" x 0.188", 1.5" x 1.5" x 0.188", 1.5" x 3" x 0.188", 2" x 2" x 0.188", 3" x 3" x 0.188", 4" x 4" x 0.188", 1.5" x 3" x 0.25", 2" x 2" x 0.25", 2" x 3" x 0.25", 2" x 4" x 0.25", 2" x 6" x 0.25", 2" x 8" x 0.25", 2.5" x 2.5" x 0.25", 3" x 3" x 0.25", 3" x 4" x 0.25", 4" x 4" x 0.25", 4" x 6" x 0.25", 4" x 8" x 0.25", 5" x 5" x 0.25", 6" x 6" x 0.25", 4" x 4" x 0.375", 5" x 8" x 0.375", 6" x 6" x 0.375", 4" x 4" x 0.5", 4" x 6" x 0.5", 4" x 8" x 0.5", 6" x 6" x 0.5", 和 8" x 8" x 0.5"

Round bar

尺寸包括：1/32" (0.03125), 1/16" (0.0625), 3/32" (0.09375), 1/8" (0.125), 5/32" (0.15625), 3/16" (0.1875), 7/32" (0.21875), 1/4" (0.25), 9/32" (0.28125), 5/16" (0.3125), 11/32" (0.34375), 3/8" (0.375), 13/32" (0.40625), 7/16" (0.4375), 15/32" (0.46875), 1/2" (0.5), 17/32" (0.53125), 9/16" (0.5625), 19/32" (0.59375), 5/8" (0.625), 21/32" (0.65625), 11/16" (0.6875), 23/32" (0.71875), 3/4" (0.75), 25/32" (0.78125), 13/16" (0.8125), 27/32" (0.84375), 7/8" (0.875), 29/32" (0.90625), 15/16" (0.9375), 31/32" (0.96875), 1", 1 1/16" (1.0625), 1 1/8" (1.125), 1 3/16" (1.1875), 1 1/4" (1.25), 1 5/16" (1.3125), 1 3/8" (1.375), 1 7/16" (1.4375), 1 1/2" (1.5), 1 9/16" (1.5625), 1 5/8" (1.625), 1 11/16" (1.6875), 1 3/4" (1.75), 1 13/16" (1.8125), 1 7/8" (1.875), 1 15/16" (1.9375), 2", 2 1/8" (2.125), 2 1/4" (2.25), 2 3/8" (2.375), 2 1/2" (2.5), 2 5/8" 92.625), 2 3/4" (2.75), 2 7/8" (2.875), 3", 3 1/4" (3.25), 3 1/2" (3.5), 3 3/4" (3.75), 4", 4 1/2" (4.5), 5", 5 1/2" (5.5), 與 6"

Round tube

尺寸包括：0.125" x 0.028", 0.1875" x 0.028", 0.25" x 0.028", 0.3125" x 0.028", 0.375" x 0.028", 0.375" x 0.028", 0.4375" x 0.028", 0.5" x 0.028", 0.5625" x .028", 0.625" x 0.028", 0.75" x 0.028", 1" x 0.028", 0.125" x 0.035", 0.188" x 0.035", 0.25" x 0.035", 0.313" x 0.035", 0.375" x 0.035", 0.5" x 0.035", 0.625" x 0.035", 0.75" x 0.035", 0.875" x 0.035", 1" x 0.035", 1.125" x 0.035", 1.25" x 0.035", 1.375" x 0.035", 1.5" x 0.035", 0.25" x 0.049", 0.313" x 0.049", 0.375" x 0.049", 0.438" x 0.049", 0.5" x 0.049", 0.625" x 0.049", 0.75" x 0.049", 1" x 0.049", 1.125" x 0.049", 1.25" x 0.049", 1.375" x 0.049", 1.5" x 0.049", 2" x 0.049", 0.374" x 0.058", 0.4375" x 0.058", 0.5" x 0.058", 0.625" x 0.058", 0.75" x 0.058", 0.875" x 0.058", 1" 0.058", 1.125" x 0.058", 1.125" x 0.058", 1.25" x 0.058", 1.375" x 0.058", 1.5" x 0.058", 1.75" x 0.058", 0.25" x 0.065", 0.313" x 0.065", 0.375" x 0.065", 0.438" x 0.065", 0.5" x 0.065", 0.563" x 0.065", "0.625" x 0.065", 0.75" x 0.065", 0.875" x 0.065", 1" x 0.065", 1.125" x 0.065", 1.25" x 0.065", 1.375" x 0.065", 1.5" x 0.065", 1.625" x 0.065", 1.75" x 0.065", 2" x 0.065", 2.5" x 0.065", 3" x 0.065", 4" x 0.065", 0.375" x 0.083", 0.438" x 0.083", 0.5" x 0.083", 0.563" x 0.083", 0.625" x 0.083", 0.75" x 0.083", 0.875" x 0.083", 1" x 0.083", 1.125" x 0.083", 1.25" x 0.083", 1.375" x 0.083", 1.5" x 0.083", 1.625" x 0.083", 1.75" x 0.083", 2" x 0.083", 0.3125" x 0.095", 0.4375" x 0.095", 0.5" x 0.095", 0.75" x 0.095", 1" x 0.095", 1.125" x 0.095", 1.25" x 0.095", 1.375" x 0.095", 1.5" x 0.095", 1.625" x 0.095", 1.75" x 0.095", 2" x 0.095", 2.5" x 0.095", 0.375" x 0.12", 0.438: x 0.12", 0.5" x 0.12", 0.563" x 0.12", 0.625" x "0.12", 0.75" x 0.12", 0.875" x 0.12", 1" x 0.12", 1.125" x 0.12", 1.25" x 0.12", 1.375" x 0.12", 1.5" x 0.12", 1.75" x 0.12", 2" x 0.12", 2.25" x 0.12", 2.5" x 0.12", 3" x 0.12", 3.5" x 0.12", 4" x 0.12", 4.5" x 0.12", 0.75" x 0.125", 1" x 0.125", 1.25" x 0.125", 1.5" x 0.125", 1.75" x 0.125", 2" x 0.125", 3" x 0.125", 4" x 0.125", 1.625" x 0.134", 0.625" x 0.156", 0.625" x 0.188", 0.75" x 0.188", 1" x 0.188", 1.125" x 0.188", 1.25" x 0.188", 1.5" x 0.188", 1.75" x 0.188", 2" x 0.188", 2.5" x 0.188", 3" x 0.188", 3.125" x 0.188", 4" x 0.188", 5" x 0.188", 1" x 0.25", 1.125" x 0.25", 1.25" x 0.25", 1.375" x 0.25", 1.5" x 0.25", 1.625" x 0.25", 1.75" x 0.25", 2" x 0.25", 2.25" x 0.25", 2.5" x 0.25", 2.75" x 0.25", 3" x 0.25", 3.5" x 0.25", 3.75" x 0.25", 4" x 0.25", 4.5" x 0.25", 5" x 0.25", 5.5" x 0.25", 6" x 0.25", 1.25" x 0.375", 1.5" x 0.375", 1.75" x 0.375", 2" x 0.375", 2.25" x 0.375", 2.5" x 0.375", 2.75" x 0.375", 3" x 0.375", 3.25" x 0.375", 3.5" x 0.375", 4" x 0.375", 4.5" x 0.375", 5" x 0.375", 6" x 0.375", 1.5" x 0.5", 2" x 0.5", 2.25" x 0.5", 2.5" x 0.5", 2.75" x 0.5", 3" x 0.5", 3.25" x 0.5" 3.5" x 0.5", 3.75" x 0.5", 4" x 0.5", 4.5" x 0.5", 5" x 0.5", 5.5" x 0.5", 6" x 0.5", 3.25" x 0.625", 3.75" x 0.625", 4" x 0.625", 3" x 0.75", 3.25" x 0.75", 3.5" x 0.75", 3.75" x 0.75", 4" x 0.75", 4.25" x 0.75", 4.5" x 0.75", 4.75" x 0.75", 5" x 0.75", 6" x 0.75", 4" x 1", 4.5" x 1", 5" x 1", 5.5" x 1", 6" x 1", 6.5" x 1", 7" x 1", 8" x 1", 4.5" x 1.25", 5" x 1.25", 5.5" x 1.25", 6" x 2", 8" x 2", 10" x 2", 和 12" x 2"

AS 框架輪廓

Cold formed hollow sections and profiles

Channel section, Circular hollow section, Equal angle section, Flat section, Rail hollow section, Rectangular hollow section, Square hollow section, Unequal angle section.

Hot rolled and structural steel

Equal angles, Parallel flange channel, Tapered flange beam, Unequal angles, Universal beam, Universal bearing pile, Universal column, Welded beam, 與 Welded column。


ISO 框架輪廓

Rectangular bar

組態包括：0.375in x 0.25in, 0.50in x 0.125in, 0.50in x 0.1875in, 0.50in x 0.25in, 0.50in x 0.375in, 0.625in x 0.125in, 0.625in x 0.1875in, 0.625in x 0.25in, 0.625in x 0.375in, 0.625in x 0.50in, 0.75in x 0.0625in, 0.75in x 0.125in, 0.75in x 0.1875in, 0.75in x 0.25in, 0.75in x 0.375in, 0.75in x 0.50in, 0.75in x 0.625in, 0.875in x 0.125in, 1in x 0.0625in, 1in x 0.125in, 1in x 0.1875in, 1in x 0.25in, 1in x 0.3125in, 1in x 0.375in, 1in x 0.5in, 1in x 0.625in, 1in x 0.75in, 1.25in x 0.125in, 1.25in x 0.1875in, 1.25in x 0.3125, 1.25in x 0.25in, 1.25in x 0.375in, 1.5in x 0.625in, 1.25in x 0.75in, 1.25in x 1in, 1.5in x 0.125in, 1.5in x 0.1875in, 1.50in x 0.25in, 1.5in x 0.3125in, 1.5in x 0.375in, 1.5in x 0.5in, 1.5in x 0.625in, 1.5in x 0.75in, 1.5in x 1in, 1.5in x 1.25in, 1.75in x 0.125in, 1.75in x 0.25in, 1.75in x 0.375in, 1.75in x 0.50in, 1.75in x 0.75in, 1.75in x 1in, 1.75in x 1.25in, 1.75in x 1.50in, 2in x 0.125in, 2in x 0.25in, 2in x 0.3125in, 2in x 0.375in, 2in x 0.50in, 2in x 0.625in, 2in x 0.75in, 2in x 1in, 2in x 1.25in, 2in x 1.50in, 2in x 1.75in, 2.25in x 0.25in, 2.25in x 0.50in, 2.25in x 1.25in, 2.50in x 0.1875in, 2.50in x 0.125, 2.50in x 0.25in, 2.50in x 0.375in, 2.50in x 0.50in, 2.5in x 0.625, 2.5in x 0.75in, 2.5in x 1in, 2.50in x 1.25in, 2.5in x 1.50in, 2.5in x 1.75in, 2.50in x 2in, 3in x 0.125, 3in x 0.25in, 3in x 00.375in, 3in x 0.50in, 3in x 0.625in, 3in x 1in, 3in x 1.25in, 3in x 1.50in, 3in x 1.75in, 3in x 2in, 3in x 2.50in, 3.50in x 0.25in, 3.50in x 0.625in, 3.5in x 0.50in, 3.50in x 0.75in, 3.50in x 1.25in, 3.50in x 1.50in, 4in x 0.125in, 4in x 0.1875in, 4in x 0.25in, 4in x 0.375in, 4in x 0.50in, 4in x 0.625in, 4in x 0.75in, 4in x 1in, 4in x 1.25in, 4in x 1.50in, 4in x 1.75in, 4in x 2in, 5in x 0.25in, 5in x 0.375in, 5in x 0.50in, 5in x 0.75in, 5in x 1in, 5in x 2in, 6in x 0.125in, 6in x 0.25in, 6in x 0.375in, 6in x 0.50in, 6in x 0.625in, 6in x 0.75in, 6in x 1in, 6in x 1.50in, 6in x 2in, 8in x 0.25in, 8in x 0.50in, 20mm x 10mm, 30mm x 10mm, 30mm x 12mm, 40mm x 5mm, 40mm x 10mm, 50mm x 8mm, 60mm x 10mm, 60mm x 30mm, 60mm x 40mm, 70mm x 20mm, 100mm x 5mm, 100mm x 6mm, 100mm x 8mm, 100mm x 20mm, 120mm x 10mm, 120mm x 20mm, 150mm x 8mm, 200mm x 6mm, 200mm x 8mm, 和 200mm x 10mm

Rectangular tube

組態包括：20mm x 20mm x 2mm, 20mm x 20mm x 2.6mm, 30mm x 30mm x 2mm, 30mm x 30mm x 2.6mm, 30mm x 30mm x 3.2mm, 40mm x 40mm x 2.6mm, 40mm x 40mm x 3.2mm, 40mm x 40mm x 4mm, 50mm x 30mm x 2.6mm, 50mm x 30mm x 3.2mm, 50mm x 30mm x 4mm, 50mm x 50mm x 3.2mm, 50mm x 50mm x 4mm, 50mm x 50mm x 5mm, 60mm x 40mm x 3.2mm, 60mm x 40mm x 4mm, 60mm x 40mm x 5mm, 60mm x 60mm x 3.2mm, 60mm x 60mm x 4mm, 60mm x 60mm x 5mm, 70mm x 40mm x 3.2mm, 70mm x 40mm x 4mm, 70mm x 40mm x 5mm, 70mm x 70mm x 3.2mm, 70mm x 70mm x 3.6mm, 70mm x 70mm x 4mm, 70mm x 70mm x 5mm, 80mm x 40mm x 3.2mm, 80mm x 40mm x 4mm, 80mm x 40mm x 5mm, 80mm x 80mm x 3.2mm, 80mm x 80mm x 3.6mm, 80mm x 80mm x 4mm, 80mm x 80mm x 5mm, 80mm x 80mm x 6.3mm, 90mm x 50mm x 3.2mm, 90mm x 50mm x 3.6mm, 90mm x 50mm x 4mm, 90mm x 50mm x 5mm, 90mm x 90mm x 3.2mm, 90mm x 99mm x 3.6mm, 90mm x 90mm x 4mm, 90mm x 90mm x 5mm, 90mm x 90mm x 6.3mm, 90mm x 90mm x 8mm, 100mm x 50mm x 3.2mm, 100mm x 50mm x 3.6mm, 100mm x 50mm x 4mm, 100mm x 60mm x 3.2mm, 100mm x 60mm x 3.6mm, 100mm x 60mm x 4mm, 100mm x 60mm x 5mm, 100mm x 60mm x 6.3mm, 100mm x 100mm x 3.2mm, 100mm x 100mm x 4mm, 100mm x 100mm x 5mm, 100mm x 100mm x 6.3mm, 100mm x 100mm x 8mm, 100mm x 100mm x 10mm, 120mm x 60mm x 3.2mm, 120mm x 60mm x 3.6mm, 120mm x 60mm x 4mm, 120mm x 60mm x 5mm, 120mm x 60mm x 6.3mm, 120mm x 60mm x 8mm, 120mm x 80mm x 3.2mm, 120mm x 80mm x 4mm, 120mm x 80mm x 6.3mm, 120mm x 80mm x 8mm, 120mm x 80mm x 10mm, 120mm x 120mm x 3.2mm, 120mm x 120mm x 4mm, 120mm x 120mm x 5mm, 120mm x 120mm x 6.3mm, 120mm x 120mm x 8mm, 120mm x 120mm x 10mm, 140mm x 80mm x 3.2mm, 140mm x 80mm x 4mm, 140mm x 80mm x 5mm, 140mm x 80mm x 6.3mm, 140mm x 80mm x 6.3mm, 140mm x 80mm x 8mm, 140mm x 80mm x 10mm, 140mm x 140mm x 3.6mm, 140mm x 140mm x 5mm, 140mm x 140mm x 6.3mm, 140mm x 140mm x 8mm, 140mm x 140mm x 10mm, 150mm x 100mm x 3.2mm, 150mm x 100mm x 4mm, 150mm x 100mm x 6.3mm, 150mm x 100mm x 8mm, 150mm x 100mm x 10mm, 150mm x 150mm x 4mm, 150mm x 150mm x 5mm, 150mm x 150mm x 6.3mm, 150mm x 150mm x 8mm, 150mm x 150mm x 10mm, 160mm x 80mm x 3.2mm, 160mm x 80mm x 4mm, 160mm x 80mm x 5mm, 160mm x 80mm x 6.3mm, 160mm x 80mm x 8mm, 160mm x 80mm x 10mm, 160mm x 160mm x 4mm, 160mm x 160mm x 5mm, 160mm x 160mm x 6.3mm, 160mm x 160mm x 8mm, 160mm x 160mm x 10mm, 180mm x 100mm x 3.6mm, 180mm x 100mm x 5mm, 180mm x 100mm x 6.3mm, 180mm x 100mm x 8mm, 180mm x 100mm x 10mm, 180mm x 180mm x 4mm, 180mm x 180mm x 5mm, 180mm x 180mm x 6.3mm, 180mm x 180mm x 8mm, 180mm x 180mm x 10mm, 200mm x 100mm x 4mm, 200mm x 100mm x 5mm, 200mm x 100mm x 6.3mm, 200mm x 100mm x 8mm, 200mm x 100mm x 10mm, 200mm x 120mm x 4mm, 200mm x 120mm x 5mm, 200mm x 120mm x 6.3mm, 200mm x 120mm x 8mm, 200mm x 120mm x 10mm, 200mm x 200mm x 5mm, 200mm x 200mm x 6.3mm, 200mm x 200mm x 8mm, 200mm x 200mm x 10mm, 220mm x 140mm x 4mm, 220mm x 140mm x 5mm, 220mm x 140mm x 6.3mm, 220mm x 140mm x 8mm, 220mm x 140mm x 10mm, 220mm x 220mm x 5mm, 220mm x 220mm x 6.3mm, 220mm x 220mm x 8mm, 220mm x 220mm x 10mm, 250mm x 150mm x 5mm, 250mm x 150mm x 6.3mm, 250mm x 150mm x 8mm, 250mm x 150mm x 10mm, 250mm x 250mm x 5.9mm, 250mm x 250mm x 6.3mm, 250mm x 250mm x 8mm, 250mm x 250mm x 10mm, 260mm x 260mm x 5.9mm, 260mm x 260mm x 6.3mm, 260mm x 260mm x 8mm, 260mm x 260mm x 10mm, 300mm x 200mm x 5.9mm, 300mm x 200mm x 6.3mm, 300mm x 200mm x 8mm, 300mm x 200mm x 10mm, 300mm x 300mm x 7.1mm, 300mm x 300mm x 8mm, 300mm x 300mm x 10mm, 350mm x 350mm x 8mm, 400mm x 200mm x 7.1mm, 400mm x 200mm x 8mm, 400mm x 200mm x 10mm, 400mm x 400mm x 10mm, 450mm x 250mm x 8mm, 450mm x 250mm x 10mm, and 500mm x 300mm x 10mm
Round bar 組態包括：0.25in DIA (6.35mm), 0.3125in DIA (7.937mm), 0.375in DIA (9.525mm), 0.4375in DIA (11.112mm), 0.50in DIA (12.7mm), 9/16in DIA (14.287mm), 0.625in DIA (15.875mm), 20mm DIA, 0.8125in DIA (20.637mm), 0.875in DIA (22.225mm), 1in DIA (25.4mm), 1.125in DIA (28.58mm), 1.25in DIA (31.75mm), 1.3125in DIA (33.337mm), 1.375in DIA (34.93mm), 35mm DIA, 1.50in DIA (38.1mm), 40mm DIA, 1.625in DIA (41.28mm), 1.75in DIA (44.45mm), 1.875in DIA (47.65mm), 2in DIA (50.8mm), 2.125in DIA (53.975mm), 2.375in DIA (60.33mm), 2.50in DIA (63.5mm), 2.625in DIA (66.67mm), 2.75in DIA (69.85mm), 3in DIA (76.2mm), 3.25in DIA (82.55mm), 3.50in DIA (88.9mm), 3.50in DIA (88.9mm), 3.75in DIA (95.25mm), 4in DIA (101.6mm), 4.25in DIA (107.95mm), 4.50in DIA (114.3mm), 4.75in DIA (120.65mm), 5.25in DIA (133.35mm), 5.50in DIA (139.7mm), 5.75in DIA (146.05mm), 6i nDIA (152.4mm), 6.50in DIA (165.1mm), 7in DIA (177.8mm), 7.25in DIA (184.15mm), 7.50in DIA (190.5mm), 8in DIA (203.2mm), 8.50in DIA (215.9mm), 9in DIA (228.6mm), 9.50in DIA (241.3mm), 10in DIA (254mm), 12in DIA (304.8,mm), 13in DIA (330.2mm), 14in DIA (355.6mm), 15in DIA (381mm), 和 16in DIA (406.4mm)
Round tube 組態包括：0.375in OD x 16SWG, 0.50in D x 18SWG, 0.50in OD x 16SWG, 0.50in OD x 10SWG, 0.625in OD x 18SWG, 0.625in OD x 16SWG, 0.625in OD x 10SWG, 0.75in OD x 18SWG, 0.75in OD x 16SWG, 0.75in OD x 10SWG, 0.875in OD x 18SWG, 0.875in OD x 16SWG, 0.875in OD x 10SWG, 1in OD x 18SWG, 1in OD x 16SWG, 1in OD x 10SWG, 1in OD x 0.1875in, 1in OD x 0.25in, 1.125in OD x 16SWG, 1.125in OD x 10SWG, 1.25in OD x 18SWG, 1.25in OD x 16SWG, 1.25in OD x 0.1875in, 1.25in OD x 10SWG, 1.375in OD x 16SWG, 1.375in OD x 10SWG, 1.50in OD x 18SWG, 1.50in OD x 16SWG, 1.50in OD x 10SWG, 1.50in OD x 0.1875in, 1.50in OD x 0.25in, 1.625in OD x 16SWG, 1.625in OD x 10SWG, 1.625in OD x 0.1875in, 1.75in OD x 16SWG, 1.75in OD x 10SWG, 1.875in OD x 10SWG, 2in OD x 16SWG, 2in OD x 10SWG, 2in OD x 0.1875in, 2in OD x 0.25in, 2in OD x 1.5mm, 2in OD x 3.0mm, 2.25in OD x 16SWG, 2.25in OD x 10SWG, 2.50in OD x 0.1875, 2.50in OD x 0.25in, 2.50in OD x 0.375in, 3.5in OD x 0.25in, 2.75in OD x 10SWG, 3in OD x 16SWG, 3in OD x 10SWG, 3in OD x 0.1875in, 3in OD x 0.25in, 3in OD x 1.5mm, 3in OD x 3.0mm, 3.50in OD x 16SWG, 3.50in OD x 10SWG, 3.50in OD x 0.25in, 4in OD x 16SWG, 4in OD x 10SWG, 4in OD x 0.25in, 4in OD x 1.5mm, 4in OD x 3.0mm, 4.50 in OD x 10SWG, 4.5in OD x 0.25in, 5in OD x 10SWG, 5in OD x 0.25in, 6in OD x 10SWG, 6in OD x 0.25in, 6.50in OD x 0.25in, 100mm OD x 2mm, 150mm OD x 2mm, and 152mm OD x 2.5mm
