可用於：Part Studio、組合件中

相切線是曲線與線性邊線之間形成的邊線；例如，來自圓角或平滑的邊線。

To select the visual treatment of tangent lines, select Camera and render options, then select from the following three view modes:

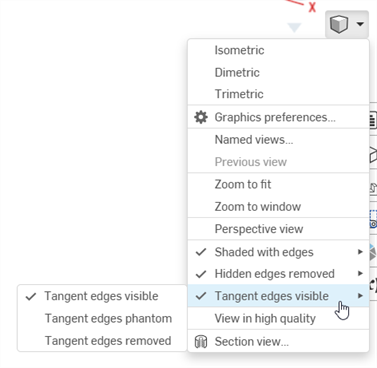

Camera and render options: Tangent options

  • Tangent edges visible - Tangent edges are shown as solid lines. This is the default.
  • Tangent edges Phantom - Tangent edges are displayed as dashed lines; also known as Font in some systems.
  • Tangent edges Removed - Tangent edges are visually removed from view.

「攝影機與渲染選項」功能表中的相切邊線選項

相切線範例圖片

有三種不同的相切線選項，由左到右分別是：顯示 (預設)、影線與移除。

目前僅為在 Part Studio 與組合件中新近建立的模型提供相切線的選項，且僅於瀏覽器平台上支援。
