Available in: Part Studio

Onshape 會顯示模型中的鑽孔與中斷，包括曲面的層形邊線，當您選取「強調顯示邊界線」時可能會需要修復這些項目。在需要修復匯入零件中的曲面時，這個功能是相當有用的。

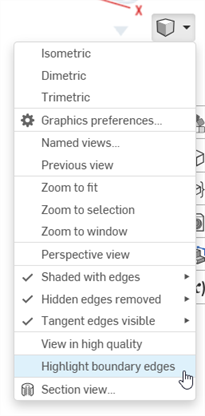

  1. Select Camera and render options, then Highlight boundary edges:

    Camera and render options: Highlight boundary edges

  2. Edges that may require repair are highlighted in solid red lines when the edges are visible and dashed red lines when the edges are hidden:

    強調顯示邊界線的範例

For more information, see Repairing Imported Models.
