可用于：Part Studio、装配体

相切边是在曲线与线性边之间形成的边；例如，从圆角或平滑边。

To select the visual treatment of tangent lines, select Camera and render options, then select from the following three view modes:

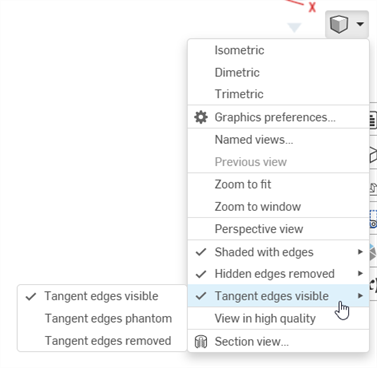

Camera and render options: Tangent options

  • Tangent edges visible - Tangent edges are shown as solid lines. This is the default.
  • Tangent edges Phantom - Tangent edges are displayed as dashed lines; also known as Font in some systems.
  • Tangent edges Removed - Tangent edges are visually removed from view.

“相机和渲染选项”菜单中的“切线边”选项

相切边示例图

三种不同的切线边选项，从左到右：“可见”（默认）、“影线”和“已移除”。

相切边目前仅适用于 Part Studio 或装配体中新创建的模型，且只能在浏览器平台上查看。
