Available in: Part Studio

Onshape 会显示模型中的孔和断开连接（包括曲面的薄片边），在您选择“亮显边界边”时可能需要修复它们。当您导入需要修复曲面的零件时，此特征尤为有用。

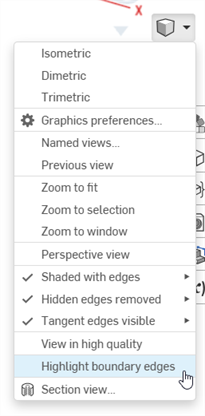

  1. Select Camera and render options, then Highlight boundary edges:

    Camera and render options: Highlight boundary edges

  2. Edges that may require repair are highlighted in solid red lines when the edges are visible and dashed red lines when the edges are hidden:

    亮显边界边的示例

For more information, see Repairing Imported Models.
