Onshape フレーム輪郭ライブラリのコンテンツは Onshape によって作成され、Onshape 内のドキュメントに保持され、Onshape によって維持されます。このコンテンツが消えたり、リリース間で機能しないリスクはありません。このワークフローでは、フレーム輪郭の挿入を簡素化するために、時間の節約プロセスを統合しました。

Supported frame profiles:

  • Onshape フレーム輪郭ライブラリ - ISO、ANSI、8020、AS、AISC
  • 8020 - 10 シリーズ、15 シリーズ、20 シリーズ、25 シリーズ、30 シリーズ、40 シリーズ、45 シリーズ
  • AISC - C-Shapes、HP-Shapes、L-Angle、M-Shapes、MC-Shapes、MT-Shapes、パイプ、長方形、円形、S-Shapes、四角形、ST-Shapes、W-Shapes、WT-Shapes
  • ANSI - 長方形バー、長方形チューブ、円形バー、円形チューブ
  • AS - 冷間成形された空洞のセクションとプロファイル、熱間圧延および構造用鋼
  • ISO - 長方形バー、長方形チューブ、円形バー、円形チューブ

Onshape フレーム輪郭ライブラリ

8020 フレーム輪郭

10 シリーズ

1001

 8020-10-1001 frame
1001-S 8020-10-1001-S frame
1002 8020-10-1002 frame
1002-S 8020-10-1002-S frame
1003 8020-10-1003 frame
1003-S 8020-10-1003-S frame
1004 8020-10-1004 frame
1004-S 8020-10-1004-S frame
1010 8020-10-1010 frame
1010-S 8020-10-1010-S frame
1012 8020-10-1012 frame
1012-S 8020-10-1012-S frame
1020 8020-10-1020 frame
1020-S 8020-10-1020-S frame
1030 8020-10-1030 frame
1030-S 8020-10-1030-S frame

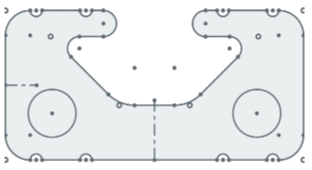

1050 8020-10-1050 frame
2012 8020-10-2012 frame
2020 8020-10-2020 frame
2020-S 8020-10-2020-S frame
2040 8020-10-2040 frame
2040-S 8020-10-2040-S frame

15 シリーズ

1501

 8020-15-1501 frame
1501-LS 8020-15-1501-LS frame
1502 8020-15-1502 frame
1502-LS 8020-15-1502-LS frame
1503 8020-15-1503 frame
1503-LS 8020-15-1503-LS frame
1504 8020-15-1504 frame
1504-LS 8020-15-1504-LS frame
1515 8020-15-1515 frame
1515-Lite 8020-15-1515-Lite frame
1515-LS 8020-15-1515-LS frame
1515-S 8020-15-1515-S frame
1515-UL 8020-15-1515-UL frame
1515-ULS 8020-15-1515-ULS frame
1517 8020-15-1517 frame
1517-LS 8020-1517-LS Frame
1530 8020-1530 Frame
1530-Lite 8020-1530-Lite Frame
1530-LS 8020-1530-LS Frame
1530-S 8020-1530-S Frame
1530-UL 8020-1530-UL Frame
1530-ULS 8020-1530-ULS Frame
1534-Lite 8020-1534-Lite Frame
1545 8020-1545 Frame
1545-LS 8020-1545-LS Frame
1545-S 8020-1545-S Frame
1547 8020-1547 Frame

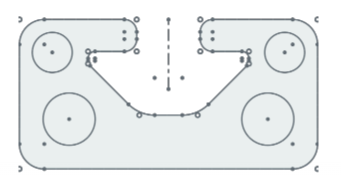

1575 8020-1575 Frame
3030 8020-3030 Frame
3030-Lite 8020-3030-Lite Frame
3030-LS 8020-3030-LS Frame
3030-S 8020-3030-S Frame
3034-Lite 8020-3034-Lite Frame
3060 8020-3060 Frame
3075 8020-3075 Frame

20 シリーズ

20-2020

 8020-20-2020 Frame
20-2040 8020-20-2040 Frame
20-4040 8020-20-4040 Frame

25 シリーズ

25-2501

 8020-25-2501 Frame
25-2502 8020-25-2502 Frame
25-2503 8020-25-2503 Frame
25-2504 8020-25-2504 Frame

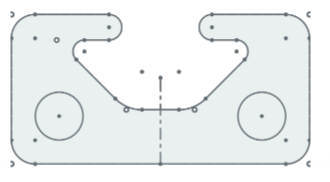

25-2514 8020-25-2514 Frame
25-2525 8020-25-2525 Frame
25-2527 8020-25-2527 Frame
25-2550 8020-25-2550 Frame
25-2576 8020-25-2576 Frame
25-5010 8020-25-5010 Frame
25-5013 8020-25-5013 Frame
25-5050 8020-25-5050 Frame

30 シリーズ

30-3001

 8020-30-3001 Frame
30-3002 8020-30-3002 Frame
30-3003 8020-30-3003 Frame
30-3004 8020-30-3004 Frame
30-3022 8020-30-3022 Frame
30-3030 8020-30-3030 Frame
30-3060 8020-30-3060 Frame
30-6060 8020-30-6060 Frame

40 シリーズ

40-4001

 8020-40-4001 Frame
40-4002 8020-40-4002 Frame
40-4003 8020-40-4003 Frame
40-4004 8020-40-4004 Frame
40-4012 8020-40-4012 Frame
40-4020 8020-40-4020 Frame
40-4030-Lite 8020-40-4030-Lite Frame
40-4040 8020-40-4040 Frame
40-4040-Lite 8020-40-4040-Lite Frame
40-4040-UL 8020-40-4040-UL Frame
40-4045-Lite 8020-40-4045-Lite Frame
40-4080 8020-40-4080 Frame
40-4080-Lite 8020-40-4080-Lite Frame
40-4080-UL 8020-40-4080-UL Frame
40-4082-Lite 8020-40-4082-Lite Frame
40-4083-Lite 8020-40-4083-Lite Frame
40-4084-Lite 8020-40-4084-Lite Frame
40-4085-Lite 8020-40-4085-Lite Frame
40-4093 8020-40-4093 Frame
40-4094 8020-40-4094 Frame
40-4096 8020-40-4096 Frame
40-8016 8020-40-8016 Frame
40-8020 8020-40-8020 Frame
40-8080 8020-40-8080 Frame

45 シリーズ

45-4545

 8020-45-4545 Frame
  45-4545-Lite 8020-45-4545-Lite Frame
  45-4590 8020-45-4590 Frame
  45-9090 8020-45-9090 Frame

AISC フレーム輪郭

C-Shapes

Sizes include: C15x50, C15x40, C15x33.9, C12x30, C12x25, C12x20.7, C10x30, C10x25, C10x20, C9x20, C9x15, C9x13.4, C8x18.75, C8x13.75, C8x11.5, C7x14.75, C7x12.25, C7x9.8, C6x13, C6x10.5, C6x8.2, C5x9, C5,6.7, C4x7.25, C4x6.25, C4x5.4, C4x4.5, C3x6, C3x5, C3x4.1, and C3x3.5

 AISC-C-shape Frame

HP-Shapes

Sizes include: HP18x204, HP18x181, HP18x157, HP18x135, HP16x183, HP16x162, HP16x141, HP16x121, JP16x101, HP16x88, HP14x117, JP14x102, HP14x89, HP14x73, HP12x84, HP12x63, JP12x53, HP10x57, HP10x42, and HP8x36

 AISC-HP-shape Frame

L-Angle

Sizes include: L8x8x1.125, L8x8x1, L8x8x0.875, L8x8x0.75, L8x8x0.625, L8x8x0.5625, L8x8x0.5, L8x6x1, L8x6x0.875, L8x8x0.75, L8x6x0.625, L8x6x0.5625, L8x6x0.5, L8x6x0.4375, L8x4x1, L8x4x0.875, L8x4x0.75, L8x4x0.625, L8x4x0.5625, L8x4x0.5, L8x4x0.4375, L7x4x0.75, L7x4x0.625, L7x4x0.5, L7x4x0.4375, L7x4x0.375, L6x6x1, L6x6x0.875, L6x6x0.75, L6x6x0.625, L6x6x0.5625, L6x6x0.5, L6x6x0.4375, L6x6x0.375, L6x6x0.3125, L6x4x0.875, L6x64x0.75, L6x6x0.625, L6x4x0.5625, L6x4x0.5, L6x4x0.4375, L6x64x0.375, L6x4x0.3125, L6x3.5x0.5, L6x3.5x0.375, 6x3.5x0.3125, L5x5x0.875, L5x5x0.75, L5x5x0.625, L5x5x0.5, L5x5x0.4375, L5x5x0.375, L5x5x0.25, L5x3.5x0.75, Lx3.5x0.625, L5x3x0.5, L5.3x0.375, L5x3.5x0.3125, L5x3.5x0.25, L5x3x0.5, L5x3x0.4375, L5x3x0.375, L53x0.325, L5x3x0.25, L4x4x0.75, L4x4x0.625, L4x4x0.5, L4x4x0.4375, L4x4x0.375, L4x4x0.3125, L4x4x0.25, L4x3.5x0.5, L4x3.5x0.375, 4x3.5x0.3125, L4x3.5x0.25, L4x3x0.625, L4x3x0.5, L4x3x0.375, L4x3x0.3125, L4x4x0.25, L3.5x3.5x0.5, L3.5x3.5x0.4375, L3.5x3.5x0.375, L3.5x3.5x0.3125, L3.5x3.5x0.25, L3.5x3.0.5, L3.5x3x0.4375, L3.5x3x0.375, L3.5x3x0.3125, L3.5x3x0.25, L3.5x2.5x0.5, L3.5x2.5x0.375, L3.5x2.5x0.3125, L3.5x2.5x0.25, L3x3x0.5, L3x3x0.4375, L3x3x0.375, L3x3x0.3125, L3x3x0.25, L3x3x0.1875, L3x2.5x0.5, L3x2.5x0.4375, L3x2.5x0.375, L3x2.5x0.3125, L3x2.5x0.25, L3x2.5x0.1875, L3x2x0.5, L3x2x0.375, L3x2x0.3125, L3x2x0.25, L3x2x0.1875, L2.5x2.5x0.5, L2.5x2.5x0.375, L2.5x2.5x0.3125, L2.5x2.5x0.25, L2.5x2.5x0.1875, L2.5x2x0.375, L2.5x2x0.3125, L2.5x2x0.25, L2.5x2x0.1875, L2.5x1.5x0.25, L2.5x1.5x0.1875, L2x2x0.375, L2x2x0.3125, L2x2x0.25, L2x2x0.25, L2x2x0.1875, and L2x2x0.125

 AISC-L-angle Frame

M-Shapes

Sizes include: M12.5x12.4, M12.5x11.6, M12x11.8, M12x10.8, M12x10, M10x9, M10x8, M10x7.5, M8x6.5, M8x6.2, M6x4.4, M6x3.7, M5x18.9, M4x6, M4x4.08, M4x3.45, M4x3.2, and M3x2.9

 AISC-M-shape Frame

MC-Shapes

Sizes include: MX18x58, MC18x51.9, MC18x45.8, MC18x42.7, MC13x50, M13x40, MC13x35, MC13x31.8, MC12x50, MC12x45, MC12x40, MC12x35, MC12x31, MC12x14.3, MC12x10.6, MC10x41.1, MC10x33.6, MC10x28.5, MC10x25, MC10x22, MC10x8.4, MC10x6.5, MC9.25, MC9.23.9, MC8x22.8, MC8x21.4, MC8x20, MC8x18.7, MC8x8.5, MC7x22.7, MC7x19.1, MC6x18, MC6x15.3, MC6x16.3, MC6x15.1, MC6x12, MC6x7, MC6x6.5, MC4x13.8, and MC3x7.1

 AISC-MC-shape Frame

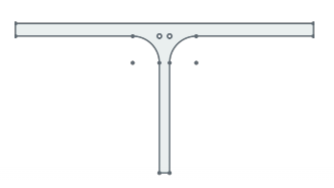

MT-Shapes

コンフィギュレーションには以下が含まれます: MT6.25x6.2、MT6.25x5.8、MT6x5.9、MT6x5.4、MT6x5、MT5.x4.5、MT5x4、MT5x3.75、MT4x3.25、MT4x3.1、MT3x2.2、MT3x1.85、MT2.5x9.45、MT2x3

 AISC-MT-shape Frame

パイプ

Sizes include: 12 Std, 10 Std, 8 Std, 6 Std, 5 Std, 4 Std, 3 1/2 Std, 3 Std, 2 1/2 Std, 2 Std, 1 1/2 Std, 1 1/4 Std, 1 Std, 3/4 Std, 1/2 Std, 12 x-Strong, 10 x-Strong, 8 x-Strong, 6 x-Strong, 5 x-Strong, 4 x-Strong, 3 1/2 x-Strong, 3 x-Strong, 2 1/2 x-Strong, 2 x-Strong 1 1/2 x-Strong, 1 1/4 x-Strong, 1 x-Strong, 1 x-Strong, 3/4 x-Strong, 1/2 x-Strong, 8 xx-Strong, 6 xx-Strong, 5 xx-Strong, 4 xx-Strong, 3 xx-Strong, 2 1/2 xx-Strong, and 2 xx-Strong

 AISC-Pipe Frame
長方形の SIzes include: HSS20x12x0.625, HSS20x12x0.5, HSS20x12x0.375, HSS20x12x0.3125, HSS20x8x0.625, HSS20x8x0.5, HSS20x8x0.375, HSS20x4x0.5, HSS20x4.0x0.375, HSS20x4.0x0.3125, HSS20x4.0x0.25, HSS18x6x0.625, HSS18x6x0.5, HSS18x6x0.375, HSS18x6x0.3125, HSS18x6.0.25, HSS16x12x0.625, HSS16x12x0.5, HSS16x12x0.375, HSS16x12x0.3125, HSS16x8x0.625, HSS16x8x0.5, HSS16x8.0.375, HSS16x8x0.3125, HSS16x8x0.25, HSS16x4x0.625, HSS16x4x0.5, HSS16x4x0.5, HSS16xx4x0.375, HSS16x4x0.3125, HSS16x4x0.25, HSS16x4x0.1875, HSS14x10x0.625, HSS14x10x0.5, HSS14x10x0.375, HSS14x10x0.3125, HSS14x10x0.25, HSS14x6x0.625, HSS14x6x0.5, HSS14x6x0.5, HSS14x6x0.375, HSS14x6x0.3125, HSS14x6x0.25, HSS14x6x0.1875, HSS14x4x0.625, HSS14x4x0.5, HSS14x4x0.375, HSS14x4x0.3125, HSS14x4x0.25, HSS14x4x0.1875, HSS12x10x0.5, HSS12x10x0.375, HSS12x10x0.3125, HSS12x10x0.25, HSS12x8x0.625, HSS12x8x0.375, HSS12x8x0.3125, HSS12x8x0.25, HSS12x8x0.1875, HSS12x6x0.625, HSS12x6x0.5, HSS12x6x0.375, HSS12x6x0.3125, HSS12x6x0.23, HSS12x4x0.625, HSS12x4x0.5, HSS12x4x0.375, HSS12x4x0.3125, HSS12x4x0.25, HSS12x4x0.1875, HSS12x3.5x0.375, HSS12x3.5x0.3125, HSS12x3x0.3125, HSS12x3x0.1875, HSS12x2x0.3125, HSS12x2x0.25, HSS12x2x0.1875, HSS12x10x8x0.625, HSS10x8x0.5, HSS10x8x0.375, HSS10x8x0.3125, HSS10x8x0.25, HSS10x8x0.1875, HSS10x6x0.625, HSS10x6x0.5, HSS10x6x0.375, HSS10x6x0.3125, HSS10x6x0.25, HSS10x6x0.1875, HSS10x5x0.375, HSS10x5x0.3125, HSS10x5x0.25, HSS10x5x0.1875, HSS10x4x0.625, HSS10x4x0.5, HSS10x4x0.375, HSS10x4x0.3125, HSS10x4x0.25, HSS10x4x0.1875, HSS10x4x0.125, HSS10,3.5x0.5, HSS10x3.5x0.375, HSS10x3.5x0.3125, HSS10x3.5x0.25, HSS10x3.5x0.1875, HSS10x3.5x0.125, HSS10x3x0.375, HSS10x1x0.3125, HSS10x3x0.25, HSS10x3x0.1875, HSS10x2x0.375, HSS10x2x0.3125, HSS10x2x0.25, HSS10x2x0.1875, HSS10x2x0.125, HSS9x7x0.625, HSS9x7x0.5, HSS9x7x0.375, HSS9x7x0.3125, HSS9x7x0.25, HSS9x7x0.1875, HSS9x5x0.625, HSS9x5x0.5, HSS9x5x0.375, HSS9x5x0.3125, HSS9x5x0.25, HSS9x5x0.1875, HSS9x3x0.5, HSS9x3x0.375, HSS9x3x0.3125, HSS9x3x0.1875, HSS8x6x0.625, HSS8x6x0.5, HSS8x6x0.375, HSS8x6x0.3125, HSS8x6x0.25, HSS8x6x0.1875, HSS8x4x0.625, HSS8x4x0.5, HSS8x4x0.375, HSS8x4c0.3125, HSS8x4x0.25, HSS8x4x0.125, HSS8x3x0.5, HSS8x3x0.375, HSS8x3x0.3125, HSS8x3x0.25, HSS8x3x0.1875, HSS8x3x0.125, HSS8x2x0.375, HSS8x2x0.3125, HSS8x2x0.25, HSS8x2x0.1875, HSS8x2x0.125, HSS7x5x0.5, HSS7x5x0.375, HSS7x5x0.3125, HSS7x5x0.25, HSS7x5x0.1875, HSS7x5x0.125, HSS7x4x0.5, HSS7x4x0.375, HSS7x4x0.3125, HSS7x4x0.25, HSS7x4x0.1875, HSS7x40.125, HSS7x3x0.5, HSS7x3x0.3125, HSS7x3x0.375, HSS7x3x0.3125, HSS7x3x0.25, HSS7x3x0.1875, HSS7x3x0.125, HSS7x2x0.25, HSS7x2x0.1875, HSS7x2x0.125, HSS6x5x0.5, HSS6x5x0.375, HSS6x5x0.3125, HSS6x5x0..25, HSS6x5x0.1875, HSS6x5x0.125, HSS6x4x0.5, HSS6x4x0.375, HSS6x4x0.25, HSS6x4x0.1875, HSS6x3x0.5, HSS6x3x0.375, HSS6x3x0.3125, HSS6x3x25, HSS6x3x0.1875, HSS6x3x0.125, HSS6x2x0.3125, HSS6x2x0.25, HSS6x2x0.1875, HSS6x2x0.125, HSS5x4x0.5, HSS5x4x0.375, HSS5x4x0.375, HSS5x4x0.3175, HSS5x4x0.25, HSS5x4x0.1875, HSS5x4x0.125, HSS5x3x0.5, HSS5x3x0.375, HSS5x3x0.3125, HSS5x3x0.25, HSS5x3x0.1875, HSS5x3x0.125, HSS5x2.5x0.25, HSS5x2.5x0.1875, HSS5x2.5x0.1265, HSS5x2x0.375, HSS5x2x0.3125, HSS5x2x0.25, HSS5x2x0.1875, HSS5x2x0.125, HSS4x3x0.375, HSS4x3x0.3125, HSS4x3x0.25, HSS4x3x0.1875, HSS4x3x0.125, HSS4x2.5x0.3125, HSS4x2.5x0.3125, HSS4x2.5x0.25, HSS4x2.5x0.1875, HSS4x2.5x0.125, HSS4x2x0.375, HSS4x2x0.3125, HSS4x2x0.25, HSS4x2x0.1875, HSS4x2x0.125, HSS3.5x2.5x0.375, HSS3.5x2.5x0.3125, HSS3.5x2.5x0.25, HSS3.5x2.5x0.1875, HSS3.5x2.5x0.125, HSS3.5x2x0.25, HSS3.5x2x0.1875, HSS3.5x2x0.125, HSS3.5x1.5x0.25, HSS3.5x1.5x0.1875, HSS3.5x1.5x0.125, HSS3x2.5x0.3125, HSS3x2.5x0.25, HSS3x2.5x0.1875, HSS3x2.5x0.125, HSS3x2x0.3125, HSS3x2x0.25, HSS3x2x0.1875, HSS3x2x0.125, HSS3x1.5x0.25, HSS3x1.5x0.1875, HSS3x1.5x0.125, HSS3x1x0.1875, HSS2.5x2x0.25, HSS2.5x2x0.1875, HSS2.5x2x0.125, HSS2.5x1.5x0.25, HSS2.5x1.5x0.1875, HSS2.5x1.5x0.125, HSS2.5x1x0.1875, HSS2.5x1x0.125, HSS2.25x2x0.1875, HSS2.25x2x0.125, HSS2x1.5x0.1875, HSS2x1.5x0.125, HSS2x1x0.1875, and HSS2x1x0.125 AISC-Rectangular Frame
ラウンド Sizes include: HSS20x0.500, HSS20x0.375, HSS18x0.500, HSS18x0.375, HSS16x0.375, HSS16x0.625, HSS16x0.500, HSS16x0.438, HSS16x0.375, HSS16x0.312, HSS16x0.250, HSS14x0.625, HS14x0.500, HSS14x0.375, HSS14x0.312, HSS14x0.250, HSS12.750x0.500, HSS12.750x0.375, HSS12.750x0.250, HSS10.750x0.500, HSS10.750x0.375, HSS10.750x0.250, HSS10.0.625, HSS10x0.500, HSS10x0.375, HSS10x0.12, HSS10x0.250, HSS10x0.188, HSS0.625x0.500, HSS9.625x0.375, HSS9.625x0.312, HSS9.625x0.250, HSS9.625x0.188, HSS8.625x0.625, HSS8.625x0.500, HSS8.625x0.0375, HSS8.625x0.322, HSS8.625x0.250, HSS8.625x0.188, HSS7.625x0.375, HSS7.625x0.328, HSS7.500x0.500, HSS7.500x0.375, SS7.500x0.250, HSS7.500x0.188, HSS7x0.500, HSS7x0.375, HSS7x0.312, HSS7x0.250, HSS7x0.188, HSS7x0.125, HSS6.875x0.500, HSS6.875x0.375, HSS6.875x0.312, HSS6.875x0.250, HSS6.875x0.188, HSS6.625x0.500, HSS6.625x0.432, HSS6.625x0.375, HSS6.625x0.312, HSS6.625x0.280, HSS6.625x0.250, HSS6.625x0.188, HSS6.625x0.125, HSS6x0.500, HSS6x0.375, HSS6x0.312, HSS6x0.280, HSS6x0.250, HSS6x0.188, HSS6x0.125, HSS5.563x0.500, HS5.563x0.375, HSS5.563x0.258, HSS5.563x0.188, HSS5.563x0.134, HSS5.500x0.500, HSS5.500x0.375, HSS5.500x0.258, HSS5x0.500, HSSS5x0.375, HSS5x0.312, HSS5x0.258, HSS5x0.250, HSS5x0.188, HSS5x0.125, HSS4.500x0.375, HSS4.500x0.337, HSS4.500x0.237, HSS4.500x0.188, HSS4.500x0.125, HSS4x0.313, HSS4x0.250, HSS4x0.237, HSS4x0.226, HSS4x0.200, HSS4x0.188, HSS4x0.125, HSS3.500x0.313, HSS3.500x0.300, HSS3.500x0.250, HSS3.500x0.216, HSS3.500x0.203, HSS3.500x0.188, HSS3.500x0.125, HSS3x0.250, HSS3x0.216, HSS3x0.203, HSS3x0.188, HSS3x0.152, HSS3x0.134, HSS3x0.125, HSS2.875x0.250, HSS2.875x0.203, HSS2.875x0.188, HSS2.875x0.125, HSS2.500x0.250, HSS2.500x0.188, HSS2.500x0.125, HSS2.375x0.250, HSS2.375x0.218, HSS2.375x0.188, HSS2.375x0.154, HSS2.375x0.125, HSS1.900x0.188, HSS1.900x0.145, HSS1.900x0.120, and HSS1.660x0.140 AISC-Round Frame
S-Shapes Sizes include: S24x121, S24x106, S24x100, S24x90, S24x80, S20x96, S20x86, S20x75, S20x66, S18x70, S18x54.7, S15x50, S15x42.9, S12x50, AISC-S-shape Frame
四角形 SIzes include: HSS16x16x0.625, HSS16x16x0.5, HSS16x16x0.375, HSS16x16x0.3125, HSS14x14x0.625, HSS14x14x0.5, HSS14x14x0.5, HSS14x14x0.375, HSS14x14x0.3125, HSS10x10x0.625, HSS10x10x0.5, HSS10x10x0.375, HSS10x10x0.25, HSS10x10x0.1875, HSS9x9x0.625, HSS9x9x0.5, HSS9x9x0.375, HSS9x9x0.3125, HSS9x9x0.25, HSS9x9x0.1875, HSS9x9x0.125, HSS8x8x0.625, HSS8x8x0.5, HSS8x8x0.375, HSS8x8x0.3125, HSS8x8x0.25, HSS8x8x0.1875, HSS8x8x0.125, HSS7x7x0.625, HSS7x7x0.5, HSS7x7x0.375, HSS7x7x0.3125, HSS7x7x0.25, HSS7x7x0.1875, HSS7x7x0.125, HSS6x6x0.625, HSS6x6x0.5, HSS6x6x0.375, HSS6x6x0.3125, HSS6x6x0.25, HSS6x6x0.1875, HSS6x6x0.125, HSS5.5x5.5x0.375, HSS5.5x5.5x0.3125, HSS5.5x5.5x0.25, HSS5.5x5.5x0.1875, HSS5.5x5.5x0.125, HSS5x5x0.5, HSS5x5x0.375, HSS5x5x0.3125, HSS5x5x0.25, HSS5x5x0.1875, HSS5x5x0.125, HSS4.5x4.5x0.5, HSS4.5x4.5x0.375, HSS4.5x4.5x0.3125, HSS4.5x4.5x0.25, HSS4.5x4.5x0.1875, HSS4.5x4.5x0.125, HSS4x4x0.5, HSS4x4x0.375, HSS4x4x.3125, HSS4x4x0.25, HSS4x4x0.1875, HSS4x4x0.125, HSS3.5x3.5x0.375, HSS3.5x3.5x0.3125, HSS3.5x3.5x0.25, HSS3.5x3.5x0.1875, HSS3.5x3.5x0.125, HSS3x3x0.375, HSS3x3x0.3125, HSS3x3x0.25, HSS3x3x0.1875, HSS3x3x0.125, HSS2.5x2.5x0.3125, HSS2.5x2.5x0.25, HSS2.5x2.5x0.1875, HSS2.5x2.5x0.125, HSS2.5x2.5x0.25, HSS2.25x2.25x0.25, HSS2.25x2.25x0.1875, HSS2.25x2.25x0.125, HSS2x2x0.25, HSS2x2x0.125, and HSS2x2x0.125 AISC-Square Frame

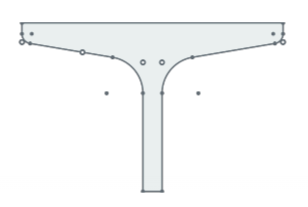

ST-Shapes Sizes include: ST12x60.5, ST12x53, ST12x50, ST12x50, ST12x45, ST12x40, ST10x48, ST10x43, ST10x37.5, ST10x33, ST9x35, ST9x27.35, ST7.5x25, ST7.5x21.45, ST7.5x25, ST7.5x20.4, ST6x17.5, ST6x15.9, ST5x17.5, ST5x12.7, ST4x11.5, ST4x9.2, ST3.8.6, ST3x6.25, ST2.5x5, ST2x4.75, ST2x3.85, ST1.5x3.75, and ST1.5x2.85 AISC-ST-shape Frame
W-Shapes Sizes include: W44x335, W44x290, W44x262, W44x230, W40x593, W40x503, W40x431, W40x397, W40x372, W40x362, W40x324, W40x297, W40x277, W40x249, W40x215, W40x199, W40x392, W40x331, W40x327, W40x294, W40x278, W40x264, W40x235, W40x211, W40x183, W40x167, W40x149, W36x652, W36x529, W36x487, W36x441, W36x395, W36x330, W36x302, W36x282, W36x262, W36x247, W36x231, W36x256, W36x232, W36x210, W36x194, W36x182, W36x170, W36x160, W36x150, W36x135, W33x387, W33x354, W33x318, W33x291, W33x263, W33x241, W33x221, W33x201, W33x169, W33x152, W33x141, W33x130, W33x118, W30x391, W30x357, W30x326, W30x292, W30x261, W30x235, W30x211, W30x191, W30x173, W30x148, W30x132, W30x124, W30x116, W30x108, W30x99, W30x90, W27x539, W27x368, W27x336, W27x307, W27x281, W27x258, W27x235, W27x217, W27x194, W27x178, W27x161, W27x146, W27x129, W27x114, W27x102, W27x94, W27x84, W24x370, W24x335, W24x306, W24x279, W24x250, W24x229, W24x207, W24x192, W24x176, W24x162, W24x146, W24x131, W24x117, W24x104, W24x103, W24x94, W24x84, W24x76, W24x68, W24x62, W24x55, W21x201, W21x182, W21x166, W21x147, W21x132, W21x122, W21x111, W21x101, W21x93, W21x83, W21x73, W21x68, W21x62, W21x55, W21x48, W21x57, W21x44, W18.311, W18x283, W18x258, W18.234, W18x211, W18x192, W18x175, W18x158, W18x143, W18x130, W18x119, W18x106, W18x97, W18x89, W18x76, W18x71, W18x65, W18x50, W18x55, W18x50,W18x46, W18x40, W18x35, W16x100, W16x89, W16x77, W16x67, W16x57, W16x50, W16x45, W16x40, W16x36, W16x31, W16x26, W14x730, W14x665, W14x605, W14x550, W14x500, W14x455, W14x426, W14x398, W14x370, W14x342, W14x311, W14x283, W14x257, W14x233, W13x211, W14x193, W14x176, W14x159, W14x145, W14x132, W14x120, W14x109, W14x99, W14x90, W14x82, W14x74, W14x68, W14x61, W14x53, S14x48, W14x43, W14x38, W14x34, W14x30, W14x26, W14x22, W12x336, W12x305, W12x279, W12x252, W12x230, W12x210, W12x190, W12x170, W12x152, W12x136, W12x120, W12x106, W12x96, W12x87, W12x79, W12x72, W12x65, W12x58, W12x53, W12x50, W12x45, W12x40, W12x35, W12x30, W12x26, W12x22, W12x19, W12x16, W12x14, W10x112, W10x100, W10x88, W10x77, W10x68, W10x60, W10x54, W10x49, W10x45, W10x39, W10x33, W10x26, W10x22, W10x19, W10x17, W10x15, W10x12, W8x67, W8x58, W8x48, W8x40, W8x35, W8.31, W8x28, W8x24, W8x21, W8x18, W8x15, W8x13, W8x10, W6x25, W6x20, W6x15, W6x16, W6x12, W6x9, W6x8.5, W5x19, W5x16, and W4x13 AISC-W-shape Frame

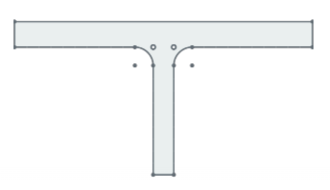

WT-Shapes

Sizes include: WT22x167.5, WT22x145, WT22.131, WT22x115, WT20x296.5, WT20x251.5, WT20x215.5, WT20x198.5, WT20x186, WT20x181, WT20x162, WT20x162, WT20x138.5, WT20x124.5, WT20x107.5, WT20x99.5, WT20x196, WT20x65.5, WT20x163.5, W20x147, WT20x139, WT20x132, WT20x117.5, WT20x105.5, WT20x91.5, WT20x83.5, WT20x74.5, WT18x326, WT18x264.5, WT18x243.5, WT18x220.5, WT18x197.5, WT18x180.5, WT18x165, WT18x151, WT18x141, WT18x131, WT18x123.5, WT18x115.5, WT18x128, WT18x116, WT18x105, WT18x97, WT18x91, WT18x85, WT18x80, WT18x75, WT18x67.5, WT16.5x193.5, WT16.5x177, WT16.5x159, WT16.5x145.5, WT16.5x131.5, WT16.5x120.5, WT16.5x110.5, WT16.5x100.5, Wt16.5x84.5, WT16.5x76, WT16.5x70.5, WT16.5x65, WT16.5x59, WT15x195.5, WT15x178.5, WT15x163, WT15x146, WT15x130.5, WT15x117.5, WT15x105.5, WT15.95.5, WT15x86.5, WT15x74, WT15x66, WT15x62, WT15x58, WT15x54, WT15x49.5, WT15x45, WT13.5x269.5, WT13.5x184, WT13.5x168, WT13.5x153.5, WT13.5x140.5, WT13.5x129, WT13.5x117.5, WT13.5x108.5, Wt13.5x97, WT13.5x89, WT13.5x80.5, WT13.5x73, WT13.5x64.5, WT13.5x57, WT13.5x51, WT13.5x47, Wt13.5x42, WT12x185, Wt12x167.5, WT12x153, WT12x139.5, Wt12x125, WT12x114.5, WT12x103.5, WT12x96, WT12x88, WT12x81, WT12x73, WT12x65.5, WT12, 58.5, WT12x52, WT12x51.5, WT12x47, WT12x42, WT12x38, WT12x34, WT12x31, Wt12x27.5, WT10.5x100.5, WT10.5x91, WT10.5x83, WT10.5x73.5, WT10.5x66, WT10.5x61, WT10.5x55.5, WT10.5x50.5, WT10.5x46.5, WT10.5x41.5, WT10.5x34, WT10.5x31, WT10.5x27.5, WT10.5x24, WT10.5x28.5, WT10.5x25, WT10.5x22, WT9x155.5, WT9x141.5, WT9x129, WT9x117, WT9x105.5, WT9x96, WT9x87.5, WT9x79, WT9x71.5, WT9x65, WT9x59.5, WT9x53, WT9x48.5, WT9x43, WT9.38, WT9x35.5, WT9x32.5, WT9x30, WT9x27.5, WT9x25, WT9x23, WT9x20, WT9x17.5, WT8x50, TW8x44.5, WT8x38.5, WT8x33.5, WT828.5, WT8x25, WT8x22.5, WT8x20, WT8x18, WT8x15.5, WT8x13, WT7x365, WT7x332.5, WT7x302.5, WT7x275, WT7x250, WT7x227.5, WT7x213, WT7x199, WT7x185, WT7x171, WT7x155.5, WT7x141.5, WT7x128.5, WT7x116.5, WT7x105.5, WT7x96.5, WT7x88, WT7x79.5, WT7x72.5, WT7x66, WT7x60, WT7x54.5, WT7x49.5, WT7x45, WT7x41, WT7x34, WT7x30.5, WT7x26.5, WT7x24, WT7x21.5, WT7x19, WT7x17, WT7x15, WT7x13, WT7x11, Tw6x168, WT6x152.5, WT6x139.5 WT6x126, WT6x115, WT6x105, WT6x95, WT6x85, WT6x76, WT6x68, WT6x60, WT6x53, WT6x48, WT6x43.5, WT6x39.5, WT6x32.5, WT6x29, WT6x26.5, WT6x25, WT6x22.5, WT6x20, WT6x17.5, WT6x15, WT6x13, WT6x11, WT6x9.5, WT6x8, TW6x7, WT5x56, WT5x50, WT5x38.5, WT5x34, WT5x30, WT5x27, WT5x24.5, WT5x22.5, WT5x19.5, WT5x16.5, WT5x15, WT5x13, WT5x11, WT5x9.5, WT5x8.5, WT5x7.5, WT5x6, WT4x33.5, WT4x29, WT4x24, WT4x20, WT4x17.5, WT4x15.5, WT4x14, WT4x12, WT4x10.5, WT4x9, WT4x7.5, WT4x6.5, WT4x5, WT3x12.5, WT3x10, WT3x7.5, WT3x8, WT3x6, WT3x4.5, WT3x4.25, WT2.5x9.5, WT2.5x8, and WT2x6.5

 AISC-WT-shape Frame

ANSI フレーム輪郭

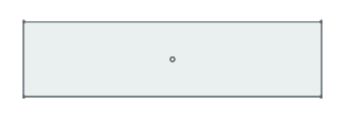

長方形バー

サイズには以下が含まれます: 0.25" x 0.0625"、0.5" x 0.0625"、0.625" x 0.0625"、0.75" x 0.0625"、0.875" x 0.0625"、1" x 0.0625"、1.25" x 0.0625"、1.5" x 0.0625"、1.75" x 0.0625"、2" x 0.0625"、2.25" x 0.0625"、2.5" x 0.0625"、2.75" x 0.0625"、3" x 0.0625"、0.375" x 0.09375"、0.5" x 0.09375"、0.75" x 0.09375"、1" x 0.09375"、2" x 0.09375"、3" x 0.09375"、0.125" x 0.125"、0.5" x 0.125"、1" x 0.125"、1.25" x 0.125"、1.5" x 0.125"、2" x 0.125"、2.5" x 0.125"、3" x 0.125"、4" x 0.125"、6" x 0.125"、0.5" x 0.1875"、0.75" x 0.1875"、1" x 0.1875"、1.25" x 0.1875"、1.5" x 0.1875"、2" x 0.1875"、2.5" x 0.1875、3" x 0.1875"、4" x 0.1875"、0.25" x 0.25"、0.375" x 0.25"、0.5" x 0.25"、0.625" x 0.25"、0.75" x 0.25"、0.875" x 0.25"、1" x 0.25"、1.25" x 0.25"、1.5" x 0.25"、1.75" x 0.25"、2" x 0.25"、2.25" x 0.25"、2.5" x 0.25"、2.75" x 0.25"、3" x 0.25"、3.5" x 0.25"、4" x 0.25"、5" x 0.25"、6" x 0.25"、8" x 0.25"、10" x 0.25"、12" x 0.25"、0.3125" x 0.3125"、0.75" x 0.3125"、1" x 0.3125"、1.5" x 0.3125"、2" x 0.3125"、3" x 0.3125"、0.375" x 0.375"、0.5" x 0.375"、0.75" x 0.375"、1" x 0.375"、1.25" x 0.375"、1.5" x 0.375"、1.75" x 0.375"、2" x 0.375"、2.5" x 0.375"、3" 0.375"、3.5" x 0.375"、4" x 0.375"、5" x 0.375"、6" x 0.375"、8" x 0.375"、10" x 0.375"、12" x 0.375"、0.4375" x 0.4375"、0.5" x 0.5"、0.75" x 0.5"、1" x 0.5"、1" x 0.5"、1.25" x 0.5"、1.5" x 0.5"、1.75" x 0.5"、2" x 0.5"、2.5" x 0.5"、3" x 0.5"、3.5" x 0.5"、4" x 0.5"、5" x 0.5"、6" x 0.5"、8" x 0.5"、10" x 0.5"、12" x 0.5"、0.5625" x 0.5625"、0.625" x 0.625"、0.75" x 0.625"、1" x 0.625"、1.5" x 0.625"、2" x 0.625"、2.5" x 0.625"、3" x 0.625"、4" x 0.625"、5" x 0.625"、6" x 0.625"、8" x 0.625"、10" x 0.625"、12" x 0.625"、0.6875" x 0.6875、0.75" x 0.75"、1" x 0.75"、1.25" x 0.75"、1.5" x 0.75"、1.75" x 0.75"、2" x 0.75"、2.5" x 0.75"、3" x 0.75"、3.5" x 0.75"、4" x 0.75"、5" x 0.75"、6" 0.75"、8" x 0.75"、10" x 0.75"、12" x 0.75"、0.8125" x 0.8125"、0.875" x 0.875"、1" x 0.875"、1.5" x 0.875"、2" x 0.875"、1" x 1"、1.25" x 1"、1.5" x 1"、1.75" x 1"、2" x 1"、2.5" x 1"、3" x 1"、3.5" x 1"、4" x 1"、5" x 1"、6" x 1"、8" x 1"、10" x 1"、12" x 1"、1.125" x 1.125"、1.25" x 1.25"、1.5" x 1.25"、1.75" x 1.25"、2" x 1.75"、2.25" x 1.25"、2.5" x 1.25"、3" x 1.25"、3.5" x 1.25"、4" x 1.25"、5" x 1.25"、6" x 1.25"、1.375" x 1.375"、1.5" x 1.5"、1.75" x 1.75"、2" x 1.5"、2.25" x 1.5"、2.5" x 1.5"、2.75" x 1.5"、3" x 1.5"、3.5" x 1.5"、4" x 1.5"、5" x 1.5"、6" x 1.5"、1.625" x 1.625"、1.75" x 1.75"、2" x 2"、2.5" x 2"、3" x 2"、3.5" x 2"、4" x 2"、5" x 2"、6" x 2"、2.25" x 2.25"、2.5" x 2.5"、3" x 2.5"、4" x 2.5"、5" x 2.5"、2.75" x 2.75"、3" x 3"、3.5" x 3"、4" x 3"、4.5" x 3"、5" x 3"、6" x 3"、3.25" x 3.25"、3.5" x 3.5"、4" x 4"、5" x 4"、6" x 4"、5" x 5"、6" x 6"

 ANSI-Rectangular bar Frame

長方形チューブ

サイズには以下が含まれます: 0.375" x 0.375" x 0.035"、0.5" x 0.5" x 0.035"、0.5" x 1" x 0.035"、0.625" x 0.625" x 0.035"、0.75" x 0.75" x 0.035"、1" x 1" x 0.035"、0.5" x 0.5" x 0.049"、0.5" x 1" x 0.049"、0.625" x 0.625" x 0.049"、0.75" x 0.75" x 0.049"、1" x 1" x 0.049"、1" x 1.5" x 0.049"、0.25" x 0.25" x 0.0625"、0.375" x 0.375" x 0.0625"、0.5" x 0.5" x 0.0625"、0.5" x 1" x 0.0625"、0.75" x 0.75" x 0.0625"、1" x 1" x 0.0625"、1" x 1.5" x 0.0625"、1" x 2" x 0.0625"、1.25" x 1.25" x 0.0625"、1.5" x 1.5" . 0.0625"、1.75" x 1.75" x 0.0625"、2" x 2" x 0.0625"、0.5" 0.5" 0.065"、0.5" x 1" x 0.065"、0.5" 1.5" x 0.065"、0.75" x 0.75" x 0.065"、1" x 1" x 0.065"、1" x 1.75" x 0.065"、1" x 1.5" x 0.065"、1" x 2" x 0.065"、1" x 3" x 0.065"、1.25" x 1.25" x 0.065"、1.5" x 1.5" x 0.065"、2" x 2" x 0.065"、0.75" x 0.75" x 0.083"、0.75" x 1.5" x 0.083"、1" x 1" x 0.083"、1" x 3" x 0.083"、1" x 2" x 0.083"、1.25" x 1.25" x 0.083"、1.5" x 1.5" x 0.083"、2" x 2" x 0.083"、2" x 4" x 0.083"、2.5" x 2.5" x 0.083"、0.75" x 0.85" x 0.12"、1" x 1" x 0.12"、1" x 2" x 0.12"、1" x 1.5" x 0.12"、1.25" x 1.25" x 0.12"、1.5" x 1.5" x 0.12"、1.5" x 2.5" x 0.12"、2" x 2" x 0.12"、0.75" x 0.75" x 0.125"、0.75" x 1.5" x 0.125"、1" x 1" x 0.125"、1" x 1.5" x 0.125"、1" x 2" x 0.125"、1" x 3" x 0.125"、1" x 4" x 0.125"、1" x 6" x 0.125"、1.25" x 1.25" x 0.125"、1.25" x 2.5" x 0.125"、1.5" x 1.5" x 0.125"、1.5" x 2" x 0.125"、1.5" x 2.5" x 0.125"、1.5" x 3" x 0.125"、1.75" x 1.75" x 0.125"、1.75" x 3" x 0.125"、1.75" x 3.5" x 0.125"、1.75" x 4" x 0.125"、2" x 2" x 0.125"、2" x 3" x 0.125"、2" x 4" x 0.125"、2' x 5" x 0.125"、2" x 6" x 0.125"、2" x 8" x 0.125"、2.5" x 2.5" x 0.125"、3" x 3" x 0.125"、3' x 4" x 0.125"、3.5" x 3.5" x 0.125"、4" x 4" x 0.125"、5" x 5" x 0.125"、6" x 6" x 0.125"、1" x 1" x 0.1875"、1.5" x 3" x 0.1875"、2" x 2" x 0.1875"、2" x 4" x 0.1875"、2" x 6" x 0.1875"、3" x 3" x 0.1875"、3" x 4" x 0.1875"、3" x 6" x 0.1875"、4" x 4" x 0.1875"、4" x 6" x 0.1875"、4" x 5" x 0.1875"、4.5" x 4.5" x 0.1875"、5" x 5" x 0.1875"、6" x 6" x 0.1875"、8" x 8" x 0.1875"、1.25" x 1.25" x 0.188"、1.5" x 1.5" x 0.188"、1.5" x 3" x 0.188"、2" x 2" x 0.188"、3" x 3" x 0.188"、4" x 4" x 0.188"、1.5" x 3" x 0.25"、2" x 2" x 0.25"、2" x 3" x 0.25"、2" x 4" x 0.25"、2" x 6" x 0.25"、2" x 8" x 0.25"、2.5" x 2.5" x 0.25"、3" x 3" x 0.25"、3" x 4" x 0.25"、4" x 4" x 0.25"、4" x 6" x 0.25"、4" x 8" x 0.25"、5" x 5" x 0.25"、6" x 6" x 0.25"、4" x 4" x 0.375"、5" x 8" x 0.375"、6" x 6" x 0.375"、4" x 4" x 0.5"、4" x 6" x 0.5"、4" x 8" x 0.5"、6" x 6" x 0.5"、8" x 8" x 0.5"

 ANSI-Rectangular tube Frame

円形バー

サイズには以下が含まれます: 1/32" (0.03125)、1/16" (0.0625)、3/32" (0.09375)、1/8" (0.125)、5/32" (0.15625)、3/16" (0.1875)、7/32" (0.21875)、1/4" (0.25)、9/32" (0.28125)、5/16" (0.3125)、11/32" (0.34375)、3/8" (0.375)、13/32" (0.40625)、7/16" (0.4375)、15/32" (0.46875)、1/2" (0.5)、17/32" (0.53125)、9/16" (0.5625)、19/32" (0.59375)、5/8" (0.625)、21/32" (0.65625)、11/16" (0.6875)、23/32" (0.71875)、3/4" (0.75)、25/32" (0.78125)、13/16" (0.8125)、27/32" (0.84375)、7/8" (0.875)、29/32" (0.90625)、15/16" (0.9375)、31/32" (0.96875)、1"、1 1/16" (1.0625)、1 1/8" (1.125)、1 3/16" (1.1875)、1 1/4" (1.25)、1 5/16" (1.3125)、1 3/8" (1.375)、1 7/16" (1.4375)、1 1/2" (1.5)、1 9/16" (1.5625)、1 5/8" (1.625)、1 11/16" (1.6875)、1 3/4" (1.75)、1 13/16" (1.8125)、1 7/8" (1.875)、1 15/16" (1.9375)、2"、2 1/8" (2.125)、2 1/4" (2.25)、2 3/8" (2.375)、2 1/2" (2.5)、2 5/8" 92.625)、2 3/4" (2.75)、2 7/8" (2.875)、3"、3 1/4" (3.25)、3 1/2" (3.5)、3 3/4" (3.75)、4"、4 1/2" (4.5)、5"、5 1/2" (5.5)、6"

 ANSI-Round bar Frame

円形チューブ

サイズにはいかが含まれます: 0.125" x 0.028"、0.1875" x 0.028"、0.25" x 0.028"、0.3125" x 0.028"、0.375" x 0.028"、0.375" x 0.028"、0.4375" x 0.028"、0.5" x 0.028"、0.5625" x .028"、0.625" x 0.028"、0.75" x 0.028"、1" x 0.028"、0.125" x 0.035"、0.188" x 0.035"、0.25" x 0.035"、0.313" x 0.035"、0.375" x 0.035"、0.5" x 0.035"、0.625" x 0.035"、0.75" x 0.035"、0.875" x 0.035"、1" x 0.035"、1.125" x 0.035"、1.25" x 0.035"、1.375" x 0.035"、1.5" x 0.035"、0.25" x 0.049"、0.313" x 0.049"、0.375" x 0.049"、0.438" x 0.049"、0.5" x 0.049"、0.625" x 0.049"、0.75" x 0.049"、1" x 0.049"、1.125" x 0.049"、1.25" x 0.049"、1.375" x 0.049"、1.5" x 0.049"、2" x 0.049"、0.374" x 0.058"、0.4375" x 0.058"、0.5" x 0.058"、0.625" x 0.058"、0.75" x 0.058"、0.875" x 0.058"、1" x 0.058"、1.125" x 0.058"、1.125" x 0.058"、1.25" x 0.058"、1.375" x 0.058"、1.5" x 0.058"、1.75" x 0.058"、0.25" x 0.065"、0.313" x 0.065"、0.375" x 0.065"、0.438" x 0.065"、0.5" x 0.065"、0.563" x 0.065"、"0.625" x 0.065"、0.75" x 0.065"、0.875" x 0.065"、1" x 0.065"、1.125" x 0.065"、1.25" x 0.065"、1.375" x 0.065"、1.5" x 0.065"、1.625" x 0.065"、1.75" x 0.065"、2" x 0.065"、2.5" x 0.065"、3" x 0.065"、4" x 0.065"、0.375" x 0.083"、0.438" x 0.083"、0.5" x 0.083"、0.563" x 0.083"、0.625" x 0.083"、0.75" x 0.083"、0.875" x 0.083"、1" x 0.083"、1.125" x 0.083"、1.25" x 0.083"、1.375" x 0.083"、1.5" x 0.083"、1.625" x 0.083"、1.75" x 0.083"、2" x 0.083"、0.3125" x 0.095"、0.4375" x 0.095"、0.5" x 0.095"、0.75" x 0.095"、1" x 0.095"、1.125" x 0.095"、1.25" x 0.095"、1.375" x 0.095"、1.5" x 0.095"、1.625" x 0.095"、1.75" x 0.095"、2" x 0.095"、2.5" x 0.095"、0.375" x 0.12"、0.438: x 0.12"、0.5" x 0.12"、0.563" x 0.12"、0.625" x "0.12"、0.75" x 0.12"、0.875" x 0.12"、1" x 0.12"、1.125" x 0.12"、1.25" x 0.12"、1.375" x 0.12"、1.5" x 0.12"、1.75" x 0.12"、2" x 0.12"、2.25" x 0.12"、2.5" x 0.12"、3" x 0.12"、3.5" x 0.12"、4" x 0.12"、4.5" x 0.12"、0.75" x 0.125"、1" x 0.125"、1.25" x 0.125"、1.5" x 0.125"、1.75" x 0.125"、2" x 0.125"、3" x 0.125"、4" x 0.125"、1.625" x 0.134"、0.625" x 0.156"、0.625" x 0.188"、0.75" x 0.188"、1" x 0.188"、1.125" x 0.188"、1.25" x 0.188"、1.5" x 0.188"、1.75" x 0.188"、2" x 0.188"、2.5" x 0.188"、3" x 0.188"、3.125" x 0.188"、4" x 0.188"、5" x 0.188"、1" x 0.25"、1.125" x 0.25"、1.25" x 0.25"、1.375" x 0.25"、1.5" x 0.25"、1.625" x 0.25"、1.75" x 0.25"、2" x 0.25"、2.25" x 0.25"、2.5" x 0.25"、2.75" x 0.25"、3" x 0.25"、3.5" x 0.25"、3.75" x 0.25"、4" x 0.25"、4.5" x 0.25"、5" x 0.25"、5.5" x 0.25"、6" x 0.25"、1.25" x 0.375"、1.5" x 0.375"、1.75" x 0.375"、2" x 0.375"、2.25" x 0.375"、2.5" x 0.375"、2.75" x 0.375"、3" x 0.375"、3.25" x 0.375"、3.5" x 0.375"、4" x 0.375"、4.5" x 0.375"、5" x 0.375"、6" x 0.375"、1.5" x 0.5"、2" x 0.5"、2.25" x 0.5"、2.5" x 0.5"、2.75" x 0.5"、3" x 0.5"、3.25" x 0.5"、3.5" x 0.5"、3.75" x 0.5"、4" x 0.5"、4.5" x 0.5"、5" x 0.5"、5.5" x 0.5"、6" x 0.5"、3.25" x 0.625"、3.75" x 0.625"、4" x 0.625"、3" x 0.75"、3.25" x 0.75"、3.5" x 0.75"、3.75" x 0.75"、4" x 0.75"、4.25" x 0.75"、4.5" x 0.75"、4.75" x 0.75"、5" x 0.75"、6" x 0.75"、4" x 1"、4.5" x 1"、5" x 1"、5.5" x 1"、6" x 1"、6.5" x 1"、7" x 1"、8" x 1"、4.5" x 1.25"、5" x 1.25"、5.5" x 1.25"、6" x 2", 8" x 2"、10" x 2"、12" x 2"

 ANSI-Round tube Frame

AS フレーム輪郭

冷間成形された空洞のセクションとプロファイル

Channel section

 Sizes include: 75 x 40 x 4 CC, 100 x 50 x 4 CC, 125 x 65 x 4 CC, 150 x 75 x 5 CC, 180 x 75 x 5 CC, 200 x 75 x 6 CC, 230 x 75 x 6 CC, 250 x 90 x 6 CC, 300 x 90 x 6 CC, 300 x 90 x 8 CC AS-Channel section Frame
Circular hollow section Sizes include: 21.3 x 2 CHS, 21.3 x 2.6 CHS, 21.3 x 3.2 CHS, 26.9 x 2 CHS. 26.9 x 2.3 CHS, 26.9 x 2.6 CHS, 26.9 x 3.2 CHS, 33.7 x 2 CHS, 33.7 x 2.6 CHS, 33.7 x 3.2 CHS, 33.7 x 4.0 CHS, 42.4 x 2 CHS, 42.4 x 2.6 CHS, 42.4 x 3.2 CHS, 42.4 x 4.0 CHS, 48.3 x 2.3 CHS, 48.3 x 2.9 CHS, 48.3 x 3.2 CHS, 48.3 x 4.0 CHS, 48.3 x 5.4 CHS, 60.3 x 2.3 CHS, 60.3 x 2.9 CHS, 60.3 x 3.6 CHS, 60.3 x 4.5 CHS, 60.3 x 5.4 CHS, 76.1 x 2.3 CHS, 76.1 x 2.6 CHS, 76.1 x 3.2 CHS, 76.1 x 3.6 CHS, 76.1 x 4.5 CHS, 76.1 x 5.9 CHS, 88.9 x 2.6 CHS, 88.9 x 3.2 CHS, 88.9 x 4.0 CHS, 88.9 x 5.0 CHS, 88.9 x 5.9 CHS, 101.6 x 2.6 CHS, 101.6 x 3.2 CHS, 101.6 x 4.0 CHS, 101.6 x 5.0 CHS, 114.3 x 3.2 CHS, 114.3 x 3.6 CHS, 114.3 x 4.5 CHS, 114.3 x 5.4 CHS, 139.7 x 3 CHS, 139.7 x 3.5 CHS, 139.7 x 5.4 CHS, 139.7 x 5.0 CHS, 165.1 x 3.5 CHS, 165.1 x 5.0 CHS, 165.1 x 5.4 CHS, 168.3 x 4.8 CHS, 168.3 x 6.4 CHS, 168.3 x 7.1 CHS, 219.1 x 4.8 CHS, 219.1 x 6.4 CHS, 219.1 x 8.2 CHS, 273.1 x 12.7 CHS, 273.1 x 4.8 CHS, 273.1 x 6.4 CHS, 273.1 x 9.3 CHS, 323.9 x 12.9 CHS, 323.9 x 6.4 CHS, 323.9 x 9.5 CHS, 355.6 x 12.7 CHS, 355.6 x 6.4 CHS, 355.6 x 9.5 CHS, 406.4 x 12.7 CHS, 406.4 x 6.4 CHS, 406.4 x 9.5 CHS, 457 x 12.7 CHS, 457 x 6.4 CHS, 457 x 9.5 CHS AS-Circular hollow section Frame
Equal angle section Sizes include: 30 x 30 x 2.5 CA, 40 x 40 x 2.5 CA, 40 x 40 x 4 CA, 45 x 45 x 2.5 CA, 45 x 45 x 4 CA, 50 x 50 x 2.5 CA, 50 x 50 x 4 CA, 50 x 50 x 5 CA, 50 x 50 x 6 CA, 65 x 65 x 4 CA, 65 x 65 x 5 CA, 65 x 65 x 6 CA, 75 x 75 x 4 CA, 75 x 75 x 5 CA, 75 x 75 x 6 CA, 75 x 75 x 8 CA, 90 x 90 x 5 CA, 90 x 90 x 8 CA, 100 x 100 x 6 CA, 100 x 100 x 8 CA, 125 x 125 x 4 CA, 125 x 125 x 5 CA, 125 x 125 x 8 CA, 150 x 150 x 5 CA, 150 x 150 x 8 CA AS-Equal angle section Frame
Flat section Sizes include: 50 x 4 CA, 50 x 5 CA, 65 x 4 CA, 65 x 5 CA, 75 x 4 CA, 75 x 5 CA, 90 x 6 CA, 100 x 4 CA, 100 x 5 CA, 100 x 6 CA, 100 x 8 CA, 130 x 5 CA, 150 x 5 CA, 150 x 6 CA, 150 x 8 CA, 200 x 5 CA, 200 x 6 CA, 200 x 8 CA, 250 x 5 CA, 250 x 8 CA, 300 x 5 CA, 300 x 8 CA AS-Flat section Frame
Rail hollow section Size: 120 x 458 x 2 AS-Rail hollow section Frame
Rectangular hollow section Sizes include: 50 x 20 x 1.6 RHS, 50 x 20 x 2 RHS, 50 x 20 x 2.5 RHS, 50 x 20 x 3 RHS, 50 x 25 x 1.6 RHS, 50 x 25 x 2 RHS, 50 x 25 x 2.5 RHS, 50 x 25 x 3 RHS, 75 x 25 x 1.6 RHS, 75 x 25 x 2.5 RHS, 65 x 35 x 2 RHS, 65 x 35 x 2.5 RHS, 65 x 35 x 3 RHS, 65 x 35 x 4 RHS, 75 x 50 x 1.6 RHS, 75 x 50 x 2 RHS, 75 x 50 x 2.5 RHS, 75 x 50 x 3 RHS, 75 x 50 x 4 RHS, 75 x 50 x 5 RHS, 75 x 50 x 6 RHS, 100 x 50 x 1.6 RHS, 100 x 50 x 2.5 RHS, 100 x 50 x 3 RHS, 100 x 50 x 3.5 RHS, 100 x 50 x 4 RHS, 100 x 50 x 5 RHS, 100 x 50 x 6 RHS, 150 x 50 x 2 RHS, 150 x 50 x 2.5 RHS, 150 x 50 x 3 RHS, 150 x 50 x 4 RHS, 150 x 50 x 5 RHS, 150 x 50 x 6 RHS, 125 x 75 x 2 RHS, 125 x 75 x 2.5 RHS, 125 x 75 x 3 RHS, 125 x 75 x 4 RHS, 125 x 75 x 5 RHS, 125 x 75 x 6 RHS, 150 x 100 x 4 RHS, 150 x 100 x 5 RHS, 150 x 100 x 6 RHS, 150 x 100 x 9 RHS, 200 x 100 x 4 RHS, 200 x 100 x 5 RHS, 200 x 100 x 6 RHS, 200 x 100 x 9 RHS, 250 x 150 x 5 RHS, 250 x 150 x 6 RHS, 250 x 150 x 9 RHS, AS-Rectangular hollow section Frame
Square hollow section Sizes include: 13 x 13 x 1.8 SHS, 15 x 15 x 1.8 SHS, 20 x 20 x 1.6 SHS, 25 x 25 x 1.6 SHS, 25 x 25 x 2 SHS, 25 x 25 x 2.5 SHS, 25 x 25 x 3 SHS, 30 x 30 x 1.6 SHS, 30 x 30 x 2 SHS, 35 x 35 x 1.6 SHS, 35 x 35 x 2 SHS, 35 x 35 x 2.5 SHS, 35 x 35 x 3 SHS, 40 x 40 x 1.6 SHS, 40 x 40 x 2 SHS, 40 x 40 x 2.5 SHS, 40 x 40 x 3 SHS, 40 x 40 x 4 SHS, 50 x 50 x 1.6 SHS, 50 x 50 x 2 SHS, 50 x 50 x 2.5 SHS, 50 x 50 x 3 SHS, 50 x 50 x 4 SHS, 50 x 50 x 5 SHS, 65 x 65 x 1.6 SHS, 65 x 65 x 2 SHS, 65 x 65 x 2.5 SHS, 65 x 65 x 3 SHS, 65 x 65 x 4 SHS, 65 x 65 x 5 SHS, 65 x 65 x 6 SHS, 75 x 75 x 2 SHS, 75 x 75 x 2.5 SHS, 75 x 75 x 3 SHS, 75 x 75 x 3.5 SHS, 75 x 75 x 4 SHS, 75 x 75 x 5 SHS, 75 x 75 x 6 SHS, 89 x 89 x 3.5 SHS, 89 x 89 x 5 SHS, 89 x 89 x 6 SHS, 90 x 90 x 2 SHS, 90 x 90 x 2.5 SHS, 100 x 100 x 2 SHS, 100 x 100 x 2.5 SHS, 100 x 100 x 3 SHS, 100 x 100 x 4 SHS, 100 x 100 x 5 SHS, 100 x 100 x 6 SHS, 100 x 100 x 9 SHS, 125 x 125 x 4 SHS, 125 x 125 x 5 SHS, 125 x 125 x 6 SHS, 125 x 125 x 9 SHS, 150 x 150 x 5 SHS, 150 x 150 x 6 SHS, 150 x 150 x 9 SHS, 200 x 200 x 5 SHS, 200 x 200 x 6 SHS, 200 x 200 x 9 SHS, 250 x 250 x 6 SHS, 250 x 250 x 9 SHS AS-Square hollow section Frame
Unequal angle section Sizes include: 75 x 50 x 4 CA, 75 x 50 x 5 CA, 75 x 50 x 6 CA, 100 x 75 x 6 CA, 100 x 75 x 8 CA, 125 x 75 x 6 CA, 125 x 75 x 8 CA, 150 x 100 x 6 CA, 150 x 100 x 8 CA AS-Unequal angle section Frame

熱間圧延および構造用鋼

Equal angles

 Sizes include: 25 x 25 x 3 EA, 25 x 25 x 4.6 EA, 25 x 25 x 6 EA, 30 x 30 x 3 EA, 30 x 30 x 4.6 EA, 30 x 30 x 4.6 EA, 30 x 30 x 6 EA, 40 x 40 x 3 EA, 40 x 40 x 4.6 EA, 40 x 40 x 6 EA, 45 x 45 x 3 EA, 45 x 45 x 4.6 EA, 45 x 45 x 6 EA, 50 x 50 x 3 EA, 50 x 50 x 4.6 EA, 50 x 50 x 6 EA, 50 x 50 x 7.8 EA, 55 x 55 x 4.6 EA, 55 x 55 x 6 EA, 65 x 65 x 4.6 EA, 65 x 65 x 6 EA, 65 x 65 x 7.8 EA, 65 x 65 x 9.5 EA, 75 x 75 x 4.6 EA, 75 x 75 x 6 EA, 75 x 75 x 7.8 EA, 75 x 75 x 9.5 EA, 90 x 90 x 6 EA, 90 x 90 x 7.8 EA, 90 x 90 x 9.5 EA, 100 x 100 x 6 EA, 100 x 100 x 7.8 EA, 100 x 100 x 9.5 EA, 100 x 100 x 12 EA, 125 x 125 x 7.8 EA, 125 x 125 x 9.5 EA, 125 x 125 x 12 EA, 125 x 125 x 15.8 EA, 150 x 150 x 9.5 EA, 150 x 150 x 12 EA, 150 x 150 x 15.8 EA, 150 x 150 x 19 EA, 200 x 200 x 13 EA, 200 x 200 x 16 EA, 200 x 200 x 18 EA, 200 x 200 x 20 EA, 200 x 200 x 26 EA AS-Equal angles Frame
Parallel flange channel Sizes include: 75 PFC, 100 PFC, 125 PFC, 150 PFC, 180 PFC, 200 PFC, 230 PFC, 250 PFC, 300 PFC, 380 PFC AS-Parallel flange channel Frame
Tapered flange beam Sizes include: 100 TFB, 125 TFB AS-Tapered flange beam Frame
Unequal angles Sizes include: 65 x 50 x 4.6 UA, 65 x 50 x 6 UA, 65 x 50 x 7.8 UA, 75 x 50 x 4.6 UA, 75 x 50 x 6 UA, 75 x 50 x 7.8 UA, 100 x 75 x 6 UA, 100 x 75 x 7.8 UA, 100 x 75 x 9.5 UA, 125 x 75 x 6 UA, 125 x 75 x 7.8 UA, 125 x 75 x 9.5 UA, 125 x 75 x 12 UA, 150 x 90 x 7.8 UA, 150 x 90 x 9.5 UA, 150 x 90 x 12 UA, 150 x 90 x 15.8 UA, 150 x 100 x 9.5 UA, 150 x 100 x 12 UA AS-Unqual angles Frame
Universal beam Sizes include: 150 UB 14, 150 UB 18, 180 UB 16.1, 180 UB 18.1, 180 UB 22.2, 200 UB 18.2, 200 UB 22.3, 200 UB 25.4, 200 UB 29.8, 250 UB 25.7, 250 UB 31.4, 250 UB 37.3, 310 UB 32, 310 UB 40.4, 310 UB 46.2, 360 UB 44.7, 360 UB 50.7, 360 UB 56.7, 410 UB 53.7, 410 UB 59.7, 460 UB 67.1, 460 UB 74.6, 460 UB 82.1, 530 UB 82, 530 UB 92.4, 610 UB 101, 610 UB 113, 610 UB 125 AS-Universal beam Frame
Universal bearing pile Sizes include: 200 UBP 122, 310 UBP 78.8, 310 UBP 110, 310 UBP 149 AS-Universal bearing pile Frame
Universal column Sizes include: 100 UC 14.8, 150 UC 23.4, 150 UC 30, 150 UC 37.2, 200 UC 46.2, 200 UC 52.2, 200 UC 59.5, 250 UC 72.9, 250 UC 89.5, 310 UC 96.8, 310 UC 118, 310 UC 137, 310 UC 158 AS-Universal column Frame
Welded beam Sizes include: 700 WB 115, 700 WB 130, 700 WB 150, 700 WB 173, 800 WB 122, 800 WB 146, 800 WB 168, 800 WB 192, 900 WB 175, 900 WB 218, 900 WB 257, 900 WB 282, 1000 WB 215, 1000 WB 258, 1000 WB 296, 1000 WB 322, 1200 WB 249, 1200 WB 278, 1200 WB 317, 1200 WB 342, 1200 WB 392, 1200 WB 423, 1200 WB 455, AS-Welded beam Frame
Welded column Sizes include: 350 WC 197, 350 WC 230, 350 WC 258, 350 WC 280, 400 WC 144, 400 WC 181, 400 WC 212, 400 WC 270, 400 WC 303, 400 WC 328, 400 WC 361, 500 WC 228, 500 WC 267, 500 WC 290, 500 WC 340, 500 WC 383, 500 WC 414, 500 WC 440 AS-Welded column Frame

ISO フレーム輪郭

長方形バー

Sizes include: 0.375in x 0.25in, 0.50in x 0.125in, 0.50in x 0.1875in, 0.50in x 0.25in, 0.50in x 0.375in, 0.625in x 0.125in, 0.625in x 0.1875in, 0.625in x 0.25in, 0.625in x 0.375in, 0.625in x 0.50in, 0.75in x 0.0625in, 0.75in x 0.125in, 0.75in x 0.1875in, 0.75in x 0.25in, 0.75in x 0.375in, 0.75in x 0.50in, 0.75in x 0.625in, 0.875in x 0.125in, 1in x 0.0625in, 1in x 0.125in, 1in x 0.1875in, 1in x 0.25in, 1in x 0.3125in, 1in x 0.375in, 1in x 0.5in, 1in x 0.625in, 1in x 0.75in, 1.25in x 0.125in, 1.25in x 0.1875in, 1.25in x 0.3125, 1.25in x 0.25in, 1.25in x 0.375in, 1.5in x 0.625in, 1.25in x 0.75in, 1.25in x 1in, 1.5in x 0.125in, 1.5in x 0.1875in, 1.50in x 0.25in, 1.5in x 0.3125in, 1.5in x 0.375in, 1.5in x 0.5in, 1.5in x 0.625in, 1.5in x 0.75in, 1.5in x 1in, 1.5in x 1.25in, 1.75in x 0.125in, 1.75in x 0.25in, 1.75in x 0.375in, 1.75in x 0.50in, 1.75in x 0.75in, 1.75in x 1in, 1.75in x 1.25in, 1.75in x 1.50in, 2in x 0.125in, 2in x 0.25in, 2in x 0.3125in, 2in x 0.375in, 2in x 0.50in, 2in x 0.625in, 2in x 0.75in, 2in x 1in, 2in x 1.25in, 2in x 1.50in, 2in x 1.75in, 2.25in x 0.25in, 2.25in x 0.50in, 2.25in x 1.25in, 2.50in x 0.1875in, 2.50in x 0.125, 2.50in x 0.25in, 2.50in x 0.375in, 2.50in x 0.50in, 2.5in x 0.625, 2.5in x 0.75in, 2.5in x 1in, 2.50in x 1.25in, 2.5in x 1.50in, 2.5in x 1.75in, 2.50in x 2in, 3in x 0.125, 3in x 0.25in, 3in x 00.375in, 3in x 0.50in, 3in x 0.625in, 3in x 1in, 3in x 1.25in, 3in x 1.50in, 3in x 1.75in, 3in x 2in, 3in x 2.50in, 3.50in x 0.25in, 3.50in x 0.625in, 3.5in x 0.50in, 3.50in x 0.75in, 3.50in x 1.25in, 3.50in x 1.50in, 4in x 0.125in, 4in x 0.1875in, 4in x 0.25in, 4in x 0.375in, 4in x 0.50in, 4in x 0.625in, 4in x 0.75in, 4in x 1in, 4in x 1.25in, 4in x 1.50in, 4in x 1.75in, 4in x 2in, 5in x 0.25in, 5in x 0.375in, 5in x 0.50in, 5in x 0.75in, 5in x 1in, 5in x 2in, 6in x 0.125in, 6in x 0.25in, 6in x 0.375in, 6in x 0.50in, 6in x 0.625in, 6in x 0.75in, 6in x 1in, 6in x 1.50in, 6in x 2in, 8in x 0.25in, 8in x 0.50in, 20mm x 10mm, 30mm x 10mm, 30mm x 12mm, 40mm x 5mm, 40mm x 10mm, 50mm x 8mm, 60mm x 10mm, 60mm x 30mm, 60mm x 40mm, 70mm x 20mm, 100mm x 5mm, 100mm x 6mm, 100mm x 8mm, 100mm x 20mm, 120mm x 10mm, 120mm x 20mm, 150mm x 8mm, 200mm x 6mm, 200mm x 8mm, and 200mm x 10mm

 ISO-Rectangular bar Frame

長方形チューブ

Sizes include: 20mm x 20mm x 2mm, 20mm x 20mm x 2.6mm, 30mm x 30mm x 2mm, 30mm x 30mm x 2.6mm, 30mm x 30mm x 3.2mm, 40mm x 40mm x 2.6mm, 40mm x 40mm x 3.2mm, 40mm x 40mm x 4mm, 50mm x 30mm x 2.6mm, 50mm x 30mm x 3.2mm, 50mm x 30mm x 4mm, 50mm x 50mm x 3.2mm, 50mm x 50mm x 4mm, 50mm x 50mm x 5mm, 60mm x 40mm x 3.2mm, 60mm x 40mm x 4mm, 60mm x 40mm x 5mm, 60mm x 60mm x 3.2mm, 60mm x 60mm x 4mm, 60mm x 60mm x 5mm, 70mm x 40mm x 3.2mm, 70mm x 40mm x 4mm, 70mm x 40mm x 5mm, 70mm x 70mm x 3.2mm, 70mm x 70mm x 3.6mm, 70mm x 70mm x 4mm, 70mm x 70mm x 5mm, 80mm x 40mm x 3.2mm, 80mm x 40mm x 4mm, 80mm x 40mm x 5mm, 80mm x 80mm x 3.2mm, 80mm x 80mm x 3.6mm, 80mm x 80mm x 4mm, 80mm x 80mm x 5mm, 80mm x 80mm x 6.3mm, 90mm x 50mm x 3.2mm, 90mm x 50mm x 3.6mm, 90mm x 50mm x 4mm, 90mm x 50mm x 5mm, 90mm x 90mm x 3.2mm, 90mm x 99mm x 3.6mm, 90mm x 90mm x 4mm, 90mm x 90mm x 5mm, 90mm x 90mm x 6.3mm, 90mm x 90mm x 8mm, 100mm x 50mm x 3.2mm, 100mm x 50mm x 3.6mm, 100mm x 50mm x 4mm, 100mm x 60mm x 3.2mm, 100mm x 60mm x 3.6mm, 100mm x 60mm x 4mm, 100mm x 60mm x 5mm, 100mm x 60mm x 6.3mm, 100mm x 100mm x 3.2mm, 100mm x 100mm x 4mm, 100mm x 100mm x 5mm, 100mm x 100mm x 6.3mm, 100mm x 100mm x 8mm, 100mm x 100mm x 10mm, 120mm x 60mm x 3.2mm, 120mm x 60mm x 3.6mm, 120mm x 60mm x 4mm, 120mm x 60mm x 5mm, 120mm x 60mm x 6.3mm, 120mm x 60mm x 8mm, 120mm x 80mm x 3.2mm, 120mm x 80mm x 4mm, 120mm x 80mm x 6.3mm, 120mm x 80mm x 8mm, 120mm x 80mm x 10mm, 120mm x 120mm x 3.2mm, 120mm x 120mm x 4mm, 120mm x 120mm x 5mm, 120mm x 120mm x 6.3mm, 120mm x 120mm x 8mm, 120mm x 120mm x 10mm, 140mm x 80mm x 3.2mm, 140mm x 80mm x 4mm, 140mm x 80mm x 5mm, 140mm x 80mm x 6.3mm, 140mm x 80mm x 6.3mm, 140mm x 80mm x 8mm, 140mm x 80mm x 10mm, 140mm x 140mm x 3.6mm, 140mm x 140mm x 5mm, 140mm x 140mm x 6.3mm, 140mm x 140mm x 8mm, 140mm x 140mm x 10mm, 150mm x 100mm x 3.2mm, 150mm x 100mm x 4mm, 150mm x 100mm x 6.3mm, 150mm x 100mm x 8mm, 150mm x 100mm x 10mm, 150mm x 150mm x 4mm, 150mm x 150mm x 5mm, 150mm x 150mm x 6.3mm, 150mm x 150mm x 8mm, 150mm x 150mm x 10mm, 160mm x 80mm x 3.2mm, 160mm x 80mm x 4mm, 160mm x 80mm x 5mm, 160mm x 80mm x 6.3mm, 160mm x 80mm x 8mm, 160mm x 80mm x 10mm, 160mm x 160mm x 4mm, 160mm x 160mm x 5mm, 160mm x 160mm x 6.3mm, 160mm x 160mm x 8mm, 160mm x 160mm x 10mm, 180mm x 100mm x 3.6mm, 180mm x 100mm x 5mm, 180mm x 100mm x 6.3mm, 180mm x 100mm x 8mm, 180mm x 100mm x 10mm, 180mm x 180mm x 4mm, 180mm x 180mm x 5mm, 180mm x 180mm x 6.3mm, 180mm x 180mm x 8mm, 180mm x 180mm x 10mm, 200mm x 100mm x 4mm, 200mm x 100mm x 5mm, 200mm x 100mm x 6.3mm, 200mm x 100mm x 8mm, 200mm x 100mm x 10mm, 200mm x 120mm x 4mm, 200mm x 120mm x 5mm, 200mm x 120mm x 6.3mm, 200mm x 120mm x 8mm, 200mm x 120mm x 10mm, 200mm x 200mm x 5mm, 200mm x 200mm x 6.3mm, 200mm x 200mm x 8mm, 200mm x 200mm x 10mm, 220mm x 140mm x 4mm, 220mm x 140mm x 5mm, 220mm x 140mm x 6.3mm, 220mm x 140mm x 8mm, 220mm x 140mm x 10mm, 220mm x 220mm x 5mm, 220mm x 220mm x 6.3mm, 220mm x 220mm x 8mm, 220mm x 220mm x 10mm, 250mm x 150mm x 5mm, 250mm x 150mm x 6.3mm, 250mm x 150mm x 8mm, 250mm x 150mm x 10mm, 250mm x 250mm x 5.9mm, 250mm x 250mm x 6.3mm, 250mm x 250mm x 8mm, 250mm x 250mm x 10mm, 260mm x 260mm x 5.9mm, 260mm x 260mm x 6.3mm, 260mm x 260mm x 8mm, 260mm x 260mm x 10mm, 300mm x 200mm x 5.9mm, 300mm x 200mm x 6.3mm, 300mm x 200mm x 8mm, 300mm x 200mm x 10mm, 300mm x 300mm x 7.1mm, 300mm x 300mm x 8mm, 300mm x 300mm x 10mm, 350mm x 350mm x 8mm, 400mm x 200mm x 7.1mm, 400mm x 200mm x 8mm, 400mm x 200mm x 10mm, 400mm x 400mm x 10mm, 450mm x 250mm x 8mm, 450mm x 250mm x 10mm, and 500mm x 300mm x 10mm

 ISO-Rectangular tube Frame
円形バー Sizes include: 0.25in DIA (6.35mm), 0.3125in DIA (7.937mm), 0.375in DIA (9.525mm), 0.4375in DIA (11.112mm), 0.50in DIA (12.7mm), 9/16in DIA (14.287mm), 0.625in DIA (15.875mm), 20mm DIA, 0.8125in DIA (20.637mm), 0.875in DIA (22.225mm), 1in DIA (25.4mm), 1.125in DIA (28.58mm), 1.25in DIA (31.75mm), 1.3125in DIA (33.337mm), 1.375in DIA (34.93mm), 35mm DIA, 1.50in DIA (38.1mm), 40mm DIA, 1.625in DIA (41.28mm), 1.75in DIA (44.45mm), 1.875in DIA (47.65mm), 2in DIA (50.8mm), 2.125in DIA (53.975mm), 2.375in DIA (60.33mm), 2.50in DIA (63.5mm), 2.625in DIA (66.67mm), 2.75in DIA (69.85mm), 3in DIA (76.2mm), 3.25in DIA (82.55mm), 3.50in DIA (88.9mm), 3.50in DIA (88.9mm), 3.75in DIA (95.25mm), 4in DIA (101.6mm), 4.25in DIA (107.95mm), 4.50in DIA (114.3mm), 4.75in DIA (120.65mm), 5.25in DIA (133.35mm), 5.50in DIA (139.7mm), 5.75in DIA (146.05mm), 6i nDIA (152.4mm), 6.50in DIA (165.1mm), 7in DIA (177.8mm), 7.25in DIA (184.15mm), 7.50in DIA (190.5mm), 8in DIA (203.2mm), 8.50in DIA (215.9mm), 9in DIA (228.6mm), 9.50in DIA (241.3mm), 10in DIA (254mm), 12in DIA (304.8,mm), 13in DIA (330.2mm), 14in DIA (355.6mm), 15in DIA (381mm), and 16in DIA (406.4mm) ISO-Round bar Frame
円形チューブ Sizes include: 0.375in OD x 16SWG, 0.50in D x 18SWG, 0.50in OD x 16SWG, 0.50in OD x 10SWG, 0.625in OD x 18SWG, 0.625in OD x 16SWG, 0.625in OD x 10SWG, 0.75in OD x 18SWG, 0.75in OD x 16SWG, 0.75in OD x 10SWG, 0.875in OD x 18SWG, 0.875in OD x 16SWG, 0.875in OD x 10SWG, 1in OD x 18SWG, 1in OD x 16SWG, 1in OD x 10SWG, 1in OD x 0.1875in, 1in OD x 0.25in, 1.125in OD x 16SWG, 1.125in OD x 10SWG, 1.25in OD x 18SWG, 1.25in OD x 16SWG, 1.25in OD x 0.1875in, 1.25in OD x 10SWG, 1.375in OD x 16SWG, 1.375in OD x 10SWG, 1.50in OD x 18SWG, 1.50in OD x 16SWG, 1.50in OD x 10SWG, 1.50in OD x 0.1875in, 1.50in OD x 0.25in, 1.625in OD x 16SWG, 1.625in OD x 10SWG, 1.625in OD x 0.1875in, 1.75in OD x 16SWG, 1.75in OD x 10SWG, 1.875in OD x 10SWG, 2in OD x 16SWG, 2in OD x 10SWG, 2in OD x 0.1875in, 2in OD x 0.25in, 2in OD x 1.5mm, 2in OD x 3.0mm, 2.25in OD x 16SWG, 2.25in OD x 10SWG, 2.50in OD x 0.1875, 2.50in OD x 0.25in, 2.50in OD x 0.375in, 3.5in OD x 0.25in, 2.75in OD x 10SWG, 3in OD x 16SWG, 3in OD x 10SWG, 3in OD x 0.1875in, 3in OD x 0.25in, 3in OD x 1.5mm, 3in OD x 3.0mm, 3.50in OD x 16SWG, 3.50in OD x 10SWG, 3.50in OD x 0.25in, 4in OD x 16SWG, 4in OD x 10SWG, 4in OD x 0.25in, 4in OD x 1.5mm, 4in OD x 3.0mm, 4.50 in OD x 10SWG, 4.5in OD x 0.25in, 5in OD x 10SWG, 5in OD x 0.25in, 6in OD x 10SWG, 6in OD x 0.25in, 6.50in OD x 0.25in, 100mm OD x 2mm, 150mm OD x 2mm, and 152mm OD x 2.5mm ISO-Round tube Frame
