Profili cornice
Il contenuto dei profili cornice di Onshape è creato da Onshape, archiviato in documenti all'interno di Onshape e mantenuto da Onshape. Non ci sono rischi che questo contenuto possa scomparire o possa non funzionare da una versione a un'altra. Abbiamo integrato processi per risparmiare tempo in questo flusso di lavoro e semplificare l'inserimento di profili cornice.
Il contenuto standard supportato include:
- Libreria dei profili cornici Onshape: ISO, ANSI, 8020, AS, AISC
- 8020: 10 Series, 15 Series, 20 Series, 25 Series, 30 Series, 40 Series e 45 Series
- AISC: C-shapes, HP-shapes, L-angle, M-shapes, MC-shapes, MT-shapes, tubo, rettangolare, circolare, S-shapes, quadrato, ST-shapes, W-shapes e WT-shapes
- ANSI: barra rettangolare, tubo rettangolare, barra circolare e tubo circolare
- AS: Sezioni cave e profili sagomati a freddo, Acciaio laminato a caldo e strutturale
- ISO: Barra rettangolare, Tubo rettangolare, Barra circolare e Tubo circolare
Libreria dei profili cornice Onshape
-
ISO - Rectangular bar, Rectangular tube, Round bar, Round tube
-
ANSI - Rectangular bar, Rectangular tube, Round bar, Round tube
-
8020 - 10 series, 15 series, 20 series, 25 series, 30 series, 40 series, 45 series
-
AS - Cold formed hollow sections, Hot rolled and structural steel
-
AISC - AISC
Profili cornice 8020
10 Series |

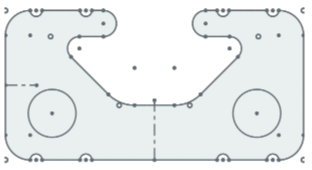

1001, 1001-S, 1002, 1002-S, 1003, 1003-S, 1004, 1004-S, 1010, 1010-S, 1012, 1012-S, 1020, 1020-S, 1030, 1030-S, 1050, 2012, 2020, 2020-S, 2040 e 2040-S |
15 Series |

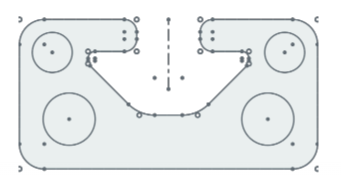

1501, 1501-LS, 1502, 1502-LS, 1503, 1503-LS, 1504, 1504-LS, 1515, 1515-Lite, 1515-LS, 1515-S, 1515-UL, 1515-ULS, 1517, 1517-LS, 1530, 1530-Lite, 1530-LS, 1530-S, 1530-UL, 1530-ULS, 1534-Lite, 1545, 1545-LS, 1545-S, 1547, 1575, 3030, 3030-Lite, 3030-LS, 3030-S, 3034-Lite, 3060 e 3075 |
20 Series |
20-2020, 20-2040 e 20-4040 |
25 Series |

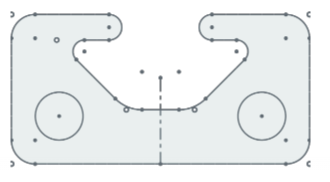

25-2501, 25-2502, 25-2503, 25-2504, 25-2514, 25-2525, 25-2527, 25-2550, 25-2576, 25-5010, 25-5013 e 25-5050 |
30 Series |
30-3001, 30-3002, 30-3003, 30-3004, 30-3022, 30-3030, 30-3060 e 30-6060 |
40 Series |
40-4001, 40-4002, 40-4003, 40-4004, 40-4012, 40-4020, 40-4030-Lite, 40-4040, 40-4040-Lite, 40-4040-UL, 40-4045-Lite, 40-4080, 40-4080-Lite, 40-4080-UL, 40-4082-Lite, 40-4083-Lite, 40-4084-Lite, 40-4085-Lite40-4093, 40-4094, 40-4096, 40-8016, 40-8020 e 40-8080 |
45 Series |
45-4545, 45-4545-Lite, 45-4590 e 45-9090 |
Profili cornice AISC
C-Shapes |
Le configurazioni includono: C15x50, C15x40, C15x33,9, C12x30, C12x25, C12x20,7, C10x30, C10x25, C10x20, C9x20, C9x15, C9x13,4, C8x18,75, C8x13,75, C8x11,5, C7x14,75, C7x12,25, C7x9,8, C6x13, C6x10,5, C6x8,2, C5x9, C5,6,7, C4x7,25, C4x6,25, C4x5,4, C4x4,5, C3x6, C3x5, C3x4,1 e C3x3,5 |
HP-Shapes |
Le configurazioni includono: HP18x204, HP18x181, HP18x157, HP18x135, HP16x183, HP16x162, HP16x141, HP16x121, JP16x101, HP16x88, HP14x117, JP14x102, HP14x89, HP14x73, HP12x84, HP12x63, JP12x53, HP10x57, HP10x42 e HP8x36 |
L-Angle |
Le configurazioni includono: L8x8x1,125, L8x8x1, L8x8x0,875, L8x8x0,75, L8x8x0,625, L8x8x0,5625, L8x8x0,5, L8x6x1, L8x6x0,875, L8x8x0,75, L8x6x0,625, L8x6x0,5625, L8x6x0,5, L8x6x0,4375, L8x4x1, L8x4x0,875, L8x4x0,75, L8x4x0,625, L8x4x0,5625, L8x4x0,5, L8x4x0,4375, L7x4x0,75, L7x4x0,625, L7x4x0,5, L7x4x0,4375, L7x4x0,375, L6x6x1, L6x6x0,875, L6x6x0,75, L6x6x0,625, L6x6x0,5625, L6x6x0,5, L6x6x0,4375, L6x6x0,375, L6x6x0,3125, L6x4x0,875, L6x64x0,75, L6x6x0,625, L6x4x0,5625, L6x4x0,5, L6x4x0,4375, L6x64x0,375, L6x4x0,3125, L6x3,5x0,5, L6x3,5x0,375, 6x3,5x0,3125, L5x5x0,875, L5x5x0,75, L5x5x0,625, L5x5x0,5, L5x5x0,4375, L5x5x0,375, L5x5x0,25, L5x3,5x0,75, Lx3,5x0,625, L5x3x0,5, L5,3x0,375, L5x3,5x0,3125, L5x3,5x0,25, L5x3x0,5, L5x3x0,4375, L5x3x0,375, L53x0,325, L5x3x0,25, L4x4x0,75, L4x4x0,625, L4x4x0,5, L4x4x0,4375, L4x4x0,375, L4x4x0,3125, L4x4x0,25, L4x3,5x0,5, L4x3,5x0,375, 4x3,5x0,3125, L4x3,5x0,25, L4x3x0,625, L4x3x0,5, L4x3x0,375, L4x3x0,3125, L4x4x0,25, L3,5x3,5x0,5, L3,5x3,5x0,4375, L3,5x3,5x0,375, L3,5x3,5x0,3125, L3,5x3,5x0,25, L3,5x3,0,5, L3,5x3x0,4375, L3,5x3x0,375, L3,5x3x0,3125, L3,5x3x0,25, L3,5x2,5x0,5, L3,5x2,5x0,375, L3,5x2,5x0,3125, L3,5x2,5x0,25, L3x3x0,5, L3x3x0,4375, L3x3x0,375, L3x3x0,3125, L3x3x0,25, L3x3x0,1875, L3x2,5x0,5, L3x2,5x0,4375, L3x2,5x0,375, L3x2,5x0,3125, L3x2,5x0,25, L3x2,5x0,1875, L3x2x0,5, L3x2x0,375, L3x2x0,3125, L3x2x0,25, L3x2x0,1875, L2,5x2,5x0,5, L2,5x2,5x0,375, L2,5x2,5x0,3125, L2,5x2,5x0,25, L2,5x2,5x0,1875, L2,5x2x0,375, L2,5x2x0,3125, L2,5x2x0,25, L2,5x2x0,1875, L2,5x1,5x0,25, L2,5x1,5x0,1875, L2x2x0,375, L2x2x0,3125, L2x2x0,25, L2x2x0,25, L2x2x0,1875 e L2x2x0,125 |
M-Shapes |
Le configurazioni includono: M12,5x12,4, M12,5x11,6, M12x11,8, M12x10,8, M12x10, M10x9, M10x8, M10x7,5, M8x6,5, M8x6,2, M6x4,4, M6x3,7, M5x18,9, M4x6, M4x4,08, M4x3,45, M4x3,2, and M3x2,9 |
MC-Shapes |
Le configurazioni includono: MX18x58, MC18x51,9, MC18x45,8, MC18x42,7, MC13x50, M13x40, MC13x35, MC13x31,8, MC12x50, MC12x45, MC12x40, MC12x35, MC12x31, MC12x14,3, MC12x10,6, MC10x41,1, MC10x33,6, MC10x28,5, MC10x25, MC10x22, MC10x8,4, MC10x6,5, MC9,25, MC9,23,9, MC8x22,8, MC8x21,4, MC8x20, MC8x18,7, MC8x8,5, MC7x22,7, MC7x19,1, MC6x18, MC6x15,3, MC6x16,3, MC6x15,1, MC6x12, MC6x7, MC6x6,5, MC4x13,8 e MC3x7,1 |

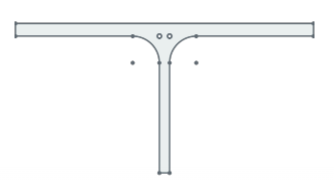

MT-Shapes |
Le configurazioni includono: MT6,25x6,2, MT6,25x5,8, MT6x5,9, MT6x5,4, MT6x5, MT5.x4,5, MT5x4, MT5x3,75, MT4x3,25, MT4x3,1, MT3x2,2, MT3x1,85, MT2,5x9,45 e MT2x3 |
Tubo |
Le configurazioni includono: 12 Std, 10 Std, 8 Std, 6 Std, 5 Std, 4 Std, 3 1/2 Std, 3 Std, 2 1/2 Std, 2 Std, 1 1/2 Std, 1 1/4 Std, 1 Std, 3/4 Std, 1/2 Std, 12 x-Strong, 10 x-Strong, 8 x-Strong, 6 x-Strong, 5 x-Strong, 4 x-Strong, 3 1/2 x-Strong, 3 x-Strong, 2 1/2 x-Strong, 2 x-Strong 1 1/2 x-Strong, 1 1/4 x-Strong, 1 x-Strong, 1 x-Strong, 3/4 x-Strong, 1/2 x-Strong, 8 xx-Strong, 6 xx-Strong, 5 xx-Strong, 4 xx-Strong, 3 xx-Strong, 2 1/2 xx-Strong e 2 xx-Strong |
Rettangolare | Le configurazioni includono: HSS20x12x0,625, HSS20x12x0,5, HSS20x12x0,375, HSS20x12x0,3125, HSS20x8x0,625, HSS20x8x0,5, HSS20x8x0,375, HSS20x4x0,5, HSS20x4,0x0,375, HSS20x4,0x0,3125, HSS20x4,0x0,25, HSS18x6x0,625, HSS18x6x0,5, HSS18x6x0,375, HSS18x6x0,3125, HSS18x6,0,25, HSS16x12x0,625, HSS16x12x0,5, HSS16x12x0,375, HSS16x12x0,3125, HSS16x8x0,625, HSS16x8x0,5, HSS16x8,0,375, HSS16x8x0,3125, HSS16x8x0,25, HSS16x4x0,625, HSS16x4x0,5, HSS16x4x0,5, HSS16xx4x0,375, HSS16x4x0,3125, HSS16x4x0,25, HSS16x4x0,1875, HSS14x10x0,625, HSS14x10x0,5, HSS14x10x0,375, HSS14x10x0,3125, HSS14x10x0,25, HSS14x6x0,625, HSS14x6x0,5, HSS14x6x0,5, HSS14x6x0,375, HSS14x6x0,3125, HSS14x6x0,25, HSS14x6x0,1875, HSS14x4x0,625, HSS14x4x0,5, HSS14x4x0,375, HSS14x4x0,3125, HSS14x4x0,25, HSS14x4x0,1875, HSS12x10x0,5, HSS12x10x0,375, HSS12x10x0,3125, HSS12x10x0,25, HSS12x8x0,625, HSS12x8x0,375, HSS12x8x0,3125, HSS12x8x0,25, HSS12x8x0,1875, HSS12x6x0,625, HSS12x6x0,5, HSS12x6x0,375, HSS12x6x0,3125, HSS12x6x0,23, HSS12x4x0,625, HSS12x4x0,5, HSS12x4x0,375, HSS12x4x0,3125, HSS12x4x0,25, HSS12x4x0,1875, HSS12x3,5x0,375, HSS12x3,5x0,3125, HSS12x3x0,3125, HSS12x3x0,1875, HSS12x2x0,3125, HSS12x2x0,25, HSS12x2x0,1875, HSS12x10x8x0,625, HSS10x8x0,5, HSS10x8x0,375, HSS10x8x0,3125, HSS10x8x0,25, HSS10x8x0,1875, HSS10x6x0,625, HSS10x6x0,5, HSS10x6x0,375, HSS10x6x0,3125, HSS10x6x0,25, HSS10x6x0,1875, HSS10x5x0,375, HSS10x5x0,3125, HSS10x5x0,25, HSS10x5x0,1875, HSS10x4x0,625, HSS10x4x0,5, HSS10x4x0,375, HSS10x4x0,3125, HSS10x4x0,25, HSS10x4x0,1875, HSS10x4x0,125, HSS10,3,5x0,5, HSS10x3,5x0,375, HSS10x3,5x0,3125, HSS10x3,5x0,25, HSS10x3,5x0,1875, HSS10x3,5x0,125, HSS10x3x0,375, HSS10x1x0,3125, HSS10x3x0,25, HSS10x3x0,1875, HSS10x2x0,375, HSS10x2x0,3125, HSS10x2x0,25, HSS10x2x0,1875, HSS10x2x0,125, HSS9x7x0,625, HSS9x7x0,5, HSS9x7x0,375, HSS9x7x0,3125, HSS9x7x0,25, HSS9x7x0,1875, HSS9x5x0,625, HSS9x5x0,5, HSS9x5x0,375, HSS9x5x0,3125, HSS9x5x0,25, HSS9x5x0,1875, HSS9x3x0,5, HSS9x3x0,375, HSS9x3x0,3125, HSS9x3x0,1875, HSS8x6x0,625, HSS8x6x0,5, HSS8x6x0,375, HSS8x6x0,3125, HSS8x6x0,25, HSS8x6x0,1875, HSS8x4x0,625, HSS8x4x0,5, HSS8x4x0,375, HSS8x4c0,3125, HSS8x4x0,25, HSS8x4x0,125, HSS8x3x0,5, HSS8x3x0,375, HSS8x3x0,3125, HSS8x3x0,25, HSS8x3x0,1875, HSS8x3x0,125, HSS8x2x0,375, HSS8x2x0,3125, HSS8x2x0,25, HSS8x2x0,1875, HSS8x2x0,125, HSS7x5x0,5, HSS7x5x0,375, HSS7x5x0,3125, HSS7x5x0,25, HSS7x5x0,1875, HSS7x5x0,125, HSS7x4x0,5, HSS7x4x0,375, HSS7x4x0,3125, HSS7x4x0,25, HSS7x4x0,1875, HSS7x40,125, HSS7x3x0,5, HSS7x3x0,3125, HSS7x3x0,375, HSS7x3x0,3125, HSS7x3x0,25, HSS7x3x0,1875, HSS7x3x0,125, HSS7x2x0,25, HSS7x2x0,1875, HSS7x2x0,125, HSS6x5x0,5, HSS6x5x0,375, HSS6x5x0,3125, HSS6x5x0,,25, HSS6x5x0,1875, HSS6x5x0,125, HSS6x4x0,5, HSS6x4x0,375, HSS6x4x0,25, HSS6x4x0,1875, HSS6x3x0,5, HSS6x3x0,375, HSS6x3x0,3125, HSS6x3x25, HSS6x3x0,1875, HSS6x3x0,125, HSS6x2x0,3125, HSS6x2x0,25, HSS6x2x0,1875, HSS6x2x0,125, HSS5x4x0,5, HSS5x4x0,375, HSS5x4x0,375, HSS5x4x0,3175, HSS5x4x0,25, HSS5x4x0,1875, HSS5x4x0,125, HSS5x3x0,5, HSS5x3x0,375, HSS5x3x0,3125, HSS5x3x0,25, HSS5x3x0,1875, HSS5x3x0,125, HSS5x2,5x0,25, HSS5x2,5x0,1875, HSS5x2,5x0,1265, HSS5x2x0,375, HSS5x2x0,3125, HSS5x2x0,25, HSS5x2x0,1875, HSS5x2x0,125, HSS4x3x0,375, HSS4x3x0,3125, HSS4x3x0,25, HSS4x3x0,1875, HSS4x3x0,125, HSS4x2,5x0,3125, HSS4x2,5x0,3125, HSS4x2,5x0,25, HSS4x2,5x0,1875, HSS4x2,5x0,125, HSS4x2x0,375, HSS4x2x0,3125, HSS4x2x0,25, HSS4x2x0,1875, HSS4x2x0,125, HSS3,5x2,5x0,375, HSS3,5x2,5x0,3125, HSS3,5x2,5x0,25, HSS3,5x2,5x0,1875, HSS3,5x2,5x0,125, HSS3,5x2x0,25, HSS3,5x2x0,1875, HSS3,5x2x0,125, HSS3,5x1,5x0,25, HSS3,5x1,5x0,1875, HSS3,5x1,5x0,125, HSS3x2,5x0,3125, HSS3x2,5x0,25, HSS3x2,5x0,1875, HSS3x2,5x0,125, HSS3x2x0,3125, HSS3x2x0,25, HSS3x2x0,1875, HSS3x2x0,125, HSS3x1,5x0,25, HSS3x1,5x0,1875, HSS3x1,5x0,125, HSS3x1x0,1875, HSS2,5x2x0,25, HSS2,5x2x0,1875, HSS2,5x2x0,125, HSS2,5x1,5x0,25, HSS2,5x1,5x0,1875, HSS2,5x1,5x0,125, HSS2,5x1x0,1875, HSS2,5x1x0,125, HSS2,25x2x0,1875, HSS2,25x2x0,125, HSS2x1,5x0,1875, HSS2x1,5x0,125, HSS2x1x0,1875 e HSS2x1x0,125 |
Rotondo | Le configurazioni includono: HSS20x0,500, HSS20x0,375, HSS18x0,500, HSS18x0,375, HSS16x0,375, HSS16x0,625, HSS16x0,500, HSS16x0,438, HSS16x0,375, HSS16x0,312, HSS16x0,250, HSS14x0,625, HS14x0,500, HSS14x0,375, HSS14x0,312, HSS14x0,250, HSS12,750x0,500, HSS12,750x0,375, HSS12,750x0,250, HSS10,750x0,500, HSS10,750x0,375, HSS10,750x0,250, HSS10,0,625, HSS10x0,500, HSS10x0,375, HSS10x0,12, HSS10x0,250, HSS10x0,188, HSS0,625x0,500, HSS9,625x0,375, HSS9,625x0,312, HSS9,625x0,250, HSS9,625x0,188, HSS8,625x0,625, HSS8,625x0,500, HSS8,625x0,0375, HSS8,625x0,322, HSS8,625x0,250, HSS8,625x0,188, HSS7,625x0,375, HSS7,625x0,328, HSS7,500x0,500, HSS7,500x0,375, SS7,500x0,250, HSS7,500x0,188, HSS7x0,500, HSS7x0,375, HSS7x0,312, HSS7x0,250, HSS7x0,188, HSS7x0,125, HSS6,875x0,500, HSS6,875x0,375, HSS6,875x0,312, HSS6,875x0,250, HSS6,875x0,188, HSS6,625x0,500, HSS6,625x0,432, HSS6,625x0,375, HSS6,625x0,312, HSS6,625x0,280, HSS6,625x0,250, HSS6,625x0,188, HSS6,625x0,125, HSS6x0,500, HSS6x0,375, HSS6x0,312, HSS6x0,280, HSS6x0,250, HSS6x0,188, HSS6x0,125, HSS5,563x0,500, HS5,563x0,375, HSS5,563x0,258, HSS5,563x0,188, HSS5,563x0,134, HSS5,500x0,500, HSS5,500x0,375, HSS5,500x0,258, HSS5x0,500, HSSS5x0,375, HSS5x0,312, HSS5x0,258, HSS5x0,250, HSS5x0,188, HSS5x0,125, HSS4,500x0,375, HSS4,500x0,337, HSS4,500x0,237, HSS4,500x0,188, HSS4,500x0,125, HSS4x0,313, HSS4x0,250, HSS4x0,237, HSS4x0,226, HSS4x0,200, HSS4x0,188, HSS4x0,125, HSS3,500x0,313, HSS3,500x0,300, HSS3,500x0,250, HSS3,500x0,216, HSS3,500x0,203, HSS3,500x0,188, HSS3,500x0,125, HSS3x0,250, HSS3x0,216, HSS3x0,203, HSS3x0,188, HSS3x0,152, HSS3x0,134, HSS3x0,125, HSS2,875x0,250, HSS2,875x0,203, HSS2,875x0,188, HSS2,875x0,125, HSS2,500x0,250, HSS2,500x0,188, HSS2,500x0,125, HSS2,375x0,250, HSS2,375x0,218, HSS2,375x0,188, HSS2,375x0,154, HSS2,375x0,125, HSS1,900x0,188, HSS1,900x0,145, HSS1,900x0,120 e HSS1,660x0,140 |
S-Shapes | Le configurazioni includono: S24x121, S24x106, S24x100, S24x90, S24x80, S20x96, S20x86, S20x75, S20x66, S18x70, S18x54,7, S15x50, S15x42,9, S12x50, |
Quadrato | Le configurazioni includono: HSS16x16x0,625, HSS16x16x0,5, HSS16x16x0,375, HSS16x16x0,3125, HSS14x14x0,625, HSS14x14x0,5, HSS14x14x0,5, HSS14x14x0,375, HSS14x14x0,3125, HSS10x10x0,625, HSS10x10x0,5, HSS10x10x0,375, HSS10x10x0,25, HSS10x10x0,1875, HSS9x9x0,625, HSS9x9x0,5, HSS9x9x0,375, HSS9x9x0,3125, HSS9x9x0,25, HSS9x9x0,1875, HSS9x9x0,125, HSS8x8x0,625, HSS8x8x0,5, HSS8x8x0,375, HSS8x8x0,3125, HSS8x8x0,25, HSS8x8x0,1875, HSS8x8x0,125, HSS7x7x0,625, HSS7x7x0,5, HSS7x7x0,375, HSS7x7x0,3125, HSS7x7x0,25, HSS7x7x0,1875, HSS7x7x0,125, HSS6x6x0,625, HSS6x6x0,5, HSS6x6x0,375, HSS6x6x0,3125, HSS6x6x0,25, HSS6x6x0,1875, HSS6x6x0,125, HSS5,5x5,5x0,375, HSS5,5x5,5x0,3125, HSS5,5x5,5x0,25, HSS5,5x5,5x0,1875, HSS5,5x5,5x0,125, HSS5x5x0,5, HSS5x5x0,375, HSS5x5x0,3125, HSS5x5x0,25, HSS5x5x0,1875, HSS5x5x0,125, HSS4,5x4,5x0,5, HSS4,5x4,5x0,375, HSS4,5x4,5x0,3125, HSS4,5x4,5x0,25, HSS4,5x4,5x0,1875, HSS4,5x4,5x0,125, HSS4x4x0,5, HSS4x4x0,375, HSS4x4x,3125, HSS4x4x0,25, HSS4x4x0,1875, HSS4x4x0,125, HSS3,5x3,5x0,375, HSS3,5x3,5x0,3125, HSS3,5x3,5x0,25, HSS3,5x3,5x0,1875, HSS3,5x3,5x0,125, HSS3x3x0,375, HSS3x3x0,3125, HSS3x3x0,25, HSS3x3x0,1875, HSS3x3x0,125, HSS2,5x2,5x0,3125, HSS2,5x2,5x0,25, HSS2,5x2,5x0,1875, HSS2,5x2,5x0,125, HSS2,5x2,5x0,25, HSS2,25x2,25x0,25, HSS2,25x2,25x0,1875, HSS2,25x2,25x0,125, HSS2x2x0,25, HSS2x2x0,125 e HSS2x2x0,125 |

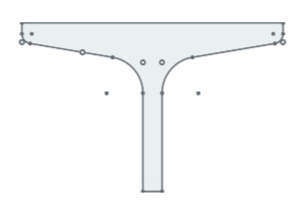

ST-Shapes | Le configurazioni includono: ST12x60.5, ST12x53, ST12x50, ST12x50, ST12x45, ST12x40, ST10x48, ST10x43, ST10x37.5, ST10x33, ST9x35, ST9x27.35, ST7.5x25, ST7.5x21.45, ST7.5x25, ST7.5x20.4, ST6x17.5, ST6x15.9, ST5x17.5, ST5x12.7, ST4x11.5, ST4x9.2, ST3.8.6, ST3x6.25, ST2.5x5, ST2x4.75, ST2x3.85, ST1.5x3.75, e ST1.5x2.85 |
W-Shapes | Le configurazioni includono: W44x335, W44x290, W44x262, W44x230, W40x593, W40x503, W40x431, W40x397, W40x372, W40x362, W40x324, W40x297, W40x277, W40x249, W40x215, W40x199, W40x392, W40x331, W40x327, W40x294, W40x278, W40x264, W40x235, W40x211, W40x183, W40x167, W40x149, W36x652, W36x529, W36x487, W36x441, W36x395, W36x330, W36x302, W36x282, W36x262, W36x247, W36x231, W36x256, W36x232, W36x210, W36x194, W36x182, W36x170, W36x160, W36x150, W36x135, W33x387, W33x354, W33x318, W33x291, W33x263, W33x241, W33x221, W33x201, W33x169, W33x152, W33x141, W33x130, W33x118, W30x391, W30x357, W30x326, W30x292, W30x261, W30x235, W30x211, W30x191, W30x173, W30x148, W30x132, W30x124, W30x116, W30x108, W30x99, W30x90, W27x539, W27x368, W27x336, W27x307, W27x281, W27x258, W27x235, W27x217, W27x194, W27x178, W27x161, W27x146, W27x129, W27x114, W27x102, W27x94, W27x84, W24x370, W24x335, W24x306, W24x279, W24x250, W24x229, W24x207, W24x192, W24x176, W24x162, W24x146, W24x131, W24x117, W24x104, W24x103, W24x94, W24x84, W24x76, W24x68, W24x62, W24x55, W21x201, W21x182, W21x166, W21x147, W21x132, W21x122, W21x111, W21x101, W21x93, W21x83, W21x73, W21x68, W21x62, W21x55, W21x48, W21x57, W21x44, W18.311, W18x283, W18x258, W18.234, W18x211, W18x192, W18x175, W18x158, W18x143, W18x130, W18x119, W18x106, W18x97, W18x89, W18x76, W18x71, W18x65, W18x50, W18x55, W18x50,W18x46, W18x40, W18x35, W16x100, W16x89, W16x77, W16x67, W16x57, W16x50, W16x45, W16x40, W16x36, W16x31, W16x26, W14x730, W14x665, W14x605, W14x550, W14x500, W14x455, W14x426, W14x398, W14x370, W14x342, W14x311, W14x283, W14x257, W14x233, W13x211, W14x193, W14x176, W14x159, W14x145, W14x132, W14x120, W14x109, W14x99, W14x90, W14x82, W14x74, W14x68, W14x61, W14x53, S14x48, W14x43, W14x38, W14x34, W14x30, W14x26, W14x22, W12x336, W12x305, W12x279, W12x252, W12x230, W12x210, W12x190, W12x170, W12x152, W12x136, W12x120, W12x106, W12x96, W12x87, W12x79, W12x72, W12x65, W12x58, W12x53, W12x50, W12x45, W12x40, W12x35, W12x30, W12x26, W12x22, W12x19, W12x16, W12x14, W10x112, W10x100, W10x88, W10x77, W10x68, W10x60, W10x54, W10x49, W10x45, W10x39, W10x33, W10x26, W10x22, W10x19, W10x17, W10x15, W10x12, W8x67, W8x58, W8x48, W8x40, W8x35, W8.31, W8x28, W8x24, W8x21, W8x18, W8x15, W8x13, W8x10, W6x25, W6x20, W6x15, W6x16, W6x12, W6x9, W6x8.5, W5x19, W5x16 e W4x13 |

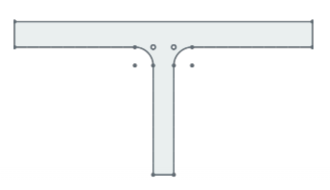

WT-Shapes |
Le configurazioni includono: WT22x167,5, WT22x145, WT22,131, WT22x115, WT20x296,5, WT20x251,5, WT20x215,5, WT20x198,5, WT20x186, WT20x181, WT20x162, WT20x162, WT20x138,5, WT20x124,5, WT20x107,5, WT20x99,5, WT20x196, WT20x65,5, WT20x163,5, W20x147, WT20x139, WT20x132, WT20x117,5, WT20x105,5, WT20x91,5, WT20x83,5, WT20x74,5, WT18x326, WT18x264,5, WT18x243,5, WT18x220,5, WT18x197,5, WT18x180,5, WT18x165, WT18x151, WT18x141, WT18x131, WT18x123,5, WT18x115,5, WT18x128, WT18x116, WT18x105, WT18x97, WT18x91, WT18x85, WT18x80, WT18x75, WT18x67,5, WT16,5x193,5, WT16,5x177, WT16,5x159, WT16,5x145,5, WT16,5x131,5, WT16,5x120,5, WT16,5x110,5, WT16,5x100,5, Wt16,5x84,5, WT16,5x76, WT16,5x70,5, WT16,5x65, WT16,5x59, WT15x195,5, WT15x178,5, WT15x163, WT15x146, WT15x130,5, WT15x117,5, WT15x105,5, WT15,95,5, WT15x86,5, WT15x74, WT15x66, WT15x62, WT15x58, WT15x54, WT15x49,5, WT15x45, WT13,5x269,5, WT13,5x184, WT13,5x168, WT13,5x153,5, WT13,5x140,5, WT13,5x129, WT13,5x117,5, WT13,5x108,5, Wt13,5x97, WT13,5x89, WT13,5x80,5, WT13,5x73, WT13,5x64,5, WT13,5x57, WT13,5x51, WT13,5x47, Wt13,5x42, WT12x185, Wt12x167,5, WT12x153, WT12x139,5, Wt12x125, WT12x114,5, WT12x103,5, WT12x96, WT12x88, WT12x81, WT12x73, WT12x65,5, WT12, 58,5, WT12x52, WT12x51,5, WT12x47, WT12x42, WT12x38, WT12x34, WT12x31, Wt12x27,5, WT10,5x100,5, WT10,5x91, WT10,5x83, WT10,5x73,5, WT10,5x66, WT10,5x61, WT10,5x55,5, WT10,5x50,5, WT10,5x46,5, WT10,5x41,5, WT10,5x34, WT10,5x31, WT10,5x27,5, WT10,5x24, WT10,5x28,5, WT10,5x25, WT10,5x22, WT9x155,5, WT9x141,5, WT9x129, WT9x117, WT9x105,5, WT9x96, WT9x87,5, WT9x79, WT9x71,5, WT9x65, WT9x59,5, WT9x53, WT9x48,5, WT9x43, WT9,38, WT9x35,5, WT9x32,5, WT9x30, WT9x27,5, WT9x25, WT9x23, WT9x20, WT9x17,5, WT8x50, TW8x44,5, WT8x38,5, WT8x33,5, WT828,5, WT8x25, WT8x22,5, WT8x20, WT8x18, WT8x15,5, WT8x13, WT7x365, WT7x332,5, WT7x302,5, WT7x275, WT7x250, WT7x227,5, WT7x213, WT7x199, WT7x185, WT7x171, WT7x155,5, WT7x141,5, WT7x128,5, WT7x116,5, WT7x105,5, WT7x96,5, WT7x88, WT7x79,5, WT7x72,5, WT7x66, WT7x60, WT7x54,5, WT7x49,5, WT7x45, WT7x41, WT7x34, WT7x30,5, WT7x26,5, WT7x24, WT7x21,5, WT7x19, WT7x17, WT7x15, WT7x13, WT7x11, Tw6x168, WT6x152,5, WT6x139,5 WT6x126, WT6x115, WT6x105, WT6x95, WT6x85, WT6x76, WT6x68, WT6x60, WT6x53, WT6x48, WT6x43,5, WT6x39,5, WT6x32,5, WT6x29, WT6x26,5, WT6x25, WT6x22,5, WT6x20, WT6x17,5, WT6x15, WT6x13, WT6x11, WT6x9,5, WT6x8, TW6x7, WT5x56, WT5x50, WT5x38,5, WT5x34, WT5x30, WT5x27, WT5x24,5, WT5x22,5, WT5x19,5, WT5x16,5, WT5x15, WT5x13, WT5x11, WT5x9,5, WT5x8,5, WT5x7,5, WT5x6, WT4x33,5, WT4x29, WT4x24, WT4x20, WT4x17,5, WT4x15,5, WT4x14, WT4x12, WT4x10,5, WT4x9, WT4x7,5, WT4x6,5, WT4x5, WT3x12,5, WT3x10, WT3x7,5, WT3x8, WT3x6, WT3x4,5, WT3x4,25, WT2,5x9,5, WT2,5x8 e WT2x6,5 |
Profili cornice ANSI

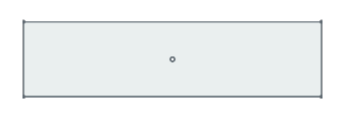

Barra rettangolare |
Le dimensioni includono: 0,25" x 0,0625", 0,5" x 0,0625", 0,625" x 0,0625", 0,75" x 0,0625", 0,875" x 0,0625", 1" x 0,0625", 1,25" x 0,0625", 1,5" x 0,0625", 1,75" x 0,0625", 2" x 0,0625", 2,25" x 0,0625", 2,5" x 0,0625", 2,75" x 0,0625", 3" x 0,0625", 0,375" x 0,09375", 0,5" x 0,09375", 0,75" x 0,09375", 1" x 0,09375", 2" x 0,09375", 3" x 0,09375", 0,125" x 0,125", 0,5" x 0,125", 1" x 0,125", 1,25" x 0,125", 1,5" x 0,125", 2" x 0,125", 2,5" x 0,125", 3" x 0,125", 4" x 0,125", 6" x 0,125", 0,5" x 0,1875", 0,75" x 0,1875", 1" x 0,1875", 1,25" x 0,1875", 1,5" x 0,1875", 2" x 0,1875", 2,5" x 0,1875, 3" x 0,1875", 4" x 0,1875", 0,25" x 0,25", 0,375" x 0,25", 0,5" x 0,25", 0,625" x 0,25", 0,75" x 0,25", 0,875" x 0,25", 1" x 0,25", 1,25" x 0,25", 1,5" x 0,25", 1,75" x 0,25", 2" x 0,25", 2,25" x 0,25", 2,5" x 0,25", 2,75" x 0,25", 3" x 0,25", 3,5" x 0,25", 4" x 0,25", 5" x 0,25", 6" x 0,25", 8" x 0,25", 10" x 0,25", 12" x 0,25", 0,3125" x 0,3125", 0,75" x 0,3125", 1" x 0,3125", 1,5" x 0,3125", 2" x 0,3125", 3" x 0,3125", 0,375" x 0,375", 0,5" x 0,375", 0,75" x 0,375", 1" x 0,375", 1,25" x 0,375", 1,5" x 0,375", 1,75" x 0,375", 2" x 0,375", 2,5" x 0,375", 3" 0,375", 3,5" x 0,375", 4" x 0,375", 5" x 0,375", 6" x 0,375", 8" x 0,375", 10" x 0,375", 12" x 0,375", 0,4375" x 0,4375", 0,5" x 0,5", 0,75" x 0,5", 1" x 0,5", 1" x 0,5", 1,25" x 0,5", 1,5" x 0,5", 1,75" x 0,5", 2" x 0,5", 2,5" x 0,5", 3" x 0,5", 3,5" x 0,5", 4" x 0,5", 5" x 0,5", 6" x 0,5", 8" x 0,5", 10" x 0,5", 12" x 0,5", 0,5625" x 0,5625", 0,625" x 0,625", 0,75" x 0,625", 1" x 0,625", 1,5" x 0,625", 2" x 0,625", 2,5" x 0,625", 3" x 0,625", 4" x 0,625", 5" x 0,625", 6" x 0,625", 8" x 0,625", 10" x 0,625", 12" x 0,625", 0,6875" x 0,6875, 0,75" x 0,75", 1" x 0,75", 1,25" x 0,75", 1,5" x 0,75", 1,75" x 0,75", 2" x 0,75", 2,5" x 0,75", 3" x 0,75", 3,5" x 0,75", 4" x 0,75", 5" x 0,75", 6" 0,75", 8" x 0,75", 10" x 0,75", 12" x 0,75", 0,8125" x 0,8125", 0,875" x 0,875", 1" x 0,875", 1,5" x 0,875", 2" x 0,875", 1" x 1", 1,25" x 1", 1,5" x 1", 1,75" x 1", 2" x 1", 2,5" x 1", 3" x 1", 3,5" x 1", 4" x 1", 5" x 1", 6" x 1", 8" x 1", 10" x 1", 12" x 1", 1,125" x 1,125", 1,25" x 1,25", 1,5" x 1,25", 1,75" x 1,25", 2" x 1,75", 2,25" x 1,25", 2,5" x 1,25", 3" x 1,25", 3,5" x 1,25", 4" x 1,25", 5" x 1,25", 6" x 1,25", 1,375" x 1,375", 1,5" x 1,5", 1,75" x 1,75", 2" x 1,5", 2,25" x 1,5", 2,5" x 1,5", 2,75" x 1,5", 3" x 1,5", 3,5" x 1,5", 4" x 1,5", 5" x 1,5", 6" x 1,5", 1,625" x 1,625", 1,75" x 1,75", 2" x 2", 2,5" x 2", 3" x 2", 3,5" x 2", 4" x 2", 5" x 2", 6" x 2", 2,25" x 2,25", 2,5" x 2,5", 3" x 2,5", 4" x 2,5", 5" x 2,5", 2,75" x 2,75", 3" x 3", 3,5" x 3", 4" x 3", 4,5" x 3", 5" x 3", 6" x 3", 3,25" x 3,25", 3,5" x 3,5", 4" x 4", 5" x 4", 6" x 4", 5" x 5" e 6" x 6" |
Tubo rettangolare |
Le dimensioni includono: 0,375" x 0,375" x 0,035", 0,5" x 0,5" x 0,035", 0,5" x 1" x 0,035", 0,625" x 0,625" x 0,035", 0,75" x 0,75" x 0,035", 1" x 1" x 0,035", 0,5" x 0,5" x 0,049", 0,5" x 1" x 0,049", 0,625" x 0,625" x 0,049", 0,75" x 0,75" x 0,049", 1" x 1" x 0,049", 1" x 1,5" x 0,049", 0,25" x 0,25" x 0,0625", 0,375" x 0,375" x 0,0625", 0,5" x 0,5" x 0,0625", 0,5" x 1" x 0,0625", 0,75" x 0,75" x 0,0625", 1" x 1" x 0,0625", 1" x 1,5" x 0,0625", 1" x 2" x 0,0625", 1,25" x 1,25" x 0,0625", 1,5" x 1,5" , 0,0625", 1,75" x 1,75" x 0,0625", 2" x 2" x 0,0625", 0,5" 0,5" 0,065", 0,5" x 1" x 0,065", 0,5" 1,5" x 0,065", 0,75" x 0,75" x 0,065", 1" x 1" x 0,065", 1" x 1,75" x 0,065", 1" x 1,5" x 0,065", 1" x 2" x 0,065", 1" x 3" x 0,065", 1,25" x 1,25" x 0,065", 1,5" x 1,5" x 0,065", 2" x 2" x 0,065", 0,75" x 0,75" x 0,083", 0,75" x 1,5" x 0,083", 1" x 1" x 0,083", 1" x 3" x 0,083", 1" x 2" x 0,083", 1,25" x 1,25" x 0,083", 1,5" x 1,5" x 0,083", 2" x 2" x 0,083", 2" x 4" x 0,083", 2,5" x 2,5" x 0,083", 0,75" x 0,85" x 0,12", 1" x 1" x 0,12", 1" x 2" x 0,12", 1" x 1,5" x 0,12", 1,25" x 1,25" x 0,12", 1,5" x 1,5" x 0,12", 1,5" x 2,5" x 0,12", 2" x 2" x 0,12", 0,75" x 0,75" x 0,125", 0,75" x 1,5" x 0,125", 1" x 1" x 0,125", 1" x 1,5" x 0,125", 1" x 2" x 0,125", 1" x 3" x 0,125", 1" x 4" x 0,125", 1" x 6" x 0,125", 1,25" x 1,25" x 0,125", 1,25" x 2,5" x 0,125", 1,5" x 1,5" x 0,125", 1,5" x 2" x 0,125", 1,5" x 2,5" x 0,125", 1,5" x 3" x 0,125", 1,75" x 1,75" x 0,125", 1,75" x 3" x 0,125", 1,75" x 3,5" x 0,125", 1,75" x 4" x 0,125", 2" x 2" x 0,125", 2" x 3" x 0,125", 2" x 4" x 0,125", 2' x 5" x 0,125", 2" x 6" x 0,125", 2" x 8" x 0,125", 2,5" x 2,5" x 0,125", 3" x 3" x 0,125", 3' x 4" x 0,125", 3,5" x 3,5" x 0,125", 4" x 4" x 0,125", 5" x 5" x 0,125", 6" x 6" x 0,125", 1" x 1" x 0,1875", 1,5" x 3" x 0,1875", 2" x 2" x 0,1875", 2" x 4" x 0,1875", 2" x 6" x 0,1875", 3" x 3" x 0,1875", 3" x 4" x 0,1875", 3" x 6" x 0,1875", 4" x 4" x 0,1875", 4" x 6" x 0,1875", 4" x 5" x 0,1875", 4,5" x 4,5" x 0,1875", 5" x 5" x 0,1875", 6" x 6" x 0,1875", 8" x 8" x 0,1875", 1,25" x 1,25" x 0,188", 1,5" x 1,5" x 0,188", 1,5" x 3" x 0,188", 2" x 2" x 0,188", 3" x 3" x 0,188", 4" x 4" x 0,188", 1,5" x 3" x 0,25", 2" x 2" x 0,25", 2" x 3" x 0,25", 2" x 4" x 0,25", 2" x 6" x 0,25", 2" x 8" x 0,25", 2,5" x 2,5" x 0,25", 3" x 3" x 0,25", 3" x 4" x 0,25", 4" x 4" x 0,25", 4" x 6" x 0,25", 4" x 8" x 0,25", 5" x 5" x 0,25", 6" x 6" x 0,25", 4" x 4" x 0,375", 5" x 8" x 0,375", 6" x 6" x 0,375", 4" x 4" x 0,5", 4" x 6" x 0,5", 4" x 8" x 0,5", 6" x 6" x 0,5" e 8" x 8" x 0,5" |
Barra circolare |
Le dimensioni includono: 1/32" (0,03125), 1/16" (0,0625), 3/32" (0,09375), 1/8" (0,125), 5/32" (0,15625), 3/16" (0,1875), 7/32" (0,21875), 1/4" (0,25), 9/32" (0,28125), 5/16" (0,3125), 11/32" (0,34375), 3/8" (0,375), 13/32" (0,40625), 7/16" (0,4375), 15/32" (0,46875), 1/2" (0,5), 17/32" (0,53125), 9/16" (0,5625), 19/32" (0,59375), 5/8" (0,625), 21/32" (0,65625), 11/16" (0,6875), 23/32" (0,71875), 3/4" (0,75), 25/32" (0,78125), 13/16" (0,8125), 27/32" (0,84375), 7/8" (0,875), 29/32" (0,90625), 15/16" (0,9375), 31/32" (0,96875), 1", 1 1/16" (1,0625), 1 1/8" (1,125), 1 3/16" (1,1875), 1 1/4" (1,25), 1 5/16" (1,3125), 1 3/8" (1,375), 1 7/16" (1,4375), 1 1/2" (1,5), 1 9/16" (1,5625), 1 5/8" (1,625), 1 11/16" (1,6875), 1 3/4" (1,75), 1 13/16" (1,8125), 1 7/8" (1,875), 1 15/16" (1,9375), 2", 2 1/8" (2,125), 2 1/4" (2,25), 2 3/8" (2,375), 2 1/2" (2,5), 2 5/8" 92,625), 2 3/4" (2,75), 2 7/8" (2,875), 3", 3 1/4" (3,25), 3 1/2" (3,5), 3 3/4" (3,75), 4", 4 1/2" (4,5), 5", 5 1/2" (5,5) e 6" |
Tubo circolare |
Le dimensioni includono: 0,125" x 0,028", 0,1875" x 0,028", 0,25" x 0,028", 0,3125" x 0,028", 0,375" x 0,028", 0,375" x 0,028", 0,4375" x 0,028", 0,5" x 0,028", 0,5625" x 0,028", 0,625" x 0,028", 0,75" x 0,028", 1" x 0,028", 0,125" x 0,035", 0,188" x 0,035", 0,25" x 0,035", 0,313" x 0,035", 0,375" x 0,035", 0,5" x 0,035", 0,625" x 0,035", 0,75" x 0,035", 0,875" x 0,035", 1" x 0,035", 1,125" x 0,035", 1,25" x 0,035", 1,375" x 0,035", 1,5" x 0,035", 0,25" x 0,049", 0,313" x 0,049", 0,375" x 0,049", 0,438" x 0,049", 0,5" x 0,049", 0,625" x 0,049", 0.75" x 0,049", 1" x 0,049", 1,125" x 0,049", 1,25" x 0,049", 1,375" x 0,049", 1,5" x 0,049", 2" x 0,049", 0,374" x 0,058", 0,4375" x 0,058", 0,5" x 0,058", 0,625" x 0,058", 0,75" x 0,058", 0,875" x 0,058", 1" 0,058", 1,125" x 0,058", 1,125" x 0,058", 1,25" x 0,058", 1,375" x 0,058", 1,5" x 0,058", 1,75" x 0,058", 0,25" x 0,065", 0,313" x 0,065", 0,375" x 0,065", 0,438" x 0,065", 0,5" x 0,065", 0,563" x 0,065", "0,625" x 0,065", 0,75" x 0,065", 0,875" x 0,065", 1" x 0,065", 1,125" x 0,065", 1,25" x 0,065", 1,375" x 0,065", 1,5" x 0,065", 1,625" x 0,065", 1,75" x 0,065", 2" x 0,065", 2,5" x 0,065", 3" x 0,065", 4" x 0,065", 0,375" x 0,083", 0,438" x 0,083", 0,5" x 0,083", 0,563" x 0,083", 0,625" x 0,083", 0,75" x 0,083", 0,875" x 0,083", 1" x 0,083", 1,125" x 0,083", 1,25" x 0,083", 1,375" x 0,083", 1,5" x 0,083", 1,625" x 0,083", 1,75" x 0,083", 2" x 0,083", 0,3125" x 0,095", 0,4375" x 0,095", 0,5" x 0,095", 0,75" x 0,095", 1" x 0,095", 1,125" x 0,095", 1,25" x 0,095", 1,375" x 0,095", 1,5" x 0,095", 1,625" x 0,095", 1,75" x 0,095", 2" x 0,095", 2,5" x 0,095", 0,375" x 0,12", 0,438: x 0,12", 0,5" x 0,12", 0,563" x 0,12", 0,625" x "0,12", 0,75" x 0,12", 0,875" x 0,12", 1" x 0,12", 1,125" x 0,12", 1,25" x 0,12", 1,375" x 0,12", 1,5" x 0,12", 1,75" x 0,12", 2" x 0,12", 2,25" x 0,12", 2,5" x 0,12", 3" x 0,12", 3,5" x 0,12", 4" x 0,12", 4,5" x 0,12", 0,75" x 0,125", 1" x 0,125", 1,25" x 0,125", 1,5" x 0,125", 1,75" x 0,125", 2" x 0,125", 3" x 0,125", 4" x 0,125", 1,625" x 0,134", 0,625" x 0,156", 0,625" x 0,188", 0,75" x 0,188", 1" x 0,188", 1,125" x 0,188", 1,25" x 0,188", 1,5" x 0,188", 1,75" x 0,188", 2" x 0,188", 2,5" x 0,188", 3" x 0,188", 3,125" x 0,188", 4" x 0,188", 5" x 0,188", 1" x 0,25", 1,125" x 0,25", 1,25" x 0,25", 1,375" x 0,25", 1,5" x 0,25", 1,625" x 0,25", 1,75" x 0,25", 2" x 0,25", 2,25" x 0,25", 2,5" x 0,25", 2,75" x 0,25", 3" x 0,25", 3,5" x 0,25", 3,75" x 0,25", 4" x 0,25", 4,5" x 0,25", 5" x 0,25", 5,5" x 0,25", 6" x 0,25", 1,25" x 0,375", 1,5" x 0,375", 1,75" x 0,375", 2" x 0,375", 2,25" x 0,375", 2,5" x 0,375", 2,75" x 0,375", 3" x 0,375", 3,25" x 0,375", 3,5" x 0,375", 4" x 0,375", 4,5" x 0,375", 5" x 0,375", 6" x 0,375", 1,5" x 0,5", 2" x 0,5", 2,25" x 0,5", 2,5" x 0,5", 2,75" x 0,5", 3" x 0,5", 3,25" x 0,5" 3,5" x 0,5", 3,75" x 0,5", 4" x 0,5", 4,5" x 0,5", 5" x 0,5", 5,5" x 0,5", 6" x 0,5", 3,25" x 0,625", 3,75" x 0,625", 4" x 0,625", 3" x 0,75", 3,25" x 0,75", 3,5" x 0,75", 3,75" x 0,75", 4" x 0,75", 4,25" x 0,75", 4,5" x 0,75", 4,75" x 0,75", 5" x 0,75", 6" x 0,75", 4" x 1", 4,5" x 1", 5" x 1", 5,5" x 1", 6" x 1", 6,5" x 1", 7" x 1", 8" x 1", 4,5" x 1,25", 5" x 1,25", 5,5" x 1,25", 6" x 2", 8" x 2", 10" x 2" e 12" x 2" |
Profili del telaio AS
Sezioni cave e profili sagomati a freddo |
Sezione a canale, Sezione cava circolare, Sezione con angolo uguale, Sezione piatta, Sezione cava binario, Sezione cava rettangolare, Sezione cava quadrata, Sezione con angolo disuguale. |
Acciaio laminato a caldo e strutturale |
Angoli uguali, Canale a flangia parallela, Trave a flangia conica, Angoli disuguali, Trave universale, Palo portante universale, Colonna universale, Trave saldata e Colonna saldata. |
Profili cornice ISO
Barra rettangolare |
Le configurazioni includono: 0,375 in x 0,25 in, 0,50 in x 0,125 in, 0,50 in x 0,1875 in, 0,50 in x 0,25 in, 0,50 in x 0,375 in, 0,625 in x 0,125 in, 0,625 in x 0,1875 in, 0,625 in x 0,25 in, 0,625 in x 0,375 in, 0,625 in x 0,50 in, 0,75 in x 0,0625 in, 0,75 in x 0,125 in, 0,75 in x 0,1875 in, 0,75 in x 0,25 in, 0,75 in x 0,375 in, 0,75 in x 0,50 in, 0,75 in x 0,625 in, 0,875 in x 0,125 in, 1 in x 0,0625 in, 1 in x 0,125 in, 1 in x 0,1875 in, 1 in x 0,25 in, 1 in x 0,3125 in, 1 in x 0,375 in, 1 in x 0,5 in, 1 in x 0,625 in, 1 in x 0,75 in, 1,25 in x 0,125 in, 1,25 in x 0,1875 in, 1,25 in x 0,3125, 1,25 in x 0,25 in, 1,25 in x 0,375 in, 1,5 in x 0,625 in, 1,25 in x 0,75 in, 1,25 in x 1 in, 1,5 in x 0,125 in, 1,5 in x 0,1875 in, 1,50 in x 0,25 in, 1,5 in x 0,3125 in, 1,5 in x 0,375 in, 1,5 in x 0,5 in, 1,5 in x 0,625 in, 1,5 in x 0,75 in, 1,5 in x 1 in, 1,5 in x 1,25 in, 1,75 in x 0,125 in, 1,75 in x 0,25 in, 1,75 in x 0,375 in, 1,75 in x 0,50 in, 1,75 in x 0,75 in, 1,75 in x 1 in, 1,75 in x 1,25 in, 1,75 in x 1,50 in, 2 in x 0,125 in, 2 in x 0,25 in, 2 in x 0,3125 in, 2 in x 0,375 in, 2 in x 0,50 in, 2 in x 0,625 in, 2 in x 0,75 in, 2 in x 1 in, 2 in x 1,25 in, 2 in x 1,50 in, 2 in x 1,75 in, 2,25 in x 0,25 in, 2,25 in x 0,50 in, 2,25 in x 1,25 in, 2,50 in x 0,1875 in, 2,50 in x 0,125, 2,50 in x 0,25 in, 2,50 in x 0,375 in, 2,50 in x 0,50 in, 2,5 in x 0,625, 2,5 in x 0,75 in, 2,5 in x 1 in, 2,50 in x 1,25 in, 2,5 in x 1,50 in, 2,5 in x 1,75 in, 2,50 in x 2 in, 3 in x 0,125, 3 in x 0,25 in, 3 in x 00,375 in, 3 in x 0,50 in, 3 in x 0,625 in, 3 in x 1 in, 3 in x 1,25 in, 3 in x 1,50 in, 3 in x 1,75 in, 3 in x 2 in, 3 in x 2,50 in, 3,50 in x 0,25 in, 3,50 in x 0,625 in, 3,5 in x 0,50 in, 3,50 in x 0,75 in, 3,50 in x 1,25 in, 3,50 in x 1,50 in, 4 in x 0,125 in, 4 in x 0,1875 in, 4 in x 0,25 in, 4 in x 0,375 in, 4 in x 0,50 in, 4 in x 0,625 in, 4 in x 0,75 in, 4 in x 1 in, 4 in x 1,25 in, 4 in x 1,50 in, 4 in x 1,75 in, 4 in x 2 in, 5 in x 0,25 in, 5 in x 0,375 in, 5 in x 0,50 in, 5 in x 0,75 in, 5 in x 1 in, 5 in x 2 in, 6 in x 0,125 in, 6 in x 0,25 in, 6 in x 0,375 in, 6 in x 0,50 in, 6 in x 0,625 in, 6 in x 0,75 in, 6 in x 1 in, 6 in x 1,50 in, 6 in x 2 in, 8 in x 0,25 in, 8 in x 0,50 in, 20 mm x 10 mm, 30 mm x 10 mm, 30 mm x 12 mm, 40 mm x 5 mm, 40 mm x 10 mm, 50 mm x 8 mm, 60 mm x 10 mm, 60 mm x 30 mm, 60 mm x 40 mm, 70 mm x 20 mm, 100 mm x 5 mm, 100 mm x 6 mm, 100 mm x 8 mm, 100 mm x 20 mm, 120 mm x 10 mm, 120 mm x 20 mm, 150 mm x 8 mm, 200 mm x 6 mm, 200 mm x 8 mm e 200 mm x 10 mm |
Tubo rettangolare |
Le configurazioni includono: 20 mm x 20 mm x 2 mm, 20 mm x 20 mm x 2,6 mm, 30 mm x 30 mm x 2 mm, 30 mm x 30 mm x 2,6 mm, 30 mm x 30 mm x 3,2 mm, 40 mm x 40 mm x 2,6 mm, 40 mm x 40 mm x 3,2 mm, 40 mm x 40 mm x 4 mm, 50 mm x 30 mm x 2,6 mm, 50 mm x 30 mm x 3,2 mm, 50 mm x 30 mm x 4 mm, 50 mm x 50 mm x 3,2 mm, 50 mm x 50 mm x 4 mm, 50 mm x 50 mm x 5 mm, 60 mm x 40 mm x 3,2 mm, 60 mm x 40 mm x 4 mm, 60 mm x 40 mm x 5 mm, 60 mm x 60 mm x 3,2 mm, 60 mm x 60 mm x 4 mm, 60 mm x 60 mm x 5 mm, 70 mm x 40 mm x 3,2 mm, 70 mm x 40 mm x 4 mm, 70 mm x 40 mm x 5 mm, 70 mm x 70 mm x 3,2 mm, 70 mm x 70 mm x 3,6 mm, 70 mm x 70 mm x 4 mm, 70 mm x 70 mm x 5 mm, 80 mm x 40 mm x 3,2 mm, 80 mm x 40 mm x 4 mm, 80 mm x 40 mm x 5 mm, 80 mm x 80 mm x 3,2 mm, 80 mm x 80 mm x 3,6 mm, 80 mm x 80 mm x 4 mm, 80 mm x 80 mm x 5 mm, 80 mm x 80 mm x 6,3 mm, 90 mm x 50 mm x 3,2 mm, 90 mm x 50 mm x 3,6 mm, 90 mm x 50 mm x 4 mm, 90 mm x 50 mm x 5 mm, 90 mm x 90 mm x 3,2 mm, 90 mm x 99 mm x 3,6 mm, 90 mm x 90 mm x 4 mm, 90 mm x 90 mm x 5 mm, 90 mm x 90 mm x 6,3 mm, 90 mm x 90 mm x 8 mm, 100 mm x 50 mm x 3,2 mm, 100 mm x 50 mm x 3,6 mm, 100 mm x 50 mm x 4 mm, 100 mm x 60 mm x 3,2 mm, 100 mm x 60 mm x 3,6 mm, 100 mm x 60 mm x 4 mm, 100 mm x 60 mm x 5 mm, 100 mm x 60 mm x 6,3 mm, 100 mm x 100 mm x 3,2 mm, 100 mm x 100 mm x 4 mm, 100 mm x 100 mm x 5 mm, 100 mm x 100 mm x 6,3 mm, 100 mm x 100 mm x 8 mm, 100 mm x 100 mm x 10 mm, 120 mm x 60 mm x 3,2 mm, 120 mm x 60 mm x 3,6 mm, 120 mm x 60 mm x 4 mm, 120 mm x 60 mm x 5 mm, 120 mm x 60 mm x 6,3 mm, 120 mm x 60 mm x 8 mm, 120 mm x 80 mm x 3,2 mm, 120 mm x 80 mm x 4 mm, 120 mm x 80 mm x 6,3 mm, 120 mm x 80 mm x 8 mm, 120 mm x 80 mm x 10 mm, 120 mm x 120 mm x 3,2 mm, 120 mm x 120 mm x 4 mm, 120 mm x 120 mm x 5 mm, 120 mm x 120 mm x 6,3 mm, 120 mm x 120 mm x 8 mm, 120 mm x 120 mm x 10 mm, 140 mm x 80 mm x 3,2 mm, 140 mm x 80 mm x 4 mm, 140 mm x 80 mm x 5 mm, 140 mm x 80 mm x 6,3 mm, 140 mm x 80 mm x 6,3 mm, 140 mm x 80 mm x 8 mm, 140 mm x 80 mm x 10 mm, 140 mm x 140 mm x 3,6 mm, 140 mm x 140 mm x 5 mm, 140 mm x 140 mm x 6,3 mm, 140 mm x 140 mm x 8 mm, 140 mm x 140 mm x 10 mm, 150 mm x 100 mm x 3,2 mm, 150 mm x 100 mm x 4 mm, 150 mm x 100 mm x 6,3 mm, 150 mm x 100 mm x 8 mm, 150 mm x 100 mm x 10 mm, 150 mm x 150 mm x 4 mm, 150 mm x 150 mm x 5 mm, 150 mm x 150 mm x 6,3 mm, 150 mm x 150 mm x 8 mm, 150 mm x 150 mm x 10 mm, 160 mm x 80 mm x 3,2 mm, 160 mm x 80 mm x 4 mm, 160 mm x 80 mm x 5 mm, 160 mm x 80 mm x 6,3 mm, 160 mm x 80 mm x 8 mm, 160 mm x 80 mm x 10 mm, 160 mm x 160 mm x 4 mm, 160 mm x 160 mm x 5 mm, 160 mm x 160 mm x 6,3 mm, 160 mm x 160 mm x 8 mm, 160 mm x 160 mm x 10 mm, 180 mm x 100 mm x 3,6 mm, 180 mm x 100 mm x 5 mm, 180 mm x 100 mm x 6,3 mm, 180 mm x 100 mm x 8 mm, 180 mm x 100 mm x 10 mm, 180 mm x 180 mm x 4 mm, 180 mm x 180 mm x 5 mm, 180 mm x 180 mm x 6,3 mm, 180 mm x 180 mm x 8 mm, 180 mm x 180 mm x 10 mm, 200 mm x 100 mm x 4 mm, 200 mm x 100 mm x 5 mm, 200 mm x 100 mm x 6,3 mm, 200 mm x 100 mm x 8 mm, 200 mm x 100 mm x 10 mm, 200 mm x 120 mm x 4 mm, 200 mm x 120 mm x 5 mm, 200 mm x 120 mm x 6,3 mm, 200 mm x 120 mm x 8 mm, 200 mm x 120 mm x 10 mm, 200 mm x 200 mm x 5 mm, 200 mm x 200 mm x 6,3 mm, 200 mm x 200 mm x 8 mm, 200 mm x 200 mm x 10 mm, 220 mm x 140 mm x 4 mm, 220 mm x 140 mm x 5 mm, 220 mm x 140 mm x 6,3 mm, 220 mm x 140 mm x 8 mm, 220 mm x 140 mm x 10 mm, 220 mm x 220 mm x 5 mm, 220 mm x 220 mm x 6,3 mm, 220 mm x 220 mm x 8 mm, 220 mm x 220 mm x 10 mm, 250 mm x 150 mm x 5 mm, 250 mm x 150 mm x 6,3 mm, 250 mm x 150 mm x 8 mm, 250 mm x 150 mm x 10 mm, 250 mm x 250 mm x 5,9 mm, 250 mm x 250 mm x 6,3 mm, 250 mm x 250 mm x 8 mm, 250 mm x 250 mm x 10 mm, 260 mm x 260 mm x 5,9 mm, 260 mm x 260 mm x 6,3 mm, 260 mm x 260 mm x 8 mm, 260 mm x 260 mm x 10 mm, 300 mm x 200 mm x 5,9 mm, 300 mm x 200 mm x 6,3 mm, 300 mm x 200 mm x 8 mm, 300 mm x 200 mm x 10 mm, 300 mm x 300 mm x 7,1 mm, 300 mm x 300 mm x 8 mm, 300 mm x 300 mm x 10 mm, 350 mm x 350 mm x 8 mm, 400 mm x 200 mm x 7,1 mm, 400 mm x 200 mm x 8 mm, 400 mm x 200 mm x 10 mm, 400 mm x 400 mm x 10 mm, 450 mm x 250 mm x 8 mm, 450 mm x 250 mm x 10 mm e 500 mm x 300 mm x 10 mm |
Barra circolare | Le configurazioni includono: 0,25 in DIA (6,35 mm), 0,3125 in DIA (7,937 mm), 0,375 in DIA (9,525 mm), 0,4375 in DIA (11,112 mm), 0,50 in DIA (12,7 mm), 9/16 in DIA (14,287 mm), 0,625 in DIA (15,875 mm), 20 mm DIA, 0,8125 in DIA (20,637 mm), 0,875 in DIA (22,225 mm), 1 in DIA (25,4 mm), 1,125 in DIA (28,58 mm), 1,25 in DIA (31,75 mm), 1,3125 in DIA (33,337 mm), 1,375 in DIA (34,93 mm), 35 mm DIA, 1,50 in DIA (38,1 mm), 40 mm DIA, 1,625 in DIA (41,28 mm), 1,75 in DIA (44,45 mm), 1,875 in DIA (47,65 mm), 2 in DIA (50,8 mm), 2,125 in DIA (53,975 mm), 2,375 in DIA (60,33 mm), 2,50 in DIA (63,5 mm), 2,625 in DIA (66,67 mm), 2,75 in DIA (69,85 mm), 3 in DIA (76,2 mm), 3,25 in DIA (82,55 mm), 3,50 in DIA (88,9 mm), 3,50 in DIA (88,9 mm), 3,75 in DIA (95,25 mm), 4 in DIA (101,6 mm), 4,25 in DIA (107,95 mm), 4,50 in DIA (114,3 mm), 4,75 in DIA (120,65 mm), 5,25in DIA (133,35 mm), 5,50 in DIA (139,7 mm), 5,75 in DIA (146,05 mm), 6 inDIA (152,4 mm), 6,50in DIA (165,1 mm), 7in DIA (177,8 mm), 7,25 in DIA (184,15 mm), 7,50 in DIA (190,5 mm), 8 in DIA (203,2 mm), 8,50 in DIA (215,9 mm), 9 in DIA (228,6 mm), 9,50 in DIA (241,3 mm), 10 in DIA (254 mm), 12 in DIA (304,8 mm), 13 in DIA (330,2 mm), 14 in DIA (355,6 mm), 15 in DIA (381 mm) e 16 in DIA (406,4 mm) |
Tubo circolare | Le configurazioni includono: 0,375 in OD x 16 SWG, 0,50 in D x 18 SWG, 0,50 in OD x 16 SWG, 0,50 in OD x 10 SWG, 0,625 in OD x 18 SWG, 0,625 in OD x 16 SWG, 0,625 in OD x 10 SWG, 0,75 in OD x 18 SWG, 0,75 in OD x 16 SWG, 0,75 in OD x 10 SWG, 0,875 in OD x 18 SWG, 0,875 in OD x 16 SWG, 0,875 in OD x 10 SWG, 1 in OD x 18 SWG, 1 in OD x 16 SWG, 1 in OD x 10 SWG, 1 in OD x 0,1875 in, 1 in OD x 0,25 in, 1,125 in OD x 16 SWG, 1,125 in OD x 10 SWG, 1,25 in OD x 18 SWG, 1,25 in OD x 16 SWG, 1,25 in OD x 0,1875 in, 1,25 in OD x 10 SWG, 1,375 in OD x 16 SWG, 1,375 in OD x 10 SWG, 1,50 in OD x 18 SWG, 1,50 in OD x 16 SWG, 1,50 in OD x 10 SWG, 1,50 in OD x 0,1875 in, 1,50 in OD x 0,25 in, 1,625 in OD x 16 SWG, 1,625 in OD x 10 SWG, 1,625 in OD x 0,1875 in, 1,75 in OD x 16 SWG, 1,75 in OD x 10 SWG, 1,875 in OD x 10 SWG, 2 in OD x 16 SWG, 2 in OD x 10 SWG, 2 in OD x 0,1875 in, 2 in OD x 0,25 in, 2 in OD x 1,5 mm, 2 in OD x 3,0 mm, 2,25 in OD x 16 SWG, 2,25 in OD x 10 SWG, 2,50 in OD x 0,1875, 2,50 in OD x 0,25 in, 2,50 in OD x 0,375 in, 3,5 in OD x 0,25 in, 2,75 in OD x 10 SWG, 3 in OD x 16 SWG, 3 in OD x 10 SWG, 3 in OD x 0,1875 in, 3 in OD x 0,25 in, 3 in OD x 1,5 mm, 3 in OD x 3,0 mm, 3,50 in OD x 16 SWG, 3,50 in OD x 10 SWG, 3,50 in OD x 0,25 in, 4 in OD x 16 SWG, 4 in OD x 10 SWG, 4 in OD x 0,25 in, 4 in OD x 1,5 mm, 4 in OD x 3,0 mm, 4,50 in OD x 10 SWG, 4,5 in OD x 0,25 in, 5 in OD x 10 SWG, 5 in OD x 0,25 in, 6 in OD x 10 SWG, 6 in OD x 0,25 in, 6,50 in OD x 0,25 in, 100 mm OD x 2 mm, 150 mm OD x 2 mm e 152 mm OD x 2,5 mm |
