Le contenu de la bibliothèque de profils de cadres Onshape est créé par Onshape, conservé dans les documents au sein d'Onshape et géré par Onshape. Il n'y a aucun risque que ce contenu disparaisse ou ne fonctionne pas d'une version à l'autre. Nous avons intégré un processus permettant de gagner du temps dans ce flux de travail afin de simplifier l'insertion des profils de cadre.

Supported frame profiles:

  • Bibliothèque de profils de cadres Onshape - ISO, ANSI, 8020, AS, AISC
  • 8020 - Séries 10, 15, 20, 25, 30, 40 et 45
  • AISC - Formes en C, formes en HP, angle en L, formes en M, formes en MC, formes en MT, tuyau, rectangulaire, rond, formes en S, carré, formes en ST, formes en W et formes en WT
  • ANSI - Barre rectangulaire, tube rectangulaire, barre ronde et tube rond
  • AS - Profils et sections creuses formées à froid, acier laminé à chaud et acier de construction
  • ISO - Barre rectangulaire, barre ronde et tube rond

Bibliothèque de profils de cadres Onshape

Profils de cadre 8020

Série 10

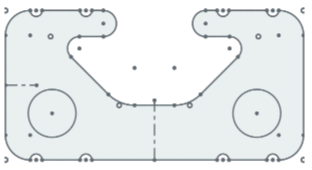

1001, 1001-S, 1002, 1002-S, 1003, 1003-S, 1004, 1004-S, 1010, 1010-S, 1012, 1012-S, 1020, 1020-S, 1030, 1030-S, 1050, 2012, 2020, 2020-S, 2040 et 2040-S

Série 15

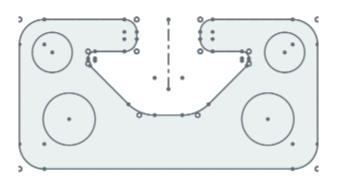

1501, 1501-LS, 1502, 1502-LS, 1503, 1503-LS, 1504, 1504-LS, 1515, 1515-Lite, 1515-LS, 1515-S, 1515-UL, 1515-ULS, 1517, 1517-LS, 1530, 1530-Lite, 1530-LS, 1530-S, 1530-UL, 1530-ULS, 1534-Lite, 1545, 1545-LS, 1545-S, 1547, 1575, 3030, 3030-Lite, 3030-LS, 3030-S, 3034-Lite, 3060 et 3075

Série 20

20-2020, 20-2040 et 20-4040

Série 25

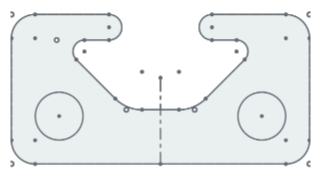

25-2501, 25-2502, 25-2503, 25-2504, 25-2514, 25-2525, 25-2527, 25-2550, 25-2576, 25-5010, 25-5013 et 25-5050

Série 30

30-3001, 30-3002, 30-3003, 30-3004, 30-3022, 30-3030, 30-3060 et 30-6060

Série 40

40-4001, 40-4002, 40-4003, 40-4004, 40-4012, 40-4020, 40-4030 Lite, 40-4040, 40-4040 Lite, 40-4040 UL, 40-4045 Lite, 40-4080, 40-4080 Lite, 40-4080-UL, 40-4082 Lite, 40-4083 Lite, 40-4084 Lite, 40-4085-Lite40-4093, 40-4094, 40-4096, 40-8016, 40-8020 et 40-8080

Série 45

45-4545, 45-4545-Lite, 45-4590 et 45-9090

Profils de cadre AISC

Formes en C

Sizes include: C15x50, C15x40, C15x33.9, C12x30, C12x25, C12x20.7, C10x30, C10x25, C10x20, C9x20, C9x15, C9x13.4, C8x18.75, C8x13.75, C8x11.5, C7x14.75, C7x12.25, C7x9.8, C6x13, C6x10.5, C6x8.2, C5x9, C5,6.7, C4x7.25, C4x6.25, C4x5.4, C4x4.5, C3x6, C3x5, C3x4.1, and C3x3.5

Formes en HP

Sizes include: HP18x204, HP18x181, HP18x157, HP18x135, HP16x183, HP16x162, HP16x141, HP16x121, JP16x101, HP16x88, HP14x117, JP14x102, HP14x89, HP14x73, HP12x84, HP12x63, JP12x53, HP10x57, HP10x42, and HP8x36

Angle en L

Sizes include: L8x8x1.125, L8x8x1, L8x8x0.875, L8x8x0.75, L8x8x0.625, L8x8x0.5625, L8x8x0.5, L8x6x1, L8x6x0.875, L8x8x0.75, L8x6x0.625, L8x6x0.5625, L8x6x0.5, L8x6x0.4375, L8x4x1, L8x4x0.875, L8x4x0.75, L8x4x0.625, L8x4x0.5625, L8x4x0.5, L8x4x0.4375, L7x4x0.75, L7x4x0.625, L7x4x0.5, L7x4x0.4375, L7x4x0.375, L6x6x1, L6x6x0.875, L6x6x0.75, L6x6x0.625, L6x6x0.5625, L6x6x0.5, L6x6x0.4375, L6x6x0.375, L6x6x0.3125, L6x4x0.875, L6x64x0.75, L6x6x0.625, L6x4x0.5625, L6x4x0.5, L6x4x0.4375, L6x64x0.375, L6x4x0.3125, L6x3.5x0.5, L6x3.5x0.375, 6x3.5x0.3125, L5x5x0.875, L5x5x0.75, L5x5x0.625, L5x5x0.5, L5x5x0.4375, L5x5x0.375, L5x5x0.25, L5x3.5x0.75, Lx3.5x0.625, L5x3x0.5, L5.3x0.375, L5x3.5x0.3125, L5x3.5x0.25, L5x3x0.5, L5x3x0.4375, L5x3x0.375, L53x0.325, L5x3x0.25, L4x4x0.75, L4x4x0.625, L4x4x0.5, L4x4x0.4375, L4x4x0.375, L4x4x0.3125, L4x4x0.25, L4x3.5x0.5, L4x3.5x0.375, 4x3.5x0.3125, L4x3.5x0.25, L4x3x0.625, L4x3x0.5, L4x3x0.375, L4x3x0.3125, L4x4x0.25, L3.5x3.5x0.5, L3.5x3.5x0.4375, L3.5x3.5x0.375, L3.5x3.5x0.3125, L3.5x3.5x0.25, L3.5x3.0.5, L3.5x3x0.4375, L3.5x3x0.375, L3.5x3x0.3125, L3.5x3x0.25, L3.5x2.5x0.5, L3.5x2.5x0.375, L3.5x2.5x0.3125, L3.5x2.5x0.25, L3x3x0.5, L3x3x0.4375, L3x3x0.375, L3x3x0.3125, L3x3x0.25, L3x3x0.1875, L3x2.5x0.5, L3x2.5x0.4375, L3x2.5x0.375, L3x2.5x0.3125, L3x2.5x0.25, L3x2.5x0.1875, L3x2x0.5, L3x2x0.375, L3x2x0.3125, L3x2x0.25, L3x2x0.1875, L2.5x2.5x0.5, L2.5x2.5x0.375, L2.5x2.5x0.3125, L2.5x2.5x0.25, L2.5x2.5x0.1875, L2.5x2x0.375, L2.5x2x0.3125, L2.5x2x0.25, L2.5x2x0.1875, L2.5x1.5x0.25, L2.5x1.5x0.1875, L2x2x0.375, L2x2x0.3125, L2x2x0.25, L2x2x0.25, L2x2x0.1875, and L2x2x0.125

Formes en M

Sizes include: M12.5x12.4, M12.5x11.6, M12x11.8, M12x10.8, M12x10, M10x9, M10x8, M10x7.5, M8x6.5, M8x6.2, M6x4.4, M6x3.7, M5x18.9, M4x6, M4x4.08, M4x3.45, M4x3.2, and M3x2.9

Formes en MC

Sizes include: MX18x58, MC18x51.9, MC18x45.8, MC18x42.7, MC13x50, M13x40, MC13x35, MC13x31.8, MC12x50, MC12x45, MC12x40, MC12x35, MC12x31, MC12x14.3, MC12x10.6, MC10x41.1, MC10x33.6, MC10x28.5, MC10x25, MC10x22, MC10x8.4, MC10x6.5, MC9.25, MC9.23.9, MC8x22.8, MC8x21.4, MC8x20, MC8x18.7, MC8x8.5, MC7x22.7, MC7x19.1, MC6x18, MC6x15.3, MC6x16.3, MC6x15.1, MC6x12, MC6x7, MC6x6.5, MC4x13.8, and MC3x7.1

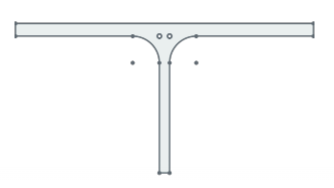

Formes en MT

Les configurations incluent : MT6,25x6,2, MT6,25x5,8, MT6x5,9, MT6x5,4, MT6x5, MT5x4,5, MT5x4, MT5x3,75, MT4x3,25, MT4x3,1, MT3x2,2, MT3x1,85, MT2,5x9,45 et MT2x3

Tuyau

Sizes include: 12 Std, 10 Std, 8 Std, 6 Std, 5 Std, 4 Std, 3 1/2 Std, 3 Std, 2 1/2 Std, 2 Std, 1 1/2 Std, 1 1/4 Std, 1 Std, 3/4 Std, 1/2 Std, 12 x-Strong, 10 x-Strong, 8 x-Strong, 6 x-Strong, 5 x-Strong, 4 x-Strong, 3 1/2 x-Strong, 3 x-Strong, 2 1/2 x-Strong, 2 x-Strong 1 1/2 x-Strong, 1 1/4 x-Strong, 1 x-Strong, 1 x-Strong, 3/4 x-Strong, 1/2 x-Strong, 8 xx-Strong, 6 xx-Strong, 5 xx-Strong, 4 xx-Strong, 3 xx-Strong, 2 1/2 xx-Strong, and 2 xx-Strong
Rectangulaire SIzes include: HSS20x12x0.625, HSS20x12x0.5, HSS20x12x0.375, HSS20x12x0.3125, HSS20x8x0.625, HSS20x8x0.5, HSS20x8x0.375, HSS20x4x0.5, HSS20x4.0x0.375, HSS20x4.0x0.3125, HSS20x4.0x0.25, HSS18x6x0.625, HSS18x6x0.5, HSS18x6x0.375, HSS18x6x0.3125, HSS18x6.0.25, HSS16x12x0.625, HSS16x12x0.5, HSS16x12x0.375, HSS16x12x0.3125, HSS16x8x0.625, HSS16x8x0.5, HSS16x8.0.375, HSS16x8x0.3125, HSS16x8x0.25, HSS16x4x0.625, HSS16x4x0.5, HSS16x4x0.5, HSS16xx4x0.375, HSS16x4x0.3125, HSS16x4x0.25, HSS16x4x0.1875, HSS14x10x0.625, HSS14x10x0.5, HSS14x10x0.375, HSS14x10x0.3125, HSS14x10x0.25, HSS14x6x0.625, HSS14x6x0.5, HSS14x6x0.5, HSS14x6x0.375, HSS14x6x0.3125, HSS14x6x0.25, HSS14x6x0.1875, HSS14x4x0.625, HSS14x4x0.5, HSS14x4x0.375, HSS14x4x0.3125, HSS14x4x0.25, HSS14x4x0.1875, HSS12x10x0.5, HSS12x10x0.375, HSS12x10x0.3125, HSS12x10x0.25, HSS12x8x0.625, HSS12x8x0.375, HSS12x8x0.3125, HSS12x8x0.25, HSS12x8x0.1875, HSS12x6x0.625, HSS12x6x0.5, HSS12x6x0.375, HSS12x6x0.3125, HSS12x6x0.23, HSS12x4x0.625, HSS12x4x0.5, HSS12x4x0.375, HSS12x4x0.3125, HSS12x4x0.25, HSS12x4x0.1875, HSS12x3.5x0.375, HSS12x3.5x0.3125, HSS12x3x0.3125, HSS12x3x0.1875, HSS12x2x0.3125, HSS12x2x0.25, HSS12x2x0.1875, HSS12x10x8x0.625, HSS10x8x0.5, HSS10x8x0.375, HSS10x8x0.3125, HSS10x8x0.25, HSS10x8x0.1875, HSS10x6x0.625, HSS10x6x0.5, HSS10x6x0.375, HSS10x6x0.3125, HSS10x6x0.25, HSS10x6x0.1875, HSS10x5x0.375, HSS10x5x0.3125, HSS10x5x0.25, HSS10x5x0.1875, HSS10x4x0.625, HSS10x4x0.5, HSS10x4x0.375, HSS10x4x0.3125, HSS10x4x0.25, HSS10x4x0.1875, HSS10x4x0.125, HSS10,3.5x0.5, HSS10x3.5x0.375, HSS10x3.5x0.3125, HSS10x3.5x0.25, HSS10x3.5x0.1875, HSS10x3.5x0.125, HSS10x3x0.375, HSS10x1x0.3125, HSS10x3x0.25, HSS10x3x0.1875, HSS10x2x0.375, HSS10x2x0.3125, HSS10x2x0.25, HSS10x2x0.1875, HSS10x2x0.125, HSS9x7x0.625, HSS9x7x0.5, HSS9x7x0.375, HSS9x7x0.3125, HSS9x7x0.25, HSS9x7x0.1875, HSS9x5x0.625, HSS9x5x0.5, HSS9x5x0.375, HSS9x5x0.3125, HSS9x5x0.25, HSS9x5x0.1875, HSS9x3x0.5, HSS9x3x0.375, HSS9x3x0.3125, HSS9x3x0.1875, HSS8x6x0.625, HSS8x6x0.5, HSS8x6x0.375, HSS8x6x0.3125, HSS8x6x0.25, HSS8x6x0.1875, HSS8x4x0.625, HSS8x4x0.5, HSS8x4x0.375, HSS8x4c0.3125, HSS8x4x0.25, HSS8x4x0.125, HSS8x3x0.5, HSS8x3x0.375, HSS8x3x0.3125, HSS8x3x0.25, HSS8x3x0.1875, HSS8x3x0.125, HSS8x2x0.375, HSS8x2x0.3125, HSS8x2x0.25, HSS8x2x0.1875, HSS8x2x0.125, HSS7x5x0.5, HSS7x5x0.375, HSS7x5x0.3125, HSS7x5x0.25, HSS7x5x0.1875, HSS7x5x0.125, HSS7x4x0.5, HSS7x4x0.375, HSS7x4x0.3125, HSS7x4x0.25, HSS7x4x0.1875, HSS7x40.125, HSS7x3x0.5, HSS7x3x0.3125, HSS7x3x0.375, HSS7x3x0.3125, HSS7x3x0.25, HSS7x3x0.1875, HSS7x3x0.125, HSS7x2x0.25, HSS7x2x0.1875, HSS7x2x0.125, HSS6x5x0.5, HSS6x5x0.375, HSS6x5x0.3125, HSS6x5x0..25, HSS6x5x0.1875, HSS6x5x0.125, HSS6x4x0.5, HSS6x4x0.375, HSS6x4x0.25, HSS6x4x0.1875, HSS6x3x0.5, HSS6x3x0.375, HSS6x3x0.3125, HSS6x3x25, HSS6x3x0.1875, HSS6x3x0.125, HSS6x2x0.3125, HSS6x2x0.25, HSS6x2x0.1875, HSS6x2x0.125, HSS5x4x0.5, HSS5x4x0.375, HSS5x4x0.375, HSS5x4x0.3175, HSS5x4x0.25, HSS5x4x0.1875, HSS5x4x0.125, HSS5x3x0.5, HSS5x3x0.375, HSS5x3x0.3125, HSS5x3x0.25, HSS5x3x0.1875, HSS5x3x0.125, HSS5x2.5x0.25, HSS5x2.5x0.1875, HSS5x2.5x0.1265, HSS5x2x0.375, HSS5x2x0.3125, HSS5x2x0.25, HSS5x2x0.1875, HSS5x2x0.125, HSS4x3x0.375, HSS4x3x0.3125, HSS4x3x0.25, HSS4x3x0.1875, HSS4x3x0.125, HSS4x2.5x0.3125, HSS4x2.5x0.3125, HSS4x2.5x0.25, HSS4x2.5x0.1875, HSS4x2.5x0.125, HSS4x2x0.375, HSS4x2x0.3125, HSS4x2x0.25, HSS4x2x0.1875, HSS4x2x0.125, HSS3.5x2.5x0.375, HSS3.5x2.5x0.3125, HSS3.5x2.5x0.25, HSS3.5x2.5x0.1875, HSS3.5x2.5x0.125, HSS3.5x2x0.25, HSS3.5x2x0.1875, HSS3.5x2x0.125, HSS3.5x1.5x0.25, HSS3.5x1.5x0.1875, HSS3.5x1.5x0.125, HSS3x2.5x0.3125, HSS3x2.5x0.25, HSS3x2.5x0.1875, HSS3x2.5x0.125, HSS3x2x0.3125, HSS3x2x0.25, HSS3x2x0.1875, HSS3x2x0.125, HSS3x1.5x0.25, HSS3x1.5x0.1875, HSS3x1.5x0.125, HSS3x1x0.1875, HSS2.5x2x0.25, HSS2.5x2x0.1875, HSS2.5x2x0.125, HSS2.5x1.5x0.25, HSS2.5x1.5x0.1875, HSS2.5x1.5x0.125, HSS2.5x1x0.1875, HSS2.5x1x0.125, HSS2.25x2x0.1875, HSS2.25x2x0.125, HSS2x1.5x0.1875, HSS2x1.5x0.125, HSS2x1x0.1875, and HSS2x1x0.125
Rond Sizes include: HSS20x0.500, HSS20x0.375, HSS18x0.500, HSS18x0.375, HSS16x0.375, HSS16x0.625, HSS16x0.500, HSS16x0.438, HSS16x0.375, HSS16x0.312, HSS16x0.250, HSS14x0.625, HS14x0.500, HSS14x0.375, HSS14x0.312, HSS14x0.250, HSS12.750x0.500, HSS12.750x0.375, HSS12.750x0.250, HSS10.750x0.500, HSS10.750x0.375, HSS10.750x0.250, HSS10.0.625, HSS10x0.500, HSS10x0.375, HSS10x0.12, HSS10x0.250, HSS10x0.188, HSS0.625x0.500, HSS9.625x0.375, HSS9.625x0.312, HSS9.625x0.250, HSS9.625x0.188, HSS8.625x0.625, HSS8.625x0.500, HSS8.625x0.0375, HSS8.625x0.322, HSS8.625x0.250, HSS8.625x0.188, HSS7.625x0.375, HSS7.625x0.328, HSS7.500x0.500, HSS7.500x0.375, SS7.500x0.250, HSS7.500x0.188, HSS7x0.500, HSS7x0.375, HSS7x0.312, HSS7x0.250, HSS7x0.188, HSS7x0.125, HSS6.875x0.500, HSS6.875x0.375, HSS6.875x0.312, HSS6.875x0.250, HSS6.875x0.188, HSS6.625x0.500, HSS6.625x0.432, HSS6.625x0.375, HSS6.625x0.312, HSS6.625x0.280, HSS6.625x0.250, HSS6.625x0.188, HSS6.625x0.125, HSS6x0.500, HSS6x0.375, HSS6x0.312, HSS6x0.280, HSS6x0.250, HSS6x0.188, HSS6x0.125, HSS5.563x0.500, HS5.563x0.375, HSS5.563x0.258, HSS5.563x0.188, HSS5.563x0.134, HSS5.500x0.500, HSS5.500x0.375, HSS5.500x0.258, HSS5x0.500, HSSS5x0.375, HSS5x0.312, HSS5x0.258, HSS5x0.250, HSS5x0.188, HSS5x0.125, HSS4.500x0.375, HSS4.500x0.337, HSS4.500x0.237, HSS4.500x0.188, HSS4.500x0.125, HSS4x0.313, HSS4x0.250, HSS4x0.237, HSS4x0.226, HSS4x0.200, HSS4x0.188, HSS4x0.125, HSS3.500x0.313, HSS3.500x0.300, HSS3.500x0.250, HSS3.500x0.216, HSS3.500x0.203, HSS3.500x0.188, HSS3.500x0.125, HSS3x0.250, HSS3x0.216, HSS3x0.203, HSS3x0.188, HSS3x0.152, HSS3x0.134, HSS3x0.125, HSS2.875x0.250, HSS2.875x0.203, HSS2.875x0.188, HSS2.875x0.125, HSS2.500x0.250, HSS2.500x0.188, HSS2.500x0.125, HSS2.375x0.250, HSS2.375x0.218, HSS2.375x0.188, HSS2.375x0.154, HSS2.375x0.125, HSS1.900x0.188, HSS1.900x0.145, HSS1.900x0.120, and HSS1.660x0.140
Formes en S Sizes include: S24x121, S24x106, S24x100, S24x90, S24x80, S20x96, S20x86, S20x75, S20x66, S18x70, S18x54.7, S15x50, S15x42.9, S12x50,
Carré SIzes include: HSS16x16x0.625, HSS16x16x0.5, HSS16x16x0.375, HSS16x16x0.3125, HSS14x14x0.625, HSS14x14x0.5, HSS14x14x0.5, HSS14x14x0.375, HSS14x14x0.3125, HSS10x10x0.625, HSS10x10x0.5, HSS10x10x0.375, HSS10x10x0.25, HSS10x10x0.1875, HSS9x9x0.625, HSS9x9x0.5, HSS9x9x0.375, HSS9x9x0.3125, HSS9x9x0.25, HSS9x9x0.1875, HSS9x9x0.125, HSS8x8x0.625, HSS8x8x0.5, HSS8x8x0.375, HSS8x8x0.3125, HSS8x8x0.25, HSS8x8x0.1875, HSS8x8x0.125, HSS7x7x0.625, HSS7x7x0.5, HSS7x7x0.375, HSS7x7x0.3125, HSS7x7x0.25, HSS7x7x0.1875, HSS7x7x0.125, HSS6x6x0.625, HSS6x6x0.5, HSS6x6x0.375, HSS6x6x0.3125, HSS6x6x0.25, HSS6x6x0.1875, HSS6x6x0.125, HSS5.5x5.5x0.375, HSS5.5x5.5x0.3125, HSS5.5x5.5x0.25, HSS5.5x5.5x0.1875, HSS5.5x5.5x0.125, HSS5x5x0.5, HSS5x5x0.375, HSS5x5x0.3125, HSS5x5x0.25, HSS5x5x0.1875, HSS5x5x0.125, HSS4.5x4.5x0.5, HSS4.5x4.5x0.375, HSS4.5x4.5x0.3125, HSS4.5x4.5x0.25, HSS4.5x4.5x0.1875, HSS4.5x4.5x0.125, HSS4x4x0.5, HSS4x4x0.375, HSS4x4x.3125, HSS4x4x0.25, HSS4x4x0.1875, HSS4x4x0.125, HSS3.5x3.5x0.375, HSS3.5x3.5x0.3125, HSS3.5x3.5x0.25, HSS3.5x3.5x0.1875, HSS3.5x3.5x0.125, HSS3x3x0.375, HSS3x3x0.3125, HSS3x3x0.25, HSS3x3x0.1875, HSS3x3x0.125, HSS2.5x2.5x0.3125, HSS2.5x2.5x0.25, HSS2.5x2.5x0.1875, HSS2.5x2.5x0.125, HSS2.5x2.5x0.25, HSS2.25x2.25x0.25, HSS2.25x2.25x0.1875, HSS2.25x2.25x0.125, HSS2x2x0.25, HSS2x2x0.125, and HSS2x2x0.125

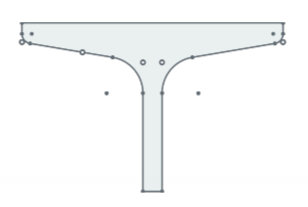

Formes en ST Sizes include: ST12x60.5, ST12x53, ST12x50, ST12x50, ST12x45, ST12x40, ST10x48, ST10x43, ST10x37.5, ST10x33, ST9x35, ST9x27.35, ST7.5x25, ST7.5x21.45, ST7.5x25, ST7.5x20.4, ST6x17.5, ST6x15.9, ST5x17.5, ST5x12.7, ST4x11.5, ST4x9.2, ST3.8.6, ST3x6.25, ST2.5x5, ST2x4.75, ST2x3.85, ST1.5x3.75, and ST1.5x2.85
Formes en W Sizes include: W44x335, W44x290, W44x262, W44x230, W40x593, W40x503, W40x431, W40x397, W40x372, W40x362, W40x324, W40x297, W40x277, W40x249, W40x215, W40x199, W40x392, W40x331, W40x327, W40x294, W40x278, W40x264, W40x235, W40x211, W40x183, W40x167, W40x149, W36x652, W36x529, W36x487, W36x441, W36x395, W36x330, W36x302, W36x282, W36x262, W36x247, W36x231, W36x256, W36x232, W36x210, W36x194, W36x182, W36x170, W36x160, W36x150, W36x135, W33x387, W33x354, W33x318, W33x291, W33x263, W33x241, W33x221, W33x201, W33x169, W33x152, W33x141, W33x130, W33x118, W30x391, W30x357, W30x326, W30x292, W30x261, W30x235, W30x211, W30x191, W30x173, W30x148, W30x132, W30x124, W30x116, W30x108, W30x99, W30x90, W27x539, W27x368, W27x336, W27x307, W27x281, W27x258, W27x235, W27x217, W27x194, W27x178, W27x161, W27x146, W27x129, W27x114, W27x102, W27x94, W27x84, W24x370, W24x335, W24x306, W24x279, W24x250, W24x229, W24x207, W24x192, W24x176, W24x162, W24x146, W24x131, W24x117, W24x104, W24x103, W24x94, W24x84, W24x76, W24x68, W24x62, W24x55, W21x201, W21x182, W21x166, W21x147, W21x132, W21x122, W21x111, W21x101, W21x93, W21x83, W21x73, W21x68, W21x62, W21x55, W21x48, W21x57, W21x44, W18.311, W18x283, W18x258, W18.234, W18x211, W18x192, W18x175, W18x158, W18x143, W18x130, W18x119, W18x106, W18x97, W18x89, W18x76, W18x71, W18x65, W18x50, W18x55, W18x50,W18x46, W18x40, W18x35, W16x100, W16x89, W16x77, W16x67, W16x57, W16x50, W16x45, W16x40, W16x36, W16x31, W16x26, W14x730, W14x665, W14x605, W14x550, W14x500, W14x455, W14x426, W14x398, W14x370, W14x342, W14x311, W14x283, W14x257, W14x233, W13x211, W14x193, W14x176, W14x159, W14x145, W14x132, W14x120, W14x109, W14x99, W14x90, W14x82, W14x74, W14x68, W14x61, W14x53, S14x48, W14x43, W14x38, W14x34, W14x30, W14x26, W14x22, W12x336, W12x305, W12x279, W12x252, W12x230, W12x210, W12x190, W12x170, W12x152, W12x136, W12x120, W12x106, W12x96, W12x87, W12x79, W12x72, W12x65, W12x58, W12x53, W12x50, W12x45, W12x40, W12x35, W12x30, W12x26, W12x22, W12x19, W12x16, W12x14, W10x112, W10x100, W10x88, W10x77, W10x68, W10x60, W10x54, W10x49, W10x45, W10x39, W10x33, W10x26, W10x22, W10x19, W10x17, W10x15, W10x12, W8x67, W8x58, W8x48, W8x40, W8x35, W8.31, W8x28, W8x24, W8x21, W8x18, W8x15, W8x13, W8x10, W6x25, W6x20, W6x15, W6x16, W6x12, W6x9, W6x8.5, W5x19, W5x16, and W4x13

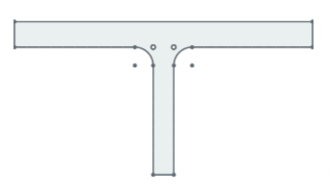

Formes en WT

Sizes include: WT22x167.5, WT22x145, WT22.131, WT22x115, WT20x296.5, WT20x251.5, WT20x215.5, WT20x198.5, WT20x186, WT20x181, WT20x162, WT20x162, WT20x138.5, WT20x124.5, WT20x107.5, WT20x99.5, WT20x196, WT20x65.5, WT20x163.5, W20x147, WT20x139, WT20x132, WT20x117.5, WT20x105.5, WT20x91.5, WT20x83.5, WT20x74.5, WT18x326, WT18x264.5, WT18x243.5, WT18x220.5, WT18x197.5, WT18x180.5, WT18x165, WT18x151, WT18x141, WT18x131, WT18x123.5, WT18x115.5, WT18x128, WT18x116, WT18x105, WT18x97, WT18x91, WT18x85, WT18x80, WT18x75, WT18x67.5, WT16.5x193.5, WT16.5x177, WT16.5x159, WT16.5x145.5, WT16.5x131.5, WT16.5x120.5, WT16.5x110.5, WT16.5x100.5, Wt16.5x84.5, WT16.5x76, WT16.5x70.5, WT16.5x65, WT16.5x59, WT15x195.5, WT15x178.5, WT15x163, WT15x146, WT15x130.5, WT15x117.5, WT15x105.5, WT15.95.5, WT15x86.5, WT15x74, WT15x66, WT15x62, WT15x58, WT15x54, WT15x49.5, WT15x45, WT13.5x269.5, WT13.5x184, WT13.5x168, WT13.5x153.5, WT13.5x140.5, WT13.5x129, WT13.5x117.5, WT13.5x108.5, Wt13.5x97, WT13.5x89, WT13.5x80.5, WT13.5x73, WT13.5x64.5, WT13.5x57, WT13.5x51, WT13.5x47, Wt13.5x42, WT12x185, Wt12x167.5, WT12x153, WT12x139.5, Wt12x125, WT12x114.5, WT12x103.5, WT12x96, WT12x88, WT12x81, WT12x73, WT12x65.5, WT12, 58.5, WT12x52, WT12x51.5, WT12x47, WT12x42, WT12x38, WT12x34, WT12x31, Wt12x27.5, WT10.5x100.5, WT10.5x91, WT10.5x83, WT10.5x73.5, WT10.5x66, WT10.5x61, WT10.5x55.5, WT10.5x50.5, WT10.5x46.5, WT10.5x41.5, WT10.5x34, WT10.5x31, WT10.5x27.5, WT10.5x24, WT10.5x28.5, WT10.5x25, WT10.5x22, WT9x155.5, WT9x141.5, WT9x129, WT9x117, WT9x105.5, WT9x96, WT9x87.5, WT9x79, WT9x71.5, WT9x65, WT9x59.5, WT9x53, WT9x48.5, WT9x43, WT9.38, WT9x35.5, WT9x32.5, WT9x30, WT9x27.5, WT9x25, WT9x23, WT9x20, WT9x17.5, WT8x50, TW8x44.5, WT8x38.5, WT8x33.5, WT828.5, WT8x25, WT8x22.5, WT8x20, WT8x18, WT8x15.5, WT8x13, WT7x365, WT7x332.5, WT7x302.5, WT7x275, WT7x250, WT7x227.5, WT7x213, WT7x199, WT7x185, WT7x171, WT7x155.5, WT7x141.5, WT7x128.5, WT7x116.5, WT7x105.5, WT7x96.5, WT7x88, WT7x79.5, WT7x72.5, WT7x66, WT7x60, WT7x54.5, WT7x49.5, WT7x45, WT7x41, WT7x34, WT7x30.5, WT7x26.5, WT7x24, WT7x21.5, WT7x19, WT7x17, WT7x15, WT7x13, WT7x11, Tw6x168, WT6x152.5, WT6x139.5 WT6x126, WT6x115, WT6x105, WT6x95, WT6x85, WT6x76, WT6x68, WT6x60, WT6x53, WT6x48, WT6x43.5, WT6x39.5, WT6x32.5, WT6x29, WT6x26.5, WT6x25, WT6x22.5, WT6x20, WT6x17.5, WT6x15, WT6x13, WT6x11, WT6x9.5, WT6x8, TW6x7, WT5x56, WT5x50, WT5x38.5, WT5x34, WT5x30, WT5x27, WT5x24.5, WT5x22.5, WT5x19.5, WT5x16.5, WT5x15, WT5x13, WT5x11, WT5x9.5, WT5x8.5, WT5x7.5, WT5x6, WT4x33.5, WT4x29, WT4x24, WT4x20, WT4x17.5, WT4x15.5, WT4x14, WT4x12, WT4x10.5, WT4x9, WT4x7.5, WT4x6.5, WT4x5, WT3x12.5, WT3x10, WT3x7.5, WT3x8, WT3x6, WT3x4.5, WT3x4.25, WT2.5x9.5, WT2.5x8, and WT2x6.5

Profils de cadre ANSI

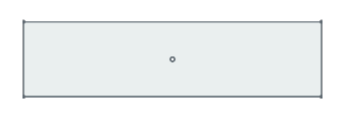

Barres rectangulaires

Les dimensions comprennent : 0,25 po x 0,0625 po, 0,5 po x 0,0625 po, 0,625 po x 0,0625 po, 0,75 po x 0,0625 po, 0,875 po x 0,0625 po, 1 po x 0,0625 po, 1,25 po x 0,0625 po, 1,5 po x 0,0625 po, 1,75 po x 0,0625 po, 2 po x 0,0625 po, 2,25 po x 0,0625 po 25 po, 2,5 po x 0,0625 po, 2,75 po x 0,0625 po, 3 po x 0,0625 po, 0,375 po x 0,09375 po, 0,5 po x 0,09375 po, 0,75 po x 0,09375 po, 1 po x 0,09375 po, 2 po x 0,09375 po, 3 po x 0,09375 po, 0,125 po x 0,125 po, 0,5 po x 0,125 po, 1 po x 0,125 po, 1,25 po x 0,125 po, 1,5 po x 0,125 po, 2 po x 0,125 po, 2,5 po x 0,125 po, 3 po x 0,125 po, 4 po x 0,125 po, 6 po x 0,125 po, 0,5 po x 0,1875 po, 0,75 po x 0,1875 po, 1 po x 0,1875 po, 1,25 po x 0,1875 po, 1,5 po x 0,1875 po, 2 po x 0,1875 po, 2,5 po x 0,1875 po, 3 po x 0,1875 po, 4 po x 0,1875 po, 0,25 po x 0,25 po, 0,375 po x 0,25 po, 0,5 po x 0,25 po, 0,625 po x 0,25 po, 0,75 po x 0,25 po, 0,875 po x 0,25 po, 1 po x 0,25 po, 1,25 po x 0,25 po, 1,5 po x 0,25 po, 1,75 po x 0,25 po, 2 po x 0,25 po, 2 po x 0,25 po, 2,25 po x 0,25 po, 2,5 po x 0,25 po, 75 po x 0,25 po, 3 po x 0,25 po, 3,5 po x 0,25 po, 4 po x 0,25 po, 5 po x 0,25 po, 6 po x 0,25 po, 8 po x 0,25 po, 10 po x 0,25 po, 12 po x 0,25 po, 0,312po x 0,3125 po, 0,75 po x 0,3125 po, 1 po x 0,3125 po, 1,5 po x 0,3125 po, 2 po x 0,3125 po, 3 po x 0,3125 po, 0,375 po x 0,375 po, 0,75 po x 0,375 po, 1 po x 0,375 po, 1 po x 0,375 po, 1,25 po x 0,375 po, 1,5 po x 0,375 po, 1,75 po x 0,375 po, 2 po x 0,375 po, 2 po x 0,375 po, 2,5 po x 0,375 po 5 po, 3 po 0,375 po, 3,5 po x 0,375 po, 4 po x 0,375 po, 5 po x 0,375 po, 6 po x 0,375 po, 8 po x 0,375 po, 10 po x 0,375 po po, 0,4375 po x 0,4375 po, 0,5 po x 0,5 po, 0,75 po x 0,5 po, 1 po x 0,5 po, 1 po x 0,5 po, 1,25 po x 0,5 po, 1,5 po x 0,5 po, 1,75 po x 0,5 po, 2 po x 0,5 po, 2,5 po x 0,5 po, 3 po x 0,5 po, 3,5 po x 0,5 po, 4 po x 0,5 po, 6 po x 0,5 po, 8 po x 0,5 po, 10 po x 0,5 po, 12 po x 0,5 po, 0,5625 po x 0,5625 po, 0,625 po x 0,625 po, 0,75 po x 0,625 po, 1 po x 0,625 po, 1,5 po x 0,625 po, 2 po x 0,625 po, 2,5 po x 0,625 po, 3 po x 0,625 po, 4 po x 0,625 po, 5 po x 0,625 po, 6 po x 0,625 po, 8 po x 0,625 po, 10 po x 0,625 po, 12 po x 0,625 po, 0,6875 po x 0,6875, 0,75 po x 0,75 po, 1 po x 0,75 po, 1,25 po x 0,75 po, 1,5 po x 0,75 po, 1,75 po x 0,75 po, 2 po x 0,75 po, 2,5 po x 0,75 po, 3 po x 0,75 po, 3,5 po x 0,75 po, 4 po x 0,75 po, 5 po x 0,75 po, 6 po 0,75 po, 8 po x 0,75 po , 10 po x 0,75 po, 12 po x 0,75 po, 0,8125 po x 0,8125 po, 0,875 po x 0,875 po, 1 po x 0,875 po, 1,5 po x 0,875 po, 2 po x 0,875 po, 1 po x 1 po, 1,25 po x 1 po, 1,5 po x 1 po, 1,75 po x 1 po, 2 po x 1 po, 2,5 po x 1 po, 3 po x 1 po, 3,5 po x 1 po, 4 po x 1 po, 5 po x 1 po, 6 po x 1 po, 8 po x 1 po, 10 po x 1 po, 12 po x 1 po, 1,125 po x 1,125 po, 1,5 po x 1,25 po, 1,75 po x 1,25 po, 2 po x 1. 75 po, 2,25 po x 1,25 po, 2,5 po x 1,25 po, 3 po x 1,25 po, 3,5 po x 1,25 po, 4 po x 1,25 po, 6 po x 1,25 po, 1,375 po x 1,375 po, 1,5 po x 1,5 po, 1,75 po x 1,75 po, 2 po x 1,5 po, 2,25 po x 1,5 po, 2,5 po x 1,5 po, 3 po x 1,5 po, 3,5 po x 1,5 po, 4 po x 1,5 po, 5 po x 1,5 po, 6 po x 1,5 po, 1,625 po x 1,625 po, 1,75 po x 1,75 po, 2 po x 2 po, 2,5 po x 2 po, 3 po x 2 po, 3,5 po x 2 po, 4 po x 2 po, 5 po x 2 po, 6 po x 2 po, 2,25 po x 2,25 po, 2,5 po x 2,5 po, 3 po x 2,5 po, 4 po x 2,5 po, 5 po x 2,75 po, 3 po x 3 po, 3,5 po x 3 po, 4 po x 3 po, 5 po x 3 po, 6 po x 3 po, 3,25 po x 3,25 po, 3,5 po x 3,5 po, 4 po x 4 po, 5 po x 4 po, 6 po x 3 po 4 po, 5 po x 5 po et 6 po x 6 po

Tube rectangulaire

Les tailles incluent : 0,375 po x 0,375 po x 0,035 po, 0,5 po x 0,5 po x 0,035 po, 0,5 po x 1 po x 0,035 po, 0,625 po x 0,625 po x 0,035 po, 0,75 po x 0,75 po x 0,035 po, 1 po x 1 po x 0,035 po, 0,5 po x 0,5 po x 0,049 po, 0,5 po x 1 po x 0,049 po, 0,625 po x 0,625 po x 0,049 po, 0,75 po x 0,75 po x 0,049 po, 1 po x 1 po x 0,049 po, 1 po x 1,5 po x 0,049 po, 0,25 po x 0,25 po x 0,0625 po, 0,375 po x 0,375 po x 0,0625 po, 0,5 po x 0,5 po x 0,0625 po, 0,5 po x 1 po x 0,0625 po, 0,75 po x 0,75 po x 0,0625 po, 1 po x 1 po x 0,0625 po, 1 po x 1,5 po x 0,0625 po, 1 po x 2 po x 0,0625 po, 1,25 po x 1,25 po x 0,0625 po, 1,5 po x 1,5 po , 0,0625 po, 1,75 po x 1,75 po x 0,0625 po, 2 po x 2 po x 0,0625 po, 0,5 po 0,5 po 0,065 po, 0,5 po x 1 po x 0,065 po, 0,5 po 1,5 po x 0,065 po, 0,75 po x 0,75 po x 0,065 po, 1 po x 1 po x 0,065 po, 1 po x 1,75 po x 0,065 po, 1 po x 1,5 po x 0,065 po, 1 po x 2 po x 0,065 po, 1 po x 3 po x 0,065 po, 1,25 po x 1,25 po x 0,065 po, 1,5 po x 1,5 po x 0,065 po, 2 po x 2 po x 0,065 po, 0,75 po x 0,75 po x 0,083 po, 0,75 po x 1,5 po x 0,083 po, 1 po x 1 po x 0,083 po, 1 po x 3 po x 0,083 po, 1 po x 2 po x 0,083 po, 1,25 po x 1,25 po x 0,083 po, 1,5 po x 1,5 po x 0,083 po, 2 po x 2 po x 0,083 po, 2 po x 4 po x 0,083 po, 2,5 po x 2,5 po x 0,083 po, 0,75 po x 0,85 po x 0,12 po, 1 po x 1 po x 0,12 po, 1 po x 2 po x 0,12 po, 1 po x 1,5 po x 0,12 po, 1,25 po x 1,25 po x 0,12 po, 1,5 po x 1,5 po x 0,12 po, 1,5 po x 2,5 po x 0,12 po, 2 po x 2 po x 0,12 po, 0,75 po x 0,75 po x 0,125 po, 0,75 po x 1,5 po x 0,125 po, 1 po x 1 po x 0,125 po, 1 po x 1,5 po x 0,125 po, 1 po x 2 po x 0,125 po, 1 po x 3 po x 0,125 po, 1 po x 4 po x 0,125 po, 1 po x 6 po x 0,125 po, 1,25 po x 1,25 po x 0,125 po, 1,25 po x 2,5 po x 0,125 po, 1,5 po x 1,5 po x 0,125 po, 1,5 po x 2 po x 0,125 po, 1,5 po x 2,5 po x 0,125 po, 1,5 po x 3 po x 0,125 po, 1,75 po x 1,75 po x 0,125 po, 1,75 po x 3 po x 0,125 po, 1,75 po x 3,5 po x 0,125 po, 1,75 po x 4 po x 0,125 po, 2 po x 2 po x 0,125 po, 2 po x 3 po x 0,125 po, 2 po x 4 po x 0,125 po, 2' x 5 po x 0,125 po, 2 po x 6 po x 0,125 po, 2 po x 8 po x 0,125 po, 2,5 po x 2,5 po x 0,125 po, 3 po x 3 po x 0,125 po, 3' x 4 po x 0,125 po, 3,5 po x 3,5 po x 0,125 po, 4 po x 4 po x 0,125 po, 5 po x 5 po x 0,125 po, 6 po x 6 po x 0,125 po, 1 po x 1 po x 0,1875 po, 1,5 po x 3 po x 0,1875 po, 2 po x 2 po x 0,1875 po, 2 po x 4 po x 0,1875 po, 2 po x 6 po x 0,1875 po, 3 po x 3 po x 0,1875 po, 3 po x 4 po x 0,1875 po, 3 po x 6 po x 0,1875 po, 4 po x 4 po x 0,1875 po, 4 po x 6 po x 0,1875 po, 4 po x 5 po x 0,1875 po, 4,5 po x 4,5 po x 0,1875 po, 5 po x 5 po x 0,1875 po, 6 po x 6 po x 0,1875 po, 8 po x 8 po x 0,1875 po, 1,25 po x 1,25 po x 0,188 po, 1,5 po x 1,5 po x 0,188 po, 1,5 po x 3 po x 0,188 po, 2 po x 2 po x 0,188 po, 3 po x 3 po x 0,188 po, 4 po x 4 po x 0,188 po, 1,5 po x 3 po x 0,25 po, 2 po x 2 po x 0,25 po, 2 po x 3 po x 0,25 po, 2 po x 4 po x 0,25 po, 2 po x 6 po x 0,25 po, 2 po x 8 po x 0,25 po, 2,5 po x 2,5 po x 0,25 po, 3 po x 3 po x 0,25 po, 3 po x 4 po x 0,25 po, 4 po x 4 po x 0,25 po, 4 po x 6 po x 0,25 po, 4 po x 8 po x 0,25 po, 5 po x 5 po x 0,25 po, 6 po x 6 po x 0,25 po, 4 po x 4 po x 0,375 po, 5 po x 8 po x 0,375 po, 6 po x 6 po x 0,375 po, 4 po x 4 po x 0,5 po, 4 po x 6 po x 0,5 po, 4 po x 8 po x 0,5 po, 6 po x 6 po x 0,5 po et 8 po x 8 po x 0,5 po

Barre ronde

Les tailles incluent : 1/32 po (0,03125), 1/16 po (0,0625), 3/32 po (0,09375), 1/8 po (0,125), 5/32 po (0,1625), 3/16 po (0,1875), 7/32 po (0,21875), 1/4 po (0,25), 9/32 po (0,28125), 5/16 po (0,3125), 11/32 po (0,34375), 3/8 po (0,375), 13/32 po (0,40625), 7/16 po (0,4375), 15/32 po (0,46875), 1/2 po (0,5), 17/32 po (0,53125), 9/16 po (0,5625), 19/32 po (0.59375), 5/8  po (0,625), 21/32 po (0,65625), 11/16  po (0,6875), 23/32 po (0,71875), 3/4  po (0,75), 25/32 po (0,78125), 13/16  po (0,8125), 27/32 po (0,84375), 7/8  po (0,875), 29/32 po (0,90625), 15/16  po (0,9375) 75), 31/32 po (0,96875), 1 po, 1 1/16 po (1,0625), 1 1/8 po (1,125), 1 3/16 po (1,1875), 1 1/4 po (1,25), 1 5/16 po (1,3125), 1 3/8 po (1,375), 1 7/16 po (1,4375), 1 1/2 po (1,5), 1 9/16 po (1,5625), 1 5/8 po (1,625), 1 11/16 po (1,6875), 1 3/4 po (1,75), 1 13/16 po (1,8125), 1 7/16 po (1,8125), 1 7/16 po 8 po (1,875), 1 15/16 po (1,9375), 2 po, 2 1/8 po (2,125), 2 1/4 po (2,25), 2 3/8 po (2,375), 2 1/2 po (2,5), 2 5/8 po (92,625), 2 3/4 po (2,75), 2 7/8 po (2,875), 3 po, 3 1/4 po (3,25), 3 1/2 po (3,5), 3 3/4 po (3,75), 4 po, 4 1/2 po (4,5), 5 1/2 po, 5 1/2 po (5,5) et 6 po

Tube rond

Les dimensions incluent : 0,125 po x 0,028 po, 0,1875 po x 0,028 po, 0,25 po x 0,028 po, 0,312po x 0,028 po, 0,375 po x 0,028 po, 0,375 po x 0,028 po, 0,4375 po x 0,028 po, 0,5 po x 0,028 po, 0,5625 po x 0,028 po, 0,625 po x 0,028 po, 0,625 po x 0,028 po, 1 po x 0,028 po, 0,125 po x 0,035 po, 0,188 po x 0,035 po, 0,25 po x 0,035 po, 0,313 po x 0,035 po, 0,375 po x 0,035 po, 0,5 po x 0,035 po, 0 0,625 po x 0,035 po, 0,75 po x 0,035 po, 0,875 po x 0,035 po, 1 po x 0,035 po, 1,125 po x 0,035 po, 1,25 po x 0,035 po, 1,375 po x 0,035 po, 1,5 po x 0,035 po, 0,25 po x 0,049 po, 0,313 po x 0,049 po, 0,375 po x 0,049 po, 0,438 po x 0,049 po, 0,5 po x 0,049 po, 0,625 po x 0,049 po, 0,75 po x 0,049 po, 1 po x 0,049 po, 1,125 po x 0,049 po, 1,25 po x 0,049 po, 1,375 po x 0,049 po, 1,5 po x 0. 049 po, 2 po x 0,049 po, 0,374 po x 0,058 po, 0,4375 po x 0,058 po, 0,5 po x 0,058 po, 0,625 po x 0,058 po, 0,75 po x 0,058 po, 0,875 po x 0,058 po, 1 po 0,058 po, 1,125 po x 0,058 po, 1,125 po x 0,058 po, 1,25 po x 0,058 po, 1,375 po x 0,058 po, 1,5 po x 0,058 po, 1,75 po x 0,058 po, 0,25 po x 0,065 po, 0,313 po x 0,065 po, 0,375 po x 0,065 po, 0,438 po x 0,065 po, 0,5 po x 0,065 po, 0. 563 po x 0,065 po, 0,625 po x 0,065 po, 0,75 po x 0,065 po, 0,875 po x 0,065 po, 1 po x 0,065 po, 1,125 po x 0,065 po, 1,75 po x 0,065 po, 1,375 po x 0,065 po, 1,5 po x 0,065 po, 1,625 po x 0,065 po, 1,75 po x 0,065 po, 2 po x 0,065 po 0,065 po, 3 po x 0,065 po, 4 po x 0,065 po, 0,375 po x 0,083 po, 0,438 po x 0,083 po, 0,5 po x 0,083 po, 0,563 po x 0,083 po, 0,625 po x 0,083 po, 0,75 po x 0,083 po, 0,875 po x 0,083 po, 1 po x 0,083 po, 1,125 po x 0,083 po, 1,375 po x 0,083 po, 1,5 po x 0,083 po, 1,625 po x 0,083 po, 1,75 po x 0,083 po, 2 po x 0,083 po, 0,3125 po x 0,095 po, 0,4375 po x 0,095 po, 0,095 po x 0,095 po, 0,75 po x 0,095 po, 1 po x 0,095 po, 1,125 po x 0,095 po, 1,375 po x 0,095 po, 1,5 po x 0,095, 1,625 po x 0,095 po, 1,75 po x 0,095 po, 2 po x 0,095 po, 2,5 po x 0,095 po, 0,375 po x 0,12 po, 0,438 x 0,12 po, 0,563 po x 0,12 po, 0,625 po x 0,12 po, 0,75 po x 0,12 po, 0,875 po x 0,12 po, 1 po x 0,12 po, 1,125 po x 0,12 po, 1,125 po x 0,12 po 25 po x 0,12 po, 1,375 po x 0,12 po, 1,5 po x 0,12 po, 1,75 po x 0,12 po, 2 po x 0,12 po, 2,25 po x 0,12 po, 2,5 po x 0,12 po, 3,5 po x 0,12 po, 4 po x 0,12 po, 4,5 po x 0,12 po, 0,75 po x 0,125 po, 1 po x 0,125 po, 1,25 po x 0,125 po, 1,5 po x 0,125 po, 1,75 po x 0,125 po, 2 po x 0,125 po, 3 po x 0,125 po, 4 po x 0,125 po, 1,625 po x 0,134 po, 0,625 po x 0,156 po, 0,625 po x 0,188 po, 0,75 po x 0,188 po, 1 po x 0,188 po, 1,125 po x 0,188 po, 1,25 po x 0,188 po, 1,5 po x 0,188 po, 1,75 po x 0,188 po, 2 po x 0,188 po, 2,5 po x 0,188 po, 3 po x 0,188 po, 3,125 po x 0,188 po, 4 po x 0,188 po, 5 po x 0,188 po, 1 po x 0,25 po, 1,125 po x 0,25 po, 1,375 po x 0,25 po, 1,5 po x 0,25 po, 1,625 po x 0,25 po, 1,75 po x 0,25 po, 2 po x 0,25 po, 2,25 po x 0,25 po, 2,5 po x 0,25 po, 2,75 po x 0,25 po, 3 po x 0,25 po, 3,5 po x 0,25 po, 3,75 po x 0,25 po, 4 po x 0,25 po, 4 po x 0,25 po, 4. 5 po x 0,25 po, 5 po x 0,25 po, 5,5 po x 0,25 po, 6 po x 0,25 po, 1,25 po x 0,375 po, 1,5 po x 0,375 po, 1,75 po x 0,375 po, 2 po x 0,375 po, 2,25 po x 0,375 po, 2,5 po x 0,375 po, 2,75 po x 0,375 po, 3 po x 0,375 po, 3,25 po x 0,375 po, 3,5 po x 0,375 po, 4 po x 0,375 po, 4,5 po x 0,375 po, 5 po x 0,375 po, 6 po x 0,375 po, 1,5 po x 0,5 po, 2 po x 0,5 po, 2,25 po x 0,5 po, 2,5 po x 0,5 po, 2,75 po x 0,5 po, 3 po x 0,5 po, 3,25 po x 0,5 po, 3,5 po x 0,5 po, 3,75 po x 0,5 po, 4 po x 0,5 po, 5 po x 0,5 po, 5,5 po x 0,5 po, 6 po x 0,5 po, 3,25 po x 0,625 po, 3,75 po x 0,625 po, 4 po x 0,625 po, 3 po x 0,75 po, 3,25 po x 0,75 po, 3,5 po x 0,75 po, 3,75 po x 0,75 po, 4 po x 0,75 po, 4,25 po x 0,75 po, 4,5 po x 0,75 po, 4,75 po x 0,75 po, 5 po x 0,75 po, 6 po x 0,75 po, 4 po x 1 po, 4,5 po x 1po, 5 po x 1po, 5,5 po x 1po, 6po x 1po, 6,5 po x 1po, 7 po x 1 po, 8 po x 1 po, 4,5 po x 1,25 po, 5 po x 1,25 po, 5,5 po x 1,25 po, 6 po x 2 po, 8 po x 2 po, 10 po x 2 po et 12 po x 2 po

Profils de cadre AS

Profils et sections creuses formées à froid

Channel section

 Sizes include: 75 x 40 x 4 CC, 100 x 50 x 4 CC, 125 x 65 x 4 CC, 150 x 75 x 5 CC, 180 x 75 x 5 CC, 200 x 75 x 6 CC, 230 x 75 x 6 CC, 250 x 90 x 6 CC, 300 x 90 x 6 CC, 300 x 90 x 8 CC
Circular hollow section Sizes include: 21.3 x 2 CHS, 21.3 x 2.6 CHS, 21.3 x 3.2 CHS, 26.9 x 2 CHS. 26.9 x 2.3 CHS, 26.9 x 2.6 CHS, 26.9 x 3.2 CHS, 33.7 x 2 CHS, 33.7 x 2.6 CHS, 33.7 x 3.2 CHS, 33.7 x 4.0 CHS, 42.4 x 2 CHS, 42.4 x 2.6 CHS, 42.4 x 3.2 CHS, 42.4 x 4.0 CHS, 48.3 x 2.3 CHS, 48.3 x 2.9 CHS, 48.3 x 3.2 CHS, 48.3 x 4.0 CHS, 48.3 x 5.4 CHS, 60.3 x 2.3 CHS, 60.3 x 2.9 CHS, 60.3 x 3.6 CHS, 60.3 x 4.5 CHS, 60.3 x 5.4 CHS, 76.1 x 2.3 CHS, 76.1 x 2.6 CHS, 76.1 x 3.2 CHS, 76.1 x 3.6 CHS, 76.1 x 4.5 CHS, 76.1 x 5.9 CHS, 88.9 x 2.6 CHS, 88.9 x 3.2 CHS, 88.9 x 4.0 CHS, 88.9 x 5.0 CHS, 88.9 x 5.9 CHS, 101.6 x 2.6 CHS, 101.6 x 3.2 CHS, 101.6 x 4.0 CHS, 101.6 x 5.0 CHS, 114.3 x 3.2 CHS, 114.3 x 3.6 CHS, 114.3 x 4.5 CHS, 114.3 x 5.4 CHS, 139.7 x 3 CHS, 139.7 x 3.5 CHS, 139.7 x 5.4 CHS, 139.7 x 5.0 CHS, 165.1 x 3.5 CHS, 165.1 x 5.0 CHS, 165.1 x 5.4 CHS, 168.3 x 4.8 CHS, 168.3 x 6.4 CHS, 168.3 x 7.1 CHS, 219.1 x 4.8 CHS, 219.1 x 6.4 CHS, 219.1 x 8.2 CHS, 273.1 x 12.7 CHS, 273.1 x 4.8 CHS, 273.1 x 6.4 CHS, 273.1 x 9.3 CHS, 323.9 x 12.9 CHS, 323.9 x 6.4 CHS, 323.9 x 9.5 CHS, 355.6 x 12.7 CHS, 355.6 x 6.4 CHS, 355.6 x 9.5 CHS, 406.4 x 12.7 CHS, 406.4 x 6.4 CHS, 406.4 x 9.5 CHS, 457 x 12.7 CHS, 457 x 6.4 CHS, 457 x 9.5 CHS
Equal angle section Sizes include: 30 x 30 x 2.5 CA, 40 x 40 x 2.5 CA, 40 x 40 x 4 CA, 45 x 45 x 2.5 CA, 45 x 45 x 4 CA, 50 x 50 x 2.5 CA, 50 x 50 x 4 CA, 50 x 50 x 5 CA, 50 x 50 x 6 CA, 65 x 65 x 4 CA, 65 x 65 x 5 CA, 65 x 65 x 6 CA, 75 x 75 x 4 CA, 75 x 75 x 5 CA, 75 x 75 x 6 CA, 75 x 75 x 8 CA, 90 x 90 x 5 CA, 90 x 90 x 8 CA, 100 x 100 x 6 CA, 100 x 100 x 8 CA, 125 x 125 x 4 CA, 125 x 125 x 5 CA, 125 x 125 x 8 CA, 150 x 150 x 5 CA, 150 x 150 x 8 CA
Flat section Sizes include: 50 x 4 CA, 50 x 5 CA, 65 x 4 CA, 65 x 5 CA, 75 x 4 CA, 75 x 5 CA, 90 x 6 CA, 100 x 4 CA, 100 x 5 CA, 100 x 6 CA, 100 x 8 CA, 130 x 5 CA, 150 x 5 CA, 150 x 6 CA, 150 x 8 CA, 200 x 5 CA, 200 x 6 CA, 200 x 8 CA, 250 x 5 CA, 250 x 8 CA, 300 x 5 CA, 300 x 8 CA
Rail hollow section Size: 120 x 458 x 2
Rectangular hollow section Sizes include: 50 x 20 x 1.6 RHS, 50 x 20 x 2 RHS, 50 x 20 x 2.5 RHS, 50 x 20 x 3 RHS, 50 x 25 x 1.6 RHS, 50 x 25 x 2 RHS, 50 x 25 x 2.5 RHS, 50 x 25 x 3 RHS, 75 x 25 x 1.6 RHS, 75 x 25 x 2.5 RHS, 65 x 35 x 2 RHS, 65 x 35 x 2.5 RHS, 65 x 35 x 3 RHS, 65 x 35 x 4 RHS, 75 x 50 x 1.6 RHS, 75 x 50 x 2 RHS, 75 x 50 x 2.5 RHS, 75 x 50 x 3 RHS, 75 x 50 x 4 RHS, 75 x 50 x 5 RHS, 75 x 50 x 6 RHS, 100 x 50 x 1.6 RHS, 100 x 50 x 2.5 RHS, 100 x 50 x 3 RHS, 100 x 50 x 3.5 RHS, 100 x 50 x 4 RHS, 100 x 50 x 5 RHS, 100 x 50 x 6 RHS, 150 x 50 x 2 RHS, 150 x 50 x 2.5 RHS, 150 x 50 x 3 RHS, 150 x 50 x 4 RHS, 150 x 50 x 5 RHS, 150 x 50 x 6 RHS, 125 x 75 x 2 RHS, 125 x 75 x 2.5 RHS, 125 x 75 x 3 RHS, 125 x 75 x 4 RHS, 125 x 75 x 5 RHS, 125 x 75 x 6 RHS, 150 x 100 x 4 RHS, 150 x 100 x 5 RHS, 150 x 100 x 6 RHS, 150 x 100 x 9 RHS, 200 x 100 x 4 RHS, 200 x 100 x 5 RHS, 200 x 100 x 6 RHS, 200 x 100 x 9 RHS, 250 x 150 x 5 RHS, 250 x 150 x 6 RHS, 250 x 150 x 9 RHS,
Square hollow section Sizes include: 13 x 13 x 1.8 SHS, 15 x 15 x 1.8 SHS, 20 x 20 x 1.6 SHS, 25 x 25 x 1.6 SHS, 25 x 25 x 2 SHS, 25 x 25 x 2.5 SHS, 25 x 25 x 3 SHS, 30 x 30 x 1.6 SHS, 30 x 30 x 2 SHS, 35 x 35 x 1.6 SHS, 35 x 35 x 2 SHS, 35 x 35 x 2.5 SHS, 35 x 35 x 3 SHS, 40 x 40 x 1.6 SHS, 40 x 40 x 2 SHS, 40 x 40 x 2.5 SHS, 40 x 40 x 3 SHS, 40 x 40 x 4 SHS, 50 x 50 x 1.6 SHS, 50 x 50 x 2 SHS, 50 x 50 x 2.5 SHS, 50 x 50 x 3 SHS, 50 x 50 x 4 SHS, 50 x 50 x 5 SHS, 65 x 65 x 1.6 SHS, 65 x 65 x 2 SHS, 65 x 65 x 2.5 SHS, 65 x 65 x 3 SHS, 65 x 65 x 4 SHS, 65 x 65 x 5 SHS, 65 x 65 x 6 SHS, 75 x 75 x 2 SHS, 75 x 75 x 2.5 SHS, 75 x 75 x 3 SHS, 75 x 75 x 3.5 SHS, 75 x 75 x 4 SHS, 75 x 75 x 5 SHS, 75 x 75 x 6 SHS, 89 x 89 x 3.5 SHS, 89 x 89 x 5 SHS, 89 x 89 x 6 SHS, 90 x 90 x 2 SHS, 90 x 90 x 2.5 SHS, 100 x 100 x 2 SHS, 100 x 100 x 2.5 SHS, 100 x 100 x 3 SHS, 100 x 100 x 4 SHS, 100 x 100 x 5 SHS, 100 x 100 x 6 SHS, 100 x 100 x 9 SHS, 125 x 125 x 4 SHS, 125 x 125 x 5 SHS, 125 x 125 x 6 SHS, 125 x 125 x 9 SHS, 150 x 150 x 5 SHS, 150 x 150 x 6 SHS, 150 x 150 x 9 SHS, 200 x 200 x 5 SHS, 200 x 200 x 6 SHS, 200 x 200 x 9 SHS, 250 x 250 x 6 SHS, 250 x 250 x 9 SHS
Unequal angle section Sizes include: 75 x 50 x 4 CA, 75 x 50 x 5 CA, 75 x 50 x 6 CA, 100 x 75 x 6 CA, 100 x 75 x 8 CA, 125 x 75 x 6 CA, 125 x 75 x 8 CA, 150 x 100 x 6 CA, 150 x 100 x 8 CA

Acier laminé à chaud et acier de construction

Equal angles

 Sizes include: 25 x 25 x 3 EA, 25 x 25 x 4.6 EA, 25 x 25 x 6 EA, 30 x 30 x 3 EA, 30 x 30 x 4.6 EA, 30 x 30 x 4.6 EA, 30 x 30 x 6 EA, 40 x 40 x 3 EA, 40 x 40 x 4.6 EA, 40 x 40 x 6 EA, 45 x 45 x 3 EA, 45 x 45 x 4.6 EA, 45 x 45 x 6 EA, 50 x 50 x 3 EA, 50 x 50 x 4.6 EA, 50 x 50 x 6 EA, 50 x 50 x 7.8 EA, 55 x 55 x 4.6 EA, 55 x 55 x 6 EA, 65 x 65 x 4.6 EA, 65 x 65 x 6 EA, 65 x 65 x 7.8 EA, 65 x 65 x 9.5 EA, 75 x 75 x 4.6 EA, 75 x 75 x 6 EA, 75 x 75 x 7.8 EA, 75 x 75 x 9.5 EA, 90 x 90 x 6 EA, 90 x 90 x 7.8 EA, 90 x 90 x 9.5 EA, 100 x 100 x 6 EA, 100 x 100 x 7.8 EA, 100 x 100 x 9.5 EA, 100 x 100 x 12 EA, 125 x 125 x 7.8 EA, 125 x 125 x 9.5 EA, 125 x 125 x 12 EA, 125 x 125 x 15.8 EA, 150 x 150 x 9.5 EA, 150 x 150 x 12 EA, 150 x 150 x 15.8 EA, 150 x 150 x 19 EA, 200 x 200 x 13 EA, 200 x 200 x 16 EA, 200 x 200 x 18 EA, 200 x 200 x 20 EA, 200 x 200 x 26 EA
Parallel flange channel Sizes include: 75 PFC, 100 PFC, 125 PFC, 150 PFC, 180 PFC, 200 PFC, 230 PFC, 250 PFC, 300 PFC, 380 PFC
Tapered flange beam Sizes include: 100 TFB, 125 TFB
Unequal angles Sizes include: 65 x 50 x 4.6 UA, 65 x 50 x 6 UA, 65 x 50 x 7.8 UA, 75 x 50 x 4.6 UA, 75 x 50 x 6 UA, 75 x 50 x 7.8 UA, 100 x 75 x 6 UA, 100 x 75 x 7.8 UA, 100 x 75 x 9.5 UA, 125 x 75 x 6 UA, 125 x 75 x 7.8 UA, 125 x 75 x 9.5 UA, 125 x 75 x 12 UA, 150 x 90 x 7.8 UA, 150 x 90 x 9.5 UA, 150 x 90 x 12 UA, 150 x 90 x 15.8 UA, 150 x 100 x 9.5 UA, 150 x 100 x 12 UA
Universal beam Sizes include: 150 UB 14, 150 UB 18, 180 UB 16.1, 180 UB 18.1, 180 UB 22.2, 200 UB 18.2, 200 UB 22.3, 200 UB 25.4, 200 UB 29.8, 250 UB 25.7, 250 UB 31.4, 250 UB 37.3, 310 UB 32, 310 UB 40.4, 310 UB 46.2, 360 UB 44.7, 360 UB 50.7, 360 UB 56.7, 410 UB 53.7, 410 UB 59.7, 460 UB 67.1, 460 UB 74.6, 460 UB 82.1, 530 UB 82, 530 UB 92.4, 610 UB 101, 610 UB 113, 610 UB 125
Universal bearing pile Sizes include: 200 UBP 122, 310 UBP 78.8, 310 UBP 110, 310 UBP 149
Universal column Sizes include: 100 UC 14.8, 150 UC 23.4, 150 UC 30, 150 UC 37.2, 200 UC 46.2, 200 UC 52.2, 200 UC 59.5, 250 UC 72.9, 250 UC 89.5, 310 UC 96.8, 310 UC 118, 310 UC 137, 310 UC 158
Welded beam Sizes include: 700 WB 115, 700 WB 130, 700 WB 150, 700 WB 173, 800 WB 122, 800 WB 146, 800 WB 168, 800 WB 192, 900 WB 175, 900 WB 218, 900 WB 257, 900 WB 282, 1000 WB 215, 1000 WB 258, 1000 WB 296, 1000 WB 322, 1200 WB 249, 1200 WB 278, 1200 WB 317, 1200 WB 342, 1200 WB 392, 1200 WB 423, 1200 WB 455,
Welded column Sizes include: 350 WC 197, 350 WC 230, 350 WC 258, 350 WC 280, 400 WC 144, 400 WC 181, 400 WC 212, 400 WC 270, 400 WC 303, 400 WC 328, 400 WC 361, 500 WC 228, 500 WC 267, 500 WC 290, 500 WC 340, 500 WC 383, 500 WC 414, 500 WC 440

Profils de cadre ISO

Barres rectangulaires

Sizes include: 0.375in x 0.25in, 0.50in x 0.125in, 0.50in x 0.1875in, 0.50in x 0.25in, 0.50in x 0.375in, 0.625in x 0.125in, 0.625in x 0.1875in, 0.625in x 0.25in, 0.625in x 0.375in, 0.625in x 0.50in, 0.75in x 0.0625in, 0.75in x 0.125in, 0.75in x 0.1875in, 0.75in x 0.25in, 0.75in x 0.375in, 0.75in x 0.50in, 0.75in x 0.625in, 0.875in x 0.125in, 1in x 0.0625in, 1in x 0.125in, 1in x 0.1875in, 1in x 0.25in, 1in x 0.3125in, 1in x 0.375in, 1in x 0.5in, 1in x 0.625in, 1in x 0.75in, 1.25in x 0.125in, 1.25in x 0.1875in, 1.25in x 0.3125, 1.25in x 0.25in, 1.25in x 0.375in, 1.5in x 0.625in, 1.25in x 0.75in, 1.25in x 1in, 1.5in x 0.125in, 1.5in x 0.1875in, 1.50in x 0.25in, 1.5in x 0.3125in, 1.5in x 0.375in, 1.5in x 0.5in, 1.5in x 0.625in, 1.5in x 0.75in, 1.5in x 1in, 1.5in x 1.25in, 1.75in x 0.125in, 1.75in x 0.25in, 1.75in x 0.375in, 1.75in x 0.50in, 1.75in x 0.75in, 1.75in x 1in, 1.75in x 1.25in, 1.75in x 1.50in, 2in x 0.125in, 2in x 0.25in, 2in x 0.3125in, 2in x 0.375in, 2in x 0.50in, 2in x 0.625in, 2in x 0.75in, 2in x 1in, 2in x 1.25in, 2in x 1.50in, 2in x 1.75in, 2.25in x 0.25in, 2.25in x 0.50in, 2.25in x 1.25in, 2.50in x 0.1875in, 2.50in x 0.125, 2.50in x 0.25in, 2.50in x 0.375in, 2.50in x 0.50in, 2.5in x 0.625, 2.5in x 0.75in, 2.5in x 1in, 2.50in x 1.25in, 2.5in x 1.50in, 2.5in x 1.75in, 2.50in x 2in, 3in x 0.125, 3in x 0.25in, 3in x 00.375in, 3in x 0.50in, 3in x 0.625in, 3in x 1in, 3in x 1.25in, 3in x 1.50in, 3in x 1.75in, 3in x 2in, 3in x 2.50in, 3.50in x 0.25in, 3.50in x 0.625in, 3.5in x 0.50in, 3.50in x 0.75in, 3.50in x 1.25in, 3.50in x 1.50in, 4in x 0.125in, 4in x 0.1875in, 4in x 0.25in, 4in x 0.375in, 4in x 0.50in, 4in x 0.625in, 4in x 0.75in, 4in x 1in, 4in x 1.25in, 4in x 1.50in, 4in x 1.75in, 4in x 2in, 5in x 0.25in, 5in x 0.375in, 5in x 0.50in, 5in x 0.75in, 5in x 1in, 5in x 2in, 6in x 0.125in, 6in x 0.25in, 6in x 0.375in, 6in x 0.50in, 6in x 0.625in, 6in x 0.75in, 6in x 1in, 6in x 1.50in, 6in x 2in, 8in x 0.25in, 8in x 0.50in, 20mm x 10mm, 30mm x 10mm, 30mm x 12mm, 40mm x 5mm, 40mm x 10mm, 50mm x 8mm, 60mm x 10mm, 60mm x 30mm, 60mm x 40mm, 70mm x 20mm, 100mm x 5mm, 100mm x 6mm, 100mm x 8mm, 100mm x 20mm, 120mm x 10mm, 120mm x 20mm, 150mm x 8mm, 200mm x 6mm, 200mm x 8mm, and 200mm x 10mm

Tube rectangulaire

Sizes include: 20mm x 20mm x 2mm, 20mm x 20mm x 2.6mm, 30mm x 30mm x 2mm, 30mm x 30mm x 2.6mm, 30mm x 30mm x 3.2mm, 40mm x 40mm x 2.6mm, 40mm x 40mm x 3.2mm, 40mm x 40mm x 4mm, 50mm x 30mm x 2.6mm, 50mm x 30mm x 3.2mm, 50mm x 30mm x 4mm, 50mm x 50mm x 3.2mm, 50mm x 50mm x 4mm, 50mm x 50mm x 5mm, 60mm x 40mm x 3.2mm, 60mm x 40mm x 4mm, 60mm x 40mm x 5mm, 60mm x 60mm x 3.2mm, 60mm x 60mm x 4mm, 60mm x 60mm x 5mm, 70mm x 40mm x 3.2mm, 70mm x 40mm x 4mm, 70mm x 40mm x 5mm, 70mm x 70mm x 3.2mm, 70mm x 70mm x 3.6mm, 70mm x 70mm x 4mm, 70mm x 70mm x 5mm, 80mm x 40mm x 3.2mm, 80mm x 40mm x 4mm, 80mm x 40mm x 5mm, 80mm x 80mm x 3.2mm, 80mm x 80mm x 3.6mm, 80mm x 80mm x 4mm, 80mm x 80mm x 5mm, 80mm x 80mm x 6.3mm, 90mm x 50mm x 3.2mm, 90mm x 50mm x 3.6mm, 90mm x 50mm x 4mm, 90mm x 50mm x 5mm, 90mm x 90mm x 3.2mm, 90mm x 99mm x 3.6mm, 90mm x 90mm x 4mm, 90mm x 90mm x 5mm, 90mm x 90mm x 6.3mm, 90mm x 90mm x 8mm, 100mm x 50mm x 3.2mm, 100mm x 50mm x 3.6mm, 100mm x 50mm x 4mm, 100mm x 60mm x 3.2mm, 100mm x 60mm x 3.6mm, 100mm x 60mm x 4mm, 100mm x 60mm x 5mm, 100mm x 60mm x 6.3mm, 100mm x 100mm x 3.2mm, 100mm x 100mm x 4mm, 100mm x 100mm x 5mm, 100mm x 100mm x 6.3mm, 100mm x 100mm x 8mm, 100mm x 100mm x 10mm, 120mm x 60mm x 3.2mm, 120mm x 60mm x 3.6mm, 120mm x 60mm x 4mm, 120mm x 60mm x 5mm, 120mm x 60mm x 6.3mm, 120mm x 60mm x 8mm, 120mm x 80mm x 3.2mm, 120mm x 80mm x 4mm, 120mm x 80mm x 6.3mm, 120mm x 80mm x 8mm, 120mm x 80mm x 10mm, 120mm x 120mm x 3.2mm, 120mm x 120mm x 4mm, 120mm x 120mm x 5mm, 120mm x 120mm x 6.3mm, 120mm x 120mm x 8mm, 120mm x 120mm x 10mm, 140mm x 80mm x 3.2mm, 140mm x 80mm x 4mm, 140mm x 80mm x 5mm, 140mm x 80mm x 6.3mm, 140mm x 80mm x 6.3mm, 140mm x 80mm x 8mm, 140mm x 80mm x 10mm, 140mm x 140mm x 3.6mm, 140mm x 140mm x 5mm, 140mm x 140mm x 6.3mm, 140mm x 140mm x 8mm, 140mm x 140mm x 10mm, 150mm x 100mm x 3.2mm, 150mm x 100mm x 4mm, 150mm x 100mm x 6.3mm, 150mm x 100mm x 8mm, 150mm x 100mm x 10mm, 150mm x 150mm x 4mm, 150mm x 150mm x 5mm, 150mm x 150mm x 6.3mm, 150mm x 150mm x 8mm, 150mm x 150mm x 10mm, 160mm x 80mm x 3.2mm, 160mm x 80mm x 4mm, 160mm x 80mm x 5mm, 160mm x 80mm x 6.3mm, 160mm x 80mm x 8mm, 160mm x 80mm x 10mm, 160mm x 160mm x 4mm, 160mm x 160mm x 5mm, 160mm x 160mm x 6.3mm, 160mm x 160mm x 8mm, 160mm x 160mm x 10mm, 180mm x 100mm x 3.6mm, 180mm x 100mm x 5mm, 180mm x 100mm x 6.3mm, 180mm x 100mm x 8mm, 180mm x 100mm x 10mm, 180mm x 180mm x 4mm, 180mm x 180mm x 5mm, 180mm x 180mm x 6.3mm, 180mm x 180mm x 8mm, 180mm x 180mm x 10mm, 200mm x 100mm x 4mm, 200mm x 100mm x 5mm, 200mm x 100mm x 6.3mm, 200mm x 100mm x 8mm, 200mm x 100mm x 10mm, 200mm x 120mm x 4mm, 200mm x 120mm x 5mm, 200mm x 120mm x 6.3mm, 200mm x 120mm x 8mm, 200mm x 120mm x 10mm, 200mm x 200mm x 5mm, 200mm x 200mm x 6.3mm, 200mm x 200mm x 8mm, 200mm x 200mm x 10mm, 220mm x 140mm x 4mm, 220mm x 140mm x 5mm, 220mm x 140mm x 6.3mm, 220mm x 140mm x 8mm, 220mm x 140mm x 10mm, 220mm x 220mm x 5mm, 220mm x 220mm x 6.3mm, 220mm x 220mm x 8mm, 220mm x 220mm x 10mm, 250mm x 150mm x 5mm, 250mm x 150mm x 6.3mm, 250mm x 150mm x 8mm, 250mm x 150mm x 10mm, 250mm x 250mm x 5.9mm, 250mm x 250mm x 6.3mm, 250mm x 250mm x 8mm, 250mm x 250mm x 10mm, 260mm x 260mm x 5.9mm, 260mm x 260mm x 6.3mm, 260mm x 260mm x 8mm, 260mm x 260mm x 10mm, 300mm x 200mm x 5.9mm, 300mm x 200mm x 6.3mm, 300mm x 200mm x 8mm, 300mm x 200mm x 10mm, 300mm x 300mm x 7.1mm, 300mm x 300mm x 8mm, 300mm x 300mm x 10mm, 350mm x 350mm x 8mm, 400mm x 200mm x 7.1mm, 400mm x 200mm x 8mm, 400mm x 200mm x 10mm, 400mm x 400mm x 10mm, 450mm x 250mm x 8mm, 450mm x 250mm x 10mm, and 500mm x 300mm x 10mm
Barre ronde Sizes include: 0.25in DIA (6.35mm), 0.3125in DIA (7.937mm), 0.375in DIA (9.525mm), 0.4375in DIA (11.112mm), 0.50in DIA (12.7mm), 9/16in DIA (14.287mm), 0.625in DIA (15.875mm), 20mm DIA, 0.8125in DIA (20.637mm), 0.875in DIA (22.225mm), 1in DIA (25.4mm), 1.125in DIA (28.58mm), 1.25in DIA (31.75mm), 1.3125in DIA (33.337mm), 1.375in DIA (34.93mm), 35mm DIA, 1.50in DIA (38.1mm), 40mm DIA, 1.625in DIA (41.28mm), 1.75in DIA (44.45mm), 1.875in DIA (47.65mm), 2in DIA (50.8mm), 2.125in DIA (53.975mm), 2.375in DIA (60.33mm), 2.50in DIA (63.5mm), 2.625in DIA (66.67mm), 2.75in DIA (69.85mm), 3in DIA (76.2mm), 3.25in DIA (82.55mm), 3.50in DIA (88.9mm), 3.50in DIA (88.9mm), 3.75in DIA (95.25mm), 4in DIA (101.6mm), 4.25in DIA (107.95mm), 4.50in DIA (114.3mm), 4.75in DIA (120.65mm), 5.25in DIA (133.35mm), 5.50in DIA (139.7mm), 5.75in DIA (146.05mm), 6i nDIA (152.4mm), 6.50in DIA (165.1mm), 7in DIA (177.8mm), 7.25in DIA (184.15mm), 7.50in DIA (190.5mm), 8in DIA (203.2mm), 8.50in DIA (215.9mm), 9in DIA (228.6mm), 9.50in DIA (241.3mm), 10in DIA (254mm), 12in DIA (304.8,mm), 13in DIA (330.2mm), 14in DIA (355.6mm), 15in DIA (381mm), and 16in DIA (406.4mm)
Tube rond Sizes include: 0.375in OD x 16SWG, 0.50in D x 18SWG, 0.50in OD x 16SWG, 0.50in OD x 10SWG, 0.625in OD x 18SWG, 0.625in OD x 16SWG, 0.625in OD x 10SWG, 0.75in OD x 18SWG, 0.75in OD x 16SWG, 0.75in OD x 10SWG, 0.875in OD x 18SWG, 0.875in OD x 16SWG, 0.875in OD x 10SWG, 1in OD x 18SWG, 1in OD x 16SWG, 1in OD x 10SWG, 1in OD x 0.1875in, 1in OD x 0.25in, 1.125in OD x 16SWG, 1.125in OD x 10SWG, 1.25in OD x 18SWG, 1.25in OD x 16SWG, 1.25in OD x 0.1875in, 1.25in OD x 10SWG, 1.375in OD x 16SWG, 1.375in OD x 10SWG, 1.50in OD x 18SWG, 1.50in OD x 16SWG, 1.50in OD x 10SWG, 1.50in OD x 0.1875in, 1.50in OD x 0.25in, 1.625in OD x 16SWG, 1.625in OD x 10SWG, 1.625in OD x 0.1875in, 1.75in OD x 16SWG, 1.75in OD x 10SWG, 1.875in OD x 10SWG, 2in OD x 16SWG, 2in OD x 10SWG, 2in OD x 0.1875in, 2in OD x 0.25in, 2in OD x 1.5mm, 2in OD x 3.0mm, 2.25in OD x 16SWG, 2.25in OD x 10SWG, 2.50in OD x 0.1875, 2.50in OD x 0.25in, 2.50in OD x 0.375in, 3.5in OD x 0.25in, 2.75in OD x 10SWG, 3in OD x 16SWG, 3in OD x 10SWG, 3in OD x 0.1875in, 3in OD x 0.25in, 3in OD x 1.5mm, 3in OD x 3.0mm, 3.50in OD x 16SWG, 3.50in OD x 10SWG, 3.50in OD x 0.25in, 4in OD x 16SWG, 4in OD x 10SWG, 4in OD x 0.25in, 4in OD x 1.5mm, 4in OD x 3.0mm, 4.50 in OD x 10SWG, 4.5in OD x 0.25in, 5in OD x 10SWG, 5in OD x 0.25in, 6in OD x 10SWG, 6in OD x 0.25in, 6.50in OD x 0.25in, 100mm OD x 2mm, 150mm OD x 2mm, and 152mm OD x 2.5mm
