El marco de Onshape crea el contenido de la biblioteca de perfiles de Onshape, lo conserva en documentos dentro del sistema de Onshape y los mantiene. En ningún momento hay riesgo de que este contenido desaparezca o no funcione de un lanzamiento a otro. Hemos integrado un proceso que ahorra tiempo en este flujo de trabajo para simplificar la inserción de perfiles de marco.

Supported frame profiles:

  • Biblioteca de perfiles Onshape Frame: ISO, ANSI, 8020, AS, AISC
  • 8020: Serie 10, Serie 15, Serie 20, Serie 25, Serie 30, Serie 40 y Serie 45
  • AISC: Formas C, formas HP, ángulo en L, formas M, formas MC, formas MT, tubería, rectangular, redonda, formas S, cuadrada, formas ST, formas W y formas WT
  • ANSI: barra rectangular, tubo rectangular, barra redonda y tubo redondo
  • AS: perfiles y secciones huecas conformados en frío, laminados en caliente y acero estructural
  • ISO: barra rectangular, tubo rectangular, barra redonda y tubo redondo

Biblioteca de perfiles de marcos de Onshape

Perfiles de marco 8020

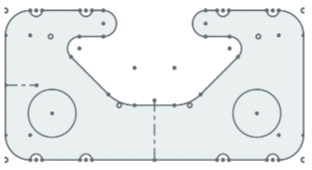

Serie 10

1001, 1001-S, 1002, 1002-S, 1003, 1003-S, 1004, 1004-S, 1010, 1010-S, 1012, 1012-S, 1020, 1020-S, 1030, 1030-S, 1050, 2012, 2020, 2020-S, 2040 y 2040-S

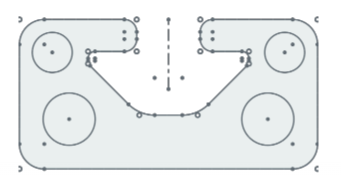

Serie 15

1501, 1501-LS, 1502, 1502-LS, 1503, 1503-LS, 1504, 1504-LS, 1515, 1515-Lite, 1515-LS, 1515-S, 1515-UL, 1515-ULS, 1517, 1517-LS, 1530, 1530-Lite, 1530-LS, 1530-S, 1530-UL, 1530-ULS, 1534-Lite, 1545, 1545-LS, 1545-S, 1547, 1575, 3030, 3030-Lite, 3030-LS, 3030-S, 3034-Lite, 3060 y 3075

Serie 20

20-2020, 20-2040 y 20-4040

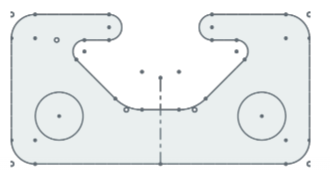

Serie 25

25-2501, 25-2502, 25-2503, 25-2504, 25-2514, 25-2525, 25-2527, 25-2550, 25-2576, 25-5010, 25-5013 y 25-5050

Serie 30

30-3001, 30-3002, 30-3003, 30-3004, 30-3022, 30-3030, 30-3060 y 30-6060

Serie 40

40-4001, 40-4002, 40-4003, 40-4004, 40-4012, 40-4020, 40-4030-Lite, 40-4040, 40-4040-Lite, 40-4040-UL, 40-4045-Lite, 40-4080, 40-4080-Lite, 40-4080-UL, 40-4082-Lite, 40-4083-Lite, 40-4084-Lite, 40-4085-Lite40-4093, 40-4094, 40-4096, 40-8016, 40-8020 y 40-8080

Serie 45

45-4545, 45-4545-Lite, 45-4590 y 45-9090

Perfiles de marco AISC

Formas C

Sizes include: C15x50, C15x40, C15x33.9, C12x30, C12x25, C12x20.7, C10x30, C10x25, C10x20, C9x20, C9x15, C9x13.4, C8x18.75, C8x13.75, C8x11.5, C7x14.75, C7x12.25, C7x9.8, C6x13, C6x10.5, C6x8.2, C5x9, C5,6.7, C4x7.25, C4x6.25, C4x5.4, C4x4.5, C3x6, C3x5, C3x4.1, and C3x3.5

Formas HP

Sizes include: HP18x204, HP18x181, HP18x157, HP18x135, HP16x183, HP16x162, HP16x141, HP16x121, JP16x101, HP16x88, HP14x117, JP14x102, HP14x89, HP14x73, HP12x84, HP12x63, JP12x53, HP10x57, HP10x42, and HP8x36

Ángulo en L

Sizes include: L8x8x1.125, L8x8x1, L8x8x0.875, L8x8x0.75, L8x8x0.625, L8x8x0.5625, L8x8x0.5, L8x6x1, L8x6x0.875, L8x8x0.75, L8x6x0.625, L8x6x0.5625, L8x6x0.5, L8x6x0.4375, L8x4x1, L8x4x0.875, L8x4x0.75, L8x4x0.625, L8x4x0.5625, L8x4x0.5, L8x4x0.4375, L7x4x0.75, L7x4x0.625, L7x4x0.5, L7x4x0.4375, L7x4x0.375, L6x6x1, L6x6x0.875, L6x6x0.75, L6x6x0.625, L6x6x0.5625, L6x6x0.5, L6x6x0.4375, L6x6x0.375, L6x6x0.3125, L6x4x0.875, L6x64x0.75, L6x6x0.625, L6x4x0.5625, L6x4x0.5, L6x4x0.4375, L6x64x0.375, L6x4x0.3125, L6x3.5x0.5, L6x3.5x0.375, 6x3.5x0.3125, L5x5x0.875, L5x5x0.75, L5x5x0.625, L5x5x0.5, L5x5x0.4375, L5x5x0.375, L5x5x0.25, L5x3.5x0.75, Lx3.5x0.625, L5x3x0.5, L5.3x0.375, L5x3.5x0.3125, L5x3.5x0.25, L5x3x0.5, L5x3x0.4375, L5x3x0.375, L53x0.325, L5x3x0.25, L4x4x0.75, L4x4x0.625, L4x4x0.5, L4x4x0.4375, L4x4x0.375, L4x4x0.3125, L4x4x0.25, L4x3.5x0.5, L4x3.5x0.375, 4x3.5x0.3125, L4x3.5x0.25, L4x3x0.625, L4x3x0.5, L4x3x0.375, L4x3x0.3125, L4x4x0.25, L3.5x3.5x0.5, L3.5x3.5x0.4375, L3.5x3.5x0.375, L3.5x3.5x0.3125, L3.5x3.5x0.25, L3.5x3.0.5, L3.5x3x0.4375, L3.5x3x0.375, L3.5x3x0.3125, L3.5x3x0.25, L3.5x2.5x0.5, L3.5x2.5x0.375, L3.5x2.5x0.3125, L3.5x2.5x0.25, L3x3x0.5, L3x3x0.4375, L3x3x0.375, L3x3x0.3125, L3x3x0.25, L3x3x0.1875, L3x2.5x0.5, L3x2.5x0.4375, L3x2.5x0.375, L3x2.5x0.3125, L3x2.5x0.25, L3x2.5x0.1875, L3x2x0.5, L3x2x0.375, L3x2x0.3125, L3x2x0.25, L3x2x0.1875, L2.5x2.5x0.5, L2.5x2.5x0.375, L2.5x2.5x0.3125, L2.5x2.5x0.25, L2.5x2.5x0.1875, L2.5x2x0.375, L2.5x2x0.3125, L2.5x2x0.25, L2.5x2x0.1875, L2.5x1.5x0.25, L2.5x1.5x0.1875, L2x2x0.375, L2x2x0.3125, L2x2x0.25, L2x2x0.25, L2x2x0.1875, and L2x2x0.125

Serie M

Sizes include: M12.5x12.4, M12.5x11.6, M12x11.8, M12x10.8, M12x10, M10x9, M10x8, M10x7.5, M8x6.5, M8x6.2, M6x4.4, M6x3.7, M5x18.9, M4x6, M4x4.08, M4x3.45, M4x3.2, and M3x2.9

Formas MC

Sizes include: MX18x58, MC18x51.9, MC18x45.8, MC18x42.7, MC13x50, M13x40, MC13x35, MC13x31.8, MC12x50, MC12x45, MC12x40, MC12x35, MC12x31, MC12x14.3, MC12x10.6, MC10x41.1, MC10x33.6, MC10x28.5, MC10x25, MC10x22, MC10x8.4, MC10x6.5, MC9.25, MC9.23.9, MC8x22.8, MC8x21.4, MC8x20, MC8x18.7, MC8x8.5, MC7x22.7, MC7x19.1, MC6x18, MC6x15.3, MC6x16.3, MC6x15.1, MC6x12, MC6x7, MC6x6.5, MC4x13.8, and MC3x7.1

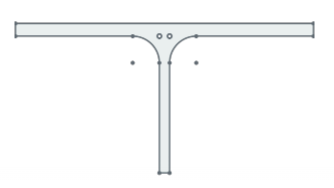

Formas MT

La configuración incluye: MT6.25x6.2, MT6.25x5.8, MT6x5.9, MT6x5.4, MT6x5, MT5.x4.5, MT5x4, MT5x3.75, MT4x3.25, MT4x3.1, MT3x2.2, MT3x1.85, MT2.5x9.45 y MT2x3

Tubería

Sizes include: 12 Std, 10 Std, 8 Std, 6 Std, 5 Std, 4 Std, 3 1/2 Std, 3 Std, 2 1/2 Std, 2 Std, 1 1/2 Std, 1 1/4 Std, 1 Std, 3/4 Std, 1/2 Std, 12 x-Strong, 10 x-Strong, 8 x-Strong, 6 x-Strong, 5 x-Strong, 4 x-Strong, 3 1/2 x-Strong, 3 x-Strong, 2 1/2 x-Strong, 2 x-Strong 1 1/2 x-Strong, 1 1/4 x-Strong, 1 x-Strong, 1 x-Strong, 3/4 x-Strong, 1/2 x-Strong, 8 xx-Strong, 6 xx-Strong, 5 xx-Strong, 4 xx-Strong, 3 xx-Strong, 2 1/2 xx-Strong, and 2 xx-Strong
Rectangular SIzes include: HSS20x12x0.625, HSS20x12x0.5, HSS20x12x0.375, HSS20x12x0.3125, HSS20x8x0.625, HSS20x8x0.5, HSS20x8x0.375, HSS20x4x0.5, HSS20x4.0x0.375, HSS20x4.0x0.3125, HSS20x4.0x0.25, HSS18x6x0.625, HSS18x6x0.5, HSS18x6x0.375, HSS18x6x0.3125, HSS18x6.0.25, HSS16x12x0.625, HSS16x12x0.5, HSS16x12x0.375, HSS16x12x0.3125, HSS16x8x0.625, HSS16x8x0.5, HSS16x8.0.375, HSS16x8x0.3125, HSS16x8x0.25, HSS16x4x0.625, HSS16x4x0.5, HSS16x4x0.5, HSS16xx4x0.375, HSS16x4x0.3125, HSS16x4x0.25, HSS16x4x0.1875, HSS14x10x0.625, HSS14x10x0.5, HSS14x10x0.375, HSS14x10x0.3125, HSS14x10x0.25, HSS14x6x0.625, HSS14x6x0.5, HSS14x6x0.5, HSS14x6x0.375, HSS14x6x0.3125, HSS14x6x0.25, HSS14x6x0.1875, HSS14x4x0.625, HSS14x4x0.5, HSS14x4x0.375, HSS14x4x0.3125, HSS14x4x0.25, HSS14x4x0.1875, HSS12x10x0.5, HSS12x10x0.375, HSS12x10x0.3125, HSS12x10x0.25, HSS12x8x0.625, HSS12x8x0.375, HSS12x8x0.3125, HSS12x8x0.25, HSS12x8x0.1875, HSS12x6x0.625, HSS12x6x0.5, HSS12x6x0.375, HSS12x6x0.3125, HSS12x6x0.23, HSS12x4x0.625, HSS12x4x0.5, HSS12x4x0.375, HSS12x4x0.3125, HSS12x4x0.25, HSS12x4x0.1875, HSS12x3.5x0.375, HSS12x3.5x0.3125, HSS12x3x0.3125, HSS12x3x0.1875, HSS12x2x0.3125, HSS12x2x0.25, HSS12x2x0.1875, HSS12x10x8x0.625, HSS10x8x0.5, HSS10x8x0.375, HSS10x8x0.3125, HSS10x8x0.25, HSS10x8x0.1875, HSS10x6x0.625, HSS10x6x0.5, HSS10x6x0.375, HSS10x6x0.3125, HSS10x6x0.25, HSS10x6x0.1875, HSS10x5x0.375, HSS10x5x0.3125, HSS10x5x0.25, HSS10x5x0.1875, HSS10x4x0.625, HSS10x4x0.5, HSS10x4x0.375, HSS10x4x0.3125, HSS10x4x0.25, HSS10x4x0.1875, HSS10x4x0.125, HSS10,3.5x0.5, HSS10x3.5x0.375, HSS10x3.5x0.3125, HSS10x3.5x0.25, HSS10x3.5x0.1875, HSS10x3.5x0.125, HSS10x3x0.375, HSS10x1x0.3125, HSS10x3x0.25, HSS10x3x0.1875, HSS10x2x0.375, HSS10x2x0.3125, HSS10x2x0.25, HSS10x2x0.1875, HSS10x2x0.125, HSS9x7x0.625, HSS9x7x0.5, HSS9x7x0.375, HSS9x7x0.3125, HSS9x7x0.25, HSS9x7x0.1875, HSS9x5x0.625, HSS9x5x0.5, HSS9x5x0.375, HSS9x5x0.3125, HSS9x5x0.25, HSS9x5x0.1875, HSS9x3x0.5, HSS9x3x0.375, HSS9x3x0.3125, HSS9x3x0.1875, HSS8x6x0.625, HSS8x6x0.5, HSS8x6x0.375, HSS8x6x0.3125, HSS8x6x0.25, HSS8x6x0.1875, HSS8x4x0.625, HSS8x4x0.5, HSS8x4x0.375, HSS8x4c0.3125, HSS8x4x0.25, HSS8x4x0.125, HSS8x3x0.5, HSS8x3x0.375, HSS8x3x0.3125, HSS8x3x0.25, HSS8x3x0.1875, HSS8x3x0.125, HSS8x2x0.375, HSS8x2x0.3125, HSS8x2x0.25, HSS8x2x0.1875, HSS8x2x0.125, HSS7x5x0.5, HSS7x5x0.375, HSS7x5x0.3125, HSS7x5x0.25, HSS7x5x0.1875, HSS7x5x0.125, HSS7x4x0.5, HSS7x4x0.375, HSS7x4x0.3125, HSS7x4x0.25, HSS7x4x0.1875, HSS7x40.125, HSS7x3x0.5, HSS7x3x0.3125, HSS7x3x0.375, HSS7x3x0.3125, HSS7x3x0.25, HSS7x3x0.1875, HSS7x3x0.125, HSS7x2x0.25, HSS7x2x0.1875, HSS7x2x0.125, HSS6x5x0.5, HSS6x5x0.375, HSS6x5x0.3125, HSS6x5x0..25, HSS6x5x0.1875, HSS6x5x0.125, HSS6x4x0.5, HSS6x4x0.375, HSS6x4x0.25, HSS6x4x0.1875, HSS6x3x0.5, HSS6x3x0.375, HSS6x3x0.3125, HSS6x3x25, HSS6x3x0.1875, HSS6x3x0.125, HSS6x2x0.3125, HSS6x2x0.25, HSS6x2x0.1875, HSS6x2x0.125, HSS5x4x0.5, HSS5x4x0.375, HSS5x4x0.375, HSS5x4x0.3175, HSS5x4x0.25, HSS5x4x0.1875, HSS5x4x0.125, HSS5x3x0.5, HSS5x3x0.375, HSS5x3x0.3125, HSS5x3x0.25, HSS5x3x0.1875, HSS5x3x0.125, HSS5x2.5x0.25, HSS5x2.5x0.1875, HSS5x2.5x0.1265, HSS5x2x0.375, HSS5x2x0.3125, HSS5x2x0.25, HSS5x2x0.1875, HSS5x2x0.125, HSS4x3x0.375, HSS4x3x0.3125, HSS4x3x0.25, HSS4x3x0.1875, HSS4x3x0.125, HSS4x2.5x0.3125, HSS4x2.5x0.3125, HSS4x2.5x0.25, HSS4x2.5x0.1875, HSS4x2.5x0.125, HSS4x2x0.375, HSS4x2x0.3125, HSS4x2x0.25, HSS4x2x0.1875, HSS4x2x0.125, HSS3.5x2.5x0.375, HSS3.5x2.5x0.3125, HSS3.5x2.5x0.25, HSS3.5x2.5x0.1875, HSS3.5x2.5x0.125, HSS3.5x2x0.25, HSS3.5x2x0.1875, HSS3.5x2x0.125, HSS3.5x1.5x0.25, HSS3.5x1.5x0.1875, HSS3.5x1.5x0.125, HSS3x2.5x0.3125, HSS3x2.5x0.25, HSS3x2.5x0.1875, HSS3x2.5x0.125, HSS3x2x0.3125, HSS3x2x0.25, HSS3x2x0.1875, HSS3x2x0.125, HSS3x1.5x0.25, HSS3x1.5x0.1875, HSS3x1.5x0.125, HSS3x1x0.1875, HSS2.5x2x0.25, HSS2.5x2x0.1875, HSS2.5x2x0.125, HSS2.5x1.5x0.25, HSS2.5x1.5x0.1875, HSS2.5x1.5x0.125, HSS2.5x1x0.1875, HSS2.5x1x0.125, HSS2.25x2x0.1875, HSS2.25x2x0.125, HSS2x1.5x0.1875, HSS2x1.5x0.125, HSS2x1x0.1875, and HSS2x1x0.125
Redondo Sizes include: HSS20x0.500, HSS20x0.375, HSS18x0.500, HSS18x0.375, HSS16x0.375, HSS16x0.625, HSS16x0.500, HSS16x0.438, HSS16x0.375, HSS16x0.312, HSS16x0.250, HSS14x0.625, HS14x0.500, HSS14x0.375, HSS14x0.312, HSS14x0.250, HSS12.750x0.500, HSS12.750x0.375, HSS12.750x0.250, HSS10.750x0.500, HSS10.750x0.375, HSS10.750x0.250, HSS10.0.625, HSS10x0.500, HSS10x0.375, HSS10x0.12, HSS10x0.250, HSS10x0.188, HSS0.625x0.500, HSS9.625x0.375, HSS9.625x0.312, HSS9.625x0.250, HSS9.625x0.188, HSS8.625x0.625, HSS8.625x0.500, HSS8.625x0.0375, HSS8.625x0.322, HSS8.625x0.250, HSS8.625x0.188, HSS7.625x0.375, HSS7.625x0.328, HSS7.500x0.500, HSS7.500x0.375, SS7.500x0.250, HSS7.500x0.188, HSS7x0.500, HSS7x0.375, HSS7x0.312, HSS7x0.250, HSS7x0.188, HSS7x0.125, HSS6.875x0.500, HSS6.875x0.375, HSS6.875x0.312, HSS6.875x0.250, HSS6.875x0.188, HSS6.625x0.500, HSS6.625x0.432, HSS6.625x0.375, HSS6.625x0.312, HSS6.625x0.280, HSS6.625x0.250, HSS6.625x0.188, HSS6.625x0.125, HSS6x0.500, HSS6x0.375, HSS6x0.312, HSS6x0.280, HSS6x0.250, HSS6x0.188, HSS6x0.125, HSS5.563x0.500, HS5.563x0.375, HSS5.563x0.258, HSS5.563x0.188, HSS5.563x0.134, HSS5.500x0.500, HSS5.500x0.375, HSS5.500x0.258, HSS5x0.500, HSSS5x0.375, HSS5x0.312, HSS5x0.258, HSS5x0.250, HSS5x0.188, HSS5x0.125, HSS4.500x0.375, HSS4.500x0.337, HSS4.500x0.237, HSS4.500x0.188, HSS4.500x0.125, HSS4x0.313, HSS4x0.250, HSS4x0.237, HSS4x0.226, HSS4x0.200, HSS4x0.188, HSS4x0.125, HSS3.500x0.313, HSS3.500x0.300, HSS3.500x0.250, HSS3.500x0.216, HSS3.500x0.203, HSS3.500x0.188, HSS3.500x0.125, HSS3x0.250, HSS3x0.216, HSS3x0.203, HSS3x0.188, HSS3x0.152, HSS3x0.134, HSS3x0.125, HSS2.875x0.250, HSS2.875x0.203, HSS2.875x0.188, HSS2.875x0.125, HSS2.500x0.250, HSS2.500x0.188, HSS2.500x0.125, HSS2.375x0.250, HSS2.375x0.218, HSS2.375x0.188, HSS2.375x0.154, HSS2.375x0.125, HSS1.900x0.188, HSS1.900x0.145, HSS1.900x0.120, and HSS1.660x0.140
Formas S Sizes include: S24x121, S24x106, S24x100, S24x90, S24x80, S20x96, S20x86, S20x75, S20x66, S18x70, S18x54.7, S15x50, S15x42.9, S12x50,
Cuadrado SIzes include: HSS16x16x0.625, HSS16x16x0.5, HSS16x16x0.375, HSS16x16x0.3125, HSS14x14x0.625, HSS14x14x0.5, HSS14x14x0.5, HSS14x14x0.375, HSS14x14x0.3125, HSS10x10x0.625, HSS10x10x0.5, HSS10x10x0.375, HSS10x10x0.25, HSS10x10x0.1875, HSS9x9x0.625, HSS9x9x0.5, HSS9x9x0.375, HSS9x9x0.3125, HSS9x9x0.25, HSS9x9x0.1875, HSS9x9x0.125, HSS8x8x0.625, HSS8x8x0.5, HSS8x8x0.375, HSS8x8x0.3125, HSS8x8x0.25, HSS8x8x0.1875, HSS8x8x0.125, HSS7x7x0.625, HSS7x7x0.5, HSS7x7x0.375, HSS7x7x0.3125, HSS7x7x0.25, HSS7x7x0.1875, HSS7x7x0.125, HSS6x6x0.625, HSS6x6x0.5, HSS6x6x0.375, HSS6x6x0.3125, HSS6x6x0.25, HSS6x6x0.1875, HSS6x6x0.125, HSS5.5x5.5x0.375, HSS5.5x5.5x0.3125, HSS5.5x5.5x0.25, HSS5.5x5.5x0.1875, HSS5.5x5.5x0.125, HSS5x5x0.5, HSS5x5x0.375, HSS5x5x0.3125, HSS5x5x0.25, HSS5x5x0.1875, HSS5x5x0.125, HSS4.5x4.5x0.5, HSS4.5x4.5x0.375, HSS4.5x4.5x0.3125, HSS4.5x4.5x0.25, HSS4.5x4.5x0.1875, HSS4.5x4.5x0.125, HSS4x4x0.5, HSS4x4x0.375, HSS4x4x.3125, HSS4x4x0.25, HSS4x4x0.1875, HSS4x4x0.125, HSS3.5x3.5x0.375, HSS3.5x3.5x0.3125, HSS3.5x3.5x0.25, HSS3.5x3.5x0.1875, HSS3.5x3.5x0.125, HSS3x3x0.375, HSS3x3x0.3125, HSS3x3x0.25, HSS3x3x0.1875, HSS3x3x0.125, HSS2.5x2.5x0.3125, HSS2.5x2.5x0.25, HSS2.5x2.5x0.1875, HSS2.5x2.5x0.125, HSS2.5x2.5x0.25, HSS2.25x2.25x0.25, HSS2.25x2.25x0.1875, HSS2.25x2.25x0.125, HSS2x2x0.25, HSS2x2x0.125, and HSS2x2x0.125

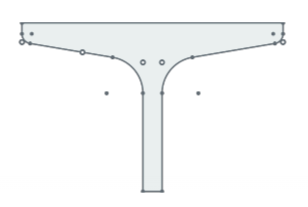

Formas ST Sizes include: ST12x60.5, ST12x53, ST12x50, ST12x50, ST12x45, ST12x40, ST10x48, ST10x43, ST10x37.5, ST10x33, ST9x35, ST9x27.35, ST7.5x25, ST7.5x21.45, ST7.5x25, ST7.5x20.4, ST6x17.5, ST6x15.9, ST5x17.5, ST5x12.7, ST4x11.5, ST4x9.2, ST3.8.6, ST3x6.25, ST2.5x5, ST2x4.75, ST2x3.85, ST1.5x3.75, and ST1.5x2.85
Formas W Sizes include: W44x335, W44x290, W44x262, W44x230, W40x593, W40x503, W40x431, W40x397, W40x372, W40x362, W40x324, W40x297, W40x277, W40x249, W40x215, W40x199, W40x392, W40x331, W40x327, W40x294, W40x278, W40x264, W40x235, W40x211, W40x183, W40x167, W40x149, W36x652, W36x529, W36x487, W36x441, W36x395, W36x330, W36x302, W36x282, W36x262, W36x247, W36x231, W36x256, W36x232, W36x210, W36x194, W36x182, W36x170, W36x160, W36x150, W36x135, W33x387, W33x354, W33x318, W33x291, W33x263, W33x241, W33x221, W33x201, W33x169, W33x152, W33x141, W33x130, W33x118, W30x391, W30x357, W30x326, W30x292, W30x261, W30x235, W30x211, W30x191, W30x173, W30x148, W30x132, W30x124, W30x116, W30x108, W30x99, W30x90, W27x539, W27x368, W27x336, W27x307, W27x281, W27x258, W27x235, W27x217, W27x194, W27x178, W27x161, W27x146, W27x129, W27x114, W27x102, W27x94, W27x84, W24x370, W24x335, W24x306, W24x279, W24x250, W24x229, W24x207, W24x192, W24x176, W24x162, W24x146, W24x131, W24x117, W24x104, W24x103, W24x94, W24x84, W24x76, W24x68, W24x62, W24x55, W21x201, W21x182, W21x166, W21x147, W21x132, W21x122, W21x111, W21x101, W21x93, W21x83, W21x73, W21x68, W21x62, W21x55, W21x48, W21x57, W21x44, W18.311, W18x283, W18x258, W18.234, W18x211, W18x192, W18x175, W18x158, W18x143, W18x130, W18x119, W18x106, W18x97, W18x89, W18x76, W18x71, W18x65, W18x50, W18x55, W18x50,W18x46, W18x40, W18x35, W16x100, W16x89, W16x77, W16x67, W16x57, W16x50, W16x45, W16x40, W16x36, W16x31, W16x26, W14x730, W14x665, W14x605, W14x550, W14x500, W14x455, W14x426, W14x398, W14x370, W14x342, W14x311, W14x283, W14x257, W14x233, W13x211, W14x193, W14x176, W14x159, W14x145, W14x132, W14x120, W14x109, W14x99, W14x90, W14x82, W14x74, W14x68, W14x61, W14x53, S14x48, W14x43, W14x38, W14x34, W14x30, W14x26, W14x22, W12x336, W12x305, W12x279, W12x252, W12x230, W12x210, W12x190, W12x170, W12x152, W12x136, W12x120, W12x106, W12x96, W12x87, W12x79, W12x72, W12x65, W12x58, W12x53, W12x50, W12x45, W12x40, W12x35, W12x30, W12x26, W12x22, W12x19, W12x16, W12x14, W10x112, W10x100, W10x88, W10x77, W10x68, W10x60, W10x54, W10x49, W10x45, W10x39, W10x33, W10x26, W10x22, W10x19, W10x17, W10x15, W10x12, W8x67, W8x58, W8x48, W8x40, W8x35, W8.31, W8x28, W8x24, W8x21, W8x18, W8x15, W8x13, W8x10, W6x25, W6x20, W6x15, W6x16, W6x12, W6x9, W6x8.5, W5x19, W5x16, and W4x13

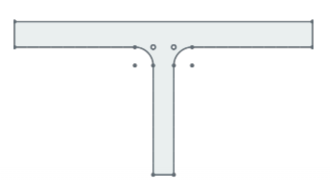

Formas WT

Sizes include: WT22x167.5, WT22x145, WT22.131, WT22x115, WT20x296.5, WT20x251.5, WT20x215.5, WT20x198.5, WT20x186, WT20x181, WT20x162, WT20x162, WT20x138.5, WT20x124.5, WT20x107.5, WT20x99.5, WT20x196, WT20x65.5, WT20x163.5, W20x147, WT20x139, WT20x132, WT20x117.5, WT20x105.5, WT20x91.5, WT20x83.5, WT20x74.5, WT18x326, WT18x264.5, WT18x243.5, WT18x220.5, WT18x197.5, WT18x180.5, WT18x165, WT18x151, WT18x141, WT18x131, WT18x123.5, WT18x115.5, WT18x128, WT18x116, WT18x105, WT18x97, WT18x91, WT18x85, WT18x80, WT18x75, WT18x67.5, WT16.5x193.5, WT16.5x177, WT16.5x159, WT16.5x145.5, WT16.5x131.5, WT16.5x120.5, WT16.5x110.5, WT16.5x100.5, Wt16.5x84.5, WT16.5x76, WT16.5x70.5, WT16.5x65, WT16.5x59, WT15x195.5, WT15x178.5, WT15x163, WT15x146, WT15x130.5, WT15x117.5, WT15x105.5, WT15.95.5, WT15x86.5, WT15x74, WT15x66, WT15x62, WT15x58, WT15x54, WT15x49.5, WT15x45, WT13.5x269.5, WT13.5x184, WT13.5x168, WT13.5x153.5, WT13.5x140.5, WT13.5x129, WT13.5x117.5, WT13.5x108.5, Wt13.5x97, WT13.5x89, WT13.5x80.5, WT13.5x73, WT13.5x64.5, WT13.5x57, WT13.5x51, WT13.5x47, Wt13.5x42, WT12x185, Wt12x167.5, WT12x153, WT12x139.5, Wt12x125, WT12x114.5, WT12x103.5, WT12x96, WT12x88, WT12x81, WT12x73, WT12x65.5, WT12, 58.5, WT12x52, WT12x51.5, WT12x47, WT12x42, WT12x38, WT12x34, WT12x31, Wt12x27.5, WT10.5x100.5, WT10.5x91, WT10.5x83, WT10.5x73.5, WT10.5x66, WT10.5x61, WT10.5x55.5, WT10.5x50.5, WT10.5x46.5, WT10.5x41.5, WT10.5x34, WT10.5x31, WT10.5x27.5, WT10.5x24, WT10.5x28.5, WT10.5x25, WT10.5x22, WT9x155.5, WT9x141.5, WT9x129, WT9x117, WT9x105.5, WT9x96, WT9x87.5, WT9x79, WT9x71.5, WT9x65, WT9x59.5, WT9x53, WT9x48.5, WT9x43, WT9.38, WT9x35.5, WT9x32.5, WT9x30, WT9x27.5, WT9x25, WT9x23, WT9x20, WT9x17.5, WT8x50, TW8x44.5, WT8x38.5, WT8x33.5, WT828.5, WT8x25, WT8x22.5, WT8x20, WT8x18, WT8x15.5, WT8x13, WT7x365, WT7x332.5, WT7x302.5, WT7x275, WT7x250, WT7x227.5, WT7x213, WT7x199, WT7x185, WT7x171, WT7x155.5, WT7x141.5, WT7x128.5, WT7x116.5, WT7x105.5, WT7x96.5, WT7x88, WT7x79.5, WT7x72.5, WT7x66, WT7x60, WT7x54.5, WT7x49.5, WT7x45, WT7x41, WT7x34, WT7x30.5, WT7x26.5, WT7x24, WT7x21.5, WT7x19, WT7x17, WT7x15, WT7x13, WT7x11, Tw6x168, WT6x152.5, WT6x139.5 WT6x126, WT6x115, WT6x105, WT6x95, WT6x85, WT6x76, WT6x68, WT6x60, WT6x53, WT6x48, WT6x43.5, WT6x39.5, WT6x32.5, WT6x29, WT6x26.5, WT6x25, WT6x22.5, WT6x20, WT6x17.5, WT6x15, WT6x13, WT6x11, WT6x9.5, WT6x8, TW6x7, WT5x56, WT5x50, WT5x38.5, WT5x34, WT5x30, WT5x27, WT5x24.5, WT5x22.5, WT5x19.5, WT5x16.5, WT5x15, WT5x13, WT5x11, WT5x9.5, WT5x8.5, WT5x7.5, WT5x6, WT4x33.5, WT4x29, WT4x24, WT4x20, WT4x17.5, WT4x15.5, WT4x14, WT4x12, WT4x10.5, WT4x9, WT4x7.5, WT4x6.5, WT4x5, WT3x12.5, WT3x10, WT3x7.5, WT3x8, WT3x6, WT3x4.5, WT3x4.25, WT2.5x9.5, WT2.5x8, and WT2x6.5

Perfiles de marco ANSI

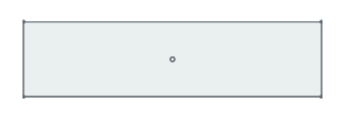

Barra rectangular

Los tamaños incluyen: 0,25" x 0,0625"; 0,5" x 0,0625"; 0,625" x 0,0625"; 0,75" x 0,0625"; 0,875" x 0,0625"; 1" x 0,0625"; 1,25" x 0,0625"; 1,5" x 0,0625"; 1,75" x 0,0625"; 2" x 0,0625"; 2,25" x 0,0625"; 2,5" x 0,0625"; 2,75" x 0,0625"; 3" x 0,0625"; 0,375" x 0,09375"; 0,5" x 0,09375"; 0,75" x 0,09375"; 1" x 0,09375"; 2" x 0,09375"; 3" x 0,09375"; 0,125" x 0,125"; 0,5" x 0,125"; 1" x 0,125"; 1,25" x 0,125"; 1,5" x 0,125"; 2" x 0,125"; 2,5" x 0,125"; 3" x 0,125"; 4" x 0,125"; 6" x 0,125"; 0,5" x 0,1875"; 0,75" x 0,1875"; 1" x 0,1875"; 1,25" x 0,1875"; 1,5" x 0,1875"; 2" x 0,1875"; 2,5" x 0,1875; 3" x 0,1875"; 4" x 0,1875"; 0,25" x 0,25"; 0,375" x 0,25"; 0,5" x 0,25": 0,625" x 0,25": 0,75" x 0,25"; 0,875" x 0,25": 1" x 0,25": 1,25" x 0,25"; 1,5" x 0,25": 1,75" x 0,25": 2" x 0,25": 2,25" x 0,25": 2,5" x 0,25"; 2,75" x 0,25"; 3" x 0,25"; 3,5" x 0,25"; 4" x 0,25"; 5" x 0,25"; 6" x 0,25"; 8" x 0,25"; 10" x 0,25"; 12" x 0,25"; 0,3125" x 0,3125"; 0,75" x 0,3125"; 1" x 0,3125"; 1,5" x 0,3125"; 2" x 0,3125"; 3" x 0,3125"; 0,375" x 0,375"; 0,5" x 0,375"; 0,75" x 0,375"; 1" x 0,375"; 1,25" x 0,375"; 1,5" x 0,375"; 1,75" x 0,375"; 2" x 0,375"; 2,5" x 0,375"; 3" 0,375"; 3,5" x 0,375"; 4" x 0,375"; 5" x 0,375"; 6" x 0,375"; 8" x 0,375"; 10" x 0,375"; 12" x 0,375"; 0,4375" x 0,4375"; 0,5" x 0,5"; 0,75" x 0,5"; 1" x 0,5"; 1" x 0,5"; 1,25" x 0,5"; 1,5" x 0,5"; 1,75" x 0,5"; 2" x 0,5"; 2,5" x 0,5"; 3" x 0,5"; 3,5" x 0,5"; 4" x 0,5"; 5" x 0,5"; 6" x 0,5"; 8" x 0,5"; 10" x 0,5"; 12" x 0,5"; 0,5625" x 0,5625"; 0,625" x 0,625"; 0,75" x 0,625"; 1" x 0,625"; 1,5" x 0,625"; 2" x 0,625"; 2,5" x 0,625"; 3" x 0,625"; 4" x 0,625"; 5" x 0,625"; 6" x 0,625"; 8" x 0,625"; 10" x 0,625"; 12" x 0,625"; 0,6875" x 0,6875; 0,75" x 0,75"; 1" x 0,75"; 1,25" x 0,75"; 1,5" x 0,75"; 1,75" x 0,75"; 2" x 0,75"; 2,5" x 0,75"; 3" x 0,75"; 3,5" x 0,75"; 4" x 0,75"; 5" x 0,75"; 6" 0,75"; 8" x 0,75"; 10" x 0,75"; 12" x 0,75"; 0,8125" x 0,8125"; 0,875" x 0,875"; 1" x 0,875"; 1,5" x 0,875"; 2" x 0,875"; 1" x 1"; 1,25" x 1"; 1,5" x 1"; 1,75" x 1"; 2" x 1"; 2,5" x 1"; 3" x 1"; 3,5" x 1"; 4" x 1"; 5" x 1"; 6" x 1"; 8" x 1"; 10" x 1"; 12" x 1"; 1,125" x 1,125"; 1,25" x 1,25"; 1,5" x 1,25"; 1,75" x 1,25"; 2" x 1,75"; 2,25" x 1,25"; 2,5" x 1,25"; 3" x 1,25"; 3,5" x 1,25"; 4" x 1,25"; 5" x 1,25"; 6" x 1,25"; 1,375" x 1,375"; 1,5" x 1,5"; 1,75" x 1,75"; 2" x 1,5"; 2,25" x 1,5"; 2,5" x 1,5"; 2,75" x 1,5"; 3" x 1,5"; 3,5" x 1,5"; 4" x 1,5"; 5" x 1,5"; 6" x 1,5"; 1,625" x 1,625"; 1,75" x 1,75"; 2" x 2"; 2,5" x 2"; 3" x 2"; 3,5" x 2"; 4" x 2"; 5" x 2"; 6" x 2"; 2,25" x 2,25"; 2,5" x 2,5"; 3" x 2,5"; 4" x 2,5"; 5" x 2,5"; 2,75" x 2,75"; 3" x 3"; 3,5" x 3"; 4" x 3"; 4,5" x 3"; 5" x 3"; 6" x 3"; 3,25" x 3,25"; 3,5" x 3,5"; 4" x 4"; 5" x 4"; 6" x 4"; 5" x 5"; y 6" x 6"

Tubo rectangular

Los tamaños incluyen: 0.375 pulgadas x 0.375 pulgadas x 0.035 pulgadas, 0.5 pulgadas x 0.5 pulgadas x 0.035 pulgadas, 0.5 pulgadas x 1 pulgada x 0.035 pulgadas, 0.625 pulgadas x 0.625 pulgadas x 0.035 pulgadas, 0.75 pulgadas x 0.75 pulgadas x 0.035 pulgadas, 1 pulgada x 1 pulgada x 0.035 pulgadas, 0.5 pulgadas x 0.5 pulgadas x 0.049 pulgadas, 0.5 pulgadas x 1 pulgada x 0.049 pulgadas, 0.625 pulgadas x 0.625 pulgadas x 0.049 pulgadas, 0.75 pulgadas x 0.75 pulgadas x 0.049 pulgadas, 1 pulgada x 1 pulgada x 0.049 pulgadas, 1 pulgada x 1.5 pulgadas x 0.049 pulgadas, 0.25 pulgadas x 0.25 pulgadas x 0.0625 pulgadas, 0.375 pulgadas x 0.375 pulgadas x 0.0625 pulgadas, 0.5 pulgadas x 0.5 pulgadas x 0.0625 pulgadas, 0.5 pulgadas x 1 pulgada x 0.0625 pulgadas, 0.75 pulgadas x 0.75 pulgadas x 0.0625 pulgadas, 1 pulgada x 1 pulgada x 0.0625 pulgadas, 1 pulgada x 1.5 pulgadas x 0.0625 pulgadas, 1 pulgada x 2 pulgadas x 0.0625 pulgadas, 1.25 pulgadas x 1.25 pulgadas x 0.0625 pulgadas, 1.5 pulgadas x 1.5 pulgadas . 0.0625 pulgadas, 1.75 pulgadas x 1.75 pulgadas x 0.0625 pulgadas, 2 pulgadas x 2 pulgadas x 0.0625 pulgadas, 0.5 pulgadas 0.5 pulgadas 0.065 pulgadas, 0.5 pulgadas x 1 pulgada x 0.065 pulgadas, 0.5 pulgadas 1.5 pulgadas x 0.065 pulgadas, 0.75 pulgadas x 0.75 pulgadas x 0.065 pulgadas, 1 pulgada x 1 pulgada x 0.065 pulgadas, 1 pulgada x 1.75 pulgadas x 0.065 pulgadas, 1 pulgada x 1.5 pulgadas x 0.065 pulgadas, 1 pulgada x 2 pulgadas x 0.065 pulgadas, 1 pulgada x 3 pulgadas x 0.065 pulgadas, 1.25 pulgadas x 1.25 pulgadas x 0.065 pulgadas, 1.5 pulgadas x 1.5 pulgadas x 0.065 pulgadas, 2 pulgadas x 2 pulgadas x 0.065 pulgadas, 0.75 pulgadas x 0.75 pulgadas x 0.083 pulgadas, 0.75 pulgadas x 1.5 pulgadas x 0.083 pulgadas, 1 pulgada x 1 pulgada x 0.083 pulgadas, 1 pulgada x 3 pulgadas x 0.083 pulgadas, 1 pulgada x 2 pulgadas x 0.083 pulgadas, 1.25 pulgadas x 1.25 pulgadas x 0.083 pulgadas, 1.5 pulgadas x 1.5 pulgadas x 0.083 pulgadas, 2 pulgadas x 2 pulgadas x 0.083 pulgadas, 2 pulgadas x 4 pulgadas x 0.083 pulgadas, 2.5 pulgadas x 2.5 pulgadas x 0.083 pulgadas, 0.75 pulgadas x 0.85 pulgadas x 0.12 pulgadas, 1 pulgada x 1 pulgada x 0.12 pulgadas, 1 pulgada x 2 pulgadas x 0.12 pulgadas, 1 pulgada x 1.5 pulgadas x 0.12 pulgadas, 1.25 pulgadas x 1.25 pulgadas x 0.12 pulgadas, 1.5 pulgadas x 1.5 pulgadas x 0.12 pulgadas, 1.5 pulgadas x 2.5 pulgadas x 0.12 pulgadas, 2 pulgadas x 2 pulgadas x 0.12 pulgadas, 0.75 pulgadas x 0.75 pulgadas x 0.125 pulgadas, 0.75 pulgadas x 1.5 pulgadas x 0.125 pulgadas, 1 pulgada x 1 pulgada x 0.125 pulgadas, 1 pulgada x 1.5 pulgadas x 0.125 pulgadas, 1 pulgada x 2 pulgadas x 0.125 pulgadas, 1 pulgada x 3 pulgadas x 0.125 pulgadas, 1 pulgada x 4 pulgadas x 0.125 pulgadas, 1 pulgada x 6 pulgadas x 0.125 pulgadas, 1.25 pulgadas x 1.25 pulgadas x 0.125 pulgadas, 1.25 pulgadas x 2.5 pulgadas x 0.125 pulgadas, 1.5 pulgadas x 1.5 pulgadas x 0.125 pulgadas, 1.5 pulgadas x 2 pulgadas x 0.125 pulgadas, 1.5 pulgadas x 2.5 pulgadas x 0.125 pulgadas, 1.5 pulgadas x 3 pulgadas x 0.125 pulgadas, 1.75 pulgadas x 1.75 pulgadas x 0.125 pulgadas, 1.75 pulgadas x 3 pulgadas x 0.125 pulgadas, 1.75 pulgadas x 3.5 pulgadas x 0.125 pulgadas, 1.75 pulgadas x 4 pulgadas x 0.125 pulgadas, 2 pulgadas x 2 pulgadas x 0.125 pulgadas, 2 pulgadas x 3 pulgadas x 0.125 pulgadas, 2 pulgadas x 4 pulgadas x 0.125 pulgadas, 2' x 5 pulgadas x 0.125 pulgadas, 2 pulgadas x 6 pulgadas x 0.125 pulgadas, 2 pulgadas x 8 pulgadas x 0.125 pulgadas, 2.5 pulgadas x 2.5 pulgadas x 0.125 pulgadas, 3 pulgadas x 3 pulgadas x 0.125 pulgadas, 3' x 4 pulgadas x 0.125 pulgadas, 3.5 pulgadas x 3.5 pulgadas x 0.125 pulgadas, 4 pulgadas x 4 pulgadas x 0.125 pulgadas, 5 pulgadas x 5 pulgadas x 0.125 pulgadas, 6 pulgadas x 6 pulgadas x 0.125 pulgadas, 1 pulgada x 1 pulgada x 0.1875 pulgadas, 1.5 pulgadas x 3 pulgadas x 0.1875 pulgadas, 2 pulgadas x 2 pulgadas x 0.1875 pulgadas, 2" x 4 pulgadas x 0.1875 pulgadas, 2 pulgadas x 6 pulgadas x 0.1875 pulgadas, 3 pulgadas x 3 pulgadas x 0.1875 pulgadas, 3 pulgadas x 4 pulgadas x 0.1875 pulgadas, 3 pulgadas x 6 pulgadas x 0.1875 pulgadas, 4 pulgadas x 4 pulgadas x 0.1875 pulgadas, 4 pulgadas x 6 pulgadas x 0.1875 pulgadas, 4 pulgadas x 5 pulgadas x 0.1875 pulgadas, 4.5 pulgadas x 4.5 pulgadas x 0.1875 pulgadas, 5 pulgadas x 5 pulgadas x 0.1875 pulgadas, 6 pulgadas x 6 pulgadas x 0.1875 pulgadas, 8 pulgadas x 8 pulgadas x 0.1875 pulgadas, 1.25 pulgadas x 1.25 pulgadas x 0.188 pulgadas, 1.5 pulgadas x 1.5 pulgadas x 0.188 pulgadas, 1.5 pulgadas x 3 pulgadas x 0.188 pulgadas, 2 pulgadas x 2 pulgadas x 0.188 pulgadas, 3 pulgadas x 3 pulgadas x 0.188 pulgadas, 4 pulgadas x 4 pulgadas x 0.188 pulgadas, 1.5 pulgadas x 3 pulgadas x 0.25 pulgadas, 2" x 2 pulgadas x 0.25 pulgadas, 2 pulgadas x 3 pulgadas x 0.25 pulgadas, 2 pulgadas x 4 pulgadas x 0.25 pulgadas, 2" x 6 pulgadas x 0.25 pulgadas, 2 pulgadas x 8 pulgadas x 0.25 pulgadas, 2.5 pulgadas x 2.5 pulgadas x 0.25 pulgadas, 3 pulgadas x 3 pulgadas x 0.25 pulgadas, 3 pulgadas x 4 pulgadas x 0.25 pulgadas, 4 pulgadas x 4" x 0.25 pulgadas, 4 pulgadas x 6 pulgadas x 0.25 pulgadas, 4 pulgadas x 8 pulgadas x 0.25 pulgadas, 5 pulgadas x 5 pulgadas x 0.25 pulgadas, 6 pulgadas x 6 pulgadas x 0.25 pulgadas, 4 pulgadas x 4 pulgadas x 0.375 pulgadas, 5 pulgadas x 8 pulgadas x 0.375 pulgadas, 6 pulgadas x 6 pulgadas x 0.375 pulgadas, 4 pulgadas x 4 pulgadas x 0.5 pulgadas, 4 pulgadas x 6 pulgadas x 0.5 pulgadas, 4 pulgadas x 8 pulgadas x 0.5 pulgadas, 6 pulgadas x 6 pulgadas x 0.5 pulgadas, and 8 pulgadas x 8 pulgadas x 0.5 pulgadas

Barra redonda

Los tamaños incluyen: 1/32" (0,03125); 1/16" (0,0625); 3/32" (0,09375); 1/8" (0,125); 5/32" (0,15625); 3/16" (0,1875); 7/32" (0,21875); 1/4" (0,25); 9/32" (0,28125); 5/16" (0,3125); 11/32" (0,34375); 3/8" (0,375); 13/32" (0,40625); 7/16" (0,4375); 15/32" (0,46875); 1/2" (0,5); 17/32" (0,53125); 9/16" (0,5625); 19/32" (0,59375); 5/8" (0,625); 21/32" (0,65625); 11/16" (0,6875); 23/32" (0,71875); 3/4" (0,75); 25/32" (0,78125); 13/16" (0,8125); 27/32" (0,84375); 7/8" (0,875); 29/32" (0,90625); 15/16" (0,9375); 31/32" (0,96875); 1", 1 1/16" (1,0625); 1 1/8" (1,125); 1 3/16" (1,1875); 1 1/4" (1,25); 1 5/16" (1,3125); 1 3/8" (1,375); 1 7/16" (1,4375); 1 1/2" (1,5); 1 9/16" (1,5625); 1 5/8" (1,625); 1 11/16" (1,6875); 1 3/4" (1,75); 1 13/16" (1,8125); 1 7/8" (1,875); 1 15/16" (1,9375); 2", 2 1/8" (2,125); 2 1/4" (2,25); 2 3/8" (2,375); 2 1/2" (2,5); 2 5/8" 92,625); 2 3/4" (2,75); 2 7/8" (2,875); 3", 3 1/4" (3,25); 3 1/2" (3,5); 3 3/4" (3,75); 4", 4 1/2" (4,5); 5", 5 1/2" (5,5); y 6"

Tubo redondo

Los tamaños incluyen 0.125 pulgadas x 0.028 pulgadas, 0.1875 pulgadas x 0.028 pulgadas, 0.25 pulgadas x 0.028 pulgadas, 0.3125 pulgadas x 0.028 pulgadas, 0.375 pulgadas x 0.028 pulgadas, 0.375 pulgadas x 0.028 pulgadas, 0.4375 pulgadas x 0.028 pulgadas, 0.5 pulgadas x 0.028 pulgadas, 0.5625 pulgadas x .028 pulgadas, 0.625 pulgadas x 0.028 pulgadas, 0.75 pulgadas x 0.028 pulgadas, 1 pulgada x 0.028 pulgadas, 0.125 pulgadas x 0.035 pulgadas, 0.188 pulgadas x 0.035 pulgadas, 0.25 pulgadas x 0.035 pulgadas, 0.313 pulgadas x 0.035 pulgadas, 0.375 pulgadas x 0.035 pulgadas, 0.5 pulgadas x 0.035 pulgadas, 0.625 pulgadas x 0.035 pulgadas, 0.75 pulgadas x 0.035 pulgadas, 0.875 pulgadas x 0.035 pulgadas, 1 pulgada x 0.035 pulgadas, 1.125 pulgadas x 0.035 pulgadas, 1.25 pulgadas x 0.035 pulgadas, 1.375 pulgadas x 0.035 pulgadas, 1.5 pulgadas x 0.035 pulgadas, 0.25 pulgadas x 0.049 pulgadas, 0.313 pulgadas x 0.049 pulgadas, 0.375 pulgadas x 0.049 pulgadas, 0.438 pulgadas x 0.049 pulgadas, 0.5 pulgadas x 0.049 pulgadas, 0.625 pulgadas x 0.049 pulgadas, 0.75 pulgadas x 0.049 pulgadas, 1 pulgada x 0.049 pulgadas, 1.125 pulgadas x 0.049 pulgadas, 1.25 pulgadas x 0.049 pulgadas, 1.375 pulgadas x 0.049 pulgadas, 1.5 pulgadas x 0.049 pulgadas, 2 pulgadas x 0.049 pulgadas, 0.374 pulgadas x 0.058 pulgadas, 0.4375 pulgadas x 0.058 pulgadas, 0.5 pulgadas x 0.058 pulgadas, 0.625 pulgadas x 0.058 pulgadas, 0.75 pulgadas x 0.058 pulgadas, 0.875 pulgadas x 0.058 pulgadas, 1 pulgada 0.058 pulgadas, 1.125 pulgadas x 0.058 pulgadas, 1.125 pulgadas x 0.058 pulgadas, 1.25 pulgadas x 0.058 pulgadas, 1.375 pulgadas x 0.058 pulgadas, 1.5 pulgadas x 0.058 pulgadas, 1.75 pulgadas x 0.058 pulgadas, 0.25 pulgadas x 0.065 pulgadas, 0.313 pulgadas x 0.065 pulgadas, 0.375 pulgadas x 0.065 pulgadas, 0.438 pulgadas x 0.065 pulgadas, 0.5 pulgadas x 0.065 pulgadas, 0.563 pulgadas x 0.065 pulgadas, "0.625 pulgadas x 0.065 pulgadas, 0.75 pulgadas x 0.065 pulgadas, 0.875 pulgadas x 0.065 pulgadas, 1 pulgada x 0.065 pulgadas, 1.125 pulgadas x 0.065 pulgadas, 1.25 pulgadas x 0.065 pulgadas, 1.375 pulgadas x 0.065 pulgadas, 1.5 pulgadas x 0.065 pulgadas, 1.625 pulgadas x 0.065 pulgadas, 1.75 pulgadas x 0.065 pulgadas, 2 pulgadas x 0.065 pulgadas, 2.5 pulgadas x 0.065 pulgadas, 3 pulgadas x 0.065 pulgadas, 4 pulgadas x 0.065 pulgadas, 0.375 pulgadas x 0.083 pulgadas, 0.438 pulgadas x 0.083 pulgadas, 0.5 pulgadas x 0.083 pulgadas, 0.563 pulgadas x 0.083 pulgadas, 0.625 pulgadas x 0.083 pulgadas, 0.75 pulgadas x 0.083 pulgadas, 0.875 pulgadas x 0.083 pulgadas, 1 pulgada x 0.083 pulgadas, 1.125 pulgadas x 0.083 pulgadas, 1.25 pulgadas x 0.083 pulgadas, 1.375 pulgadas x 0.083 pulgadas, 1.5 pulgadas x 0.083 pulgadas, 1.625 pulgadas x 0.083 pulgadas, 1.75 pulgadas x 0.083 pulgadas, 2 pulgadas x 0.083 pulgadas, 0.3125 pulgadas x 0.095 pulgadas, 0.4375 pulgadas x 0.095 pulgadas, 0.5 pulgadas x 0.095 pulgadas, 0.75 pulgadas x 0.095 pulgadas, 1 pulgada x 0.095 pulgadas, 1.125 pulgadas x 0.095 pulgadas, 1.25 pulgadas x 0.095 pulgadas, 1.375 pulgadas x 0.095 pulgadas, 1.5" x 0.095 pulgadas, 1.625 pulgadas x 0.095 pulgadas, 1.75 pulgadas x 0.095 pulgadas, 2 pulgadas x 0.095 pulgadas, 2.5 pulgadas x 0.095 pulgadas, 0.375 pulgadas x 0.12 pulgadas, 0.438: x 0.12 pulgadas, 0.5 pulgadas x 0.12 pulgadas, 0.563 pulgadas x 0.12 pulgadas, 0.625 pulgadas x "0.12 pulgadas, 0.75 pulgadas x 0.12 pulgadas, 0.875 pulgadas x 0.12 pulgadas, 1 pulgada x 0.12 pulgadas, 1.125 pulgadas x 0.12 pulgadas, 1.25 pulgadas x 0.12 pulgadas, 1.375 pulgadas x 0.12 pulgadas, 1.5 pulgadas x 0.12 pulgadas, 1.75 pulgadas x 0.12 pulgadas, 2 pulgadas x 0.12 pulgadas, 2.25 pulgadas x 0.12 pulgadas, 2.5 pulgadas x 0.12 pulgadas, 3 pulgadas x 0.12 pulgadas, 3.5 pulgadas x 0.12 pulgadas, 4 pulgadas x 0.12 pulgadas, 4.5 pulgadas x 0.12 pulgadas, 0.75 pulgadas x 0.125 pulgadas, 1 pulgada x 0.125 pulgadas, 1.25 pulgadas x 0.125 pulgadas, 1.5 pulgadas x 0.125 pulgadas, 1.75 pulgadas x 0.125 pulgadas, 2 pulgadas x 0.125 pulgadas, 3 pulgadas x 0.125 pulgadas, 4" x 0.125 pulgadas, 1.625 pulgadas x 0.134 pulgadas, 0.625 pulgadas x 0.156 pulgadas, 0.625 pulgadas x 0.188 pulgadas, 0.75 pulgadas x 0.188 pulgadas, 1 pulgada x 0.188 pulgadas, 1.125 pulgadas x 0.188 pulgadas, 1.25 pulgadas x 0.188 pulgadas, 1.5 pulgadas x 0.188 pulgadas, 1.75 pulgadas x 0.188 pulgadas, 2 pulgadas x 0.188 pulgadas, 2.5 pulgadas x 0.188 pulgadas, 3 pulgadas x 0.188 pulgadas, 3.125 pulgadas x 0.188 pulgadas, 4" x 0.188 pulgadas, 5 pulgadas x 0.188 pulgadas, 1 pulgada x 0.25 pulgadas, 1.125 pulgadas x 0.25 pulgadas, 1.25 pulgadas x 0.25 pulgadas, 1.375 pulgadas x 0.25 pulgadas, 1.5 pulgadas x 0.25 pulgadas, 1.625 pulgadas x 0.25 pulgadas, 1.75 pulgadas x 0.25 pulgadas, 2 pulgadas x 0.25 pulgadas, 2.25 pulgadas x 0.25 pulgadas, 2.5 pulgadas x 0.25 pulgadas, 2.75 pulgadas x 0.25 pulgadas, 3 pulgadas x 0.25 pulgadas, 3.5 pulgadas x 0.25 pulgadas, 3.75 pulgadas x 0.25 pulgadas, 4 pulgadas x 0.25 pulgadas, 4.5 pulgadas x 0.25 pulgadas, 5 pulgadas x 0.25 pulgadas, 5.5 pulgadas x 0.25 pulgadas, 6 pulgadas x 0.25 pulgadas, 1.25 pulgadas x 0.375 pulgadas, 1.5 pulgadas x 0.375 pulgadas, 1.75 pulgadas x 0.375 pulgadas, 2 pulgadas x 0.375 pulgadas, 2.25 pulgadas x 0.375 pulgadas, 2.5 pulgadas x 0.375 pulgadas, 2.75 pulgadas x 0.375 pulgadas, 3 pulgadas x 0.375 pulgadas, 3.25 pulgadas x 0.375 pulgadas, 3.5 pulgadas x 0.375 pulgadas, 4 pulgadas x 0.375 pulgadas, 4.5 pulgadas x 0.375 pulgadas, 5 pulgadas x 0.375 pulgadas, 6 pulgadas x 0.375 pulgadas, 1.5 pulgadas x 0.5 pulgadas, 2 pulgadas x 0.5 pulgadas, 2.25 pulgadas x 0.5 pulgadas, 2.5 pulgadas x 0.5 pulgadas, 2.75 pulgadas x 0.5 pulgadas, 3 pulgadas x 0.5 pulgadas, 3.25 pulgadas x 0.5 pulgadas 3.5 pulgadas x 0.5 pulgadas, 3.75 pulgadas x 0.5 pulgadas, 4 pulgadas x 0.5 pulgadas, 4.5 pulgadas x 0.5 pulgadas, 5 pulgadas x 0.5 pulgadas, 5.5 pulgadas x 0.5 pulgadas, 6 pulgadas x 0.5 pulgadas, 3.25 pulgadas x 0.625 pulgadas, 3.75 pulgadas x 0.625 pulgadas, 4 pulgadas x 0.625 pulgadas, 3 pulgadas x 0.75 pulgadas, 3.25 pulgadas x 0.75 pulgadas, 3.5 pulgadas x 0.75 pulgadas, 3.75 pulgadas x 0.75 pulgadas, 4 pulgadas x 0.75 pulgadas, 4.25 pulgadas x 0.75 pulgadas, 4.5 pulgadas x 0.75 pulgadas, 4.75 pulgadas x 0.75 pulgadas, 5 pulgadas x 0.75 pulgadas, 6 pulgadas x 0.75 pulgadas, 4 pulgadas x 1 pulgada, 4.5 pulgadas x 1 pulgada, 5 pulgadas x 1 pulgada, 5.5 pulgadas x 1 pulgada, 6 pulgadas x 1 pulgada, 6.5 pulgadas x 1 pulgada, 7 pulgadas x 1 pulgada, 8 pulgadas x 1 pulgada, 4.5 pulgadas x 1.25 pulgadas, 5 pulgadas x 1.25 pulgadas, 5.5 pulgadas x 1.25 pulgadas, 6 pulgadas x 2 pulgadas, 8 pulgadas x 2 pulgadas, 10 pulgadas x 2 pulgadas, and 12 pulgadas x 2 pulgadas

Perfiles de marco AS

Perfiles y perfiles huecos conformados en frío

Channel section

 Sizes include: 75 x 40 x 4 CC, 100 x 50 x 4 CC, 125 x 65 x 4 CC, 150 x 75 x 5 CC, 180 x 75 x 5 CC, 200 x 75 x 6 CC, 230 x 75 x 6 CC, 250 x 90 x 6 CC, 300 x 90 x 6 CC, 300 x 90 x 8 CC
Circular hollow section Sizes include: 21.3 x 2 CHS, 21.3 x 2.6 CHS, 21.3 x 3.2 CHS, 26.9 x 2 CHS. 26.9 x 2.3 CHS, 26.9 x 2.6 CHS, 26.9 x 3.2 CHS, 33.7 x 2 CHS, 33.7 x 2.6 CHS, 33.7 x 3.2 CHS, 33.7 x 4.0 CHS, 42.4 x 2 CHS, 42.4 x 2.6 CHS, 42.4 x 3.2 CHS, 42.4 x 4.0 CHS, 48.3 x 2.3 CHS, 48.3 x 2.9 CHS, 48.3 x 3.2 CHS, 48.3 x 4.0 CHS, 48.3 x 5.4 CHS, 60.3 x 2.3 CHS, 60.3 x 2.9 CHS, 60.3 x 3.6 CHS, 60.3 x 4.5 CHS, 60.3 x 5.4 CHS, 76.1 x 2.3 CHS, 76.1 x 2.6 CHS, 76.1 x 3.2 CHS, 76.1 x 3.6 CHS, 76.1 x 4.5 CHS, 76.1 x 5.9 CHS, 88.9 x 2.6 CHS, 88.9 x 3.2 CHS, 88.9 x 4.0 CHS, 88.9 x 5.0 CHS, 88.9 x 5.9 CHS, 101.6 x 2.6 CHS, 101.6 x 3.2 CHS, 101.6 x 4.0 CHS, 101.6 x 5.0 CHS, 114.3 x 3.2 CHS, 114.3 x 3.6 CHS, 114.3 x 4.5 CHS, 114.3 x 5.4 CHS, 139.7 x 3 CHS, 139.7 x 3.5 CHS, 139.7 x 5.4 CHS, 139.7 x 5.0 CHS, 165.1 x 3.5 CHS, 165.1 x 5.0 CHS, 165.1 x 5.4 CHS, 168.3 x 4.8 CHS, 168.3 x 6.4 CHS, 168.3 x 7.1 CHS, 219.1 x 4.8 CHS, 219.1 x 6.4 CHS, 219.1 x 8.2 CHS, 273.1 x 12.7 CHS, 273.1 x 4.8 CHS, 273.1 x 6.4 CHS, 273.1 x 9.3 CHS, 323.9 x 12.9 CHS, 323.9 x 6.4 CHS, 323.9 x 9.5 CHS, 355.6 x 12.7 CHS, 355.6 x 6.4 CHS, 355.6 x 9.5 CHS, 406.4 x 12.7 CHS, 406.4 x 6.4 CHS, 406.4 x 9.5 CHS, 457 x 12.7 CHS, 457 x 6.4 CHS, 457 x 9.5 CHS
Equal angle section Sizes include: 30 x 30 x 2.5 CA, 40 x 40 x 2.5 CA, 40 x 40 x 4 CA, 45 x 45 x 2.5 CA, 45 x 45 x 4 CA, 50 x 50 x 2.5 CA, 50 x 50 x 4 CA, 50 x 50 x 5 CA, 50 x 50 x 6 CA, 65 x 65 x 4 CA, 65 x 65 x 5 CA, 65 x 65 x 6 CA, 75 x 75 x 4 CA, 75 x 75 x 5 CA, 75 x 75 x 6 CA, 75 x 75 x 8 CA, 90 x 90 x 5 CA, 90 x 90 x 8 CA, 100 x 100 x 6 CA, 100 x 100 x 8 CA, 125 x 125 x 4 CA, 125 x 125 x 5 CA, 125 x 125 x 8 CA, 150 x 150 x 5 CA, 150 x 150 x 8 CA
Flat section Sizes include: 50 x 4 CA, 50 x 5 CA, 65 x 4 CA, 65 x 5 CA, 75 x 4 CA, 75 x 5 CA, 90 x 6 CA, 100 x 4 CA, 100 x 5 CA, 100 x 6 CA, 100 x 8 CA, 130 x 5 CA, 150 x 5 CA, 150 x 6 CA, 150 x 8 CA, 200 x 5 CA, 200 x 6 CA, 200 x 8 CA, 250 x 5 CA, 250 x 8 CA, 300 x 5 CA, 300 x 8 CA
Rail hollow section Size: 120 x 458 x 2
Rectangular hollow section Sizes include: 50 x 20 x 1.6 RHS, 50 x 20 x 2 RHS, 50 x 20 x 2.5 RHS, 50 x 20 x 3 RHS, 50 x 25 x 1.6 RHS, 50 x 25 x 2 RHS, 50 x 25 x 2.5 RHS, 50 x 25 x 3 RHS, 75 x 25 x 1.6 RHS, 75 x 25 x 2.5 RHS, 65 x 35 x 2 RHS, 65 x 35 x 2.5 RHS, 65 x 35 x 3 RHS, 65 x 35 x 4 RHS, 75 x 50 x 1.6 RHS, 75 x 50 x 2 RHS, 75 x 50 x 2.5 RHS, 75 x 50 x 3 RHS, 75 x 50 x 4 RHS, 75 x 50 x 5 RHS, 75 x 50 x 6 RHS, 100 x 50 x 1.6 RHS, 100 x 50 x 2.5 RHS, 100 x 50 x 3 RHS, 100 x 50 x 3.5 RHS, 100 x 50 x 4 RHS, 100 x 50 x 5 RHS, 100 x 50 x 6 RHS, 150 x 50 x 2 RHS, 150 x 50 x 2.5 RHS, 150 x 50 x 3 RHS, 150 x 50 x 4 RHS, 150 x 50 x 5 RHS, 150 x 50 x 6 RHS, 125 x 75 x 2 RHS, 125 x 75 x 2.5 RHS, 125 x 75 x 3 RHS, 125 x 75 x 4 RHS, 125 x 75 x 5 RHS, 125 x 75 x 6 RHS, 150 x 100 x 4 RHS, 150 x 100 x 5 RHS, 150 x 100 x 6 RHS, 150 x 100 x 9 RHS, 200 x 100 x 4 RHS, 200 x 100 x 5 RHS, 200 x 100 x 6 RHS, 200 x 100 x 9 RHS, 250 x 150 x 5 RHS, 250 x 150 x 6 RHS, 250 x 150 x 9 RHS,
Square hollow section Sizes include: 13 x 13 x 1.8 SHS, 15 x 15 x 1.8 SHS, 20 x 20 x 1.6 SHS, 25 x 25 x 1.6 SHS, 25 x 25 x 2 SHS, 25 x 25 x 2.5 SHS, 25 x 25 x 3 SHS, 30 x 30 x 1.6 SHS, 30 x 30 x 2 SHS, 35 x 35 x 1.6 SHS, 35 x 35 x 2 SHS, 35 x 35 x 2.5 SHS, 35 x 35 x 3 SHS, 40 x 40 x 1.6 SHS, 40 x 40 x 2 SHS, 40 x 40 x 2.5 SHS, 40 x 40 x 3 SHS, 40 x 40 x 4 SHS, 50 x 50 x 1.6 SHS, 50 x 50 x 2 SHS, 50 x 50 x 2.5 SHS, 50 x 50 x 3 SHS, 50 x 50 x 4 SHS, 50 x 50 x 5 SHS, 65 x 65 x 1.6 SHS, 65 x 65 x 2 SHS, 65 x 65 x 2.5 SHS, 65 x 65 x 3 SHS, 65 x 65 x 4 SHS, 65 x 65 x 5 SHS, 65 x 65 x 6 SHS, 75 x 75 x 2 SHS, 75 x 75 x 2.5 SHS, 75 x 75 x 3 SHS, 75 x 75 x 3.5 SHS, 75 x 75 x 4 SHS, 75 x 75 x 5 SHS, 75 x 75 x 6 SHS, 89 x 89 x 3.5 SHS, 89 x 89 x 5 SHS, 89 x 89 x 6 SHS, 90 x 90 x 2 SHS, 90 x 90 x 2.5 SHS, 100 x 100 x 2 SHS, 100 x 100 x 2.5 SHS, 100 x 100 x 3 SHS, 100 x 100 x 4 SHS, 100 x 100 x 5 SHS, 100 x 100 x 6 SHS, 100 x 100 x 9 SHS, 125 x 125 x 4 SHS, 125 x 125 x 5 SHS, 125 x 125 x 6 SHS, 125 x 125 x 9 SHS, 150 x 150 x 5 SHS, 150 x 150 x 6 SHS, 150 x 150 x 9 SHS, 200 x 200 x 5 SHS, 200 x 200 x 6 SHS, 200 x 200 x 9 SHS, 250 x 250 x 6 SHS, 250 x 250 x 9 SHS
Unequal angle section Sizes include: 75 x 50 x 4 CA, 75 x 50 x 5 CA, 75 x 50 x 6 CA, 100 x 75 x 6 CA, 100 x 75 x 8 CA, 125 x 75 x 6 CA, 125 x 75 x 8 CA, 150 x 100 x 6 CA, 150 x 100 x 8 CA

Acero estructural y laminado en caliente

Equal angles

 Sizes include: 25 x 25 x 3 EA, 25 x 25 x 4.6 EA, 25 x 25 x 6 EA, 30 x 30 x 3 EA, 30 x 30 x 4.6 EA, 30 x 30 x 4.6 EA, 30 x 30 x 6 EA, 40 x 40 x 3 EA, 40 x 40 x 4.6 EA, 40 x 40 x 6 EA, 45 x 45 x 3 EA, 45 x 45 x 4.6 EA, 45 x 45 x 6 EA, 50 x 50 x 3 EA, 50 x 50 x 4.6 EA, 50 x 50 x 6 EA, 50 x 50 x 7.8 EA, 55 x 55 x 4.6 EA, 55 x 55 x 6 EA, 65 x 65 x 4.6 EA, 65 x 65 x 6 EA, 65 x 65 x 7.8 EA, 65 x 65 x 9.5 EA, 75 x 75 x 4.6 EA, 75 x 75 x 6 EA, 75 x 75 x 7.8 EA, 75 x 75 x 9.5 EA, 90 x 90 x 6 EA, 90 x 90 x 7.8 EA, 90 x 90 x 9.5 EA, 100 x 100 x 6 EA, 100 x 100 x 7.8 EA, 100 x 100 x 9.5 EA, 100 x 100 x 12 EA, 125 x 125 x 7.8 EA, 125 x 125 x 9.5 EA, 125 x 125 x 12 EA, 125 x 125 x 15.8 EA, 150 x 150 x 9.5 EA, 150 x 150 x 12 EA, 150 x 150 x 15.8 EA, 150 x 150 x 19 EA, 200 x 200 x 13 EA, 200 x 200 x 16 EA, 200 x 200 x 18 EA, 200 x 200 x 20 EA, 200 x 200 x 26 EA
Parallel flange channel Sizes include: 75 PFC, 100 PFC, 125 PFC, 150 PFC, 180 PFC, 200 PFC, 230 PFC, 250 PFC, 300 PFC, 380 PFC
Tapered flange beam Sizes include: 100 TFB, 125 TFB
Unequal angles Sizes include: 65 x 50 x 4.6 UA, 65 x 50 x 6 UA, 65 x 50 x 7.8 UA, 75 x 50 x 4.6 UA, 75 x 50 x 6 UA, 75 x 50 x 7.8 UA, 100 x 75 x 6 UA, 100 x 75 x 7.8 UA, 100 x 75 x 9.5 UA, 125 x 75 x 6 UA, 125 x 75 x 7.8 UA, 125 x 75 x 9.5 UA, 125 x 75 x 12 UA, 150 x 90 x 7.8 UA, 150 x 90 x 9.5 UA, 150 x 90 x 12 UA, 150 x 90 x 15.8 UA, 150 x 100 x 9.5 UA, 150 x 100 x 12 UA
Universal beam Sizes include: 150 UB 14, 150 UB 18, 180 UB 16.1, 180 UB 18.1, 180 UB 22.2, 200 UB 18.2, 200 UB 22.3, 200 UB 25.4, 200 UB 29.8, 250 UB 25.7, 250 UB 31.4, 250 UB 37.3, 310 UB 32, 310 UB 40.4, 310 UB 46.2, 360 UB 44.7, 360 UB 50.7, 360 UB 56.7, 410 UB 53.7, 410 UB 59.7, 460 UB 67.1, 460 UB 74.6, 460 UB 82.1, 530 UB 82, 530 UB 92.4, 610 UB 101, 610 UB 113, 610 UB 125
Universal bearing pile Sizes include: 200 UBP 122, 310 UBP 78.8, 310 UBP 110, 310 UBP 149
Universal column Sizes include: 100 UC 14.8, 150 UC 23.4, 150 UC 30, 150 UC 37.2, 200 UC 46.2, 200 UC 52.2, 200 UC 59.5, 250 UC 72.9, 250 UC 89.5, 310 UC 96.8, 310 UC 118, 310 UC 137, 310 UC 158
Welded beam Sizes include: 700 WB 115, 700 WB 130, 700 WB 150, 700 WB 173, 800 WB 122, 800 WB 146, 800 WB 168, 800 WB 192, 900 WB 175, 900 WB 218, 900 WB 257, 900 WB 282, 1000 WB 215, 1000 WB 258, 1000 WB 296, 1000 WB 322, 1200 WB 249, 1200 WB 278, 1200 WB 317, 1200 WB 342, 1200 WB 392, 1200 WB 423, 1200 WB 455,
Welded column Sizes include: 350 WC 197, 350 WC 230, 350 WC 258, 350 WC 280, 400 WC 144, 400 WC 181, 400 WC 212, 400 WC 270, 400 WC 303, 400 WC 328, 400 WC 361, 500 WC 228, 500 WC 267, 500 WC 290, 500 WC 340, 500 WC 383, 500 WC 414, 500 WC 440

Perfiles de marco ISO

Barra rectangular

Sizes include: 0.375in x 0.25in, 0.50in x 0.125in, 0.50in x 0.1875in, 0.50in x 0.25in, 0.50in x 0.375in, 0.625in x 0.125in, 0.625in x 0.1875in, 0.625in x 0.25in, 0.625in x 0.375in, 0.625in x 0.50in, 0.75in x 0.0625in, 0.75in x 0.125in, 0.75in x 0.1875in, 0.75in x 0.25in, 0.75in x 0.375in, 0.75in x 0.50in, 0.75in x 0.625in, 0.875in x 0.125in, 1in x 0.0625in, 1in x 0.125in, 1in x 0.1875in, 1in x 0.25in, 1in x 0.3125in, 1in x 0.375in, 1in x 0.5in, 1in x 0.625in, 1in x 0.75in, 1.25in x 0.125in, 1.25in x 0.1875in, 1.25in x 0.3125, 1.25in x 0.25in, 1.25in x 0.375in, 1.5in x 0.625in, 1.25in x 0.75in, 1.25in x 1in, 1.5in x 0.125in, 1.5in x 0.1875in, 1.50in x 0.25in, 1.5in x 0.3125in, 1.5in x 0.375in, 1.5in x 0.5in, 1.5in x 0.625in, 1.5in x 0.75in, 1.5in x 1in, 1.5in x 1.25in, 1.75in x 0.125in, 1.75in x 0.25in, 1.75in x 0.375in, 1.75in x 0.50in, 1.75in x 0.75in, 1.75in x 1in, 1.75in x 1.25in, 1.75in x 1.50in, 2in x 0.125in, 2in x 0.25in, 2in x 0.3125in, 2in x 0.375in, 2in x 0.50in, 2in x 0.625in, 2in x 0.75in, 2in x 1in, 2in x 1.25in, 2in x 1.50in, 2in x 1.75in, 2.25in x 0.25in, 2.25in x 0.50in, 2.25in x 1.25in, 2.50in x 0.1875in, 2.50in x 0.125, 2.50in x 0.25in, 2.50in x 0.375in, 2.50in x 0.50in, 2.5in x 0.625, 2.5in x 0.75in, 2.5in x 1in, 2.50in x 1.25in, 2.5in x 1.50in, 2.5in x 1.75in, 2.50in x 2in, 3in x 0.125, 3in x 0.25in, 3in x 00.375in, 3in x 0.50in, 3in x 0.625in, 3in x 1in, 3in x 1.25in, 3in x 1.50in, 3in x 1.75in, 3in x 2in, 3in x 2.50in, 3.50in x 0.25in, 3.50in x 0.625in, 3.5in x 0.50in, 3.50in x 0.75in, 3.50in x 1.25in, 3.50in x 1.50in, 4in x 0.125in, 4in x 0.1875in, 4in x 0.25in, 4in x 0.375in, 4in x 0.50in, 4in x 0.625in, 4in x 0.75in, 4in x 1in, 4in x 1.25in, 4in x 1.50in, 4in x 1.75in, 4in x 2in, 5in x 0.25in, 5in x 0.375in, 5in x 0.50in, 5in x 0.75in, 5in x 1in, 5in x 2in, 6in x 0.125in, 6in x 0.25in, 6in x 0.375in, 6in x 0.50in, 6in x 0.625in, 6in x 0.75in, 6in x 1in, 6in x 1.50in, 6in x 2in, 8in x 0.25in, 8in x 0.50in, 20mm x 10mm, 30mm x 10mm, 30mm x 12mm, 40mm x 5mm, 40mm x 10mm, 50mm x 8mm, 60mm x 10mm, 60mm x 30mm, 60mm x 40mm, 70mm x 20mm, 100mm x 5mm, 100mm x 6mm, 100mm x 8mm, 100mm x 20mm, 120mm x 10mm, 120mm x 20mm, 150mm x 8mm, 200mm x 6mm, 200mm x 8mm, and 200mm x 10mm

Tubo rectangular

Sizes include: 20mm x 20mm x 2mm, 20mm x 20mm x 2.6mm, 30mm x 30mm x 2mm, 30mm x 30mm x 2.6mm, 30mm x 30mm x 3.2mm, 40mm x 40mm x 2.6mm, 40mm x 40mm x 3.2mm, 40mm x 40mm x 4mm, 50mm x 30mm x 2.6mm, 50mm x 30mm x 3.2mm, 50mm x 30mm x 4mm, 50mm x 50mm x 3.2mm, 50mm x 50mm x 4mm, 50mm x 50mm x 5mm, 60mm x 40mm x 3.2mm, 60mm x 40mm x 4mm, 60mm x 40mm x 5mm, 60mm x 60mm x 3.2mm, 60mm x 60mm x 4mm, 60mm x 60mm x 5mm, 70mm x 40mm x 3.2mm, 70mm x 40mm x 4mm, 70mm x 40mm x 5mm, 70mm x 70mm x 3.2mm, 70mm x 70mm x 3.6mm, 70mm x 70mm x 4mm, 70mm x 70mm x 5mm, 80mm x 40mm x 3.2mm, 80mm x 40mm x 4mm, 80mm x 40mm x 5mm, 80mm x 80mm x 3.2mm, 80mm x 80mm x 3.6mm, 80mm x 80mm x 4mm, 80mm x 80mm x 5mm, 80mm x 80mm x 6.3mm, 90mm x 50mm x 3.2mm, 90mm x 50mm x 3.6mm, 90mm x 50mm x 4mm, 90mm x 50mm x 5mm, 90mm x 90mm x 3.2mm, 90mm x 99mm x 3.6mm, 90mm x 90mm x 4mm, 90mm x 90mm x 5mm, 90mm x 90mm x 6.3mm, 90mm x 90mm x 8mm, 100mm x 50mm x 3.2mm, 100mm x 50mm x 3.6mm, 100mm x 50mm x 4mm, 100mm x 60mm x 3.2mm, 100mm x 60mm x 3.6mm, 100mm x 60mm x 4mm, 100mm x 60mm x 5mm, 100mm x 60mm x 6.3mm, 100mm x 100mm x 3.2mm, 100mm x 100mm x 4mm, 100mm x 100mm x 5mm, 100mm x 100mm x 6.3mm, 100mm x 100mm x 8mm, 100mm x 100mm x 10mm, 120mm x 60mm x 3.2mm, 120mm x 60mm x 3.6mm, 120mm x 60mm x 4mm, 120mm x 60mm x 5mm, 120mm x 60mm x 6.3mm, 120mm x 60mm x 8mm, 120mm x 80mm x 3.2mm, 120mm x 80mm x 4mm, 120mm x 80mm x 6.3mm, 120mm x 80mm x 8mm, 120mm x 80mm x 10mm, 120mm x 120mm x 3.2mm, 120mm x 120mm x 4mm, 120mm x 120mm x 5mm, 120mm x 120mm x 6.3mm, 120mm x 120mm x 8mm, 120mm x 120mm x 10mm, 140mm x 80mm x 3.2mm, 140mm x 80mm x 4mm, 140mm x 80mm x 5mm, 140mm x 80mm x 6.3mm, 140mm x 80mm x 6.3mm, 140mm x 80mm x 8mm, 140mm x 80mm x 10mm, 140mm x 140mm x 3.6mm, 140mm x 140mm x 5mm, 140mm x 140mm x 6.3mm, 140mm x 140mm x 8mm, 140mm x 140mm x 10mm, 150mm x 100mm x 3.2mm, 150mm x 100mm x 4mm, 150mm x 100mm x 6.3mm, 150mm x 100mm x 8mm, 150mm x 100mm x 10mm, 150mm x 150mm x 4mm, 150mm x 150mm x 5mm, 150mm x 150mm x 6.3mm, 150mm x 150mm x 8mm, 150mm x 150mm x 10mm, 160mm x 80mm x 3.2mm, 160mm x 80mm x 4mm, 160mm x 80mm x 5mm, 160mm x 80mm x 6.3mm, 160mm x 80mm x 8mm, 160mm x 80mm x 10mm, 160mm x 160mm x 4mm, 160mm x 160mm x 5mm, 160mm x 160mm x 6.3mm, 160mm x 160mm x 8mm, 160mm x 160mm x 10mm, 180mm x 100mm x 3.6mm, 180mm x 100mm x 5mm, 180mm x 100mm x 6.3mm, 180mm x 100mm x 8mm, 180mm x 100mm x 10mm, 180mm x 180mm x 4mm, 180mm x 180mm x 5mm, 180mm x 180mm x 6.3mm, 180mm x 180mm x 8mm, 180mm x 180mm x 10mm, 200mm x 100mm x 4mm, 200mm x 100mm x 5mm, 200mm x 100mm x 6.3mm, 200mm x 100mm x 8mm, 200mm x 100mm x 10mm, 200mm x 120mm x 4mm, 200mm x 120mm x 5mm, 200mm x 120mm x 6.3mm, 200mm x 120mm x 8mm, 200mm x 120mm x 10mm, 200mm x 200mm x 5mm, 200mm x 200mm x 6.3mm, 200mm x 200mm x 8mm, 200mm x 200mm x 10mm, 220mm x 140mm x 4mm, 220mm x 140mm x 5mm, 220mm x 140mm x 6.3mm, 220mm x 140mm x 8mm, 220mm x 140mm x 10mm, 220mm x 220mm x 5mm, 220mm x 220mm x 6.3mm, 220mm x 220mm x 8mm, 220mm x 220mm x 10mm, 250mm x 150mm x 5mm, 250mm x 150mm x 6.3mm, 250mm x 150mm x 8mm, 250mm x 150mm x 10mm, 250mm x 250mm x 5.9mm, 250mm x 250mm x 6.3mm, 250mm x 250mm x 8mm, 250mm x 250mm x 10mm, 260mm x 260mm x 5.9mm, 260mm x 260mm x 6.3mm, 260mm x 260mm x 8mm, 260mm x 260mm x 10mm, 300mm x 200mm x 5.9mm, 300mm x 200mm x 6.3mm, 300mm x 200mm x 8mm, 300mm x 200mm x 10mm, 300mm x 300mm x 7.1mm, 300mm x 300mm x 8mm, 300mm x 300mm x 10mm, 350mm x 350mm x 8mm, 400mm x 200mm x 7.1mm, 400mm x 200mm x 8mm, 400mm x 200mm x 10mm, 400mm x 400mm x 10mm, 450mm x 250mm x 8mm, 450mm x 250mm x 10mm, and 500mm x 300mm x 10mm
Barra redonda Sizes include: 0.25in DIA (6.35mm), 0.3125in DIA (7.937mm), 0.375in DIA (9.525mm), 0.4375in DIA (11.112mm), 0.50in DIA (12.7mm), 9/16in DIA (14.287mm), 0.625in DIA (15.875mm), 20mm DIA, 0.8125in DIA (20.637mm), 0.875in DIA (22.225mm), 1in DIA (25.4mm), 1.125in DIA (28.58mm), 1.25in DIA (31.75mm), 1.3125in DIA (33.337mm), 1.375in DIA (34.93mm), 35mm DIA, 1.50in DIA (38.1mm), 40mm DIA, 1.625in DIA (41.28mm), 1.75in DIA (44.45mm), 1.875in DIA (47.65mm), 2in DIA (50.8mm), 2.125in DIA (53.975mm), 2.375in DIA (60.33mm), 2.50in DIA (63.5mm), 2.625in DIA (66.67mm), 2.75in DIA (69.85mm), 3in DIA (76.2mm), 3.25in DIA (82.55mm), 3.50in DIA (88.9mm), 3.50in DIA (88.9mm), 3.75in DIA (95.25mm), 4in DIA (101.6mm), 4.25in DIA (107.95mm), 4.50in DIA (114.3mm), 4.75in DIA (120.65mm), 5.25in DIA (133.35mm), 5.50in DIA (139.7mm), 5.75in DIA (146.05mm), 6i nDIA (152.4mm), 6.50in DIA (165.1mm), 7in DIA (177.8mm), 7.25in DIA (184.15mm), 7.50in DIA (190.5mm), 8in DIA (203.2mm), 8.50in DIA (215.9mm), 9in DIA (228.6mm), 9.50in DIA (241.3mm), 10in DIA (254mm), 12in DIA (304.8,mm), 13in DIA (330.2mm), 14in DIA (355.6mm), 15in DIA (381mm), and 16in DIA (406.4mm)
Tubo redondo Sizes include: 0.375in OD x 16SWG, 0.50in D x 18SWG, 0.50in OD x 16SWG, 0.50in OD x 10SWG, 0.625in OD x 18SWG, 0.625in OD x 16SWG, 0.625in OD x 10SWG, 0.75in OD x 18SWG, 0.75in OD x 16SWG, 0.75in OD x 10SWG, 0.875in OD x 18SWG, 0.875in OD x 16SWG, 0.875in OD x 10SWG, 1in OD x 18SWG, 1in OD x 16SWG, 1in OD x 10SWG, 1in OD x 0.1875in, 1in OD x 0.25in, 1.125in OD x 16SWG, 1.125in OD x 10SWG, 1.25in OD x 18SWG, 1.25in OD x 16SWG, 1.25in OD x 0.1875in, 1.25in OD x 10SWG, 1.375in OD x 16SWG, 1.375in OD x 10SWG, 1.50in OD x 18SWG, 1.50in OD x 16SWG, 1.50in OD x 10SWG, 1.50in OD x 0.1875in, 1.50in OD x 0.25in, 1.625in OD x 16SWG, 1.625in OD x 10SWG, 1.625in OD x 0.1875in, 1.75in OD x 16SWG, 1.75in OD x 10SWG, 1.875in OD x 10SWG, 2in OD x 16SWG, 2in OD x 10SWG, 2in OD x 0.1875in, 2in OD x 0.25in, 2in OD x 1.5mm, 2in OD x 3.0mm, 2.25in OD x 16SWG, 2.25in OD x 10SWG, 2.50in OD x 0.1875, 2.50in OD x 0.25in, 2.50in OD x 0.375in, 3.5in OD x 0.25in, 2.75in OD x 10SWG, 3in OD x 16SWG, 3in OD x 10SWG, 3in OD x 0.1875in, 3in OD x 0.25in, 3in OD x 1.5mm, 3in OD x 3.0mm, 3.50in OD x 16SWG, 3.50in OD x 10SWG, 3.50in OD x 0.25in, 4in OD x 16SWG, 4in OD x 10SWG, 4in OD x 0.25in, 4in OD x 1.5mm, 4in OD x 3.0mm, 4.50 in OD x 10SWG, 4.5in OD x 0.25in, 5in OD x 10SWG, 5in OD x 0.25in, 6in OD x 10SWG, 6in OD x 0.25in, 6.50in OD x 0.25in, 100mm OD x 2mm, 150mm OD x 2mm, and 152mm OD x 2.5mm
