Rahmen-Profile

Der Onshape-Rahmenprofil-Inhalt wird von Onshape erstellt, ist in Dokumenten in Onshape enthalten und wird von Onshape gepflegt. Es besteht keinerlei Risiko, dass dieser Inhalt verloren geht oder von einer Release bis zur nächsten nicht mehr funktioniert. Wir haben einen integrierten, zeitsparenden Prozess für diesen Workflow, der das Einfügen von Rahmenprofilen vereinfacht.

Zu den unterstützten Standardinhalten zählen:

Onshape-Rahmenprofilbibliothek: ISO, ANSI, 8020, AS, AISC
8020: Serie 10, Serie 15, Serie 20, Serie 25, Serie 30, Serie 40 und Serie 45
AISC: C-Formen, HP-Formen, L-Winkel, M-Formen, MC-Formen, MT-Formen, Rohr, rechteckig, rund, S-Formen, quadratisch, ST-Formen, W-Formen und WT-Formen
ANSI: Rechteckstab, Rechteckrohr, Rundstab und Rundrohr
AS: kaltgeformte Hohlprofile und Profile, warmgewalzter Stahl und Baustahl
ISO: Rechteckstab, Rechteckrohr, Rundstab und Rundrohr

Onshape-Rahmenprofil-Bibliothek

ISO - Rectangular bar, Rectangular tube, Round bar, Round tube
ANSI - Rectangular bar, Rectangular tube, Round bar, Round tube
8020 - 10 series, 15 series, 20 series, 25 series, 30 series, 40 series, 45 series
AS - Cold formed hollow sections, Hot rolled and structural steel
AISC - AISC

8020-Rahmenprofile

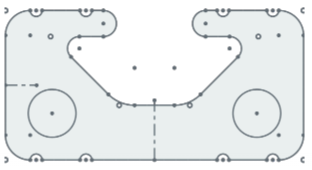

Serie 10	1001, 1001-S, 1002, 1002-S, 1003, 1003-S, 1004, 1004-S, 1010, 1010-S, 1012, 1012-S, 1020, 1020-S, 1030, 1030-S, 1050, 2012, 2020, 2020-S, 2040 und 2040-S

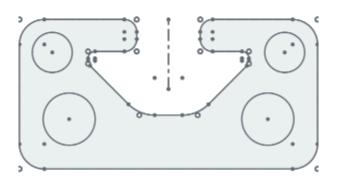

Serie 15	1501, 1501-LS, 1502, 1502-LS, 1503, 1503-LS, 1504, 1504-LS, 1515, 1515-Lite, 1515-LS, 1515-S, 1515-UL, 1515-ULS, 1517, 1517-LS, 1530, 1530-Lite, 1530-LS, 1530-S, 1530-UL, 1530-ULS, 1534-Lite, 1545, 1545-LS, 1545-S, 1547, 1575, 3030, 3030-Lite, 3030-LS, 3030-S, 3034-Lite, 3060 und 3075
Serie 20	20-2020, 20-2040 und 20-4040

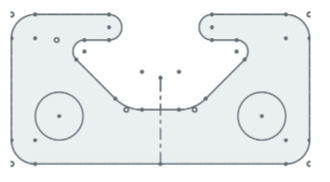

Serie 25	25-2501, 25-2502, 25-2503, 25-2504, 25-2514, 25-2525, 25-2527, 25-2550, 25-2576, 25-5010, 25-5013 und 25-5050
Serie 30	30-3001, 30-3002, 30-3003, 30-3004, 30-3022, 30-3030, 30-3060 und 30-6060
Serie 40	40-4001, 40-4002, 40-4003, 40-4004, 40-4012, 40-4020, 40-4030-Lite, 40-4040, 40-4040-Lite, 40-4040-UL, 40-4045-Lite, 40-4080, 40-4080-Lite, 40-4080-UL, 40-4082-Lite, 40-4083-Lite, 40-4084-Lite, 40-4085-Lite40-4093, 40-4094, 40-4096, 40-8016, 40-8020 und 40-8080
Serie 45	45-4545, 45-4545-Lite, 45-4590 und 45-9090

AISC-Rahmenprofile

C-Formen	Konfigurationen: C15x50, C15x40, C15x33.9, C12x30, C12x25, C12x20.7, C10x30, C10x25, C10x20, C9x20, C9x15, C9x13.4, C8x18.75, C8x13.75, C8x11.5, C7x14.75, C7x12.25, C7x9.8, C6x13, C6x10.5, C6x8.2, C5x9, C5,6.7, C4x7.25, C4x6.25, C4x5.4, C4x4.5, C3x6, C3x5, C3x4.1 und C3x3.5
HP-Formen	Konfigurationen: HP18x204, HP18x181, HP18x157, HP18x135, HP16x183, HP16x162, HP16x141, HP16x121, JP16x101, HP16x88, HP14x117, JP14x102, HP14x89, HP14x73, HP12x84, HP12x63, JP12x53, HP10x57, HP10x42 und HP8x36
L-Winkel	Konfigurationen: L8x8x1.125, L8x8x1, L8x8x0.875, L8x8x0.75, L8x8x0.625, L8x8x0.5625, L8x8x0.5, L8x6x1, L8x6x0.875, L8x8x0.75, L8x6x0.625, L8x6x0.5625, L8x6x0.5, L8x6x0.4375, L8x4x1, L8x4x0.875, L8x4x0.75, L8x4x0.625, L8x4x0.5625, L8x4x0.5, L8x4x0.4375, L7x4x0.75, L7x4x0.625, L7x4x0.5, L7x4x0.4375, L7x4x0.375, L6x6x1, L6x6x0.875, L6x6x0.75, L6x6x0.625, L6x6x0.5625, L6x6x0.5, L6x6x0.4375, L6x6x0.375, L6x6x0.3125, L6x4x0.875, L6x64x0.75, L6x6x0.625, L6x4x0.5625, L6x4x0.5, L6x4x0.4375, L6x64x0.375, L6x4x0.3125, L6x3.5x0.5, L6x3.5x0.375, 6x3.5x0.3125, L5x5x0.875, L5x5x0.75, L5x5x0.625, L5x5x0.5, L5x5x0.4375, L5x5x0.375, L5x5x0.25, L5x3.5x0.75, Lx3.5x0.625, L5x3x0.5, L5.3x0.375, L5x3.5x0.3125, L5x3.5x0.25, L5x3x0.5, L5x3x0.4375, L5x3x0.375, L53x0.325, L5x3x0.25, L4x4x0.75, L4x4x0.625, L4x4x0.5, L4x4x0.4375, L4x4x0.375, L4x4x0.3125, L4x4x0.25, L4x3.5x0.5, L4x3.5x0.375, 4x3.5x0.3125, L4x3.5x0.25, L4x3x0.625, L4x3x0.5, L4x3x0.375, L4x3x0.3125, L4x4x0.25, L3.5x3.5x0.5, L3.5x3.5x0.4375, L3.5x3.5x0.375, L3.5x3.5x0.3125, L3.5x3.5x0.25, L3.5x3.0.5, L3.5x3x0.4375, L3.5x3x0.375, L3.5x3x0.3125, L3.5x3x0.25, L3.5x2.5x0.5, L3.5x2.5x0.375, L3.5x2.5x0.3125, L3.5x2.5x0.25, L3x3x0.5, L3x3x0.4375, L3x3x0.375, L3x3x0.3125, L3x3x0.25, L3x3x0.1875, L3x2.5x0.5, L3x2.5x0.4375, L3x2.5x0.375, L3x2.5x0.3125, L3x2.5x0.25, L3x2.5x0.1875, L3x2x0.5, L3x2x0.375, L3x2x0.3125, L3x2x0.25, L3x2x0.1875, L2.5x2.5x0.5, L2.5x2.5x0.375, L2.5x2.5x0.3125, L2.5x2.5x0.25, L2.5x2.5x0.1875, L2.5x2x0.375, L2.5x2x0.3125, L2.5x2x0.25, L2.5x2x0.1875, L2.5x1.5x0.25, L2.5x1.5x0.1875, L2x2x0.375, L2x2x0.3125, L2x2x0.25, L2x2x0.25, L2x2x0.1875 und L2x2x0.125
M-Formen	Konfigurationen: M12.5x12.4, M12.5x11.6, M12x11.8, M12x10.8, M12x10, M10x9, M10x8, M10x7.5, M8x6.5, M8x6.2, M6x4.4, M6x3.7, M5x18.9, M4x6, M4x4.08, M4x3.45, M4x3.2 und M3x2.9
MC-Formen	Konfigurationen: MX18x58, MC18x51.9, MC18x45.8, MC18x42.7, MC13x50, M13x40, MC13x35, MC13x31.8, MC12x50, MC12x45, MC12x40, MC12x35, MC12x31, MC12x14.3, MC12x10.6, MC10x41.1, MC10x33.6, MC10x28.5, MC10x25, MC10x22, MC10x8.4, MC10x6.5, MC9.25, MC9.23.9, MC8x22.8, MC8x21.4, MC8x20, MC8x18.7, MC8x8.5, MC7x22.7, MC7x19.1, MC6x18, MC6x15.3, MC6x16.3, MC6x15.1, MC6x12, MC6x7, MC6x6.5, MC4x13.8 und MC3x7.1

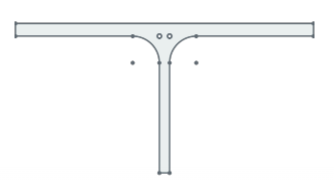

MT-Formen	Konfigurationen: MT6.25x6.2, MT6.25x5.8, MT6x5.9, MT6x5.4, MT6x5, MT5.x4.5, MT5x4, MT5x3.75, MT4x3.25, MT4x3.1, MT3x2.2, MT3x1.85, MT2.5x9.45 und MT2x3
Rohr	Konfigurationen: 12 Std, 10 Std, 8 Std, 6 Std, 5 Std, 4 Std, 3 1/2 Std, 3 Std, 2 1/2 Std, 2 Std, 1 1/2 Std, 1 1/4 Std, 1 Std, 3/4 Std, 1/2 Std, 12 x-Strong, 10 x-Strong, 8 x-Strong, 6 x-Strong, 5 x-Strong, 4 x-Strong, 3 1/2 x-Strong, 3 x-Strong, 2 1/2 x-Strong, 2 x-Strong 1 1/2 x-Strong, 1 1/4 x-Strong, 1 x-Strong, 1 x-Strong, 3/4 x-Strong, 1/2 x-Strong, 8 xx-Strong, 6 xx-Strong, 5 xx-Strong, 4 xx-Strong, 3 xx-Strong, 2 1/2 xx-Strong und 2 xx-Strong
Rechteckig	Konfigurationen: HSS20x12x0.625, HSS20x12x0.5, HSS20x12x0.375, HSS20x12x0.3125, HSS20x8x0.625, HSS20x8x0.5, HSS20x8x0.375, HSS20x4x0.5, HSS20x4.0x0.375, HSS20x4.0x0.3125, HSS20x4.0x0.25, HSS18x6x0.625, HSS18x6x0.5, HSS18x6x0.375, HSS18x6x0.3125, HSS18x6.0.25, HSS16x12x0.625, HSS16x12x0.5, HSS16x12x0.375, HSS16x12x0.3125, HSS16x8x0.625, HSS16x8x0.5, HSS16x8.0.375, HSS16x8x0.3125, HSS16x8x0.25, HSS16x4x0.625, HSS16x4x0.5, HSS16x4x0.5, HSS16xx4x0.375, HSS16x4x0.3125, HSS16x4x0.25, HSS16x4x0.1875, HSS14x10x0.625, HSS14x10x0.5, HSS14x10x0.375, HSS14x10x0.3125, HSS14x10x0.25, HSS14x6x0.625, HSS14x6x0.5, HSS14x6x0.5, HSS14x6x0.375, HSS14x6x0.3125, HSS14x6x0.25, HSS14x6x0.1875, HSS14x4x0.625, HSS14x4x0.5, HSS14x4x0.375, HSS14x4x0.3125, HSS14x4x0.25, HSS14x4x0.1875, HSS12x10x0.5, HSS12x10x0.375, HSS12x10x0.3125, HSS12x10x0.25, HSS12x8x0.625, HSS12x8x0.375, HSS12x8x0.3125, HSS12x8x0.25, HSS12x8x0.1875, HSS12x6x0.625, HSS12x6x0.5, HSS12x6x0.375, HSS12x6x0.3125, HSS12x6x0.23, HSS12x4x0.625, HSS12x4x0.5, HSS12x4x0.375, HSS12x4x0.3125, HSS12x4x0.25, HSS12x4x0.1875, HSS12x3.5x0.375, HSS12x3.5x0.3125, HSS12x3x0.3125, HSS12x3x0.1875, HSS12x2x0.3125, HSS12x2x0.25, HSS12x2x0.1875, HSS12x10x8x0.625, HSS10x8x0.5, HSS10x8x0.375, HSS10x8x0.3125, HSS10x8x0.25, HSS10x8x0.1875, HSS10x6x0.625, HSS10x6x0.5, HSS10x6x0.375, HSS10x6x0.3125, HSS10x6x0.25, HSS10x6x0.1875, HSS10x5x0.375, HSS10x5x0.3125, HSS10x5x0.25, HSS10x5x0.1875, HSS10x4x0.625, HSS10x4x0.5, HSS10x4x0.375, HSS10x4x0.3125, HSS10x4x0.25, HSS10x4x0.1875, HSS10x4x0.125, HSS10,3.5x0.5, HSS10x3.5x0.375, HSS10x3.5x0.3125, HSS10x3.5x0.25, HSS10x3.5x0.1875, HSS10x3.5x0.125, HSS10x3x0.375, HSS10x1x0.3125, HSS10x3x0.25, HSS10x3x0.1875, HSS10x2x0.375, HSS10x2x0.3125, HSS10x2x0.25, HSS10x2x0.1875, HSS10x2x0.125, HSS9x7x0.625, HSS9x7x0.5, HSS9x7x0.375, HSS9x7x0.3125, HSS9x7x0.25, HSS9x7x0.1875, HSS9x5x0.625, HSS9x5x0.5, HSS9x5x0.375, HSS9x5x0.3125, HSS9x5x0.25, HSS9x5x0.1875, HSS9x3x0.5, HSS9x3x0.375, HSS9x3x0.3125, HSS9x3x0.1875, HSS8x6x0.625, HSS8x6x0.5, HSS8x6x0.375, HSS8x6x0.3125, HSS8x6x0.25, HSS8x6x0.1875, HSS8x4x0.625, HSS8x4x0.5, HSS8x4x0.375, HSS8x4c0.3125, HSS8x4x0.25, HSS8x4x0.125, HSS8x3x0.5, HSS8x3x0.375, HSS8x3x0.3125, HSS8x3x0.25, HSS8x3x0.1875, HSS8x3x0.125, HSS8x2x0.375, HSS8x2x0.3125, HSS8x2x0.25, HSS8x2x0.1875, HSS8x2x0.125, HSS7x5x0.5, HSS7x5x0.375, HSS7x5x0.3125, HSS7x5x0.25, HSS7x5x0.1875, HSS7x5x0.125, HSS7x4x0.5, HSS7x4x0.375, HSS7x4x0.3125, HSS7x4x0.25, HSS7x4x0.1875, HSS7x40.125, HSS7x3x0.5, HSS7x3x0.3125, HSS7x3x0.375, HSS7x3x0.3125, HSS7x3x0.25, HSS7x3x0.1875, HSS7x3x0.125, HSS7x2x0.25, HSS7x2x0.1875, HSS7x2x0.125, HSS6x5x0.5, HSS6x5x0.375, HSS6x5x0.3125, HSS6x5x0..25, HSS6x5x0.1875, HSS6x5x0.125, HSS6x4x0.5, HSS6x4x0.375, HSS6x4x0.25, HSS6x4x0.1875, HSS6x3x0.5, HSS6x3x0.375, HSS6x3x0.3125, HSS6x3x25, HSS6x3x0.1875, HSS6x3x0.125, HSS6x2x0.3125, HSS6x2x0.25, HSS6x2x0.1875, HSS6x2x0.125, HSS5x4x0.5, HSS5x4x0.375, HSS5x4x0.375, HSS5x4x0.3175, HSS5x4x0.25, HSS5x4x0.1875, HSS5x4x0.125, HSS5x3x0.5, HSS5x3x0.375, HSS5x3x0.3125, HSS5x3x0.25, HSS5x3x0.1875, HSS5x3x0.125, HSS5x2.5x0.25, HSS5x2.5x0.1875, HSS5x2.5x0.1265, HSS5x2x0.375, HSS5x2x0.3125, HSS5x2x0.25, HSS5x2x0.1875, HSS5x2x0.125, HSS4x3x0.375, HSS4x3x0.3125, HSS4x3x0.25, HSS4x3x0.1875, HSS4x3x0.125, HSS4x2.5x0.3125, HSS4x2.5x0.3125, HSS4x2.5x0.25, HSS4x2.5x0.1875, HSS4x2.5x0.125, HSS4x2x0.375, HSS4x2x0.3125, HSS4x2x0.25, HSS4x2x0.1875, HSS4x2x0.125, HSS3.5x2.5x0.375, HSS3.5x2.5x0.3125, HSS3.5x2.5x0.25, HSS3.5x2.5x0.1875, HSS3.5x2.5x0.125, HSS3.5x2x0.25, HSS3.5x2x0.1875, HSS3.5x2x0.125, HSS3.5x1.5x0.25, HSS3.5x1.5x0.1875, HSS3.5x1.5x0.125, HSS3x2.5x0.3125, HSS3x2.5x0.25, HSS3x2.5x0.1875, HSS3x2.5x0.125, HSS3x2x0.3125, HSS3x2x0.25, HSS3x2x0.1875, HSS3x2x0.125, HSS3x1.5x0.25, HSS3x1.5x0.1875, HSS3x1.5x0.125, HSS3x1x0.1875, HSS2.5x2x0.25, HSS2.5x2x0.1875, HSS2.5x2x0.125, HSS2.5x1.5x0.25, HSS2.5x1.5x0.1875, HSS2.5x1.5x0.125, HSS2.5x1x0.1875, HSS2.5x1x0.125, HSS2.25x2x0.1875, HSS2.25x2x0.125, HSS2x1.5x0.1875, HSS2x1.5x0.125, HSS2x1x0.1875 und HSS2x1x0.125
Rund	Konfigurationen: HSS20x0.500, HSS20x0.375, HSS18x0.500, HSS18x0.375, HSS16x0.375, HSS16x0.625, HSS16x0.500, HSS16x0.438, HSS16x0.375, HSS16x0.312, HSS16x0.250, HSS14x0.625, HS14x0.500, HSS14x0.375, HSS14x0.312, HSS14x0.250, HSS12.750x0.500, HSS12.750x0.375, HSS12.750x0.250, HSS10.750x0.500, HSS10.750x0.375, HSS10.750x0.250, HSS10.0.625, HSS10x0.500, HSS10x0.375, HSS10x0.12, HSS10x0.250, HSS10x0.188, HSS0.625x0.500, HSS9.625x0.375, HSS9.625x0.312, HSS9.625x0.250, HSS9.625x0.188, HSS8.625x0.625, HSS8.625x0.500, HSS8.625x0.0375, HSS8.625x0.322, HSS8.625x0.250, HSS8.625x0.188, HSS7.625x0.375, HSS7.625x0.328, HSS7.500x0.500, HSS7.500x0.375, SS7.500x0.250, HSS7.500x0.188, HSS7x0.500, HSS7x0.375, HSS7x0.312, HSS7x0.250, HSS7x0.188, HSS7x0.125, HSS6.875x0.500, HSS6.875x0.375, HSS6.875x0.312, HSS6.875x0.250, HSS6.875x0.188, HSS6.625x0.500, HSS6.625x0.432, HSS6.625x0.375, HSS6.625x0.312, HSS6.625x0.280, HSS6.625x0.250, HSS6.625x0.188, HSS6.625x0.125, HSS6x0.500, HSS6x0.375, HSS6x0.312, HSS6x0.280, HSS6x0.250, HSS6x0.188, HSS6x0.125, HSS5.563x0.500, HS5.563x0.375, HSS5.563x0.258, HSS5.563x0.188, HSS5.563x0.134, HSS5.500x0.500, HSS5.500x0.375, HSS5.500x0.258, HSS5x0.500, HSSS5x0.375, HSS5x0.312, HSS5x0.258, HSS5x0.250, HSS5x0.188, HSS5x0.125, HSS4.500x0.375, HSS4.500x0.337, HSS4.500x0.237, HSS4.500x0.188, HSS4.500x0.125, HSS4x0.313, HSS4x0.250, HSS4x0.237, HSS4x0.226, HSS4x0.200, HSS4x0.188, HSS4x0.125, HSS3.500x0.313, HSS3.500x0.300, HSS3.500x0.250, HSS3.500x0.216, HSS3.500x0.203, HSS3.500x0.188, HSS3.500x0.125, HSS3x0.250, HSS3x0.216, HSS3x0.203, HSS3x0.188, HSS3x0.152, HSS3x0.134, HSS3x0.125, HSS2.875x0.250, HSS2.875x0.203, HSS2.875x0.188, HSS2.875x0.125, HSS2.500x0.250, HSS2.500x0.188, HSS2.500x0.125, HSS2.375x0.250, HSS2.375x0.218, HSS2.375x0.188, HSS2.375x0.154, HSS2.375x0.125, HSS1.900x0.188, HSS1.900x0.145, HSS1.900x0.120 und HSS1.660x0.140
S-Formen	Konfigurationen: S24x121, S24x106, S24x100, S24x90, S24x80, S20x96, S20x86, S20x75, S20x66, S18x70, S18x54.7, S15x50, S15x42.9, S12x50,
Quadrat	Konfigurationen: HSS16x16x0.625, HSS16x16x0.5, HSS16x16x0.375, HSS16x16x0.3125, HSS14x14x0.625, HSS14x14x0.5, HSS14x14x0.5, HSS14x14x0.375, HSS14x14x0.3125, HSS10x10x0.625, HSS10x10x0.5, HSS10x10x0.375, HSS10x10x0.25, HSS10x10x0.1875, HSS9x9x0.625, HSS9x9x0.5, HSS9x9x0.375, HSS9x9x0.3125, HSS9x9x0.25, HSS9x9x0.1875, HSS9x9x0.125, HSS8x8x0.625, HSS8x8x0.5, HSS8x8x0.375, HSS8x8x0.3125, HSS8x8x0.25, HSS8x8x0.1875, HSS8x8x0.125, HSS7x7x0.625, HSS7x7x0.5, HSS7x7x0.375, HSS7x7x0.3125, HSS7x7x0.25, HSS7x7x0.1875, HSS7x7x0.125, HSS6x6x0.625, HSS6x6x0.5, HSS6x6x0.375, HSS6x6x0.3125, HSS6x6x0.25, HSS6x6x0.1875, HSS6x6x0.125, HSS5.5x5.5x0.375, HSS5.5x5.5x0.3125, HSS5.5x5.5x0.25, HSS5.5x5.5x0.1875, HSS5.5x5.5x0.125, HSS5x5x0.5, HSS5x5x0.375, HSS5x5x0.3125, HSS5x5x0.25, HSS5x5x0.1875, HSS5x5x0.125, HSS4.5x4.5x0.5, HSS4.5x4.5x0.375, HSS4.5x4.5x0.3125, HSS4.5x4.5x0.25, HSS4.5x4.5x0.1875, HSS4.5x4.5x0.125, HSS4x4x0.5, HSS4x4x0.375, HSS4x4x.3125, HSS4x4x0.25, HSS4x4x0.1875, HSS4x4x0.125, HSS3.5x3.5x0.375, HSS3.5x3.5x0.3125, HSS3.5x3.5x0.25, HSS3.5x3.5x0.1875, HSS3.5x3.5x0.125, HSS3x3x0.375, HSS3x3x0.3125, HSS3x3x0.25, HSS3x3x0.1875, HSS3x3x0.125, HSS2.5x2.5x0.3125, HSS2.5x2.5x0.25, HSS2.5x2.5x0.1875, HSS2.5x2.5x0.125, HSS2.5x2.5x0.25, HSS2.25x2.25x0.25, HSS2.25x2.25x0.1875, HSS2.25x2.25x0.125, HSS2x2x0.25, HSS2x2x0.125 und HSS2x2x0.125

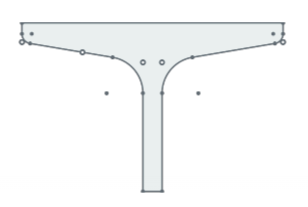

ST-Formen	Konfigurationen: ST12x60.5, ST12x53, ST12x50, ST12x50, ST12x45, ST12x40, ST10x48, ST10x43, ST10x37.5, ST10x33, ST9x35, ST9x27.35, ST7.5x25, ST7.5x21.45, ST7.5x25, ST7.5x20.4, ST6x17.5, ST6x15.9, ST5x17.5, ST5x12.7, ST4x11.5, ST4x9.2, ST3.8.6, ST3x6.25, ST2.5x5, ST2x4.75, ST2x3.85, ST1.5x3.75 und ST1.5x2.85
W-Formen	Konfigurationen: W44x335, W44x290, W44x262, W44x230, W40x593, W40x503, W40x431, W40x397, W40x372, W40x362, W40x324, W40x297, W40x277, W40x249, W40x215, W40x199, W40x392, W40x331, W40x327, W40x294, W40x278, W40x264, W40x235, W40x211, W40x183, W40x167, W40x149, W36x652, W36x529, W36x487, W36x441, W36x395, W36x330, W36x302, W36x282, W36x262, W36x247, W36x231, W36x256, W36x232, W36x210, W36x194, W36x182, W36x170, W36x160, W36x150, W36x135, W33x387, W33x354, W33x318, W33x291, W33x263, W33x241, W33x221, W33x201, W33x169, W33x152, W33x141, W33x130, W33x118, W30x391, W30x357, W30x326, W30x292, W30x261, W30x235, W30x211, W30x191, W30x173, W30x148, W30x132, W30x124, W30x116, W30x108, W30x99, W30x90, W27x539, W27x368, W27x336, W27x307, W27x281, W27x258, W27x235, W27x217, W27x194, W27x178, W27x161, W27x146, W27x129, W27x114, W27x102, W27x94, W27x84, W24x370, W24x335, W24x306, W24x279, W24x250, W24x229, W24x207, W24x192, W24x176, W24x162, W24x146, W24x131, W24x117, W24x104, W24x103, W24x94, W24x84, W24x76, W24x68, W24x62, W24x55, W21x201, W21x182, W21x166, W21x147, W21x132, W21x122, W21x111, W21x101, W21x93, W21x83, W21x73, W21x68, W21x62, W21x55, W21x48, W21x57, W21x44, W18.311, W18x283, W18x258, W18.234, W18x211, W18x192, W18x175, W18x158, W18x143, W18x130, W18x119, W18x106, W18x97, W18x89, W18x76, W18x71, W18x65, W18x50, W18x55, W18x50,W18x46, W18x40, W18x35, W16x100, W16x89, W16x77, W16x67, W16x57, W16x50, W16x45, W16x40, W16x36, W16x31, W16x26, W14x730, W14x665, W14x605, W14x550, W14x500, W14x455, W14x426, W14x398, W14x370, W14x342, W14x311, W14x283, W14x257, W14x233, W13x211, W14x193, W14x176, W14x159, W14x145, W14x132, W14x120, W14x109, W14x99, W14x90, W14x82, W14x74, W14x68, W14x61, W14x53, S14x48, W14x43, W14x38, W14x34, W14x30, W14x26, W14x22, W12x336, W12x305, W12x279, W12x252, W12x230, W12x210, W12x190, W12x170, W12x152, W12x136, W12x120, W12x106, W12x96, W12x87, W12x79, W12x72, W12x65, W12x58, W12x53, W12x50, W12x45, W12x40, W12x35, W12x30, W12x26, W12x22, W12x19, W12x16, W12x14, W10x112, W10x100, W10x88, W10x77, W10x68, W10x60, W10x54, W10x49, W10x45, W10x39, W10x33, W10x26, W10x22, W10x19, W10x17, W10x15, W10x12, W8x67, W8x58, W8x48, W8x40, W8x35, W8.31, W8x28, W8x24, W8x21, W8x18, W8x15, W8x13, W8x10, W6x25, W6x20, W6x15, W6x16, W6x12, W6x9, W6x8.5, W5x19, W5x16 und W4x13

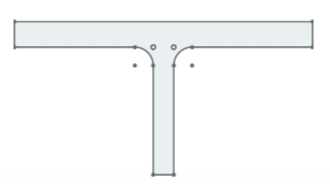

WT-Formen	Konfigurationen: WT22x167.5, WT22x145, WT22.131, WT22x115, WT20x296.5, WT20x251.5, WT20x215.5, WT20x198.5, WT20x186, WT20x181, WT20x162, WT20x162, WT20x138.5, WT20x124.5, WT20x107.5, WT20x99.5, WT20x196, WT20x65.5, WT20x163.5, W20x147, WT20x139, WT20x132, WT20x117.5, WT20x105.5, WT20x91.5, WT20x83.5, WT20x74.5, WT18x326, WT18x264.5, WT18x243.5, WT18x220.5, WT18x197.5, WT18x180.5, WT18x165, WT18x151, WT18x141, WT18x131, WT18x123.5, WT18x115.5, WT18x128, WT18x116, WT18x105, WT18x97, WT18x91, WT18x85, WT18x80, WT18x75, WT18x67.5, WT16.5x193.5, WT16.5x177, WT16.5x159, WT16.5x145.5, WT16.5x131.5, WT16.5x120.5, WT16.5x110.5, WT16.5x100.5, Wt16.5x84.5, WT16.5x76, WT16.5x70.5, WT16.5x65, WT16.5x59, WT15x195.5, WT15x178.5, WT15x163, WT15x146, WT15x130.5, WT15x117.5, WT15x105.5, WT15.95.5, WT15x86.5, WT15x74, WT15x66, WT15x62, WT15x58, WT15x54, WT15x49.5, WT15x45, WT13.5x269.5, WT13.5x184, WT13.5x168, WT13.5x153.5, WT13.5x140.5, WT13.5x129, WT13.5x117.5, WT13.5x108.5, Wt13.5x97, WT13.5x89, WT13.5x80.5, WT13.5x73, WT13.5x64.5, WT13.5x57, WT13.5x51, WT13.5x47, Wt13.5x42, WT12x185, Wt12x167.5, WT12x153, WT12x139.5, Wt12x125, WT12x114.5, WT12x103.5, WT12x96, WT12x88, WT12x81, WT12x73, WT12x65.5, WT12, 58.5, WT12x52, WT12x51.5, WT12x47, WT12x42, WT12x38, WT12x34, WT12x31, Wt12x27.5, WT10.5x100.5, WT10.5x91, WT10.5x83, WT10.5x73.5, WT10.5x66, WT10.5x61, WT10.5x55.5, WT10.5x50.5, WT10.5x46.5, WT10.5x41.5, WT10.5x34, WT10.5x31, WT10.5x27.5, WT10.5x24, WT10.5x28.5, WT10.5x25, WT10.5x22, WT9x155.5, WT9x141.5, WT9x129, WT9x117, WT9x105.5, WT9x96, WT9x87.5, WT9x79, WT9x71.5, WT9x65, WT9x59.5, WT9x53, WT9x48.5, WT9x43, WT9.38, WT9x35.5, WT9x32.5, WT9x30, WT9x27.5, WT9x25, WT9x23, WT9x20, WT9x17.5, WT8x50, TW8x44.5, WT8x38.5, WT8x33.5, WT828.5, WT8x25, WT8x22.5, WT8x20, WT8x18, WT8x15.5, WT8x13, WT7x365, WT7x332.5, WT7x302.5, WT7x275, WT7x250, WT7x227.5, WT7x213, WT7x199, WT7x185, WT7x171, WT7x155.5, WT7x141.5, WT7x128.5, WT7x116.5, WT7x105.5, WT7x96.5, WT7x88, WT7x79.5, WT7x72.5, WT7x66, WT7x60, WT7x54.5, WT7x49.5, WT7x45, WT7x41, WT7x34, WT7x30.5, WT7x26.5, WT7x24, WT7x21.5, WT7x19, WT7x17, WT7x15, WT7x13, WT7x11, Tw6x168, WT6x152.5, WT6x139.5 WT6x126, WT6x115, WT6x105, WT6x95, WT6x85, WT6x76, WT6x68, WT6x60, WT6x53, WT6x48, WT6x43.5, WT6x39.5, WT6x32.5, WT6x29, WT6x26.5, WT6x25, WT6x22.5, WT6x20, WT6x17.5, WT6x15, WT6x13, WT6x11, WT6x9.5, WT6x8, TW6x7, WT5x56, WT5x50, WT5x38.5, WT5x34, WT5x30, WT5x27, WT5x24.5, WT5x22.5, WT5x19.5, WT5x16.5, WT5x15, WT5x13, WT5x11, WT5x9.5, WT5x8.5, WT5x7.5, WT5x6, WT4x33.5, WT4x29, WT4x24, WT4x20, WT4x17.5, WT4x15.5, WT4x14, WT4x12, WT4x10.5, WT4x9, WT4x7.5, WT4x6.5, WT4x5, WT3x12.5, WT3x10, WT3x7.5, WT3x8, WT3x6, WT3x4.5, WT3x4.25, WT2.5x9.5, WT2.5x8 und WT2x6.5

ANSI-Rahmenprofile

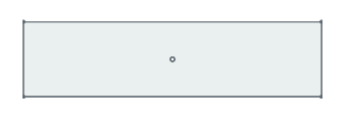

Rechteckiger Stab	Größen: 0.25" x 0.0625", 0.5" x 0.0625", 0.625" x 0.0625", 0.75" x 0.0625", 0.875" x 0.0625", 1" x 0.0625", 1.25" x 0.0625", 1.5" x 0.0625", 1.75" x 0.0625", 2" x 0.0625", 2.25" x 0.0625", 2.5" x 0.0625", 2.75" x 0.0625", 3" x 0.0625", 0.375" x 0.09375", 0.5" x 0.09375", 0.75" x 0.09375", 1" x 0.09375", 2" x 0.09375", 3" x 0.09375", 0.125" x 0.125", 0.5" x 0.125", 1" x 0.125", 1.25" x 0.125", 1.5" x 0.125", 2" x 0.125", 2.5" x 0.125", 3" x 0.125", 4" x 0.125", 6" x 0.125", 0.5" x 0.1875", 0.75" x 0.1875", 1" x 0.1875", 1.25" x 0.1875", 1.5" x 0.1875", 2" x 0.1875", 2.5" x 0.1875, 3" x 0.1875", 4" x 0.1875", 0.25" x 0.25", 0.375" x 0.25", 0.5" x 0.25", 0.625" x 0.25", 0.75" x 0.25", 0.875" x 0.25", 1" x 0.25", 1.25" x 0.25", 1.5" x 0.25", 1.75" x 0.25", 2" x 0.25", 2.25" x 0.25", 2.5" x 0.25", 2.75" x 0.25", 3" x 0.25", 3.5" x 0.25", 4" x 0.25", 5" x 0.25", 6" x 0.25", 8" x 0.25", 10" x 0.25", 12" x 0.25", 0.3125" x 0.3125", 0.75" x 0.3125", 1" x 0.3125", 1.5" x 0.3125", 2" x 0.3125", 3" x 0.3125", 0.375" x 0.375", 0.5" x 0.375", 0.75" x 0.375", 1" x 0.375", 1.25" x 0.375", 1.5" x 0.375", 1.75" x 0.375", 2" x 0.375", 2.5" x 0.375", 3" 0.375", 3.5" x 0.375", 4" x 0.375", 5" x 0.375", 6" x 0.375", 8" x 0.375", 10" x 0.375", 12" x 0.375", 0.4375" x 0.4375", 0.5" x 0.5", 0.75" x 0.5", 1" x 0.5", 1" x 0.5", 1.25" x 0.5", 1.5" x 0.5", 1.75" x 0.5", 2" x 0.5", 2.5" x 0.5", 3" x 0.5", 3.5" x 0.5", 4" x 0.5", 5" x 0.5", 6" x 0.5", 8" x 0.5", 10" x 0.5", 12" x 0.5", 0.5625" x 0.5625", 0.625" x 0.625", 0.75" x 0.625", 1" x 0.625", 1.5" x 0.625", 2" x 0.625", 2.5" x 0.625", 3" x 0.625", 4" x 0.625", 5" x 0.625", 6" x 0.625", 8" x 0.625", 10" x 0.625", 12" x 0.625", 0.6875" x 0.6875, 0.75" x 0.75", 1" x 0.75", 1.25" x 0.75", 1.5" x 0.75", 1.75" x 0.75", 2" x 0.75", 2.5" x 0.75", 3" x 0.75", 3.5" x 0.75", 4" x 0.75", 5" x 0.75", 6" 0.75", 8" x 0.75", 10" x 0.75", 12" x 0.75", 0.8125" x 0.8125", 0.875" x 0.875", 1" x 0.875", 1.5" x 0.875", 2" x 0.875", 1" x 1", 1.25" x 1", 1.5" x 1", 1.75" x 1", 2" x 1", 2.5" x 1", 3" x 1", 3.5" x 1", 4" x 1", 5" x 1", 6" x 1", 8" x 1", 10" x 1", 12" x 1", 1.125" x 1.125", 1.25" x 1.25", 1.5" x 1.25", 1.75" x 1.25", 2" x 1.75", 2.25" x 1.25", 2.5" x 1.25", 3" x 1.25", 3.5" x 1.25", 4" x 1.25", 5" x 1.25", 6" x 1.25", 1.375" x 1.375", 1.5" x 1.5", 1.75" x 1.75", 2" x 1.5", 2.25" x 1.5", 2.5" x 1.5", 2.75" x 1.5", 3" x 1.5", 3.5" x 1.5", 4" x 1.5", 5" x 1.5", 6" x 1.5", 1.625" x 1.625", 1.75" x 1.75", 2" x 2", 2.5" x 2", 3" x 2", 3.5" x 2", 4" x 2", 5" x 2", 6" x 2", 2.25" x 2.25", 2.5" x 2.5", 3" x 2.5", 4" x 2.5", 5" x 2.5", 2.75" x 2.75", 3" x 3", 3.5" x 3", 4" x 3", 4.5" x 3", 5" x 3", 6" x 3", 3.25" x 3.25", 3.5" x 3.5", 4" x 4", 5" x 4", 6" x 4", 5" x 5" und 6" x 6"
Rechteckrohr	Größen: 0.375" x 0.375" x 0.035", 0.5" x 0.5" x 0.035", 0.5" x 1" x 0.035", 0.625" x 0.625" x 0.035", 0.75" x 0.75" x 0.035", 1" x 1" x 0.035", 0.5" x 0.5" x 0.049", 0.5" x 1" x 0.049", 0.625" x 0.625" x 0.049", 0.75" x 0.75" x 0.049", 1" x 1" x 0.049", 1" x 1.5" x 0.049", 0.25" x 0.25" x 0.0625", 0.375" x 0.375" x 0.0625", 0.5" x 0.5" x 0.0625", 0.5" x 1" x 0.0625", 0.75" x 0.75" x 0.0625", 1" x 1" x 0.0625", 1" x 1.5" x 0.0625", 1" x 2" x 0.0625", 1.25" x 1.25" x 0.0625", 1.5" x 1.5" . 0.0625", 1.75" x 1.75" x 0.0625", 2" x 2" x 0.0625", 0.5" 0.5" 0.065", 0.5" x 1" x 0.065", 0.5" 1.5" x 0.065", 0.75" x 0.75" x 0.065", 1" x 1" x 0.065", 1" x 1.75" x 0.065", 1" x 1.5" x 0.065", 1" x 2" x 0.065", 1" x 3" x 0.065", 1.25" x 1.25" x 0.065", 1.5" x 1.5" x 0.065", 2" x 2" x 0.065", 0.75" x 0.75" x 0.083", 0.75" x 1.5" x 0.083", 1" x 1" x 0.083", 1" x 3" x 0.083", 1" x 2" x 0.083", 1.25" x 1.25" x 0.083", 1.5" x 1.5" x 0.083", 2" x 2" x 0.083", 2" x 4" x 0.083", 2.5" x 2.5" x 0.083", 0.75" x 0.85" x 0.12", 1" x 1" x 0.12", 1" x 2" x 0.12", 1" x 1.5" x 0.12", 1.25" x 1.25" x 0.12", 1.5" x 1.5" x 0.12", 1.5" x 2.5" x 0.12", 2" x 2" x 0.12", 0.75" x 0.75" x 0.125", 0.75" x 1.5" x 0.125", 1" x 1" x 0.125", 1" x 1.5" x 0.125", 1" x 2" x 0.125", 1" x 3" x 0.125", 1" x 4" x 0.125", 1" x 6" x 0.125", 1.25" x 1.25" x 0.125", 1.25" x 2.5" x 0.125", 1.5" x 1.5" x 0.125", 1.5" x 2" x 0.125", 1.5" x 2.5" x 0.125", 1.5" x 3" x 0.125", 1.75" x 1.75" x 0.125", 1.75" x 3" x 0.125", 1.75" x 3.5" x 0.125", 1.75" x 4" x 0.125", 2" x 2" x 0.125", 2" x 3" x 0.125", 2" x 4" x 0.125", 2' x 5" x 0.125", 2" x 6" x 0.125", 2" x 8" x 0.125", 2.5" x 2.5" x 0.125", 3" x 3" x 0.125", 3' x 4" x 0.125", 3.5" x 3.5" x 0.125", 4" x 4" x 0.125", 5" x 5" x 0.125", 6" x 6" x 0.125", 1" x 1" x 0.1875", 1.5" x 3" x 0.1875", 2" x 2" x 0.1875", 2" x 4" x 0.1875", 2" x 6" x 0.1875", 3" x 3" x 0.1875", 3" x 4" x 0.1875", 3" x 6" x 0.1875", 4" x 4" x 0.1875", 4" x 6" x 0.1875", 4" x 5" x 0.1875", 4.5" x 4.5" x 0.1875", 5" x 5" x 0.1875", 6" x 6" x 0.1875", 8" x 8" x 0.1875", 1.25" x 1.25" x 0.188", 1.5" x 1.5" x 0.188", 1.5" x 3" x 0.188", 2" x 2" x 0.188", 3" x 3" x 0.188", 4" x 4" x 0.188", 1.5" x 3" x 0.25", 2" x 2" x 0.25", 2" x 3" x 0.25", 2" x 4" x 0.25", 2" x 6" x 0.25", 2" x 8" x 0.25", 2.5" x 2.5" x 0.25", 3" x 3" x 0.25", 3" x 4" x 0.25", 4" x 4" x 0.25", 4" x 6" x 0.25", 4" x 8" x 0.25", 5" x 5" x 0.25", 6" x 6" x 0.25", 4" x 4" x 0.375", 5" x 8" x 0.375", 6" x 6" x 0.375", 4" x 4" x 0.5", 4" x 6" x 0.5", 4" x 8" x 0.5", 6" x 6" x 0.5" und 8" x 8" x 0.5"
Rundstab	Größen: 1/32" (0.03125), 1/16" (0.0625), 3/32" (0.09375), 1/8" (0.125), 5/32" (0.15625), 3/16" (0.1875), 7/32" (0.21875), 1/4" (0.25), 9/32" (0.28125), 5/16" (0.3125), 11/32" (0.34375), 3/8" (0.375), 13/32" (0.40625), 7/16" (0.4375), 15/32" (0.46875), 1/2" (0.5), 17/32" (0.53125), 9/16" (0.5625), 19/32" (0.59375), 5/8" (0.625), 21/32" (0.65625), 11/16" (0.6875), 23/32" (0.71875), 3/4" (0.75), 25/32" (0.78125), 13/16" (0.8125), 27/32" (0.84375), 7/8" (0.875), 29/32" (0.90625), 15/16" (0.9375), 31/32" (0.96875), 1", 1 1/16" (1.0625), 1 1/8" (1.125), 1 3/16" (1.1875), 1 1/4" (1.25), 1 5/16" (1.3125), 1 3/8" (1.375), 1 7/16" (1.4375), 1 1/2" (1.5), 1 9/16" (1.5625), 1 5/8" (1.625), 1 11/16" (1.6875), 1 3/4" (1.75), 1 13/16" (1.8125), 1 7/8" (1.875), 1 15/16" (1.9375), 2", 2 1/8" (2.125), 2 1/4" (2.25), 2 3/8" (2.375), 2 1/2" (2.5), 2 5/8" 92.625), 2 3/4" (2.75), 2 7/8" (2.875), 3", 3 1/4" (3.25), 3 1/2" (3.5), 3 3/4" (3.75), 4", 4 1/2" (4.5), 5", 5 1/2" (5.5) und 6"
Rundrohr	Größen: 0.125" x 0.028", 0.1875" x 0.028", 0.25" x 0.028", 0.3125" x 0.028", 0.375" x 0.028", 0.375" x 0.028", 0.4375" x 0.028", 0.5" x 0.028", 0.5625" x .028", 0.625" x 0.028", 0.75" x 0.028", 1" x 0.028", 0.125" x 0.035", 0.188" x 0.035", 0.25" x 0.035", 0.313" x 0.035", 0.375" x 0.035", 0.5" x 0.035", 0.625" x 0.035", 0.75" x 0.035", 0.875" x 0.035", 1" x 0.035", 1.125" x 0.035", 1.25" x 0.035", 1.375" x 0.035", 1.5" x 0.035", 0.25" x 0.049", 0.313" x 0.049", 0.375" x 0.049", 0.438" x 0.049", 0.5" x 0.049", 0.625" x 0.049", 0.75" x 0.049", 1" x 0.049", 1.125" x 0.049", 1.25" x 0.049", 1.375" x 0.049", 1.5" x 0.049", 2" x 0.049", 0.374" x 0.058", 0.4375" x 0.058", 0.5" x 0.058", 0.625" x 0.058", 0.75" x 0.058", 0.875" x 0.058", 1" 0.058", 1.125" x 0.058", 1.125" x 0.058", 1.25" x 0.058", 1.375" x 0.058", 1.5" x 0.058", 1.75" x 0.058", 0.25" x 0.065", 0.313" x 0.065", 0.375" x 0.065", 0.438" x 0.065", 0.5" x 0.065", 0.563" x 0.065", "0.625" x 0.065", 0.75" x 0.065", 0.875" x 0.065", 1" x 0.065", 1.125" x 0.065", 1.25" x 0.065", 1.375" x 0.065", 1.5" x 0.065", 1.625" x 0.065", 1.75" x 0.065", 2" x 0.065", 2.5" x 0.065", 3" x 0.065", 4" x 0.065", 0.375" x 0.083", 0.438" x 0.083", 0.5" x 0.083", 0.563" x 0.083", 0.625" x 0.083", 0.75" x 0.083", 0.875" x 0.083", 1" x 0.083", 1.125" x 0.083", 1.25" x 0.083", 1.375" x 0.083", 1.5" x 0.083", 1.625" x 0.083", 1.75" x 0.083", 2" x 0.083", 0.3125" x 0.095", 0.4375" x 0.095", 0.5" x 0.095", 0.75" x 0.095", 1" x 0.095", 1.125" x 0.095", 1.25" x 0.095", 1.375" x 0.095", 1.5" x 0.095", 1.625" x 0.095", 1.75" x 0.095", 2" x 0.095", 2.5" x 0.095", 0.375" x 0.12", 0.438: x 0.12", 0.5" x 0.12", 0.563" x 0.12", 0.625" x "0.12", 0.75" x 0.12", 0.875" x 0.12", 1" x 0.12", 1.125" x 0.12", 1.25" x 0.12", 1.375" x 0.12", 1.5" x 0.12", 1.75" x 0.12", 2" x 0.12", 2.25" x 0.12", 2.5" x 0.12", 3" x 0.12", 3.5" x 0.12", 4" x 0.12", 4.5" x 0.12", 0.75" x 0.125", 1" x 0.125", 1.25" x 0.125", 1.5" x 0.125", 1.75" x 0.125", 2" x 0.125", 3" x 0.125", 4" x 0.125", 1.625" x 0.134", 0.625" x 0.156", 0.625" x 0.188", 0.75" x 0.188", 1" x 0.188", 1.125" x 0.188", 1.25" x 0.188", 1.5" x 0.188", 1.75" x 0.188", 2" x 0.188", 2.5" x 0.188", 3" x 0.188", 3.125" x 0.188", 4" x 0.188", 5" x 0.188", 1" x 0.25", 1.125" x 0.25", 1.25" x 0.25", 1.375" x 0.25", 1.5" x 0.25", 1.625" x 0.25", 1.75" x 0.25", 2" x 0.25", 2.25" x 0.25", 2.5" x 0.25", 2.75" x 0.25", 3" x 0.25", 3.5" x 0.25", 3.75" x 0.25", 4" x 0.25", 4.5" x 0.25", 5" x 0.25", 5.5" x 0.25", 6" x 0.25", 1.25" x 0.375", 1.5" x 0.375", 1.75" x 0.375", 2" x 0.375", 2.25" x 0.375", 2.5" x 0.375", 2.75" x 0.375", 3" x 0.375", 3.25" x 0.375", 3.5" x 0.375", 4" x 0.375", 4.5" x 0.375", 5" x 0.375", 6" x 0.375", 1.5" x 0.5", 2" x 0.5", 2.25" x 0.5", 2.5" x 0.5", 2.75" x 0.5", 3" x 0.5", 3.25" x 0.5" 3.5" x 0.5", 3.75" x 0.5", 4" x 0.5", 4.5" x 0.5", 5" x 0.5", 5.5" x 0.5", 6" x 0.5", 3.25" x 0.625", 3.75" x 0.625", 4" x 0.625", 3" x 0.75", 3.25" x 0.75", 3.5" x 0.75", 3.75" x 0.75", 4" x 0.75", 4.25" x 0.75", 4.5" x 0.75", 4.75" x 0.75", 5" x 0.75", 6" x 0.75", 4" x 1", 4.5" x 1", 5" x 1", 5.5" x 1", 6" x 1", 6.5" x 1", 7" x 1", 8" x 1", 4.5" x 1.25", 5" x 1.25", 5.5" x 1.25", 6" x 2", 8" x 2", 10" x 2" und 12" x 2"

AS-Rahmenprofile

Kaltgeformte Hohlprofile und Profile	Kanalprofil, kreisförmiges Hohlprofil, gleiches Winkelprofil, Flachprofil, Schienenhohlprofil, rechteckiges Hohlprofil, quadratisches Hohlprofil, ungleiches Winkelprofil.
Warmgewalzter Stahl und Baustahl	Gleiche Winkel, Parallelflanschkanal, Kegelflanschträger, ungleiche Winkel, Universalträger, universeller Stützpfeiler, Universalsäule, geschweißter Träger und geschweißte Säule.

ISO-Rahmenprofile

Rechteckiger Stab	Konfigurationen: 0.375 in x 0.25 in, 0.50 in x 0.125 in, 0.50 in x 0.1875 in, 0.50 in x 0.25 in, 0.50 in x 0.375 in, 0.625 in x 0.125 in, 0.625 in x 0.1875 in, 0.625 in x 0.25 in, 0.625 in x 0.375 in, 0.625 in x 0.50 in, 0.75 in x 0.0625 in, 0.75 in x 0.125 in, 0.75 in x 0.1875 in, 0.75 in x 0.25 in, 0.75 in x 0.375 in, 0.75 in x 0.50 in, 0.75 in x 0.625 in, 0.875 in x 0.125 in, 1 in x 0.0625 in, 1 in x 0.125 in, 1 in x 0.1875 in, 1 in x 0.25 in, 1 in x 0.3125 in, 1 in x 0.375 in, 1 in x 0.5 in, 1 in x 0.625 in, 1 in x 0.75 in, 1.25 in x 0.125 in, 1.25 in x 0.1875 in, 1.25 in x 0.3125, 1.25 in x 0.25 in, 1.25 in x 0.375 in, 1.5 in x 0.625 in, 1.25 in x 0.75 in, 1.25 in x 1 in, 1.5 in x 0.125 in, 1.5 in x 0.1875 in, 1.50 in x 0.25 in, 1.5 in x 0.3125 in, 1.5 in x 0.375 in, 1.5 in x 0.5 in, 1.5 in x 0.625 in, 1.5 in x 0.75 in, 1.5 in x 1 in, 1.5 in x 1.25 in, 1.75 in x 0.125 in, 1.75 in x 0.25 in, 1.75 in x 0.375 in, 1.75 in x 0.50 in, 1.75 in x 0.75 in, 1.75 in x 1 in, 1.75 in x 1.25 in, 1.75 in x 1.50 in, 2 in x 0.125 in, 2 in x 0.25 in, 2 in x 0.3125 in, 2 in x 0.375 in, 2 in x 0.50 in, 2 in x 0.625 in, 2 in x 0.75 in, 2 in x 1 in, 2 in x 1.25 in, 2 in x 1.50 in, 2 in x 1.75 in, 2.25 in x 0.25 in, 2.25 in x 0.50 in, 2.25 in x 1.25 in, 2.50 in x 0.1875 in, 2.50 in x 0.125, 2.50 in x 0.25 in, 2.50 in x 0.375 in, 2.50 in x 0.50 in, 2.5 in x 0.625, 2.5 in x 0.75 in, 2.5 in x 1 in, 2.50 in x 1.25 in, 2.5 in x 1.50 in, 2.5 in x 1.75 in, 2.50 in x 2 in, 3 in x 0.125, 3 in x 0.25 in, 3 in x 00.375 in, 3 in x 0.50 in, 3 in x 0.625 in, 3 in x 1 in, 3 in x 1.25 in, 3 in x 1.50 in, 3 in x 1.75 in, 3 in x 2 in, 3 in x 2.50 in, 3.50 in x 0.25 in, 3.50 in x 0.625 in, 3.5 in x 0.50 in, 3.50 in x 0.75 in, 3.50 in x 1.25 in, 3.50 in x 1.50 in, 4 in x 0.125 in, 4 in x 0.1875 in, 4 in x 0.25 in, 4 in x 0.375 in, 4 in x 0.50 in, 4 in x 0.625 in, 4 in x 0.75 in, 4 in x 1 in, 4 in x 1.25 in, 4 in x 1.50 in, 4 in x 1.75 in, 4 in x 2 in, 5 in x 0.25 in, 5 in x 0.375 in, 5 in x 0.50 in, 5 in x 0.75 in, 5 in x 1 in, 5 in x 2 in, 6 in x 0.125 in, 6 in x 0.25 in, 6 in x 0.375 in, 6 in x 0.50 in, 6 in x 0.625 in, 6 in x 0.75 in, 6 in x 1 in, 6 in x 1.50 in, 6 in x 2 in, 8 in x 0.25 in, 8 in x 0.50 in, 20 mm x 10 mm, 30 mm x 10 mm, 30 mm x 12 mm, 40 mm x 5 mm, 40 mm x 10 mm, 50 mm x 8 mm, 60 mm x 10 mm, 60 mm x 30 mm, 60 mm x 40 mm, 70 mm x 20 mm, 100 mm x 5 mm, 100 mm x 6 mm, 100 mm x 8 mm, 100 mm x 20 mm, 120 mm x 10 mm, 120 mm x 20 mm, 150 mm x 8 mm, 200 mm x 6 mm, 200 mm x 8 mm und 200 mm x 10 mm
Rechteckrohr	Konfigurationen: 20 mm x 20 mm x 2 mm, 20 mm x 20 mm x 2,6 mm, 30 mm x 30 mm x 2 mm, 30 mm x 30 mm x 2,6 mm, 30 mm x 30 mm x 3,2 mm, 40 mm x 40 mm x 2,6 mm, 40 mm x 40 mm x 3,2 mm, 40 mm x 40 mm x 4 mm, 50 mm x 30 mm x 2,6 mm, 50 mm x 30 mm x 3,2 mm, 50 mm x 30 mm x 4 mm, 50 mm x 50 mm x 3,2 mm, 50 mm x 50 mm x 4 mm, 50 mm x 50 mm x 5 mm, 60 mm x 40 mm x 3,2 mm, 60 mm x 40 mm x 4 mm, 60 mm x 40 mm x 5 mm, 60 mm x 60 mm x 3,2 mm, 60 mm x 60 mm x 4 mm, 60 mm x 60 mm x 5 mm, 70 mm x 40 mm x 3,2 mm, 70 mm x 40 mm x 4 mm, 70 mm x 40 mm x 5 mm, 70 mm x 70 mm x 3,2 mm, 70 mm x 70 mm x 3,6 mm, 70 mm x 70 mm x 4 mm, 70 mm x 70 mm x 5 mm, 80 mm x 40 mm x 3,2 mm, 80 mm x 40 mm x 4 mm, 80 mm x 40 mm x 5 mm, 80 mm x 80 mm x 3,2 mm, 80 mm x 80 mm x 3,6 mm, 80 mm x 80 mm x 4 mm, 80 mm x 80 mm x 5 mm, 80 mm x 80 mm x 6,3 mm, 90 mm x 50 mm x 3,2 mm, 90 mm x 50 mm x 3,6 mm, 90 mm x 50 mm x 4 mm, 90 mm x 50 mm x 5 mm, 90 mm x 90 mm x 3,2 mm, 90 mm x 99 mm x 3,6 mm, 90 mm x 90 mm x 4 mm, 90 mm x 90 mm x 5 mm, 90 mm x 90 mm x 6,3 mm, 90 mm x 90 mm x 8 mm, 100 mm x 50 mm x 3,2 mm, 100 mm x 50 mm x 3,6 mm, 100 mm x 50 mm x 4 mm, 100 mm x 60 mm x 3,2 mm, 100 mm x 60 mm x 3,6 mm, 100 mm x 60 mm x 4 mm, 100 mm x 60 mm x 5 mm, 100 mm x 60 mm x 6,3 mm, 100 mm x 100 mm x 3,2 mm, 100 mm x 100 mm x 4 mm, 100 mm x 100 mm x 5 mm, 100 mm x 100 mm x 6,3 mm, 100 mm x 100 mm x 8 mm, 100 mm x 100 mm x 10 mm, 120 mm x 60 mm x 3,2 mm, 120 mm x 60 mm x 3,6 mm, 120 mm x 60 mm x 4 mm, 120 mm x 60 mm x 5 mm, 120 mm x 60 mm x 6,3 mm, 120 mm x 60 mm x 8 mm, 120 mm x 80 mm x 3,2 mm, 120 mm x 80 mm x 4 mm, 120 mm x 80 mm x 6,3 mm, 120 mm x 80 mm x 8 mm, 120 mm x 80 mm x 10 mm, 120 mm x 120 mm x 3,2 mm, 120 mm x 120 mm x 4 mm, 120 mm x 120 mm x 5 mm, 120 mm x 120 mm x 6,3 mm, 120 mm x 120 mm x 8 mm, 120 mm x 120 mm x 10 mm, 140 mm x 80 mm x 3,2 mm, 140 mm x 80 mm x 4 mm, 140 mm x 80 mm x 5 mm, 140 mm x 80 mm x 6,3 mm, 140 mm x 80 mm x 6,3 mm, 140 mm x 80 mm x 8 mm, 140 mm x 80 mm x 10 mm, 140 mm x 140 mm x 3,6 mm, 140 mm x 140 mm x 5 mm, 140 mm x 140 mm x 6,3 mm, 140 mm x 140 mm x 8 mm, 140 mm x 140 mm x 10 mm, 150 mm x 100 mm x 3,2 mm, 150 mm x 100 mm x 4 mm, 150 mm x 100 mm x 6,3 mm, 150 mm x 100 mm x 8 mm, 150 mm x 100 mm x 10 mm, 150 mm x 150 mm x 4 mm, 150 mm x 150 mm x 5 mm, 150 mm x 150 mm x 6,3 mm, 150 mm x 150 mm x 8 mm, 150 mm x 150 mm x 10 mm, 160 mm x 80 mm x 3,2 mm, 160 mm x 80 mm x 4 mm, 160 mm x 80 mm x 5 mm, 160 mm x 80 mm x 6,3 mm, 160 mm x 80 mm x 8 mm, 160 mm x 80 mm x 10 mm, 160 mm x 160 mm x 4 mm, 160 mm x 160 mm x 5 mm, 160 mm x 160 mm x 6,3 mm, 160 mm x 160 mm x 8 mm, 160 mm x 160 mm x 10 mm, 180 mm x 100 mm x 3,6 mm, 180 mm x 100 mm x 5 mm, 180 mm x 100 mm x 6,3 mm, 180 mm x 100 mm x 8 mm, 180 mm x 100 mm x 10 mm, 180 mm x 180 mm x 4 mm, 180 mm x 180 mm x 5 mm, 180 mm x 180 mm x 6,3 mm, 180 mm x 180 mm x 8 mm, 180 mm x 180 mm x 10 mm, 200 mm x 100 mm x 4 mm, 200 mm x 100 mm x 5 mm, 200 mm x 100 mm x 6,3 mm, 200 mm x 100 mm x 8 mm, 200 mm x 100 mm x 10 mm, 200 mm x 120 mm x 4 mm, 200 mm x 120 mm x 5 mm, 200 mm x 120 mm x 6,3 mm, 200 mm x 120 mm x 8 mm, 200 mm x 120 mm x 10 mm, 200 mm x 200 mm x 5 mm, 200 mm x 200 mm x 6,3 mm, 200 mm x 200 mm x 8 mm, 200 mm x 200 mm x 10 mm, 220 mm x 140 mm x 4 mm, 220 mm x 140 mm x 5 mm, 220 mm x 140 mm x 6,3 mm, 220 mm x 140 mm x 8 mm, 220 mm x 140 mm x 10 mm, 220 mm x 220 mm x 5 mm, 220 mm x 220 mm x 6,3 mm, 220 mm x 220 mm x 8 mm, 220 mm x 220 mm x 10 mm, 250 mm x 150 mm x 5 mm, 250 mm x 150 mm x 6,3 mm, 250 mm x 150 mm x 8 mm, 250 mm x 150 mm x 10 mm, 250 mm x 250 mm x 5,9 mm, 250 mm x 250 mm x 6,3 mm, 250 mm x 250 mm x 8 mm, 250 mm x 250 mm x 10 mm, 260 mm x 260 mm x 5,9 mm, 260 mm x 260 mm x 6,3 mm, 260 mm x 260 mm x 8 mm, 260 mm x 260 mm x 10 mm, 300 mm x 200 mm x 5,9 mm, 300 mm x 200 mm x 6,3 mm, 300 mm x 200 mm x 8 mm, 300 mm x 200 mm x 10 mm, 300 mm x 300 mm x 7,1 mm, 300 mm x 300 mm x 8 mm, 300 mm x 300 mm x 10 mm, 350 mm x 350 mm x 8 mm, 400 mm x 200 mm x 7,1 mm, 400 mm x 200 mm x 8 mm, 400 mm x 200 mm x 10 mm, 400 mm x 400 mm x 10 mm, 450 mm x 250 mm x 8 mm, 450 mm x 250 mm x 10 mm und 500 mm x 300 mm x 10 mm
Rundstab	Konfigurationen: 0.25 in DIA (6,35 mm), 0.3125 in DIA (7,937 mm), 0.375 in DIA (9,525 mm), 0.4375 in DIA (11,112 mm), 0.50 in DIA (12,7 mm), 9/16 in DIA (14,287 mm), 0.625 in DIA (15,875 mm), 20 mm DIA, 0.8125 in DIA (20,637 mm), 0.875 in DIA (22,225 mm), 1 in DIA (25,4 mm), 1.125 in DIA (28,58 mm), 1.25 in DIA (31,75 mm), 1.3125 in DIA (33,337 mm), 1,375 in DIA (34,93 mm), 35 mm DIA, 1.50 in DIA (38,1 mm), 40 mm DIA, 1.625 in DIA (41,28 mm), 1.75 in DIA (44,45 mm), 1.875 in DIA (47,65 mm), 2 in DIA (50,8 mm), 2.125 in DIA (53,975 mm), 2.375 in DIA (60,33 mm), 2.50 in DIA (63,5 mm), 2.625 in DIA (66,67 mm), 2.75 in DIA (69,85 mm), 3 in DIA (76,2 mm), 3.25 in DIA (82,55 mm), 3.50 in DIA (88,9 mm), 3.50 in DIA (88,9 mm), 3.75 in DIA (95,25 mm), 4 in DIA (101,6 mm), 4.25 in DIA (107,95 mm), 4.50 in DIA (114,3 mm), 4.75 in DIA (120,65 mm), 5.25 in DIA (133,35 mm), 5.50 in DIA (139,7 mm), 5.75 in DIA (146,05 mm), 6i nDIA (152,4 mm), 6.50 in DIA (165,1 mm), 7 in DIA (177,8 mm), 7.25 in DIA (184,15 mm), 7.50 in DIA (190,5 mm), 8 in DIA (203,2 mm), 8.50 in DIA (215,9 mm), 9 in DIA (228,6 mm), 9.50 in DIA (241,3 mm), 10 in DIA (254 mm), 12 in DIA (304,8, mm), 13 in DIA (330,2 mm), 14 in DIA (355.6 mm), 15 in DIA (381 mm) und 16 in DIA (406,4 mm)
Rundrohr	Konfigurationen: 0.375 in OD x 16 SWG, 0.50 in D x 18 SWG, 0.50 in OD x 16 SWG, 0.50 in OD x 10 SWG, 0.625 in OD x 18 SWG, 0.625 in OD x 16 SWG, 0.625 in OD x 10 SWG, 0.75 in OD x 18 SWG, 0.75 in OD x 16 SWG, 0.75 in OD x 10 SWG, 0.875 in OD x 18 SWG, 0.875 in OD x 16 SWG, 0.875 in OD x 10 SWG, 1 in OD x 18 SWG, 1 in OD x 16 SWG, 1 in OD x 10 SWG, 1 in OD x 0.1875 in, 1 in OD x 0.25 in, 1.125 in OD x 16 SWG, 1.125 in OD x 10 SWG, 1.25 in OD x 18 SWG, 1.25 in OD x 16 SWG, 1.25 in OD x 0.1875 in, 1.25 in OD x 10 SWG, 1.375 in OD x 16 SWG, 1.375 in OD x 10 SWG, 1.50 in OD x 18 SWG, 1.50 in OD x 16 SWG, 1.50 in OD x 10 SWG, 1.50 in OD x 0.1875 in, 1.50 in OD x 0.25 in, 1.625 in OD x 16 SWG, 1.625 in OD x 10 SWG, 1.625 in OD x 0.1875 in, 1.75 in OD x 16 SWG, 1.75 in OD x 10 SWG, 1.875 in OD x 10 SWG, 2 in OD x 16 SWG, 2 in OD x 10 SWG, 2 in OD x 0.1875 in, 2 in OD x 0.25 in, 2 in OD x 1.5 mm, 2 in OD x 3.0 mm, 2.25 in OD x 16 SWG, 2.25 in OD x 10 SWG, 2.50 in OD x 0.1875, 2.50 in OD x 0.25 in, 2.50 in OD x 0.375 in, 3.5 in OD x 0.25 in, 2.75 in OD x 10 SWG, 3 in OD x 16 SWG, 3 in OD x 10 SWG, 3 in OD x 0.1875 in, 3 in OD x 0.25 in, 3 in OD x 1.5 mm, 3 in OD x 3.0 mm, 3.50 in OD x 16 SWG, 3.50 in OD x 10 SWG, 3.50 in OD x 0.25 in, 4 in OD x 16 SWG, 4 in OD x 10 SWG, 4 in OD x 0.25 in, 4 in OD x 1.5 mm, 4 in OD x 3.0 mm, 4.50 in OD x 10 SWG, 4.5 in OD x 0.25 in, 5 in OD x 10 SWG, 5 in OD x 0.25 in, 6 in OD x 10 SWG, 6 in OD x 0.25 in, 6.50 in OD x 0.25 in, 100 mm OD x 2 mm, 150 mm OD x 2 mm und 152 mm OD x 2.5 mm
